Halogen-Worklight - Ultra Beam - 12/24V

Hella Part no. A25-005727 Previously PT/997506021

Halogen-Worklight - Ultra Beam - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£23.81 ex VAT
£28.57 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
IP rating
IP59K

About this halogen work light

Halogen-Worklight - Ultra Beam - 12/24V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP59K. Mounting: mounting / bolted.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005727 (previously PT/997506021), and it replaces or is equivalent to 1GA 997 506-021, 1529601, 1934133, 1019026062.

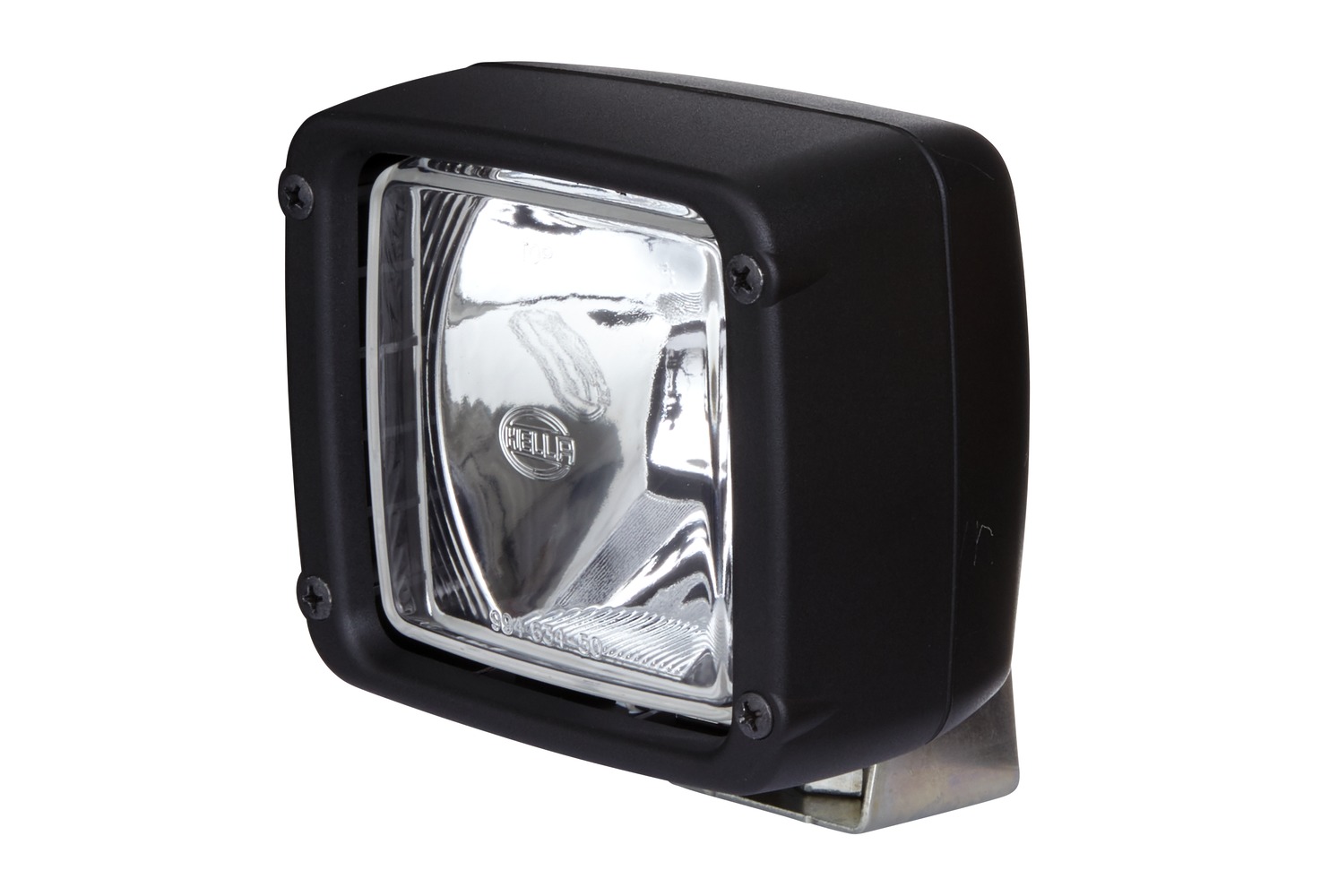

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.

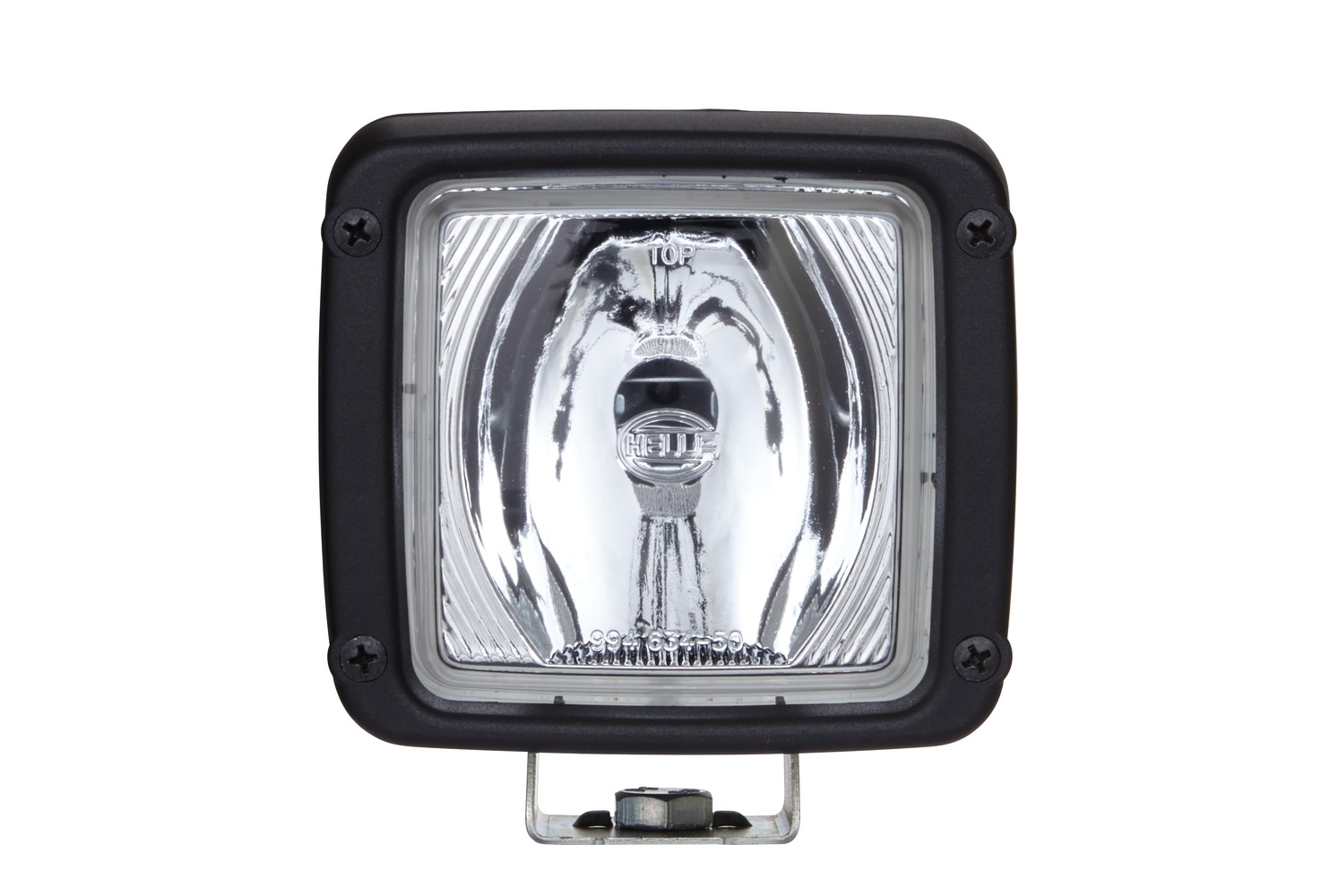

  • The aluminium reflector of the worklight is based on free-form technology.
  • Despite its compact dimensions, the reflector ensures excellent lighting performance. An H3 bulb is used as the light source.
  • The headlamp insert can be rotated. This makes the unit suitable for upright and suspended mounting.
  • The black lamp housing of this robust worklight consists of glass fibre reinforced plastic, which is acid-proof and corrosion-resistant.
  • The housing is provided with a protruding edge to protect the diffusing lens. Thanks to its compact dimensions, the worklight can be used universally.
  • Lamp Type: H3 - Power consumption: 70/55W
  • Clear diffusing lens

Specifications

Voltage12/24V
TechnologyHalogen
IP ratingIP59K
Mountingmounting / Bolted

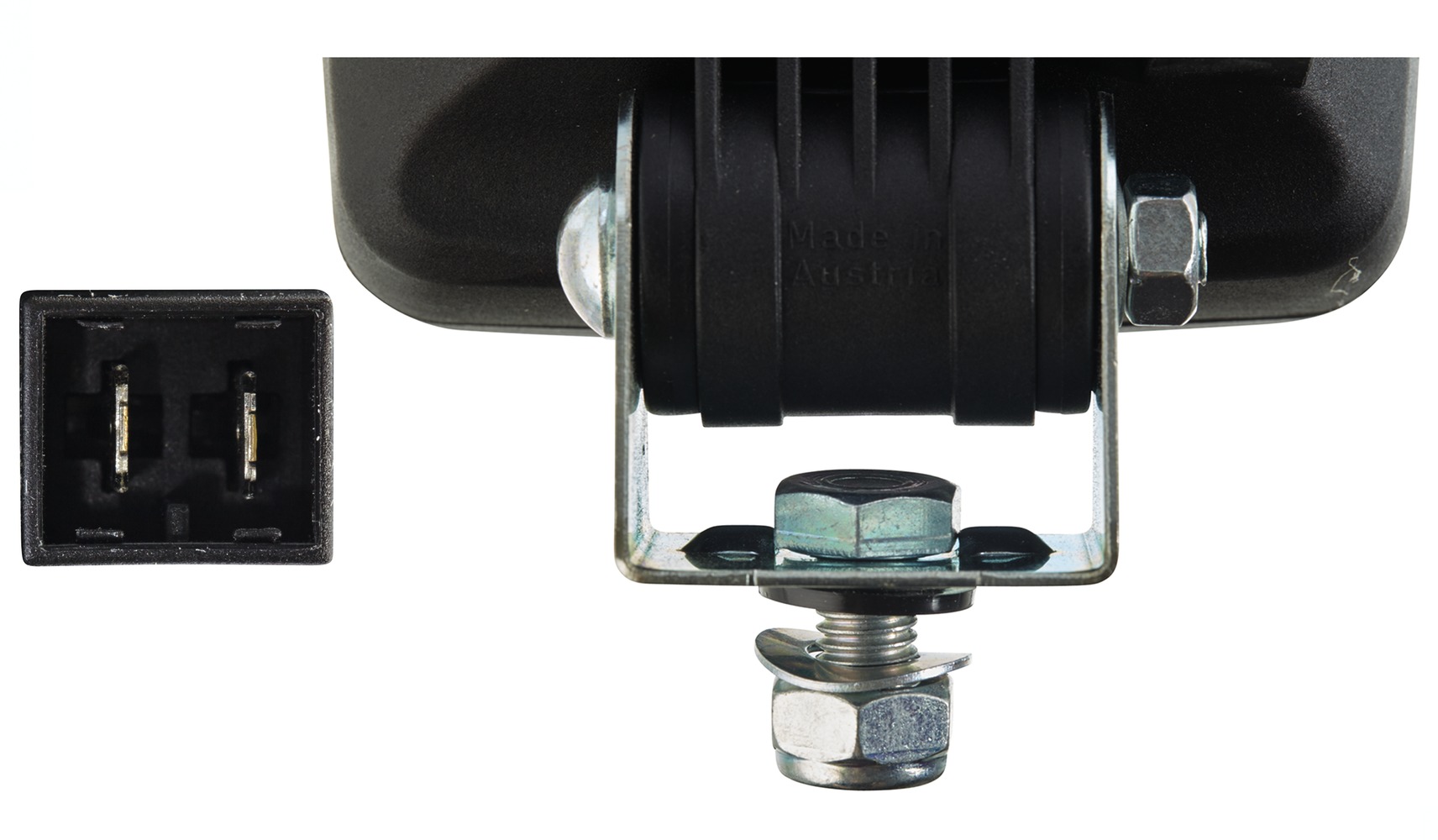

FasteningSwivelling Mounting Bracket
Bulb typeH3

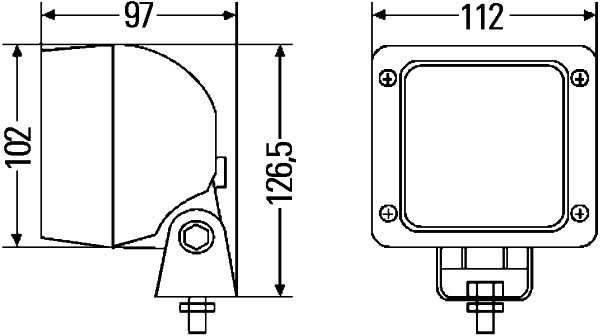

Height127 mm
Width112 mm
Depth97 mm
Light distributionLong-range illumination

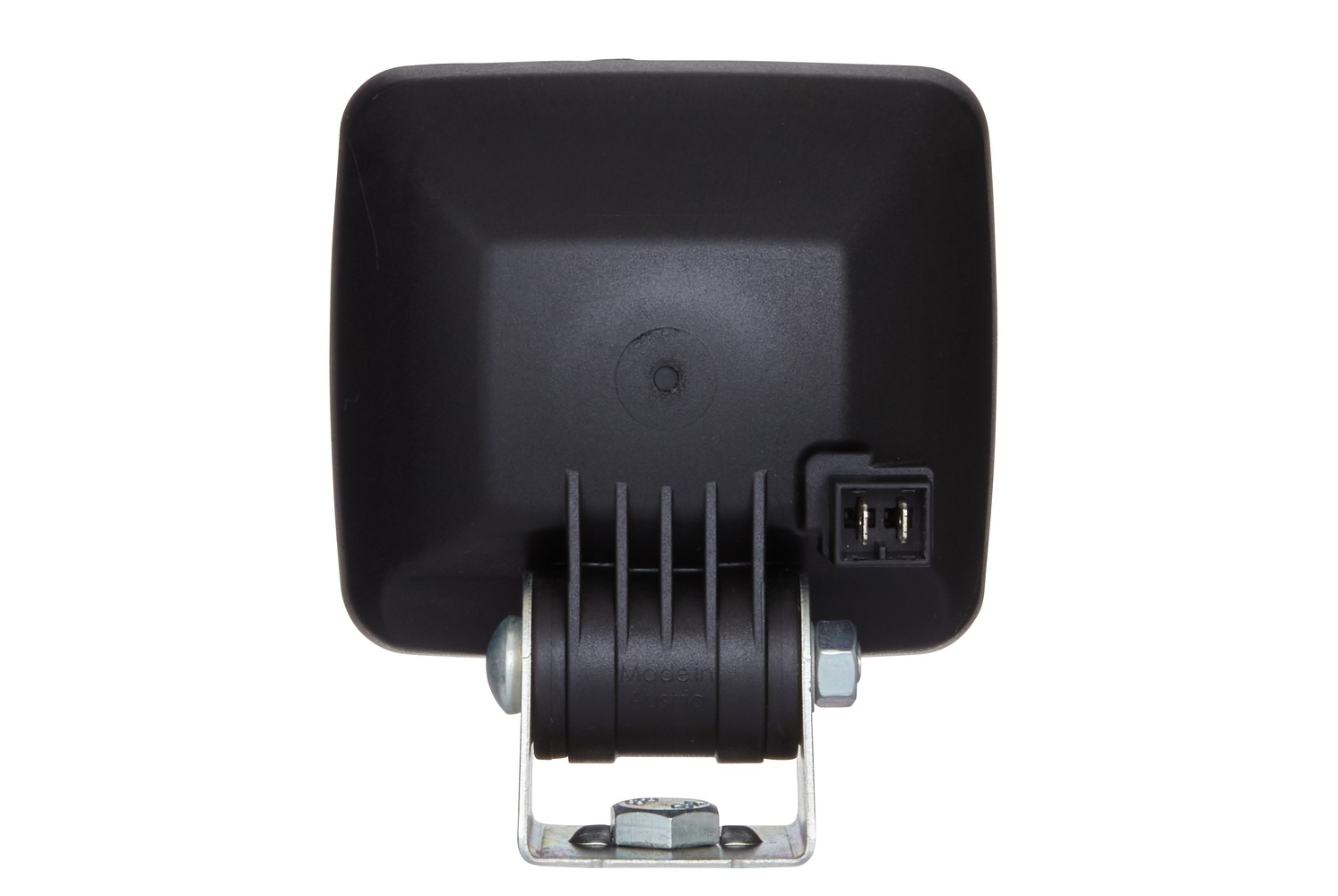

ConnectorAMP
Power consumption70 W / 55 W
Housing typeSynthetic Material Housing
Housing colourBlack
Diffusing lens materialPlastic
Diffusing lens typeClear diffusing lens
Weight574 g
Part numberA25-005727
BrandHella

Part numbers

Our part number for this item is A25-005727. It was previously listed as PT/997506021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1GA 997 506-021
  • 1529601
  • 1934133
  • 1019026062
