Halogen-Worklight - Oval 100 - 24/12V

Hella Part no. A25-005630 Previously PT/996361431

Halogen-Worklight - Oval 100 - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£24.31 ex VAT
£29.17 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
IP rating
IP54K

About this halogen work light

Halogen-Worklight - Oval 100 - 24/12V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP54K. Mounting: fitting / screw connection.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005630 (previously PT/996361431), and it replaces or is equivalent to 1GA 996 361-431, 51017429.

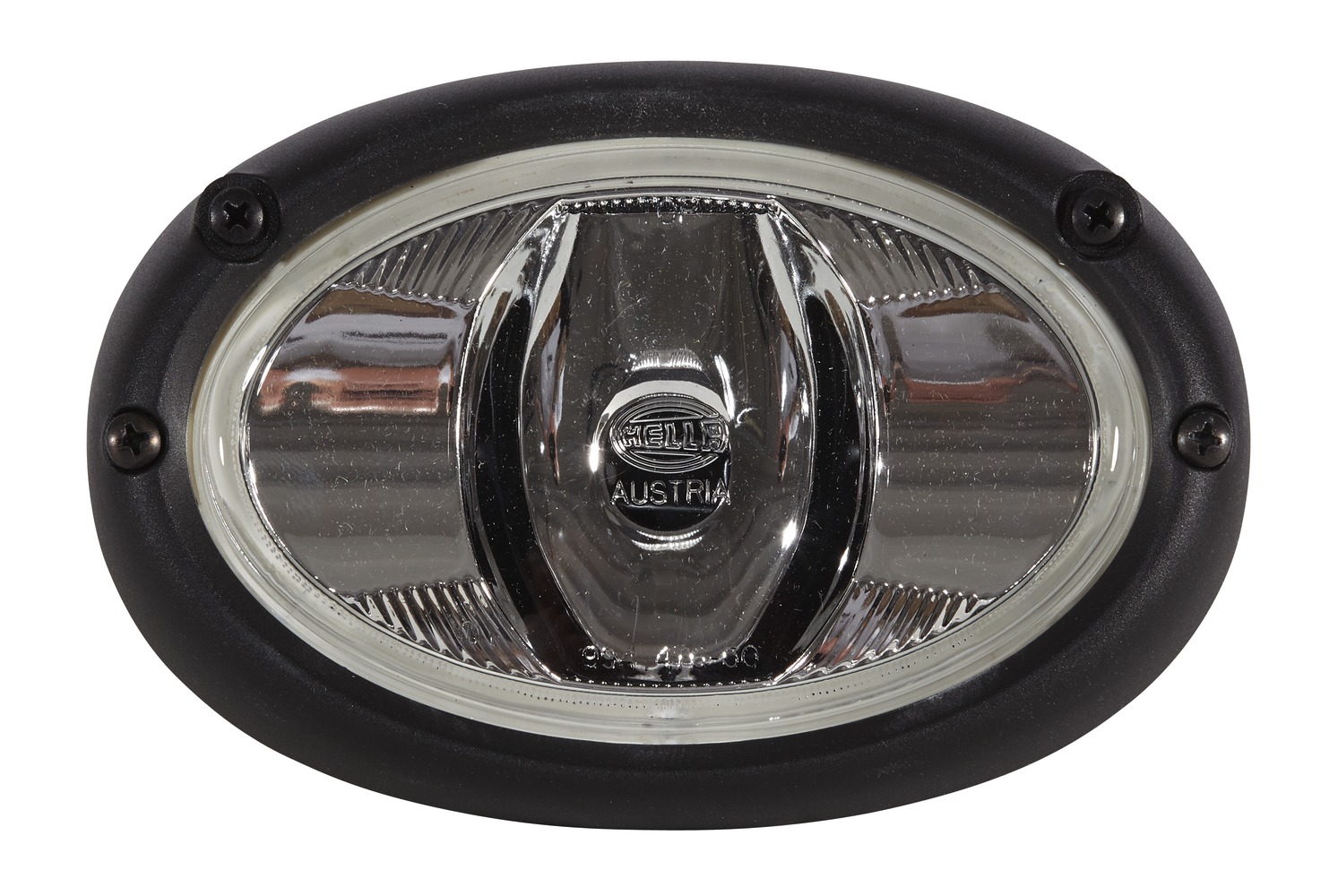

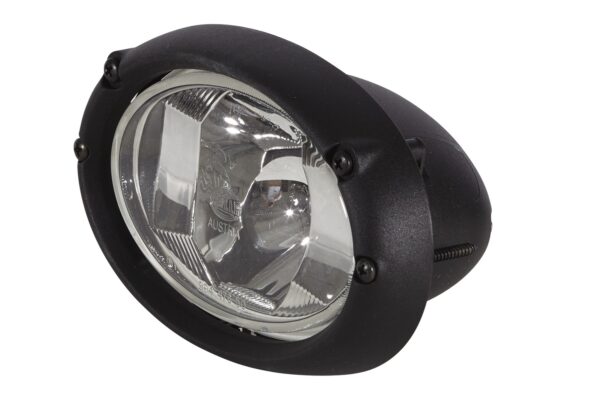

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.

  • Modern oval design
  • Robust and powerful halogen worklight with FF reflector
  • Acid and corrosion resistant, glass fibre reinforced plastic housing
  • Lamp Type: H3 - Power consumption: 70W
  • Clear diffusing lens
  • Prot.type (IP Code): IP5K4K
  • Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Polyamid 12

Specifications

Voltage12/24V
TechnologyHalogen
IP ratingIP54K
MountingFitting / Screw Connection
Fastening2-point attachment
Bulb typeH3
Height105 mm
Width165 mm
Depth74 mm
Light distributionLong-range illumination
ConnectorAMP
Power consumption70 W
Housing typeSynthetic Material Housing
Housing colourBlack
Diffusing lens materialPolyamid 12
Diffusing lens typeClear diffusing lens
Weight388 g
Part numberA25-005630
BrandHella

Part numbers

Our part number for this item is A25-005630. It was previously listed as PT/996361431, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1GA 996 361-431
  • 51017429
