Halogen-Worklight - Matador - 24/12V
5.0 Excellent, from 2 customer reviewsIn stock, 100 available
-
Dispatched within 1 working day
UK mainland delivery usually takes 2 to 3 working days - UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international
In stock
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- Halogen
- IP rating
- IP54K
About this halogen work light
Halogen-Worklight - Matador - 24/12V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP54K. Mounting: mounting / screw connection.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is PT/003470051, and it replaces or is equivalent to 1G4 003 470-051, V1C4415592AA, 20005239651, 5239651, 867445, 5709751 and 19 more.

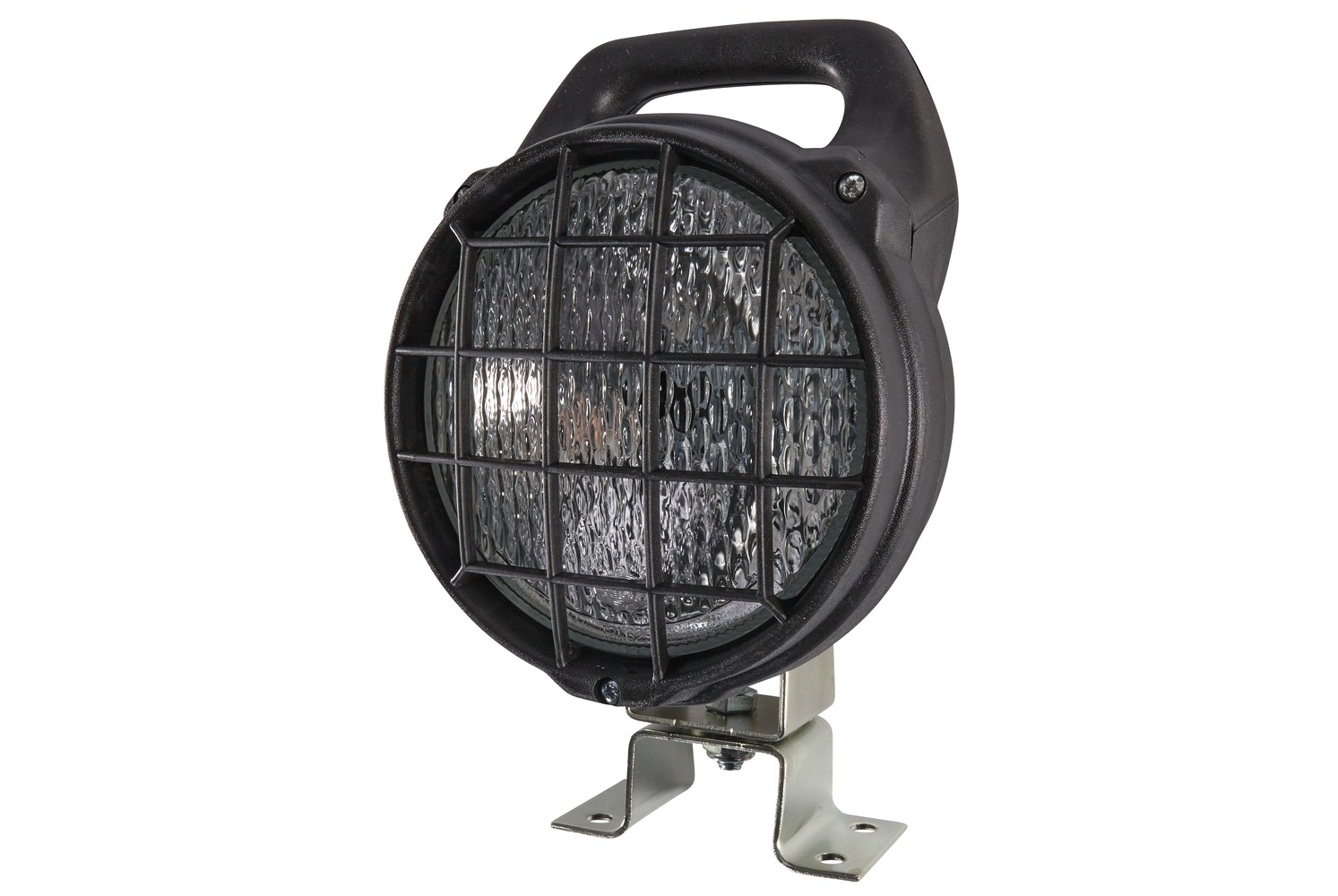

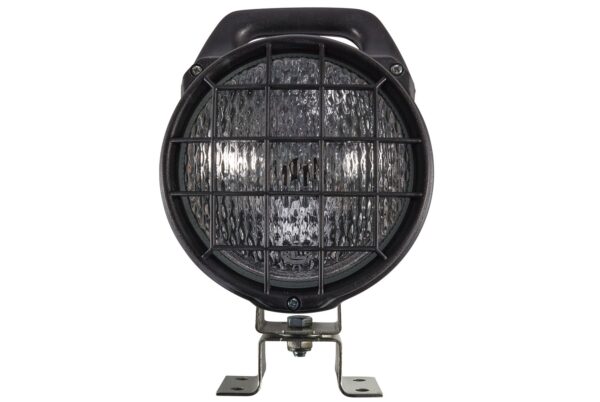

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.
- Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working area at close range.
- The black housing of this robust worklight consists of glass fibre reinforced plastic.
- To protect the diffusing lens, the housing is provided with a protruding edge at its front.
- Together with the swivel base, the handle simplifies the adjustment of the worklights, so that the working area can be optimally illuminated.

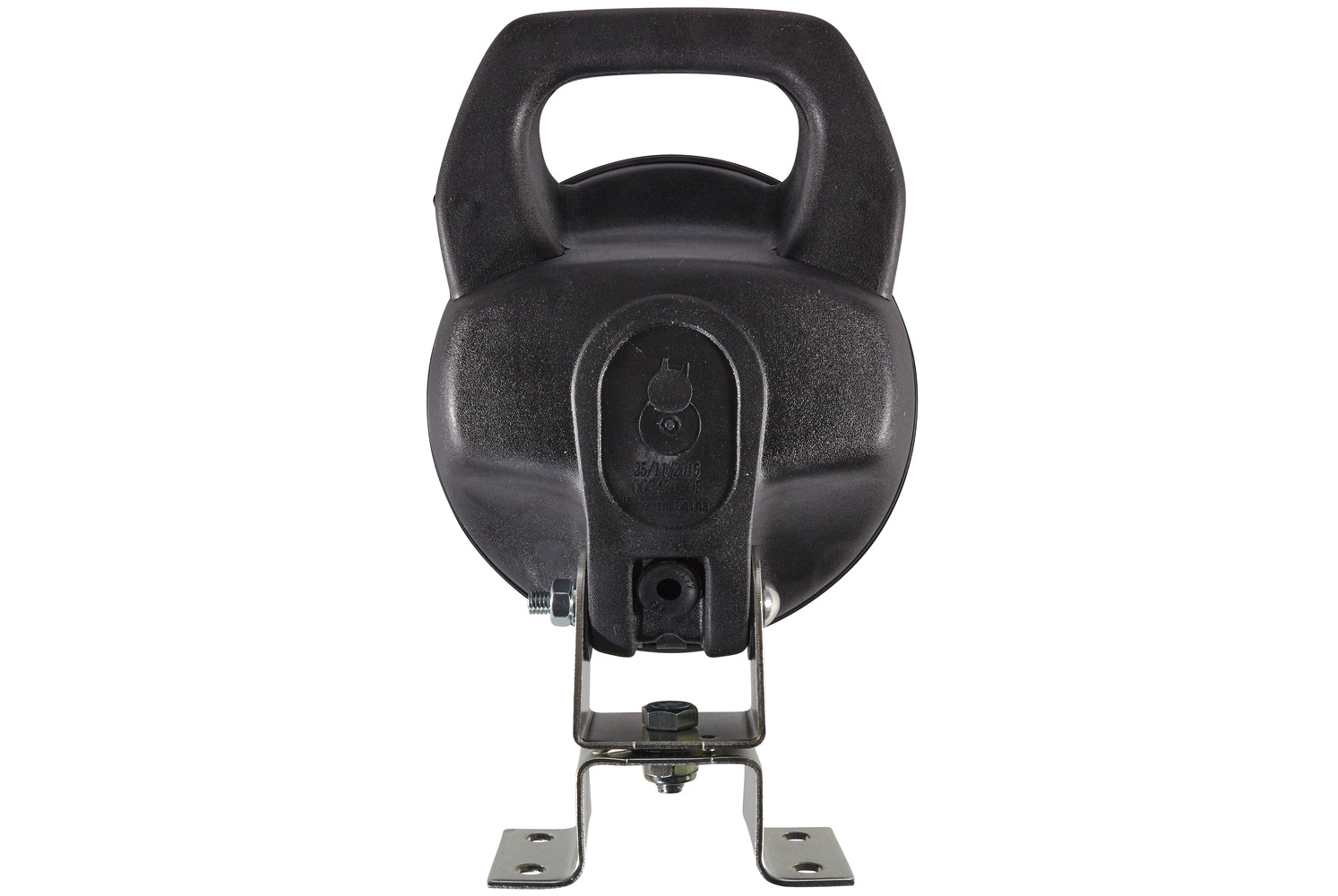

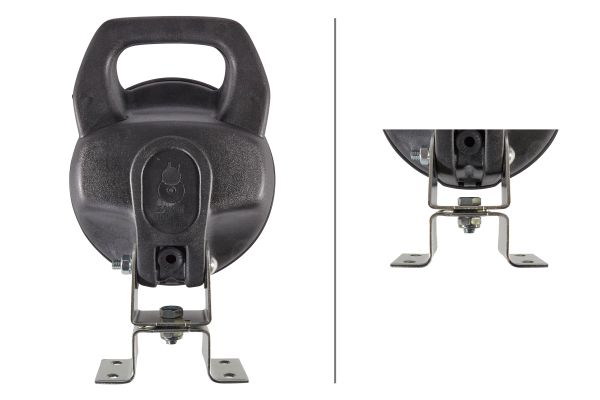

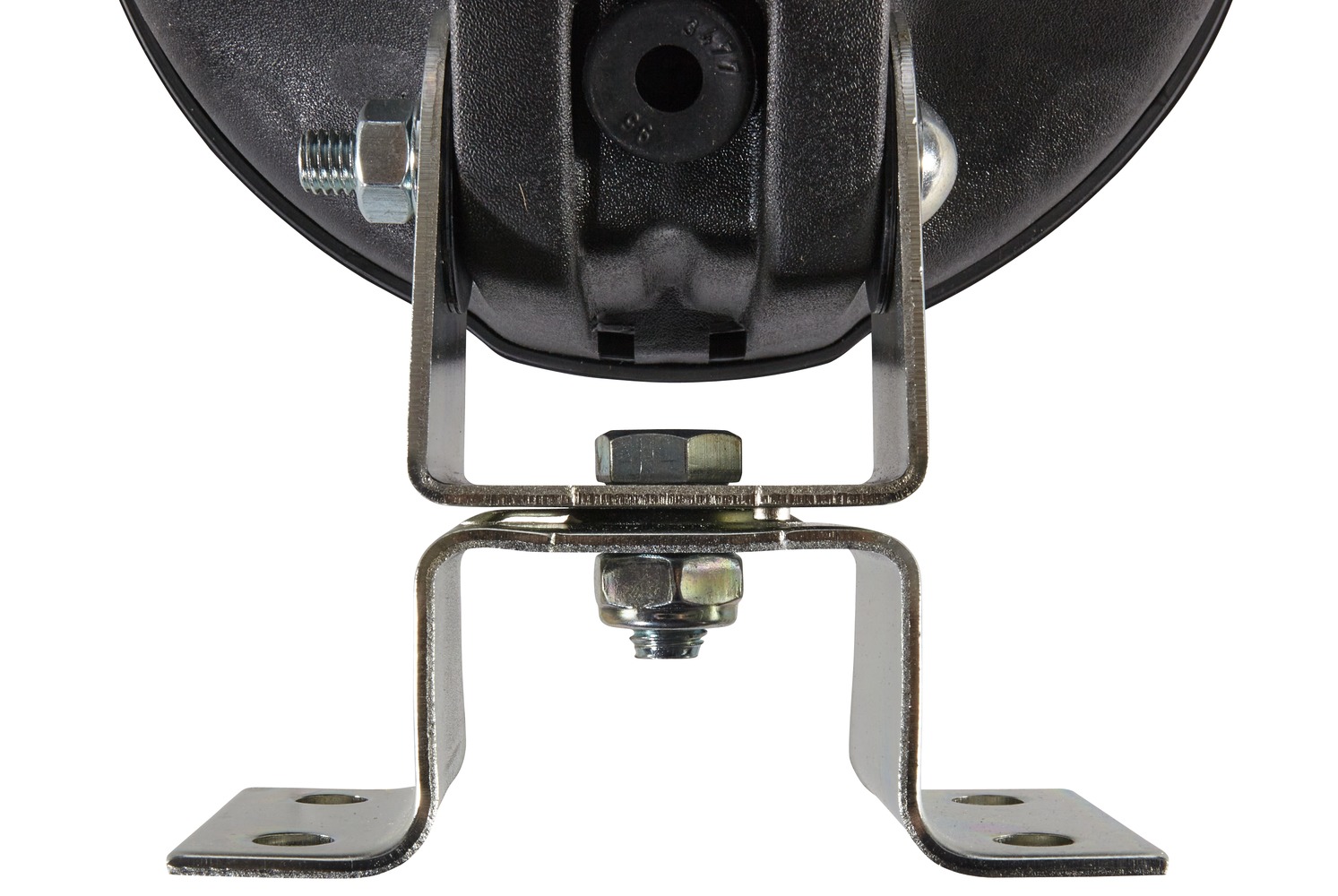

- The bracket enables a stable four-point mounting of the worklight.
- Lamp Type: H3 - Power consumption: 35/70W
- Patterned diffusing lens
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | Halogen |
| IP rating | IP54K |
| Mounting | mounting / Screw Connection |
| Fastening | Four-point attachment |
| Bulb type | H3 |
| Height | 263 mm |
| Width | 168 mm |
| Depth | 126 mm |
| Light distribution | Short distance lighting |
| Connector | open cable ends |
| Power consumption | 35 W / 70 W |
| Housing type | Synthetic Material Housing |
| Housing colour | Black |
| Diffusing lens material | Glass |
| Diffusing lens type | Patterned diffusing lens |
| Weight | 983 g |
| Part number | PT/003470051 |
| Brand | Hella |
Part numbers
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1G4 003 470-051
- V1C4415592AA
- 20005239651
- 5239651
- 867445
- 5709751
- 1740048
- 3369718R91
- 76553303
- 1206776
- 5W2681
- 607114208
- 6000776
- 607105705
- 870693
- 20038248
- 2260031
- 46128540
- 5350658670
- 94746128540
- 520163
- 1084172
- 80372
- 225503
- 11339
