Halogen-Worklight - Matador - 12/24V

Hella Part no. A25-000611 Previously PT/003470031

Halogen-Worklight - Matador - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£36.42 ex VAT
£43.70 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
IP rating
IP54K

About this halogen work light

Halogen-Worklight - Matador - 12/24V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP54K. Mounting: screw connection / mounting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000611 (previously PT/003470031), and it replaces or is equivalent to 1G4 003 470-031, KDWHLO9430, 4825702, 5315511, 5C4613N4299AA, 5C4613N429AA and 44 more.

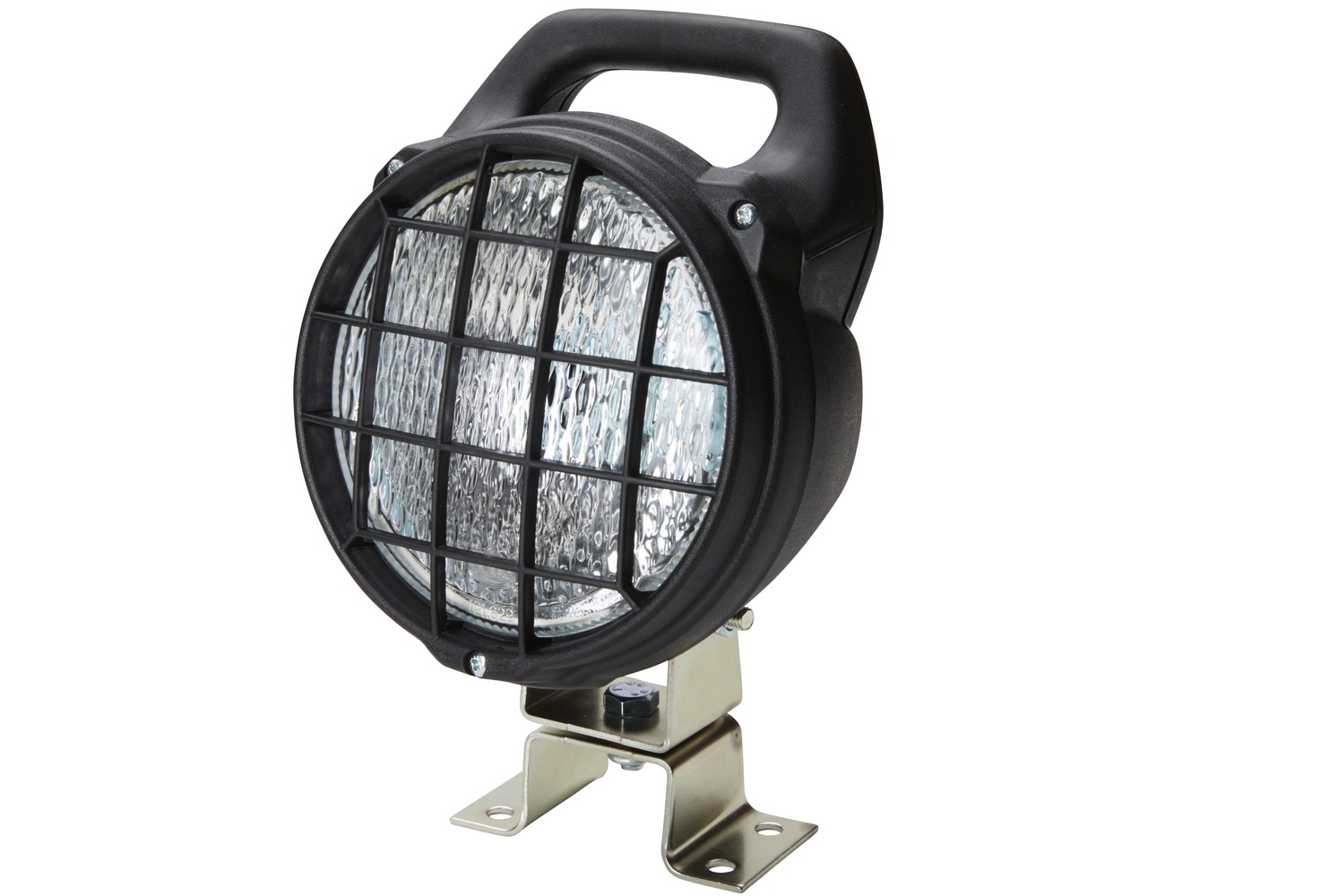

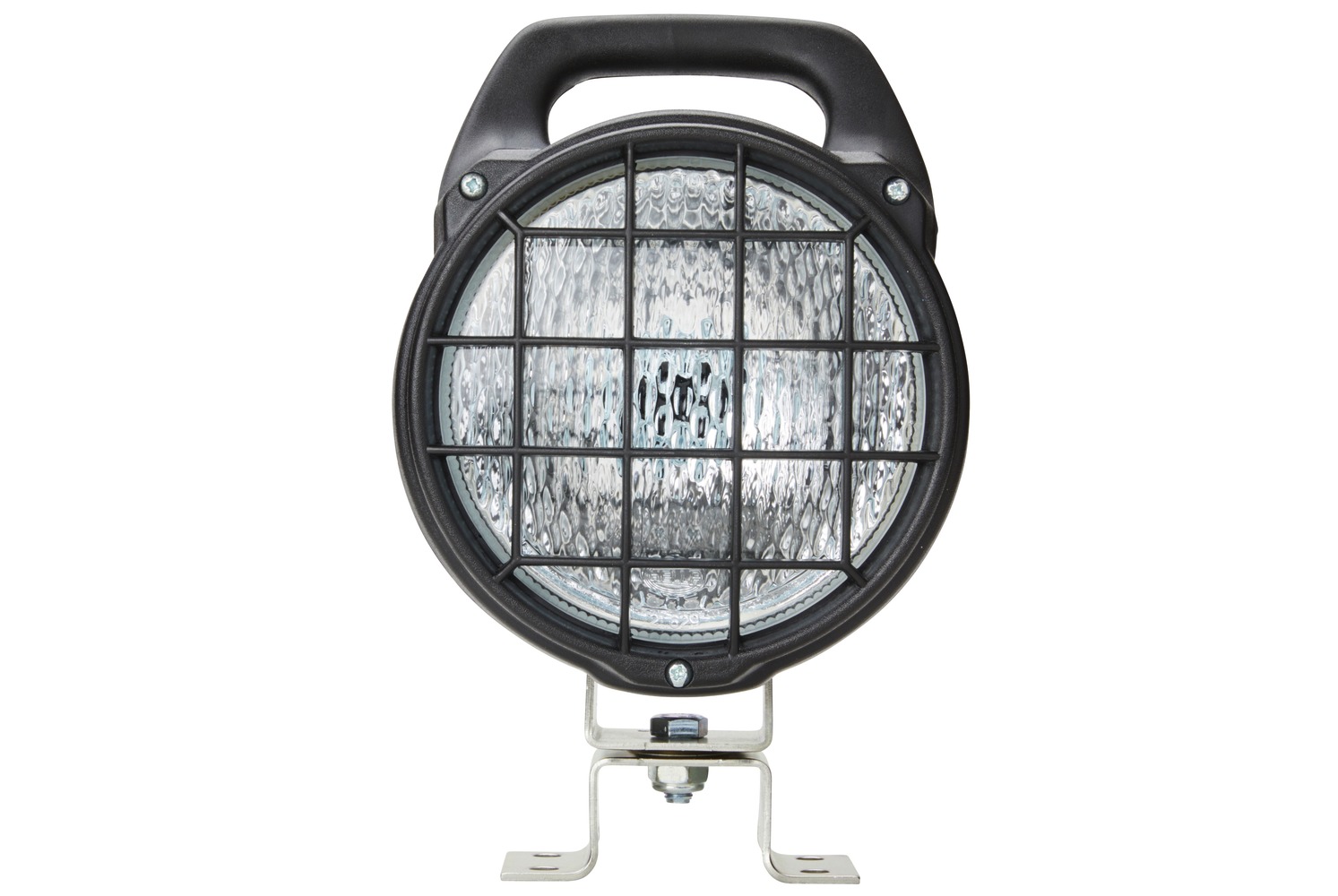

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.

  • Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working area at close range.
  • The black housing of this robust worklight consists of glass fibre reinforced plastic.
  • To protect the diffusing lens, the housing is provided with a protruding edge at its front.
  • Together with the swivel base, the handle simplifies the adjustment of the worklights, so that the working area can be optimally illuminated.

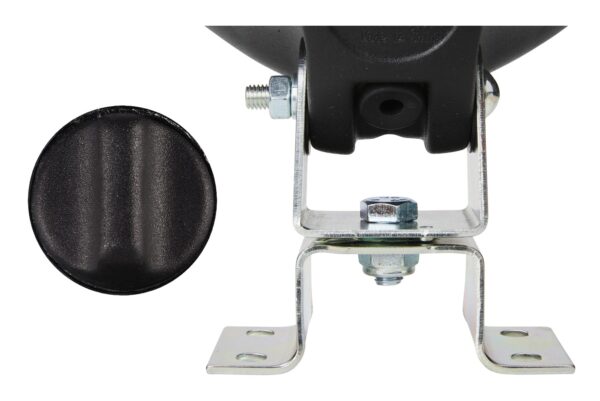

  • The bracket enables a stable four-point mounting of the worklight.
  • Lamp Type: H3 - Power consumption: 35/70W
  • Patterned diffusing lens

Specifications

Voltage12/24V
TechnologyHalogen
IP ratingIP54K
MountingScrew Connection / mounting
FasteningFour-point attachment
Bulb typeH3

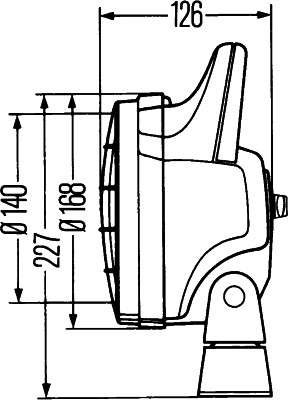

Height263 mm
Width168 mm
Depth126 mm
Light distributionShort distance lighting
Connectoropen cable ends
Power consumption35 W / 70 W
Housing typeSynthetic Material Housing
Housing colourBlack
Diffusing lens materialGlass
Diffusing lens typePatterned diffusing lens
Weight984 g
Part numberA25-000611
BrandHella

Part numbers

Our part number for this item is A25-000611. It was previously listed as PT/003470031, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1G4 003 470-031
  • KDWHLO9430
  • 4825702
  • 5315511
  • 5C4613N4299AA
  • 5C4613N429AA
  • V1C4415592AA
  • 1341734
  • 273336
  • 867386
  • 81251036033
  • ZF251036033
  • 1934127
  • 20223815
  • 10704399
  • L000008711
  • 1020401035
  • WZ2601102
  • 2601102
  • 32483940
  • 1089208R91
  • 1133292R1
  • 519137
  • 622030
  • 80077799
  • 826850
  • 607138808
  • 53012
  • 1786294
  • 36417
  • FE0014
  • 90194473
  • 1084173
  • 1185972
  • 2433904
  • 15834
  • 1055439
  • 2800726001
  • 77799
  • 7101
  • 50153283
  • 25416
  • 58041550
  • 3491
  • 65255007
  • B241100000067
  • FM8112640
  • A0004825702
  • A0005315511
  • A5315511
