Halogen-Worklight - Master 5060 - 12/24V

Hella Part no. A25-000742 Previously PT/005060001

Halogen-Worklight - Master 5060 - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£19.89 ex VAT
£23.87 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
IP rating
IP54K

About this halogen work light

Halogen-Worklight - Master 5060 - 12/24V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP54K. Mounting: mounting / bolted.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000742 (previously PT/005060001), and it replaces or is equivalent to 1GA 005 060-001, 5323004, 5440947, 1359959, 41635108, 8125060001H and 69 more.

Flexible and corrosion-free for homogeneous illumination. Lighting technology: Together with specially developed lens optics, the parabolic reflector allows homogenous close-range lighting of the working area, or long-range illumination. An H3 bulb is used as the light source (not included with the worklight) allowing the worklight to be used with both 12V and 24V vehicle electrical systems. Design: The black housing of this sturdy worklight is made of glassfibre reinforced, acid and corrosion-resistant plastic. To protect the lens, the housing has a raised edge at the front. The extremely compact dimensions allow a great deal of flexibility in the choice of mounting position. The Master is suitable both for upright and pendant mounting by rotating the reflector insert. Sealing of the cable duct is carried out via a grommet.

  • Together with a specially developed diffuser optic, the parabolic reflector enables homogeneous illumination of the working area at close or long-range.
  • The black housing of this robust worklight is made of glass fibre reinforced, acid and corrosion resistant plastic.
  • To protect the diffusing lens, the housing is provided with a protruding edge at its front.
  • The extremely compact dimensions allow a high degree of flexibility when choosing the mounting position.
  • By turning the reflector insert, the master is suitable for both upright and suspended mounting.
  • Lamp Type: H3 - Power consumption: 35/70W
  • Patterned diffusing lens

Specifications

Voltage12/24V
TechnologyHalogen
IP ratingIP54K
Mountingmounting / Bolted
FasteningVertical / Suspended
Bulb typeH3

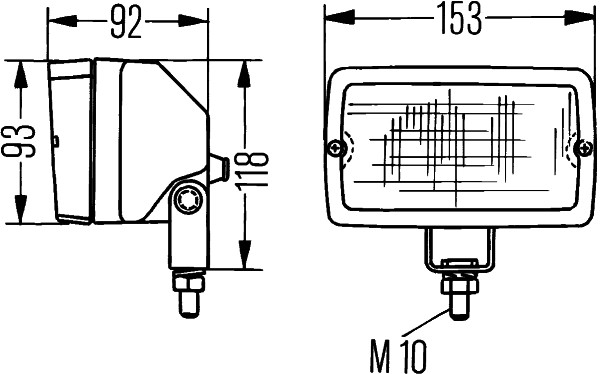

Height118 mm
Width153 mm
Depth92 mm
Light distributionLong-range illumination
ConnectorBlade Terminal
Power consumption35 W / 70 W
Housing typeSynthetic Material Housing
Housing colourBlack
Diffusing lens materialGlass
Diffusing lens typePatterned diffusing lens
Weight560 g
Part numberA25-000742
BrandHella

Part numbers

Our part number for this item is A25-000742. It was previously listed as PT/005060001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1GA 005 060-001
  • 5323004
  • 5440947
  • 1359959
  • 41635108
  • 8125060001H
  • 1906626
  • 1503060001
  • 1503148300
  • 11159831
  • 53400076
  • 5231056
  • ES0028
  • 460000280000
  • AL75393
  • ZZ10006
  • 912000077826
  • 4220512M91
  • 42306H2140
  • 3105630M1
  • 3387863M91
  • 1960077
  • 512125
  • 4645
  • 622036
  • 76553510
  • 76553705
  • 552903716929001
  • S01121270002
  • N750000506001
  • 3000242
  • 920019495
  • 6000804
  • 1744761
  • 5350661210
  • 63424440
  • 32851
  • 7939863
  • 525016
  • 9740412
  • 4012842
  • 4407656
  • 90321928
  • 56513
  • 612791
  • 1960077X
  • 23523
  • 400213
  • 2801160001
  • LSX0311555
  • 1014493
  • 899800
  • 50120411
  • 505806987
  • 58069870
  • 1297700696
  • 5861
  • 141205700
  • 404122
  • 30009008
  • FM8112587
  • 9795
  • 7788677
  • 10001010
  • 181574
  • 8040796
  • A0005323004
  • A0005440947
  • A5323004
  • 842401085
  • 45084700
  • 407241
  • E400018
  • 30W00910
  • 17215917400

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £11.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
