Halogen-Worklight - 24/12V

Hella Part no. A25-000697 Previously PT/004490001

Halogen-Worklight - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£63.10 ex VAT
£75.72 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
IP rating
IP54K

About this halogen work light

Halogen-Worklight - 24/12V is a Hella halogen work light for 12/24V electrical systems. The light source is Halogen, the housing is sealed to IP54K. Mounting: screw connection / mounting.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000697 (previously PT/004490001), and it replaces or is equivalent to 1GD 004 490-001, KDWHLO9459, 74074590, 56219, 4195053A, 3515155038 and 11 more.

HELLA worklights. For more safety and comfort. Night-time work operations, whether shunting manoeuvres, loading work or night-time field work, have one thing in common: You need optimal illumination of the working area. And good illumination needs good headlights! Because only in this way is concentrated work with an efficient work result possible. No problem with HELLA worklights! Thanks to our many years of experience, these produce the appropriate illumination of the work area for every area of application. Whether in agriculture, for trucks or trailers: With HELLA worklights, every move is perfect, even in the dark.

  • H3 worklight for surface / bracket mounting - honeycomb optics for close-range illumination
  • Black plastic housing, with handle and splash-proof switch

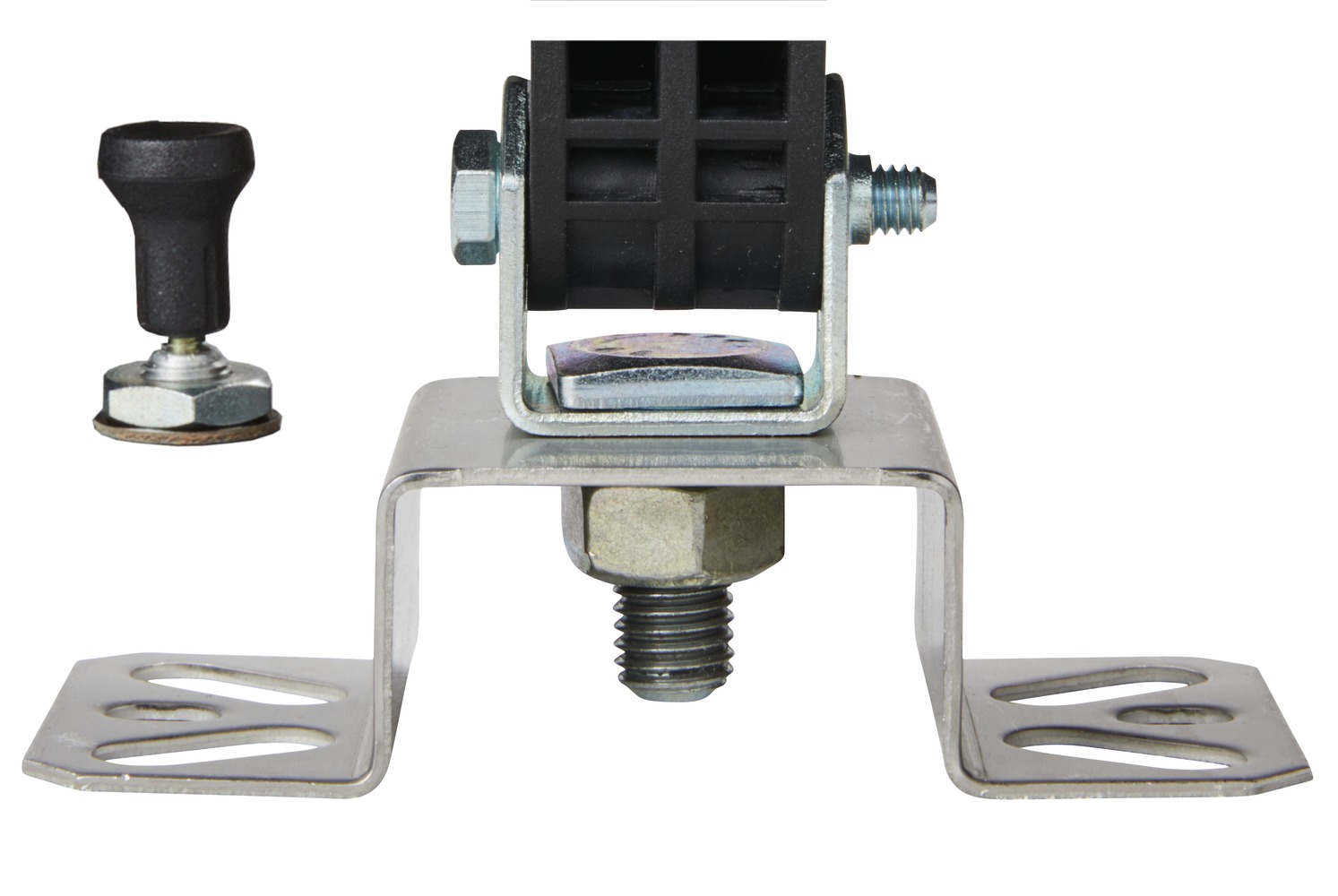

  • Lamp type: H3, without bulbs, with mounting bracket for four-point attachment
  • Lamp Type: H3 - Power consumption: 35/70W
  • Patterned diffusing lens
  • Prot.type (IP Code): IP5K4K
  • Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Glass

Specifications

Voltage12/24V
TechnologyHalogen
IP ratingIP54K
MountingScrew Connection / mounting
FasteningFour-point attachment
Bulb typeH3
Height200 mm
Width174 mm
Depth74 mm

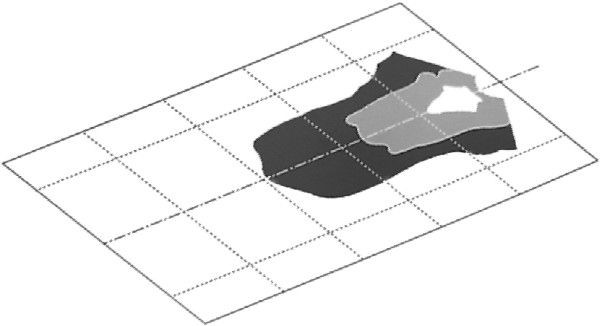

Light distributionShort distance lighting
ConnectorBlade Terminal
Power consumption35 W / 70 W
Housing typeSynthetic Material Housing
Housing colourBlack
Diffusing lens materialGlass
Diffusing lens typePatterned diffusing lens
Weight672 g
Part numberA25-000697
BrandHella

Part numbers

Our part number for this item is A25-000697. It was previously listed as PT/004490001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1GD 004 490-001
  • KDWHLO9459
  • 74074590
  • 56219
  • 4195053A
  • 3515155038
  • 39906
  • 4407530
  • 66401
  • LSX0311001
  • 3831
  • 505807627
  • 58076270
  • 5800032
  • 9740413
  • 3811
  • 128625

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery is free for this item, as it is on every order over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
