LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - yellow (amber)

Hella Part no. A25-002774 Previously PT/012980021

LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - yellow (amber)

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£158.96 ex VAT
£190.75 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Amber, Clear
Light functions
Warning beacon
IP rating
IP67, IP69K

About this tractor beacon

LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - yellow (amber) is a Hella tractor beacon for 12/24V electrical systems. The light source is LED, the lens is amber, clear, the housing is sealed to IP67, IP69K. Light functions: warning beacon. Mounting: magnet mount / mounting. It carries R65 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-002774 (previously PT/012980021), and it replaces or is equivalent to 2XD 012 980-021, 1541965, 253878, 8069145, V9905031, TW30202.

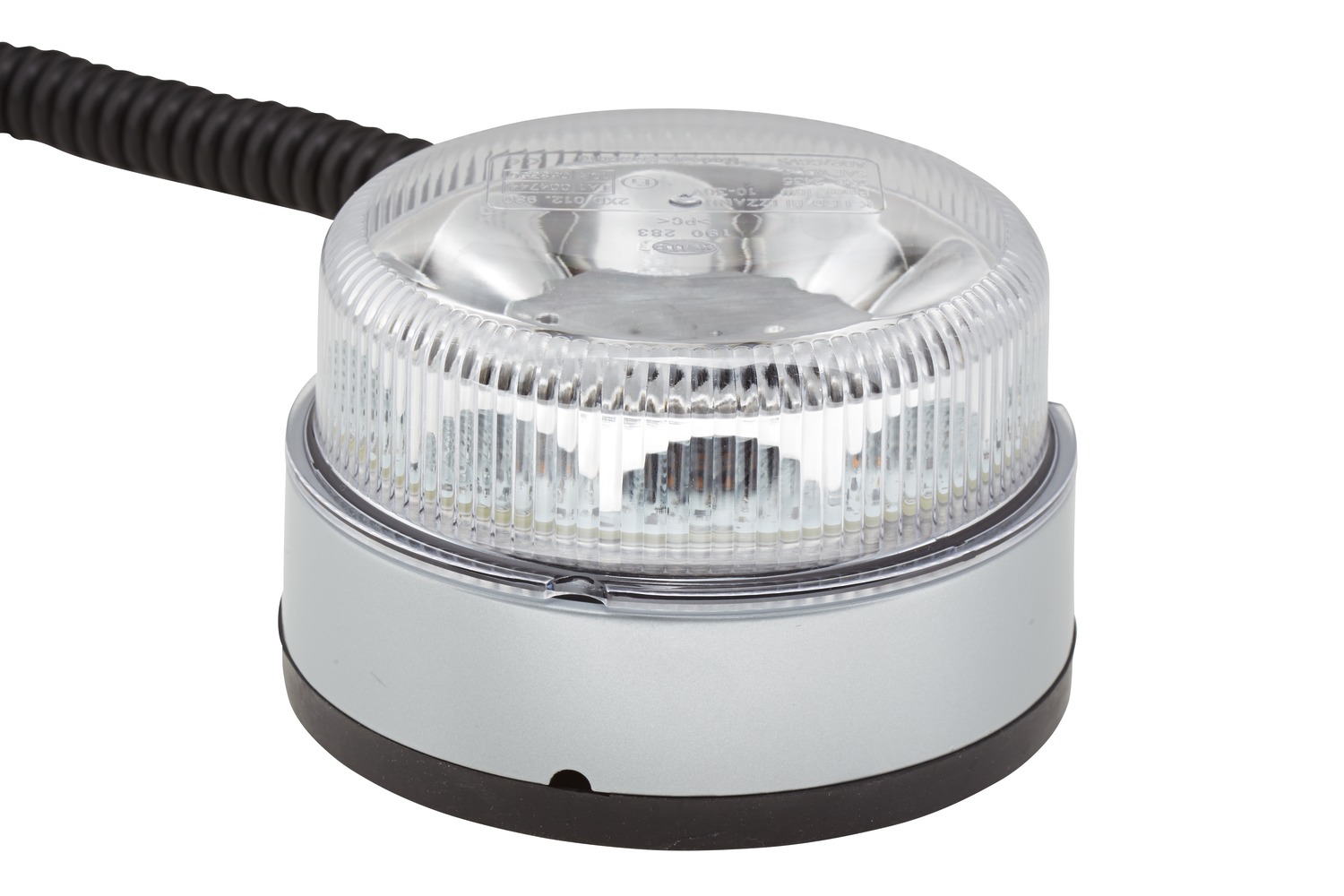

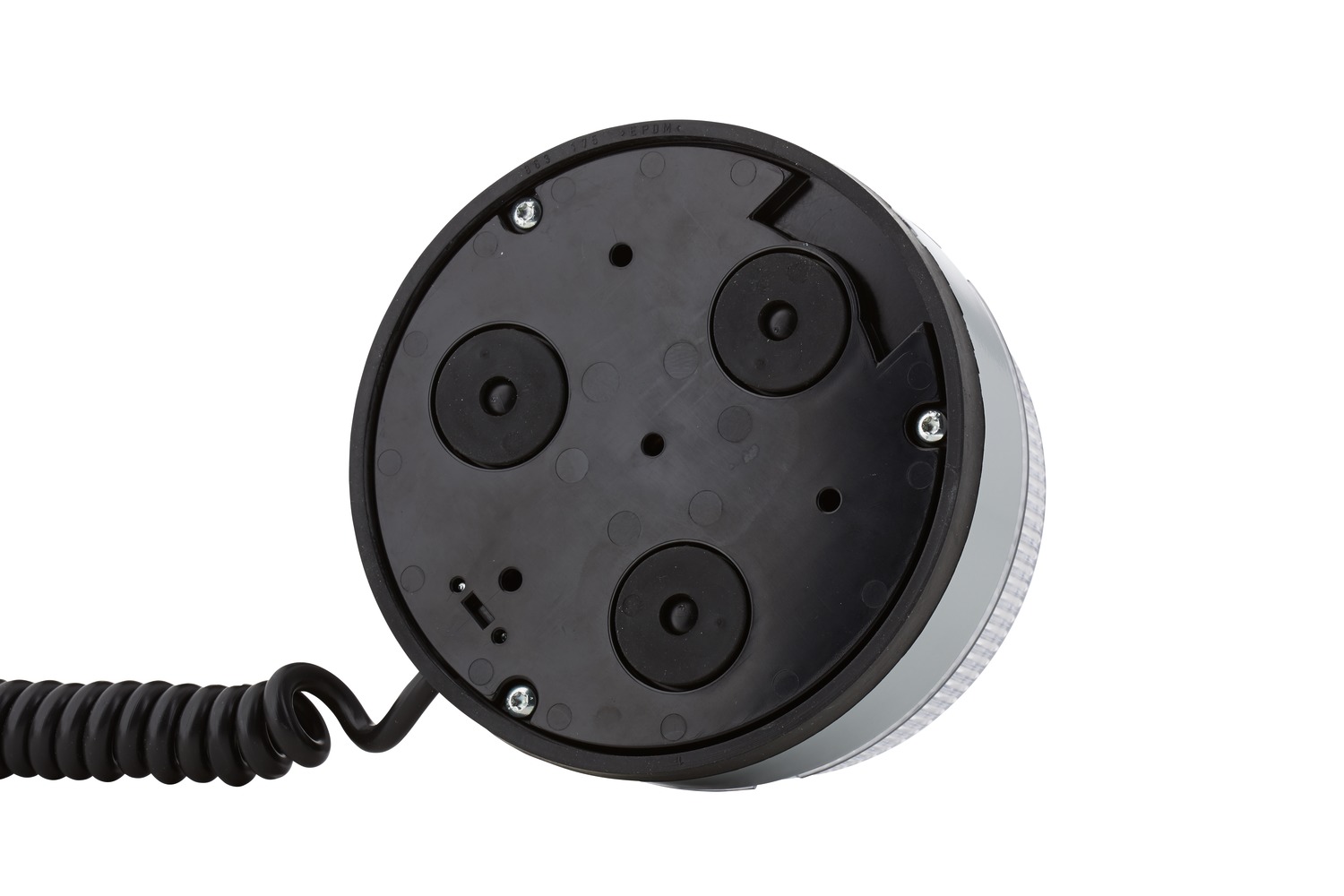

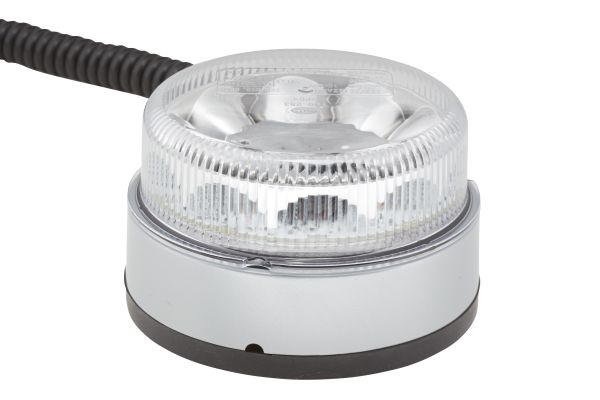

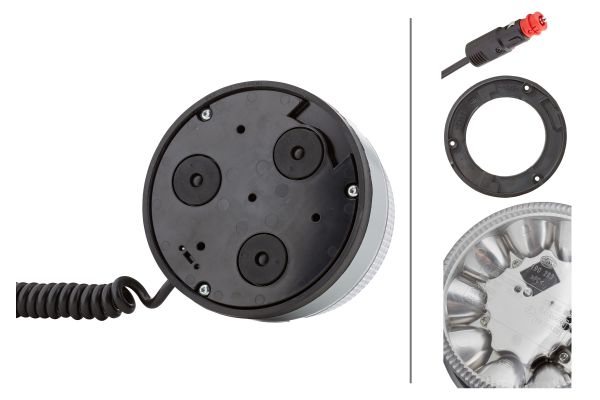

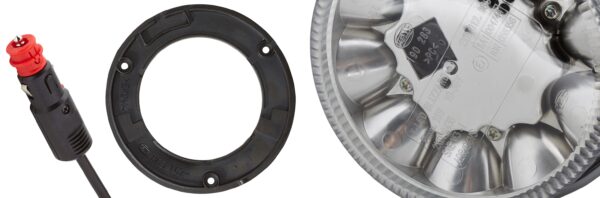

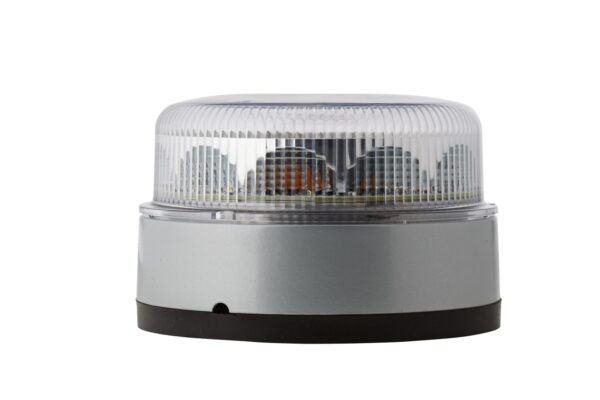

The K-LED Blizzard beacon generates an intensely perceptible double flash signal that provides an attention-grabbing 360° warning effect. The beacon can be connected to an operating voltage of 10-30 V and has an impact-resistant polycarbonate light cover. Depending on the design, the height is approx. 88 mm (F) to 132 mm (FL). The housing is passivated and then coated with powder paint, which provides a high level of protection against aggressive media such as salts and alkalis. The K-LED Blizzard meets the requirements of IP67 and IP9K and is therefore dust-tight as well as resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The K-LED Blizzard is the successor of the beacon series K-LED FO and makes a 1:1 exchange to the new version possible.

  • The K-LED Blizzard with flashing light function is the successor of the popular and widely used K-LED FO. These are 1:1 interchangeable
  • The new generation combines the popular design of its predecessor with the latest LED technology
  • In addition to the function control, this beacon is equipped with the possibility to synchronise up to 4 beacons with each other
  • The beacon is dustproof and resistant to high-pressure cleaners to IP 6K7 and IP 6K9K
  • Lamp Type: LED - Number of LEDs: 10 - Power consumption: 16W
  • With flashing warning signal - Lens Colour: Crystal clear - LED colour: Yellow
  • Registration Type: ADR/GGVS/SAE - fulfils ECE norm: R10/R65 - Prot.type (IP Code): IP6K7/IP6K9K

Specifications

Voltage12/24V
TechnologyLED
Lens colourAmber, Clear
Light functionsWarning beacon
IP ratingIP67, IP69K
MountingMagnet Mount / mounting
Bulb typeLED
Outer diameter149 mm
Height95 mm
Number of LEDs10
ConnectorDIN ISO 4165
ECE approvalR65 / R10
Housing coloursilver
Flash rate per minute121
Power consumption16 W
Housing materialAluminium
Temperature range from-40 °C
Temperature range to+60 °C
Weight1155 g
Cable600 mm
Diffusing lens materialPC (Polycarbonate)
Permissible max. speed120 km / h
Reverse polarity protectionYes
Led colouryellow
Weight1.12 kg
Part numberA25-002774
BrandHella

Part numbers

Our part number for this item is A25-002774. It was previously listed as PT/012980021, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2XD 012 980-021
  • 1541965
  • 253878
  • 8069145
  • V9905031
  • TW30202
