Halogen-Rotating Beacon - KL Rotaflex - 12V - yellow (amber)

Hella Part no. A25-000869 Previously PT/006846001

Halogen-Rotating Beacon - KL Rotaflex - 12V - yellow (amber)

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£66.91 ex VAT
£80.29 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12V
Technology
Halogen
Lens colour
Amber
Light functions
Warning beacon
IP rating
IP54K

About this tractor beacon

Halogen-Rotating Beacon - KL Rotaflex - 12V - yellow (amber) is a Hella tractor beacon for 12V electrical systems. The light source is Halogen, the lens is amber, the housing is sealed to IP54K. Light functions: warning beacon. Mounting: pipe-neck. It carries R65 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000869 (previously PT/006846001), and it replaces or is equivalent to 2RL 006 846-001, 28012453, 1358779, 75214250000, 1906685, 438184240 and 40 more.

The KL Rotaflex / Rotafix is a compact and robust rotating beacon. It is characterised by very good light values, an impact-resistant light bonnet and extremely high vibration insensitivity.

  • Halogen rotating beacon
  • Generates a rotating warning signal by means of a highly polished parabolic reflector and incandescent lamp
  • Protected against dust and splash water
  • Lamp Type: H1 - Power consumption: 55W
  • With rotating warning signal - Lens Colour: yellow (amber)
  • fulfils ECE norm: R65/R10 - Prot.type (IP Code): IPX9K/IP5K4K
  • Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)

Specifications

Voltage12V
TechnologyHalogen
Lens colourAmber
Light functionsWarning beacon
IP ratingIP54K

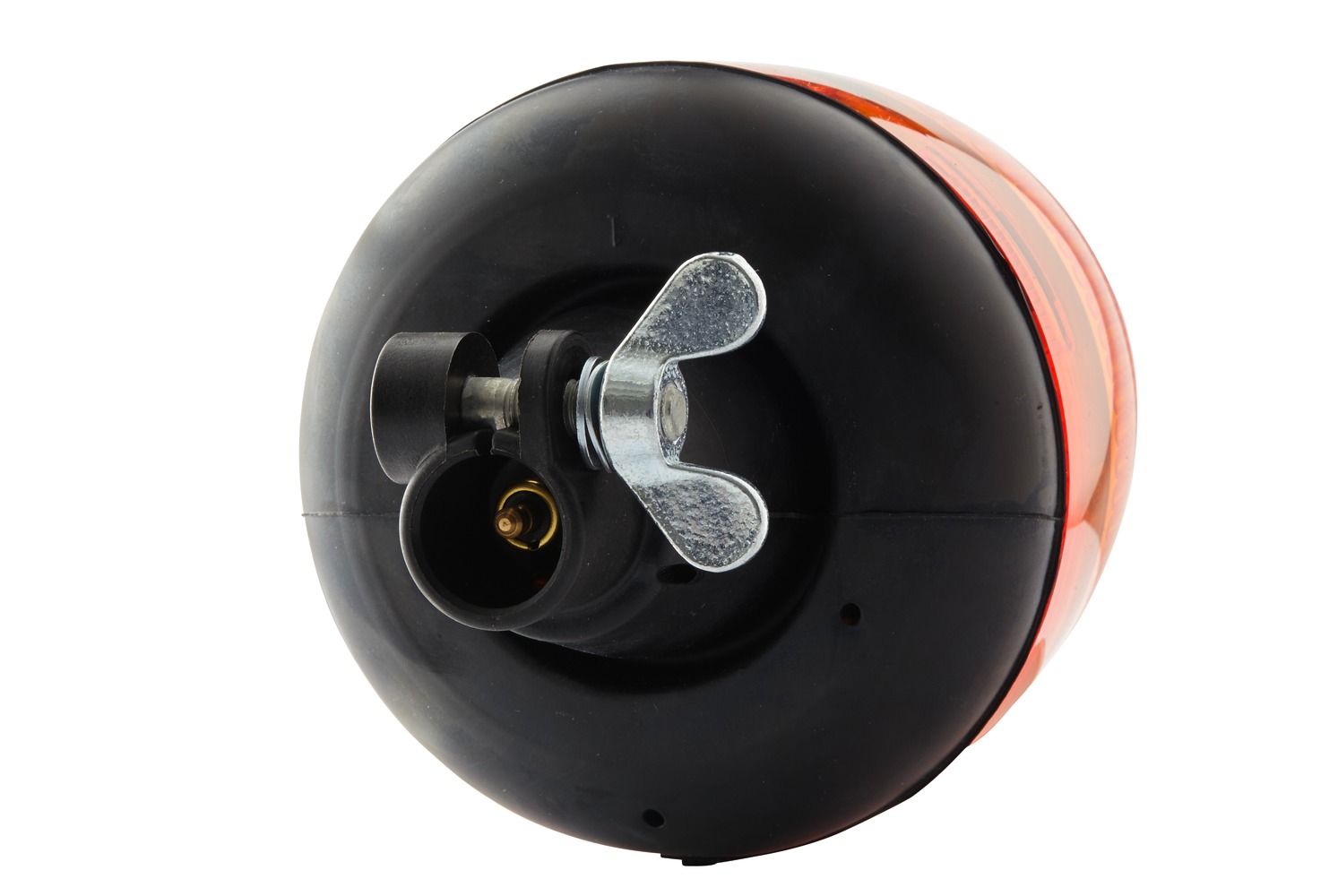

MountingPipe-neck

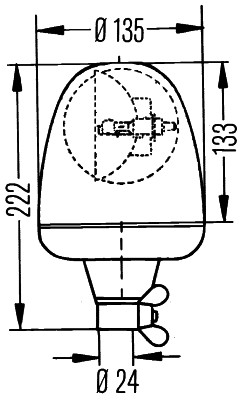

Height222 mm
Outer diameter135 mm
Bulb typeH1

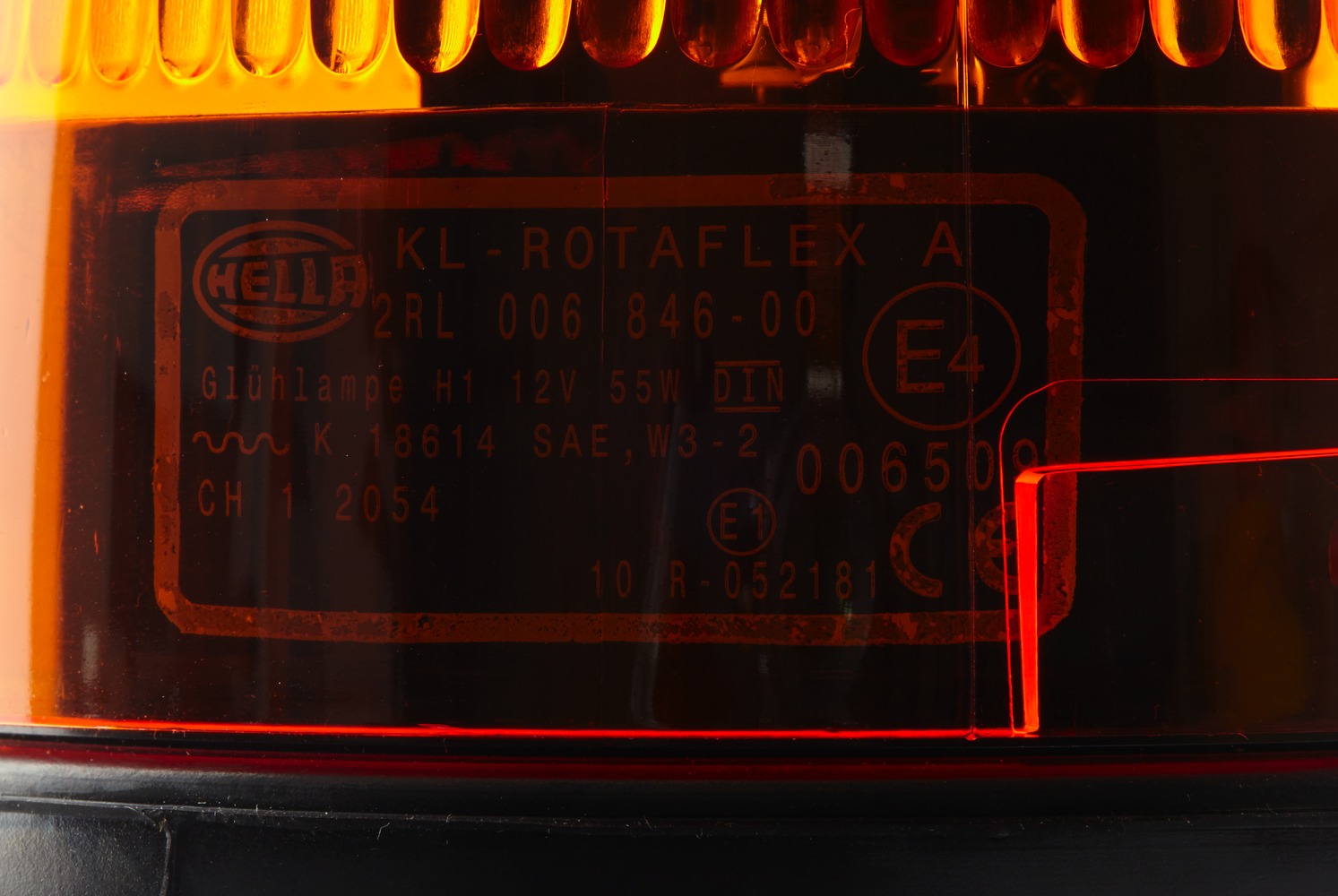

ECE approvalR65 / R10
Fulfils test standardRCM
Housing colourblack
Rotating beacon rpm174 1 / min
Power consumption55 W
Housing materialEPDM (ethylene propylene diene Monomer (M-class) rubber)
Temperature range from-40 °C
Temperature range to+60 °C
Diffusing lens materialPC (Polycarbonate)
Weight850 g
Weight848 g
Part numberA25-000869
BrandHella

Part numbers

Our part number for this item is A25-000869. It was previously listed as PT/006846001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2RL 006 846-001
  • 28012453
  • 1358779
  • 75214250000
  • 1906685
  • 438184240
  • HAL84240
  • 775200
  • AZ44705
  • 4414773
  • E400017
  • 4241657M91
  • 42U0619140
  • 27888
  • 7074818
  • 511081
  • 76533929
  • 23110143
  • 23126802
  • 50291081
  • 3002520
  • 6905351
  • 6905359
  • 3970190
  • 4627000314
  • 5050022294
  • 2045239
  • 7919052811
  • 826015
  • 90343963
  • 5016388
  • 51026926
  • 9246380
  • NA149
  • 10049681
  • 12070340
  • 4084051
  • B9401993
  • 1020015103
  • 60142134
  • 2060036
  • 1383673
  • 7788800
  • 332S0076
  • 407638
  • RG03935121

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery is free for this item, as it is on every order over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
