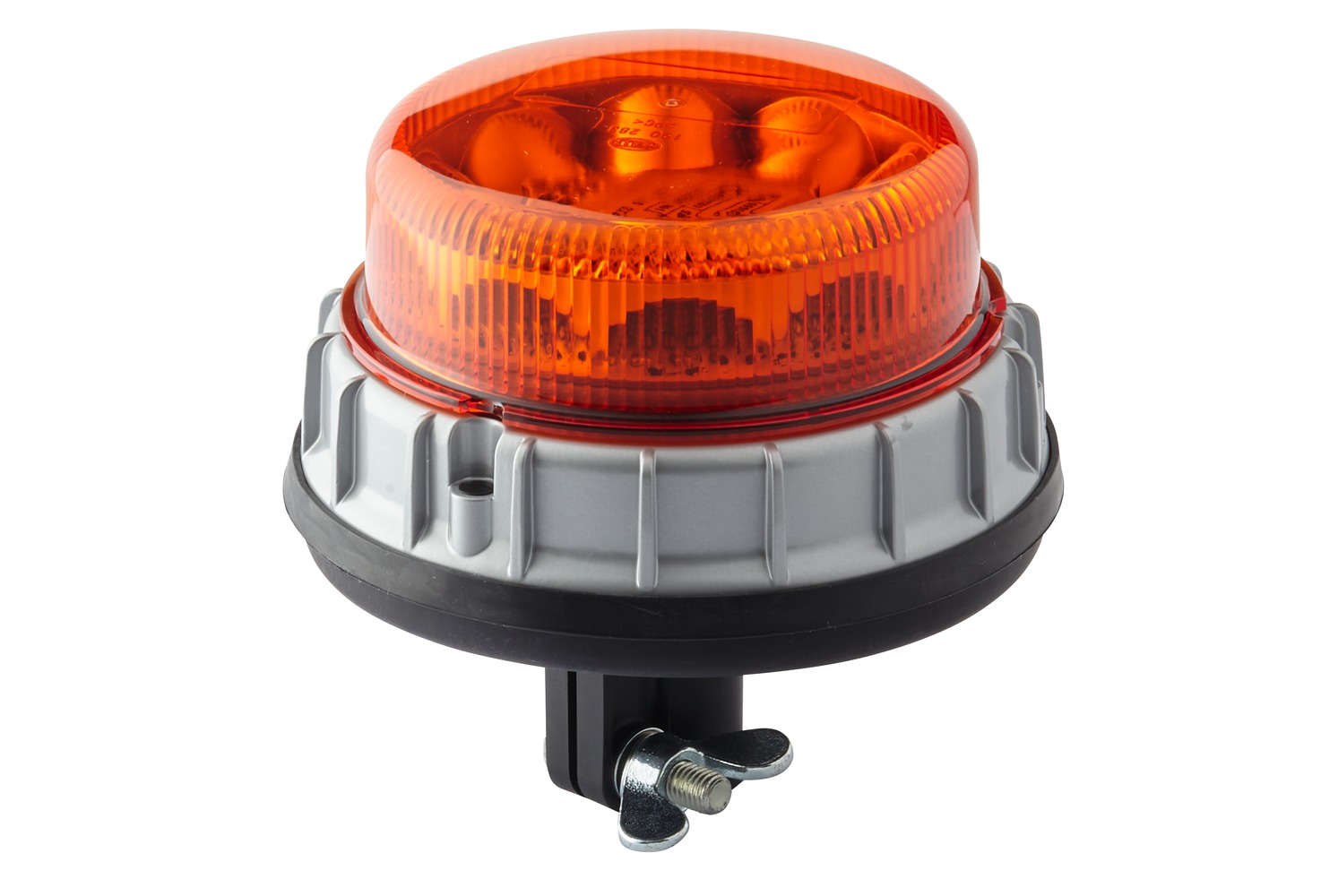

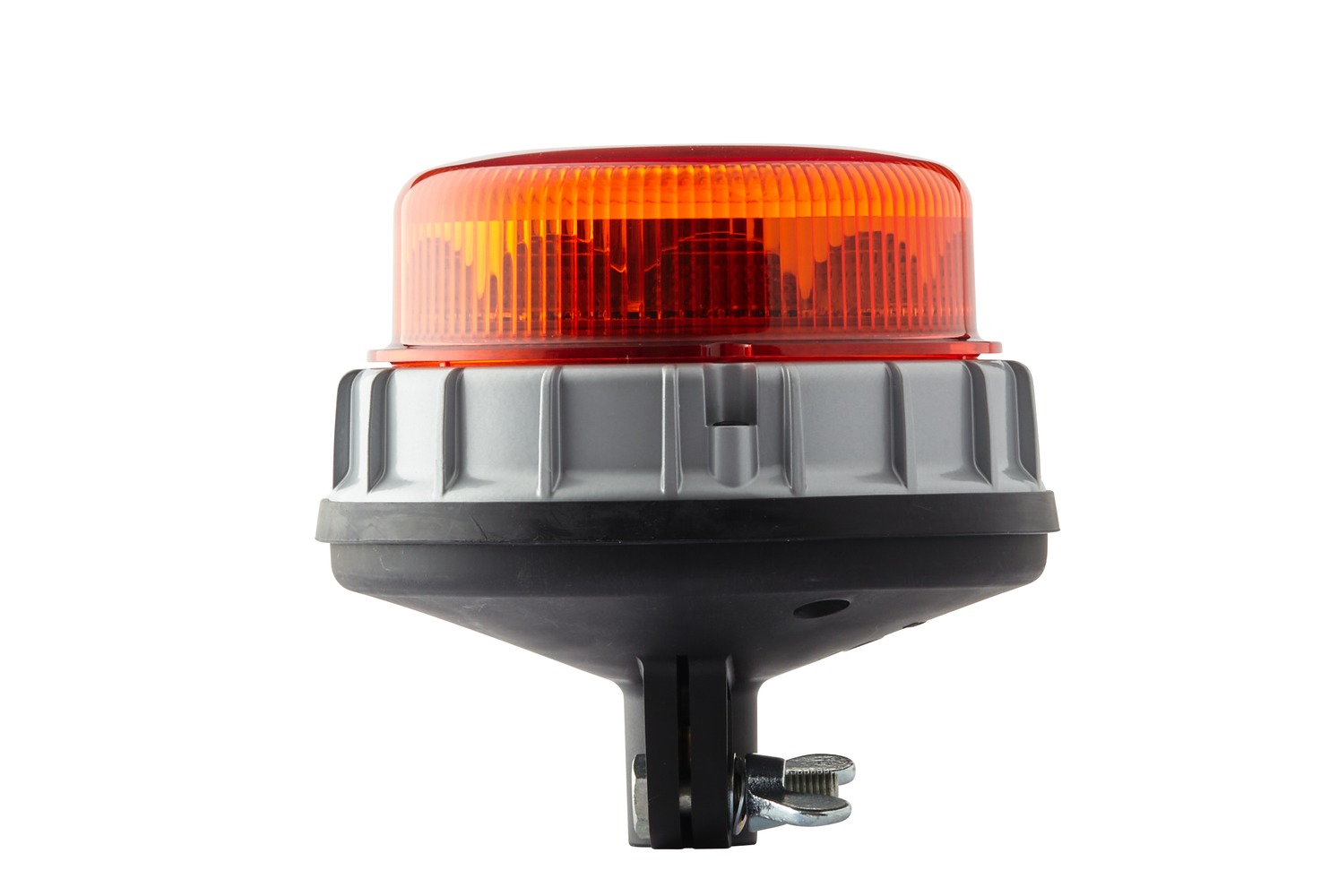

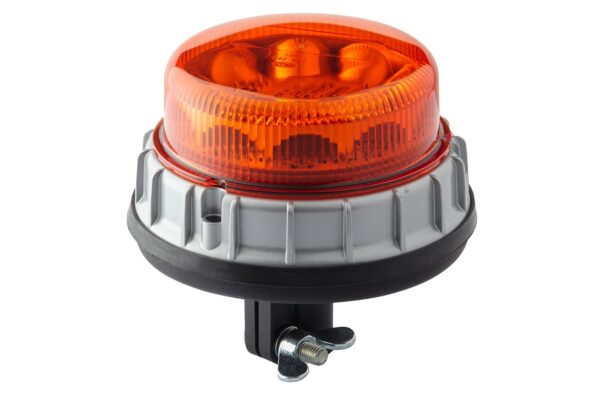

LED-Strobe-type Beacon - K-LED 2.0 R - 12/24V - yellow (amber)

Hella Part no. PT/011557201

LED-Strobe-type Beacon - K-LED 2.0 R - 12/24V - yellow (amber)

5.0 Excellent, from 2 customer reviews
£251.66 inc VAT
£209.72 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Amber, White
Light functions
Indicator, Warning beacon
IP rating
IP67, IP69K

About this tractor beacon

LED-Strobe-type Beacon - K-LED 2.0 R - 12/24V - yellow (amber) is a Hella tractor beacon for 12/24V electrical systems. The light source is LED, the lens is amber, white, the housing is sealed to IP67, IP69K. Light functions: indicator, warning beacon. Mounting: mounting / pipe-neck. It carries R65 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/011557201, and it replaces or is equivalent to 2XD 011 557-201, 1551352, 69252076002, 10878659, 891745, 11771184 and 3 more.

The K-LED 2.0 beacon provides both a rotating and a flashing warning signal in one product. The signal is generated by means of an electronic concept and thus without moving parts and offers 16 different flash sequences. Thanks to the integrated "day/night mode", the brightness is adjusted to the ambient light by means of a sensor. This ensures increased visibility during the day and the avoidance of glare at night. The beacon can be connected to an operating voltage of 10 - 32 V. It is also very flat and has an impact-resistant polycarbonate light bonnet that protects against shocks. The height of the K-LED 2.0 is approx. 87.6 mm (F) to 160.6 mm (R), depending on the design. It meets the requirements of IP67 and is therefore dustproof and can be immersed in water for short periods. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

  • The K-LED 2.0 R can switch between a rotating or flashing warning signal by programming
  • A sensor measures the ambient brightness and controls the change between day / night level based on the measured values. This guarantees you the best possible warning effectiveness
  • The beacon has been developed without moving parts and thus offers optimum protection against strong vibrations and shocks
  • The K-LED 2.0 is characterised by a long service life
  • The impact-resistant, extremely flat polycarbonate light dome guarantees particularly reliable protection against knocks, e.g. from branches
  • Lamp Type: LED - Number of LEDs: 20 - Power consumption: 30W
  • With flashing warning signal/for indicator (LED) - Lens Colour: Yellow - LED colour: White

Specifications

Voltage12/24V
TechnologyLED
Lens colourAmber, White
Light functionsIndicator, Warning beacon
IP ratingIP67, IP69K

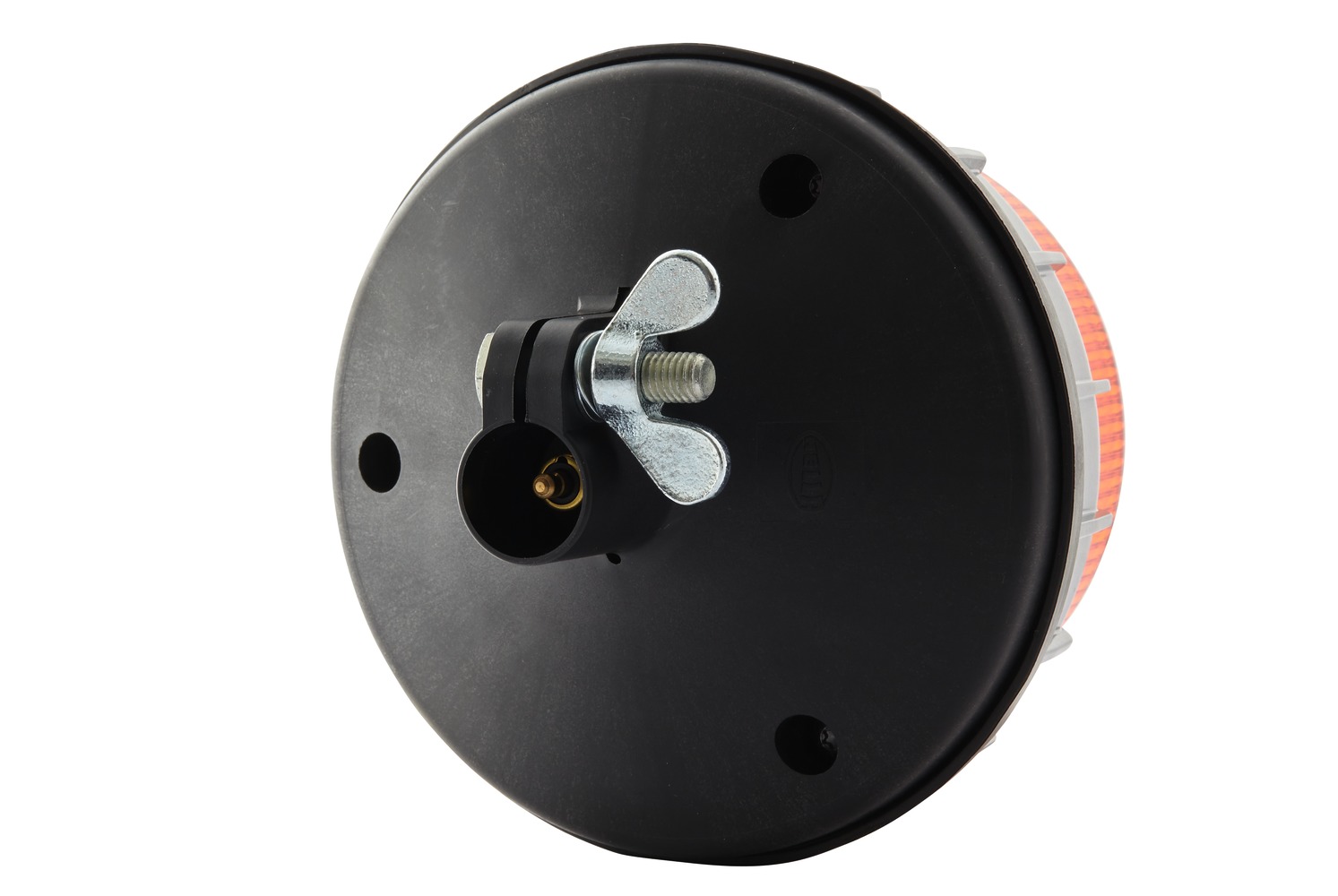

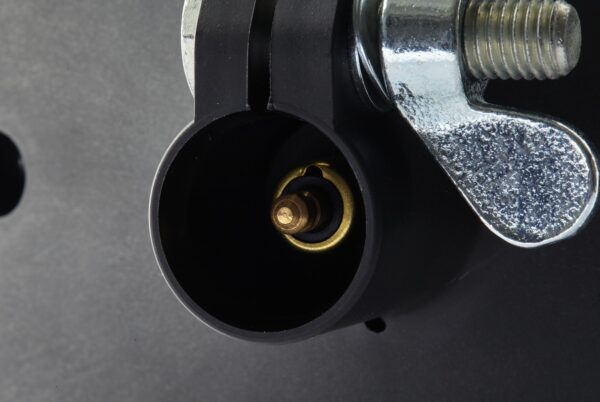

Mountingmounting / Pipe-neck
Bulb typeLED
Outer diameter165 mm
Height160 mm
Number of LEDs20
ECE approvalR65 / R10
Housing coloursilver
Rotating beacon rpm122 1 / min
Flash rate per minute122
Power consumption30 W
Housing materialAluminium
Temperature range from-40 °C
Temperature range to+60 °C
Weight1025 g
Diffusing lens materialPC (Polycarbonate)
Led colourwhite
Weight847 g
Part numberPT/011557201
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2XD 011 557-201
  • 1551352
  • 69252076002
  • 10878659
  • 891745
  • 11771184
  • 130539
  • 261719
  • 5800754
