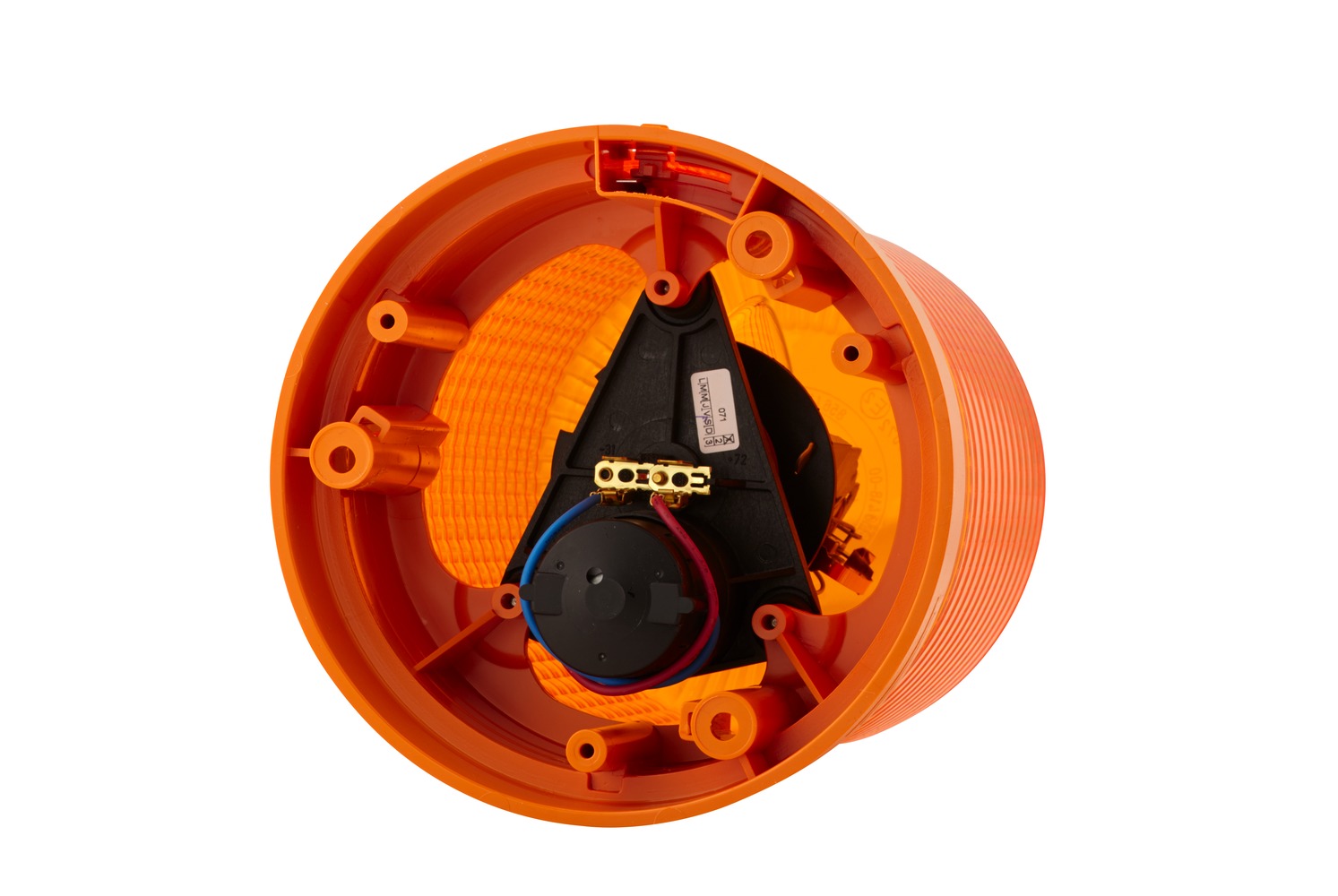

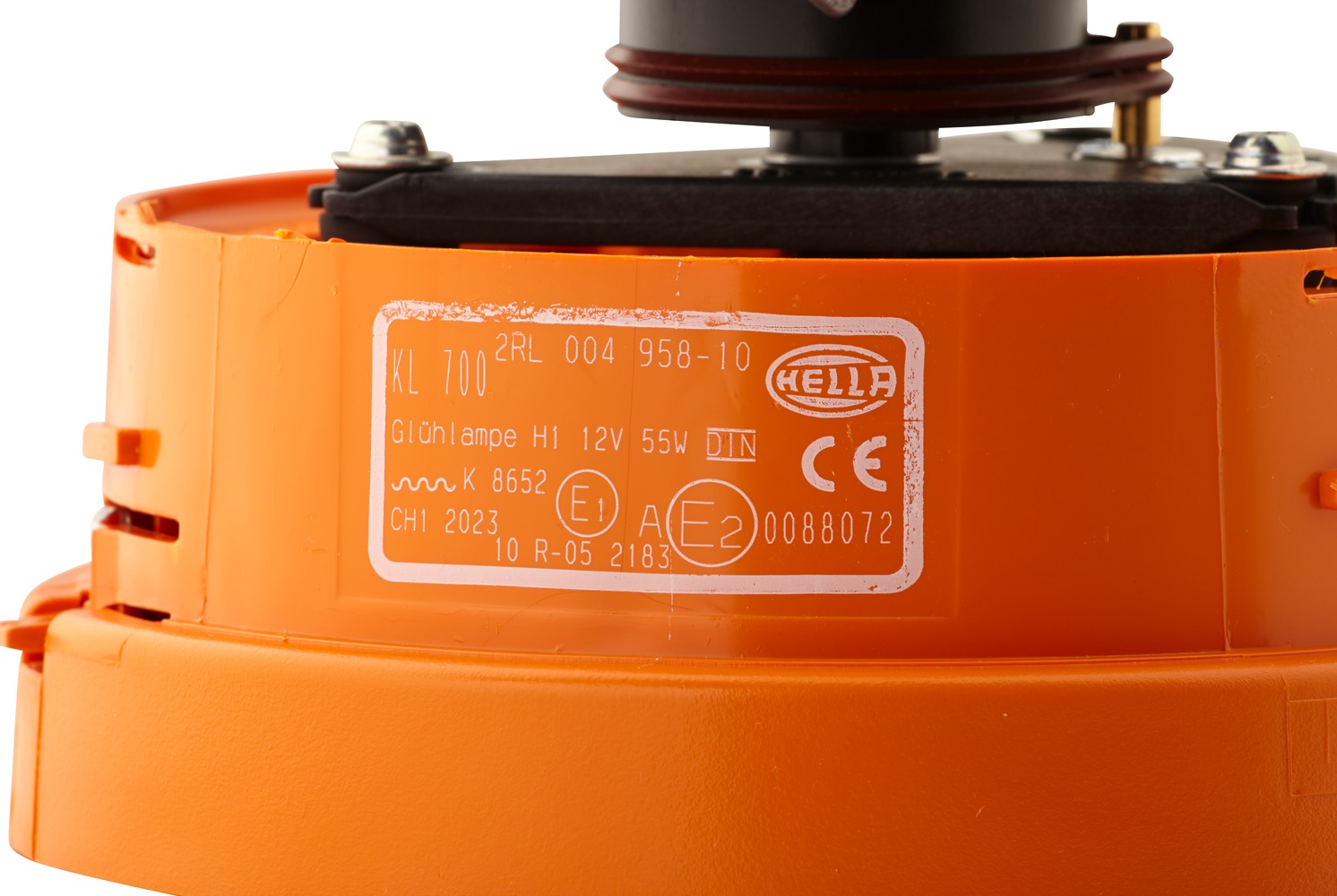

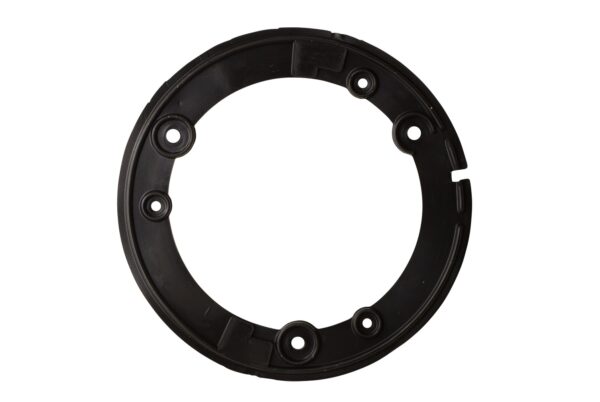

Halogen-Rotating Beacon - KL 700 - 12V - yellow (amber)

Hella Part no. A25-000727 Previously PT/004958101

Halogen-Rotating Beacon - KL 700 - 12V - yellow (amber)

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£46.28 ex VAT
£55.54 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12V
Technology
Halogen
Lens colour
Amber
Light functions
Warning beacon
IP rating
IP54K

About this tractor beacon

Halogen-Rotating Beacon - KL 700 - 12V - yellow (amber) is a Hella tractor beacon for 12V electrical systems. The light source is Halogen, the lens is amber, the housing is sealed to IP54K. Light functions: warning beacon. Mounting: bolted / mounting. It carries R10 / R65 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000727 (previously PT/004958101), and it replaces or is equivalent to 2RL 004 958-101, 2D0941087, KDWHL09429, KDWHLO9429, 63171370579, 1370579 and 26 more.

KL 700: Classic halogen beacon. High design for a large light emission area and all-round visibility. Scratch-resistant light dome.

  • Classic halogen beacon for 12V applications
  • High design for a large light emission surface and all-round visibility
  • Scratch-resistant light bonnet
  • Lamp Type: H1 - Power consumption: 55W
  • With rotating warning signal - Lens Colour: Yellow
  • Registration Type: ECE - fulfils ECE norm: R65/R10 - Prot.type (IP Code): IPX9K/IP5K4K
  • Housing material: Plastic - Housing Colour: Orange - Diffusing Lens Material: PMMA (Polymethylmethacrylate)

Specifications

Voltage12V
TechnologyHalogen
Lens colourAmber
Light functionsWarning beacon
IP ratingIP54K
MountingBolted / mounting

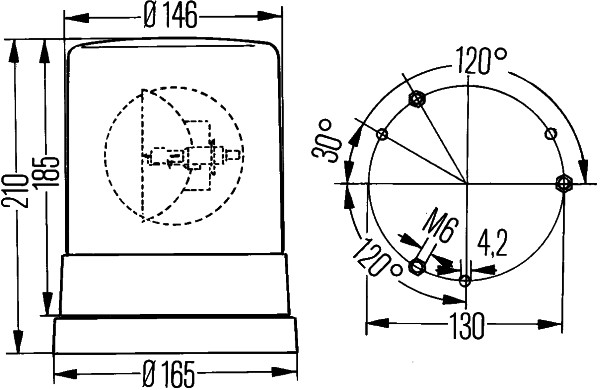

Height210 mm
Outer diameter165 mm
Bulb typeH1
ConnectorBlade Terminal
ECE approvalR10 / R65
Housing colourOrange
Rotating beacon rpm160 1 / min
Shaperound
Power consumption55 W
Housing materialPlastic
Temperature range from-40 °C
Temperature range to+60 °C
Diffusing lens materialPMMA (Polymethylmethacrylate)
Weight950 g
Weight974 g
Part numberA25-000727
BrandHella

Part numbers

Our part number for this item is A25-000727. It was previously listed as PT/004958101, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2RL 004 958-101
  • 2D0941087
  • KDWHL09429
  • KDWHLO9429
  • 63171370579
  • 1370579
  • 1385322
  • 8206858
  • 1777306
  • 90487916
  • J03040039
  • 10565571
  • 5231371
  • 6822160
  • X830180060
  • 3134961R91
  • 727402
  • 1375512
  • 76533936
  • 471521
  • 1001331
  • 46318
  • 950356
  • 900530145
  • 90263559
  • 1134616
  • 1084
  • 5800596
  • 65894002
  • 5762034
  • 7788810
  • A0008206858
