LED-Worklight – Modul 70 Gen. 3.2 – 24/12V
🚚 Estimated delivery: 3 Working Days
£92.95£92.95 Incl. VATExcl. VAT
In stock
With the Module 70 LED Generation 3.2, HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs, the module produces 70 LED Generation 3.2 now 1,800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight’s black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version, the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design, this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.
- Equipped with 3 high-performance multichip LEDs, the Modul 70 LED generates a significantly higher lumen output than its predecessor.

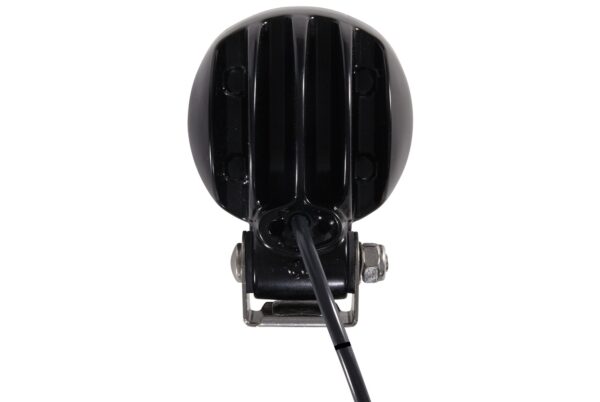

- The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the high-power LEDs.
- The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
- In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
- Thanks to the multi-facetted reflector and the lens, the light beams of the LEDs are homogeneously radiated into the work area.
- Lamp Type: LED – Number of LEDs: 3 – Power consumption: 20W – Colour Temperature: 6500K
- Patterned diffusing lens
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.5172 kg |
|---|---|
| Dimensions | 143 × 95 × 125 cm |
| Private Equivalent | 996576031 |
| Equivalent Parts | 1G0 996 576-031, 26689540, 26689550, 996576031 |
| Mounting Type | Bolted / mounting |
| Fastening Type | Swivelling Mounting Bracket |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |
| Height | 110 mm |
| Width | 83 mm |
| Depth | 74 mm |

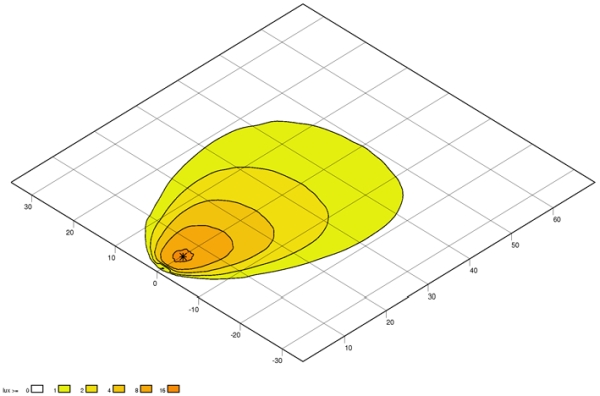

| Light Distribution | Short distance lighting |
| fulfils ECE norm | R10 |
| fulfils test standard | RCM |
| Plug | open cable ends |
| Prot.type (IP Code) | IP6K7 / IP6K9K |
| Luminous Flux | 1800 lm |
| Colour Temperature | 6500 K |
| Number of LEDs | 3 |
| Power consumption | 20 W |
| Cable | 2000 mm |
| Housing Type | Aluminium Housing |
| Housing Colour | black |
| Diffusing Lens Type | Patterned diffusing lens |
Compatible Tractors:
| Manufacturer | Series | Models |
|---|---|---|
| Claas | - | Arion 510, Arion 520, Arion 530, Arion 540, Arion 550, Arion 610, Arion 620, Arion 630, Arion 640, Arion 650, Arion 660, Axion 800, Axion 810, Axion 820, Axion 830, Axion 840, Axion 850, Axion 860, Axion 870, Axion 880, Axion 920, Axion 930, Axion 940, Axion 950, Axion 960 |
