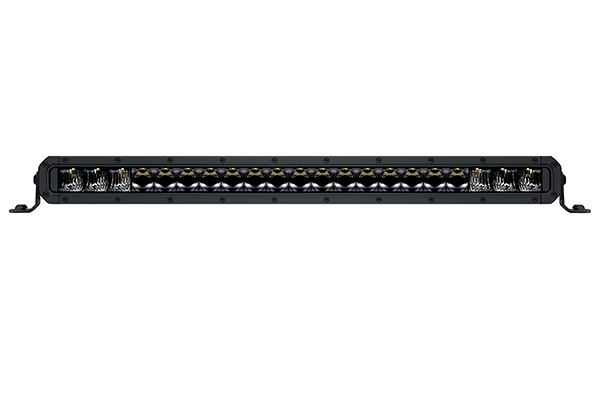

LED-Worklight - Black Magic Tough Lightbar 20" - 12/24V

Hella Part no. A25-006503 Previously PT/358197501

LED-Worklight - Black Magic Tough Lightbar 20" - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£122.69 ex VAT
£147.23 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
IP rating
IP68, IP69K

About this tractor light bar

LED-Worklight - Black Magic Tough Lightbar 20" - 12/24V is a Hella tractor light bar for 12/24V electrical systems. The light source is LED, the housing is sealed to IP68, IP69K. Mounting: screw connection / mounting. It carries R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-006503 (previously PT/358197501), and it replaces or is equivalent to 1GJ 358 197-501.

  • 6000-lumen Black Magic Tough Lightbar delivers powerful illumination for off-road use.
  • Slim, curved 20” design ensures a sleek fit without compromising brightness.
  • Dual 12/24V compatibility suits tractors, 4x4s, and utility vehicles.
  • Durable mounting with secure screw connection and vertical fitting options.
  • 2000mm cable with open ends allows easy, flexible installation anywhere.
The HELLA Black Magic Offroad Lightbars are off-road headlights with a very powerful light output of up to 20,000 effective lumens, ideal for off-road situations where you really need good light. Both the slim and double lightbars offer a high recognition effect with their stylish and robust look in an all-black design. Typical installation locations are on the roof or roof bar, the radiator grille or bumper. The product complies with the highest dust / waterproof class. The extra-long 2 m cable makes it easy to attach to your vehicle. The Black Magic Lightbars have an integrated thermal sensor that allows them to adjust to the ambient temperature. This new feature not only prevents overheating or LED failure, but also increases light output when the ambient temperature is low. In this way, the user receives the optimum amount of light under all conditions.
  • Typical Black Magic appearance including black brackets in a robust design
  • Powerful light output thanks to modern reflector system and very strong LEDs in all 18 off-road variants! With temperature control system for adaptation to the ambient temperature
  • Typical mounting locations include installation on the roof or roof bar, the radiator grille or bumper
  • 20˝ Slim Curved Lightbar, TCS
  • IP 68, IP 69K, ECE-R10, 2,000 mm cable with open ends, 5,700 Kelvin
  • Lamp Type: LED - Colour Temperature: 5700K
  • fulfils ECE norm: R10 - Prot.type (IP Code): IP68/IP69K

Specifications

Voltage12/24V
TechnologyLED
IP ratingIP68, IP69K
MountingScrew Connection / mounting
FasteningVertical
Bulb typeLED
Width50 mm
Height62 mm
Depth73 mm
Light distributionOff-road Lighting
ECE approvalR10
Connectoropen cable ends
Cable2000 mm
Luminous flux6000 lm
Colour temperature5700 K
Housing typeAluminium Housing
Housing colourblack
Shapeslim / curved
Diffusing lens materialPC (Polycarbonate)
Length20
Weight2.45 kg
Part numberA25-006503
BrandHella

Part numbers

Our part number for this item is A25-006503. It was previously listed as PT/358197501, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1GJ 358 197-501

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery is free for this item, as it is on every order over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
