LED-Strobe-type Beacon – K-LED Nano Nano – 12/24V – yellow (amber)
🚚 Estimated delivery: 3 Working Days
£64.88£64.88 Incl. VATExcl. VAT
In stock
Despite its compact dimensions, the K-LED Nano gives out an above-average light intensity. HELLA’s smallest homologated beacon to date generates a long-range, amber warning signal by means of flashing light. The standard version for fixed mounting is characterised by a slightly curved base which, with a bolt circle diameter of 130 mm, stays true to the usual HELLA mounting points. Further mounting options deviating from this standard are possible (e.g. a bolt circle diameter of 43 mm or 85 mm). In addition, a variant with flexible pipe socket mounting is also available. The shock-absorbing and vibration-damping base briefly tilts the beacon by up to 45° and cushions even strong impacts. Thanks to this option and the complete sealing of the beacon, the K-LED Nano can therefore also be used both in vibration-intensive environments and also in dusty ones. As a Fit&Forget solution, following installation the beacon turns into a reliable and long-lasting vehicle component.
- Very compact design with high light intensity
- Vibration and impact-resistant
- High degree of tightness thanks to complete sealing
- Lamp Type: LED – Number of LEDs: 16 – Power consumption: 19W
- With flashing warning signal – Lens Colour: Yellow
- Registration Type: ADR/GGVS/ECE – fulfils ECE norm: R10/R65/TA1 – fulfils SAE norm: J845 Class 1 – Prot.type (IP Code): IP6K7/IP6K9K
- Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) – Housing Colour: Black – Diffusing Lens Material: PC (Polycarbonate)
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 143 × 127 × 167 cm |
| Private Equivalent | 066146011 |
| Equivalent Parts | 2XD 066 146-011, 2281056, AXE92636, 93001890, ZE0000022100, 3277791, NA305, B9409228, 26825, BEM2148, BEM2148V00, ACX4222570, 3J03739951, 5050022302, 066146011 |
| Mounting Type | Flexible pipe sockets |
| Lamp Type | LED |
| Light Design | LED |
| Voltage | 12 V / 24 V |
| Power consumption | 19 W |

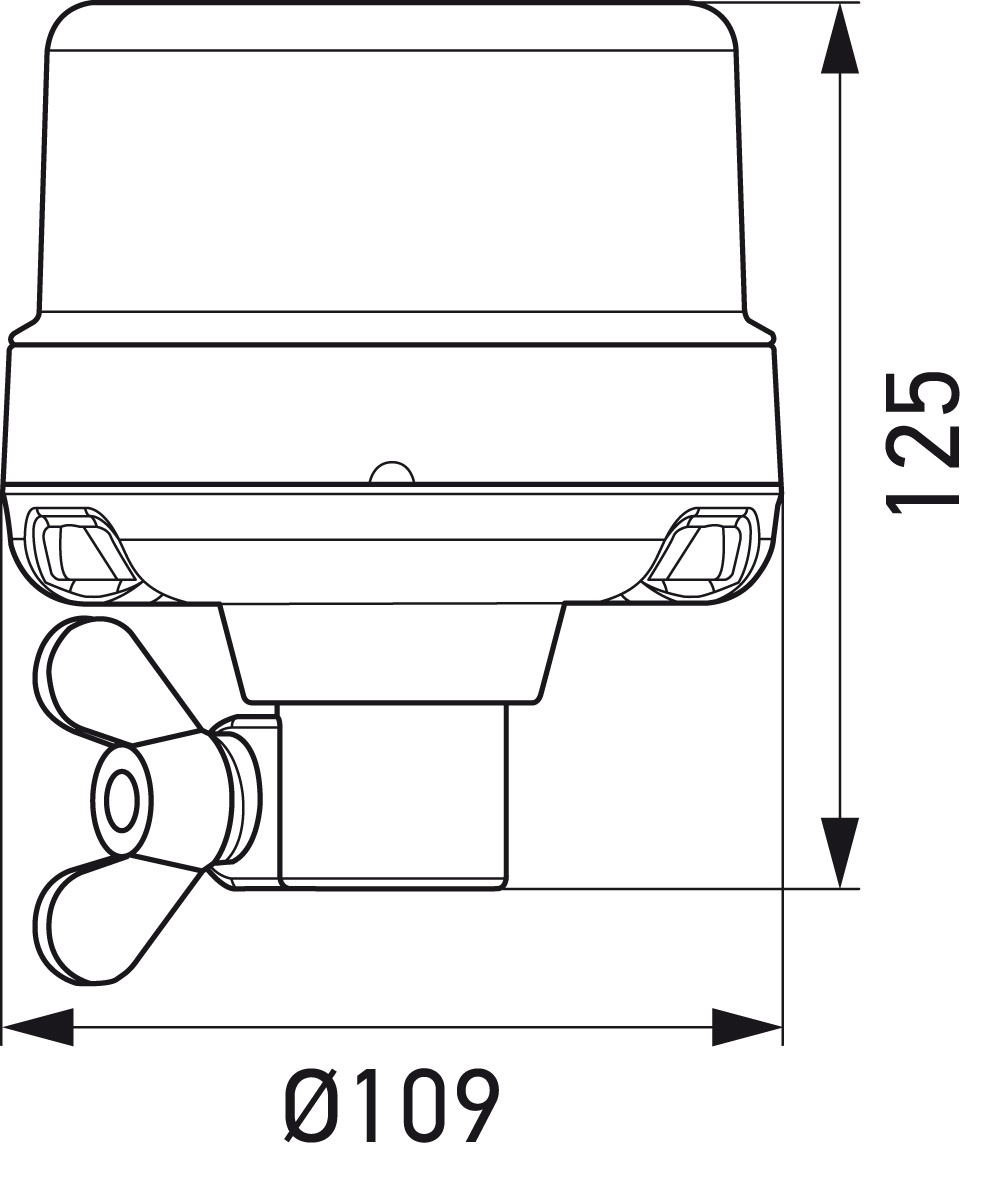

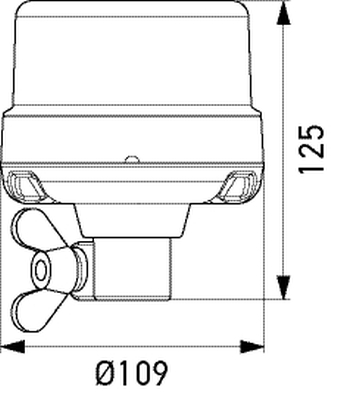

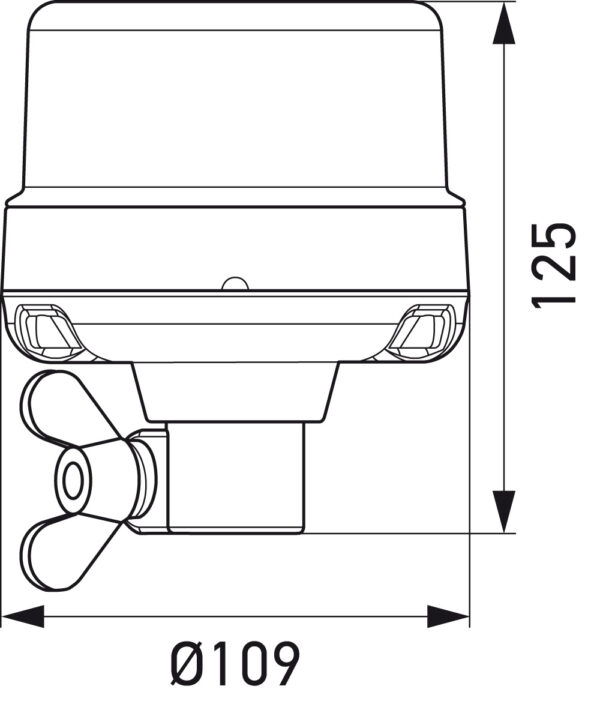

| Height | 125 mm |
| Outer Diameter 1 | 109 mm |
| Light Function | With flashing warning signal |
| Number of LEDs | 16 |
| Light colour | yellow (amber) |
| Prot.type (IP Code) | IP6K9K / IP6K7 |
| fulfils ECE norm | R10 / TA1 / R65 |
| fulfils test standard | RCM |
| Lens Colour | yellow |
| Housing Colour | black |
| Flash rate per minute | 126 |
| Housing material | EPDM (ethylene propylene diene Monomer (M-class) rubber) |
| Temperature range from | -40 °C |
| Temperature range to | +60 °C |
| Weight | 338 g |
| Diffusing Lens Material | PC (Polycarbonate) |
| Quantity | 1 |
| meets EMC/CISPR norm | CISPR 25 Class 5 |
| Registration Type | SAE |
| fulfils SAE norm | J845 Class 1 |
| Cable | 150 mm |
| Plug | DIN standard |
