LED-Rotating Beacon – K-LED 1.2 – 12/24/10/30V
🚚 Estimated delivery: 3 Working Days
£229.50£229.50 Incl. VATExcl. VAT
In stock

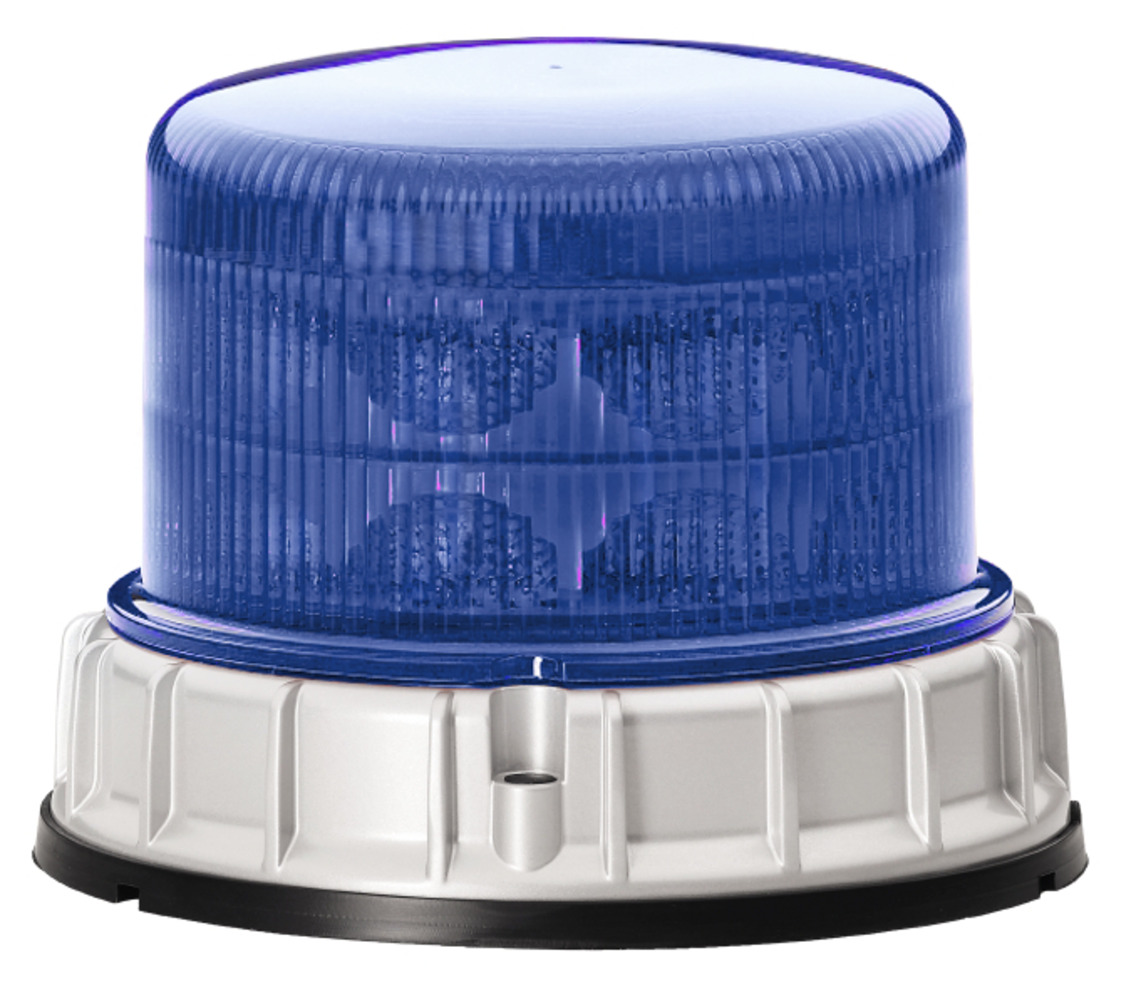

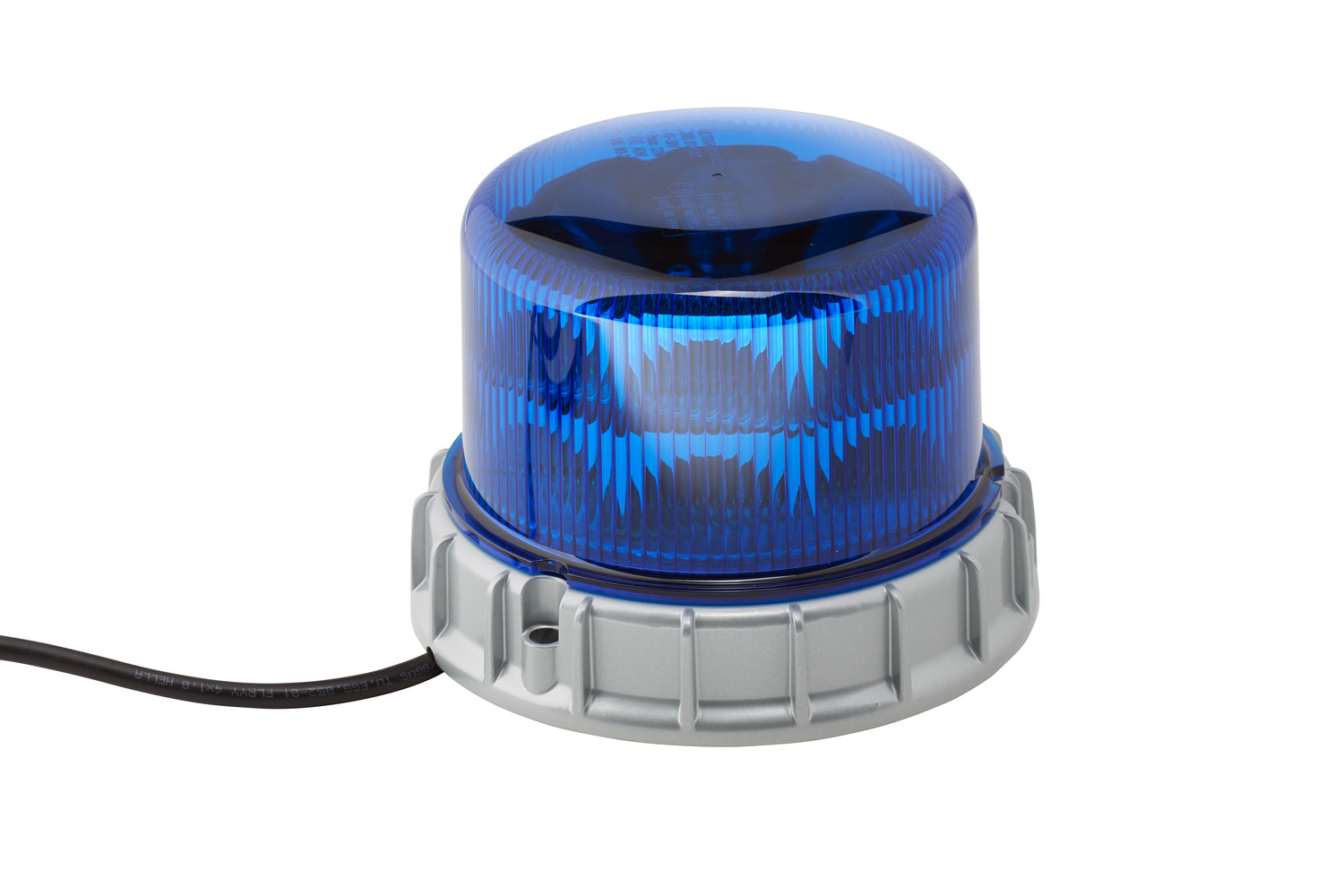

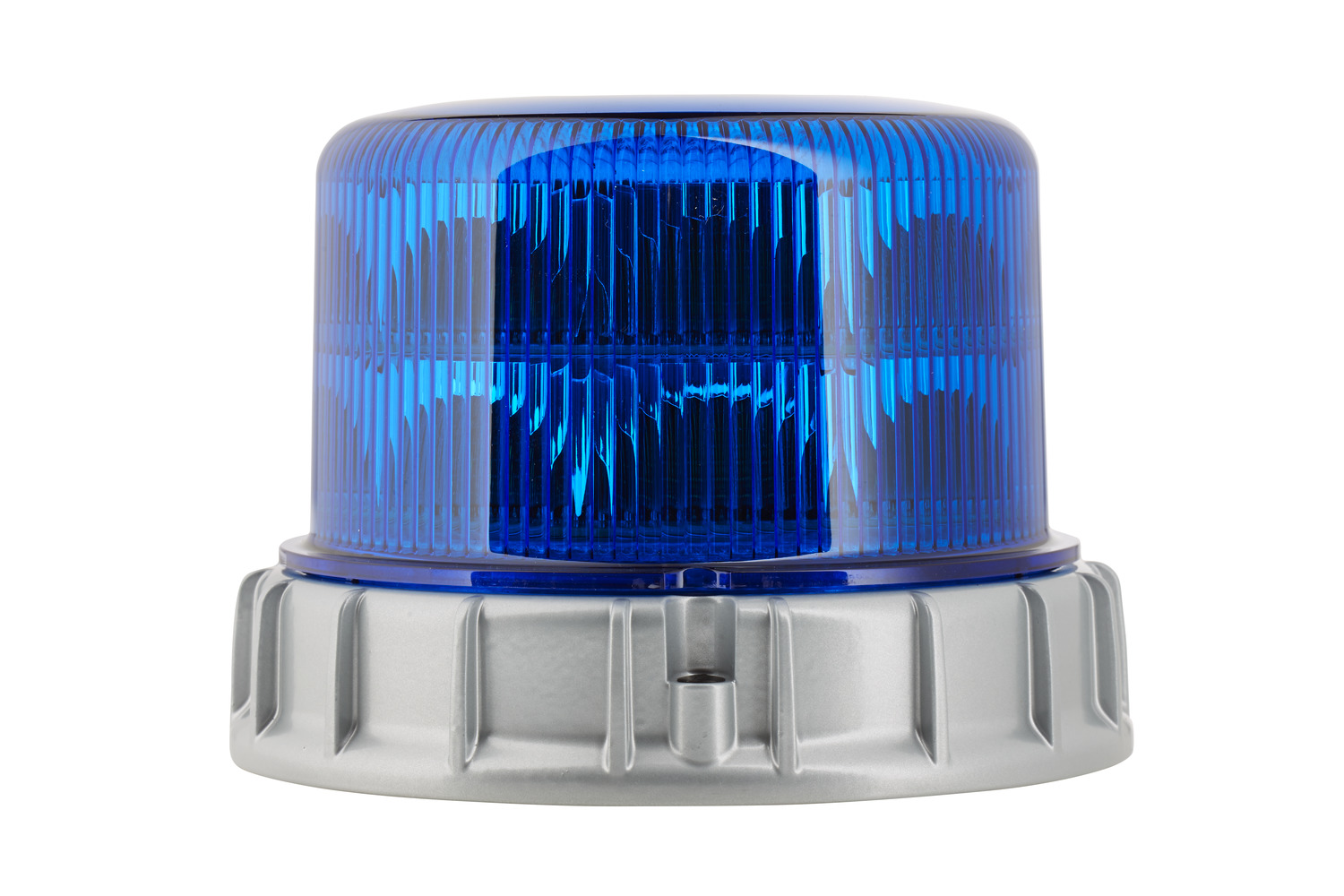

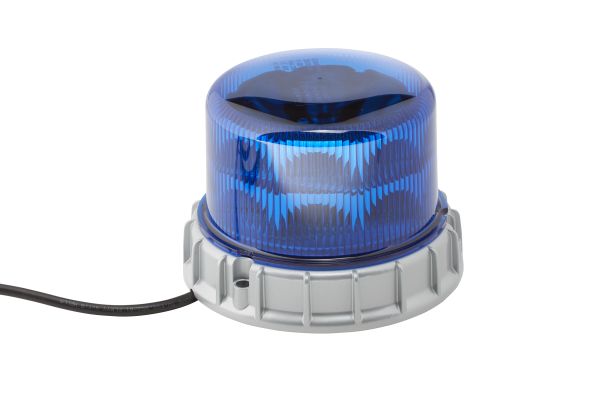

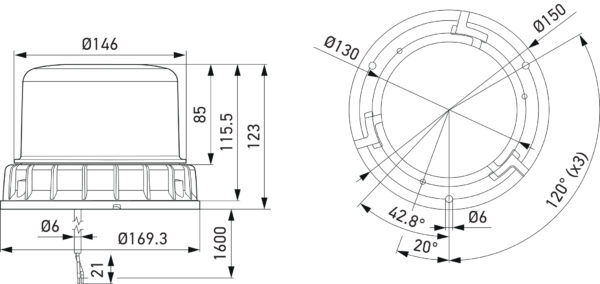

The K-LED 1.2 beacon has a larger light emission surface due to its double light system achieving a large warning effect. The signal is generated by means of an electronic concept and therefore without moving parts. The beacon can be connected at an operating voltage of 10 – 30 V. It has an impact-resistant polycarbonate light bonnet and the height is approx. 115.5 mm (F) to 196.5 mm (R), depending on the design, due to the double light system. The housing of the K-LED 1.2 is passivated and then coated with powder coating, which provides a high level of protection against aggressive media such as salts and alkalis. The beacon meets IP6K7 and IP6K9K requirements and is therefore dust-tight and suitable for high-pressure cleaning. Even short-term immersion up to 1 metre under water is possible. The product is fixed to the vehicle by means of screws or by means of a pipe socket adapter. A magnet version is also available on request. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.
- The dual lighting system in the K-LED 1.2 ensures a larger light emission area and thus a particularly large warning effect
- With the K-LED 1.2 no moving parts are necessary – there is no need to replace wearing parts
- The impact-resistant polycarbonate light dome guarantees particularly reliable protection against knocks, e.g. from branches
- Radio signals are not disturbed by the K-LED 1.2 because it is highly resistant to EMC
- The beacon is characterised by a long service life
- Lamp Type: LED – Number of LEDs: 20 – Power consumption: 22W
- With flashing warning signal/With rotating warning signal – Lens Colour: Blue
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 1.566 kg |
|---|---|
| Dimensions | 190 × 190 × 167 cm |
| Private Equivalent | 012984311 |
| Equivalent Parts | 2XD 012 984-311, 012984311 |

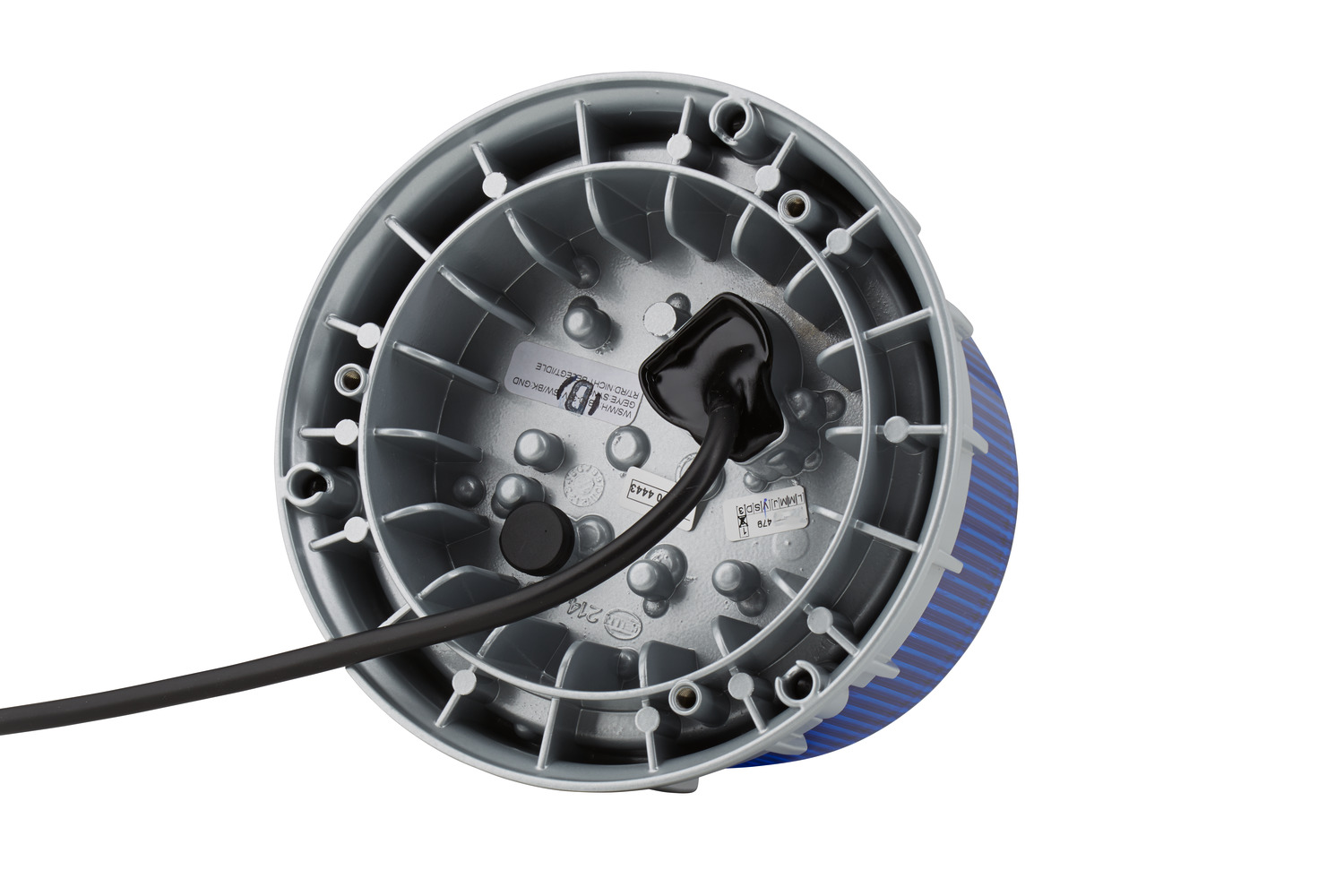

| Mounting Type | mounting |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V / 30 V / 10 V |

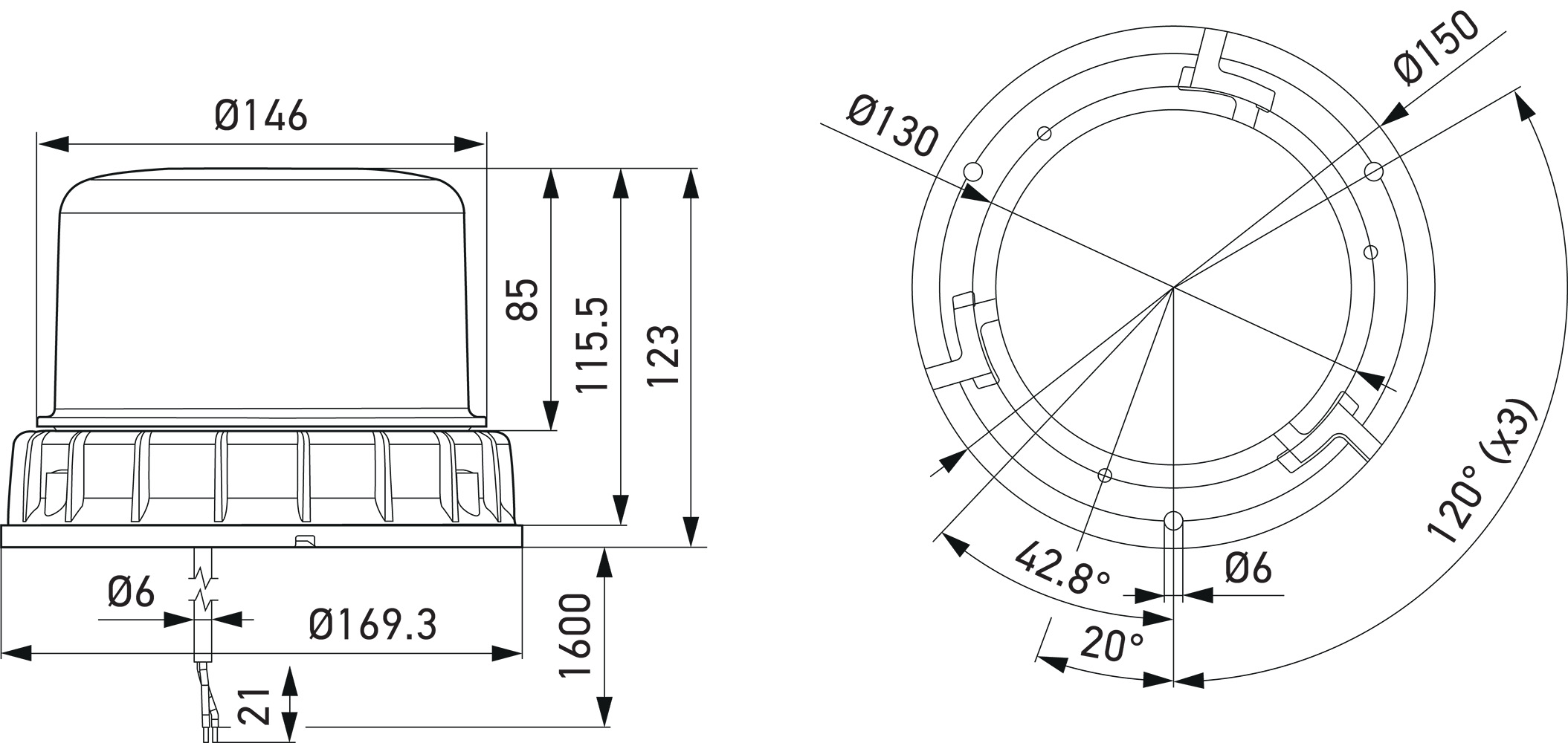

| Outer Diameter 1 | 165 mm |
| Height | 123 mm |
| Light Function | With rotating warning signal / With flashing warning signal |
| Number of LEDs | 20 |
| Prot.type (IP Code) | IP6K7 / IP6K9K |
| fulfils ECE norm | R65 / R10 |
| Registration Type | SAE / ADR/GGVS |
| fulfils SAE norm | W3-1 |
| fulfils test standard | RCM |
| Lens Colour | blue |
| Housing Colour | silver |

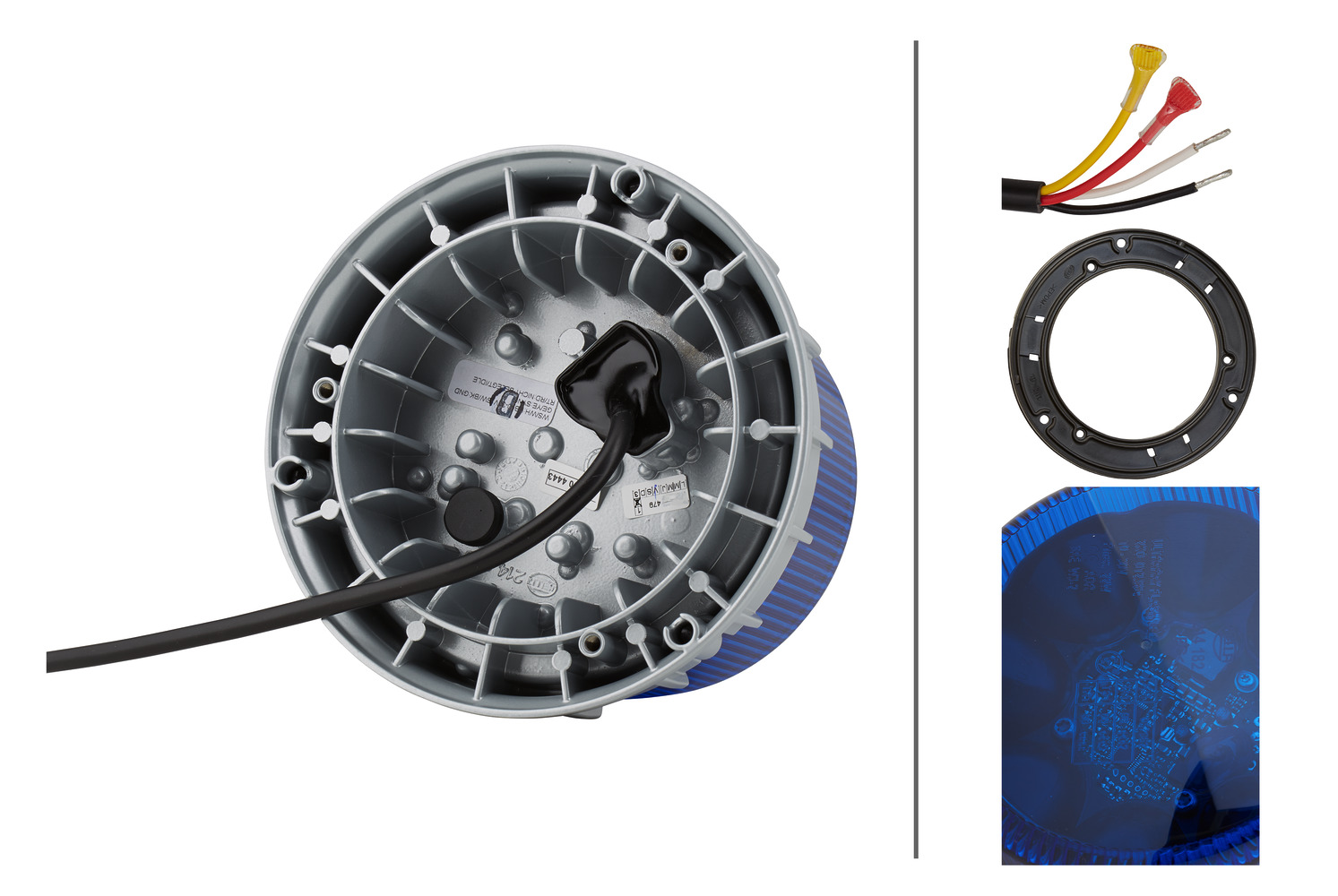

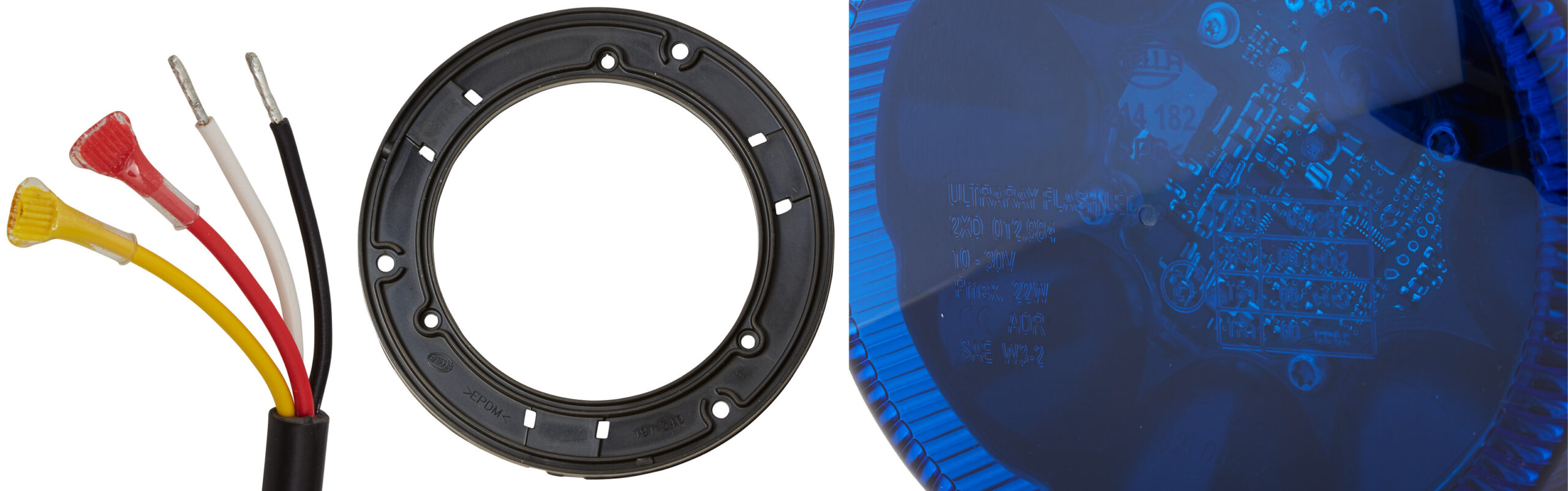

| Supplementary Article/Info 2 | with cable / Electromagnetic Compatibility (EMC) |
| Plug | open cable ends |
| Cable | 1450 mm |
| Flash rate per minute | 122 |
| Power consumption | 22 W |
| Housing material | Cast Aluminium |
| Temperature range from | -40 °C |
| Temperature range to | +60 °C |
| Diffusing Lens Material | PC (Polycarbonate) |
| Reverse polarity protection | Yes |
| Quantity | 1 |
