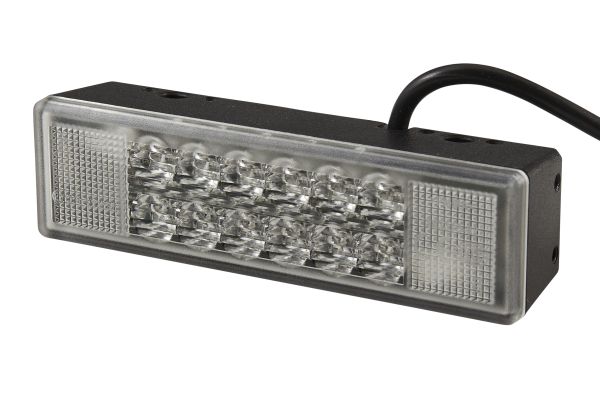

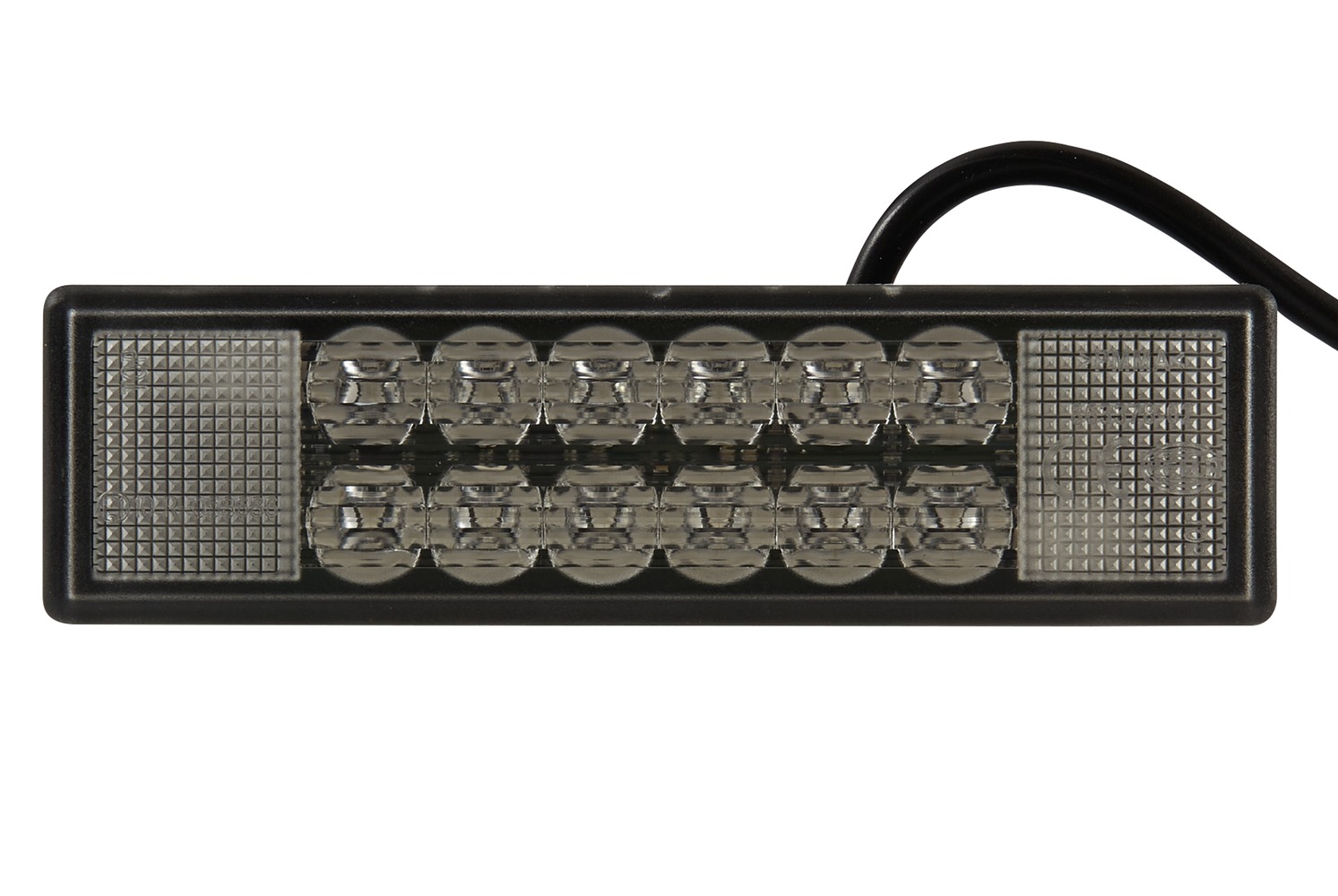

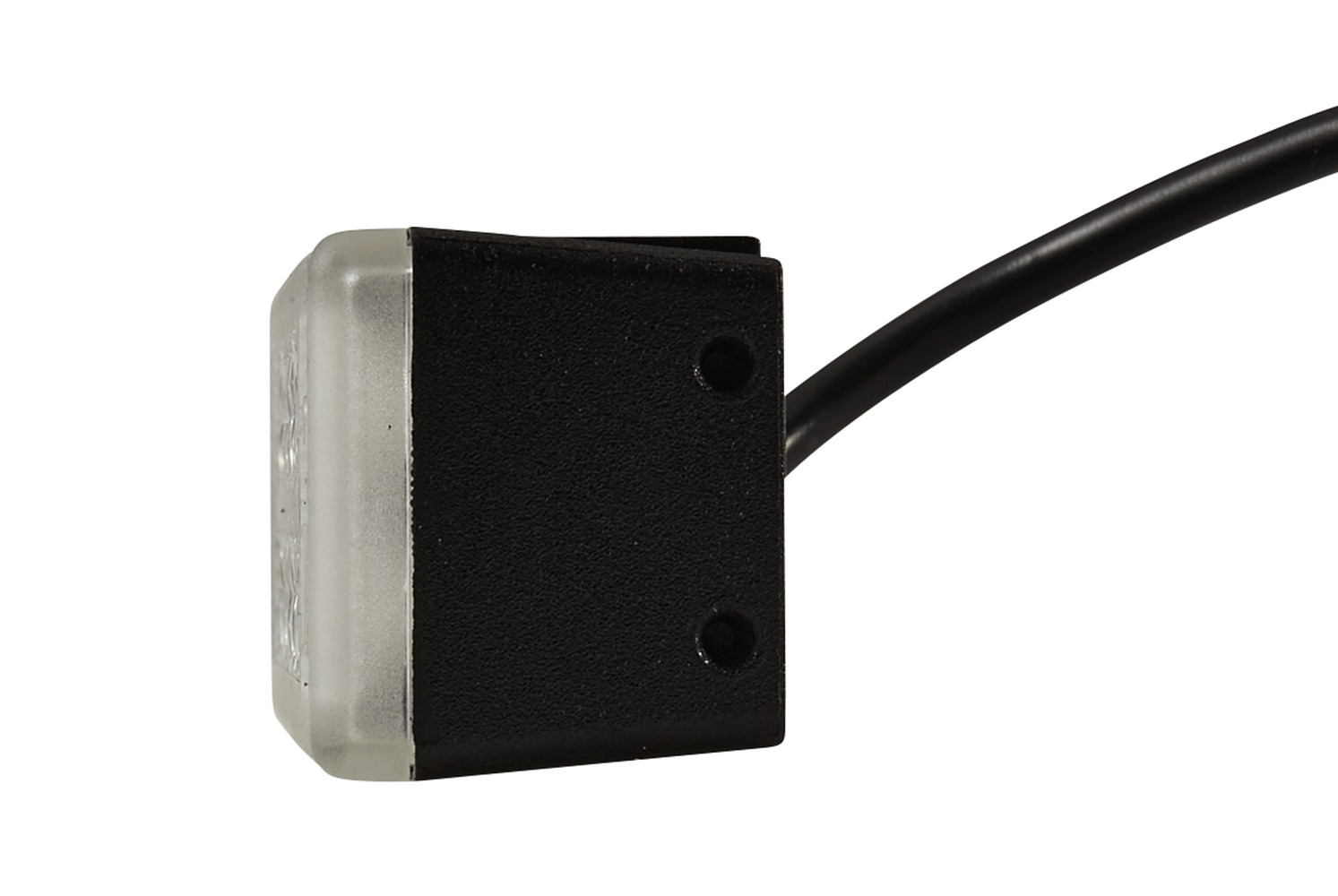

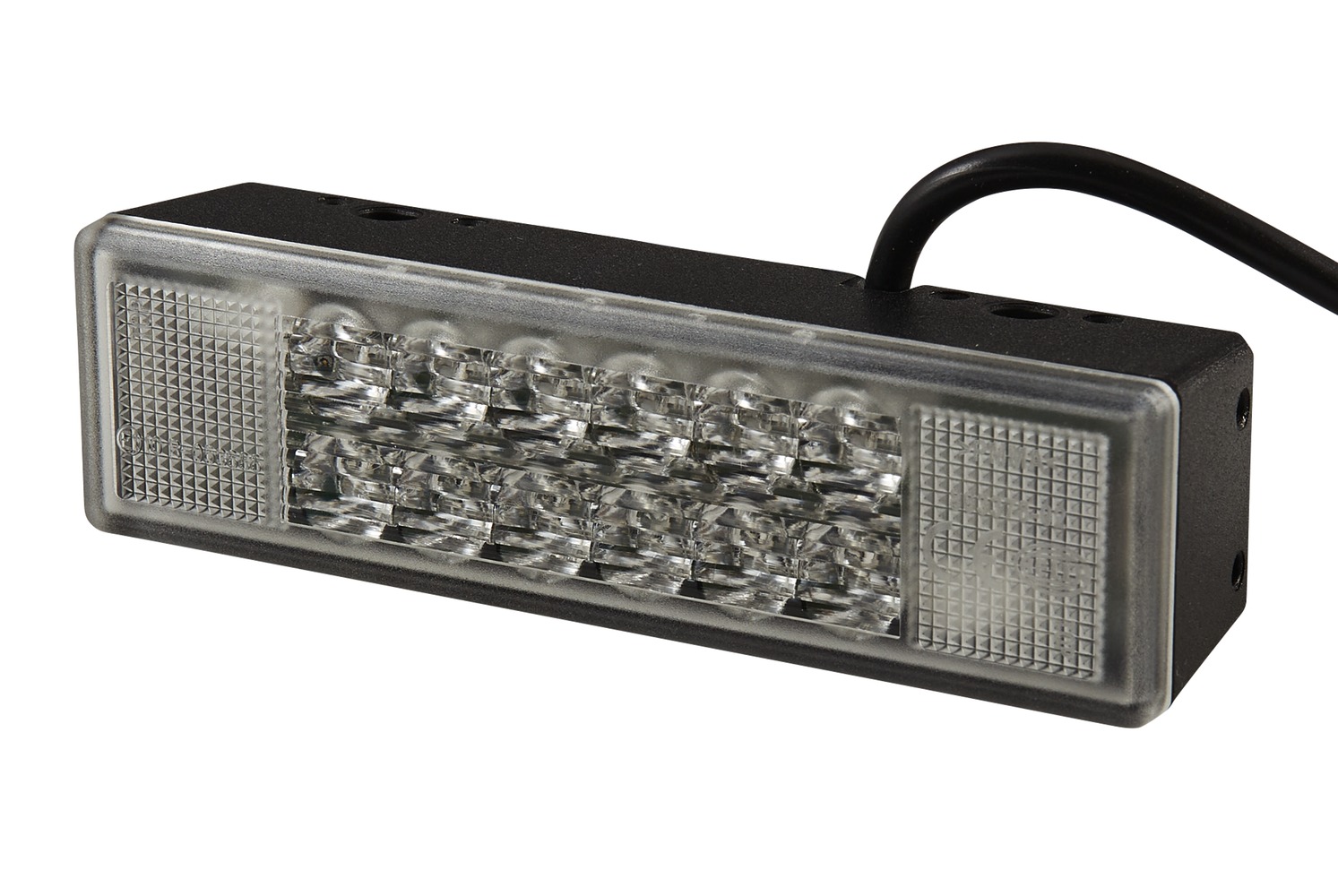

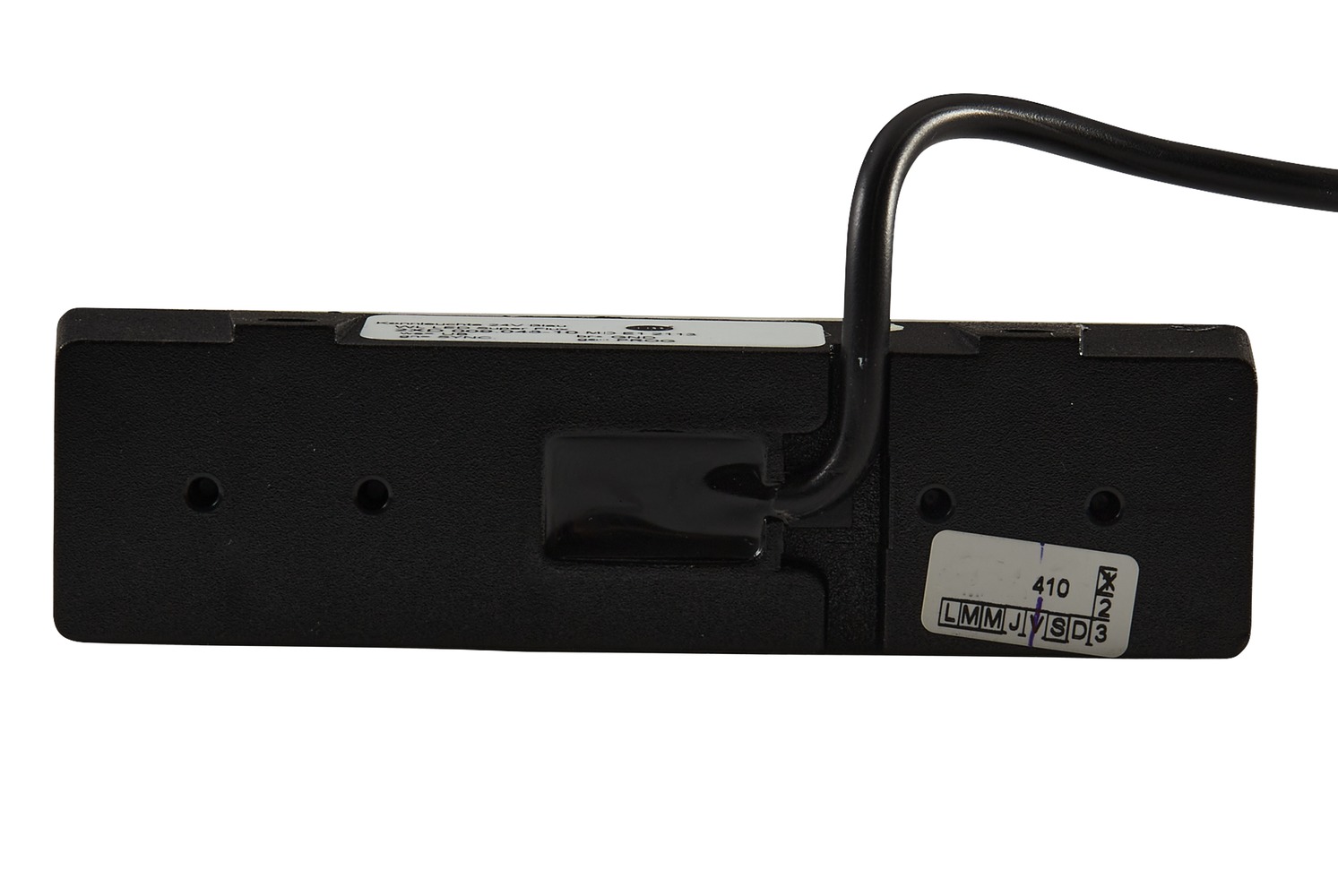

LED-Strobe-type Beacon – C-LED – 24V – Blue
🚚 Estimated delivery: 3 Working Days
£160.12£160.12 Incl. VATExcl. VAT
In stock
Designed for vertical installation in pairs at the rear of the vehicle (4 C-LED modules are required), thus enabling optimum integration into the vehicle silhouette. The silver-coloured aluminium housing with robust PC cover lens contains two C-LED modules, each positioned at an angle to one another. The specially developed optics of the integrated C-LED modules produce a focussed light pattern with particularly intensive illumination. A total of 48 blue high-power LEDs (24 per corner luminaire) ensure optimum rear protection and high warning effectiveness. The intelligent electronics of the C-LED modules allow the programming of 8 flash sequences (single to quadruple flash). Both corner lights can be operated synchronously or alternately via synchronisation lines. 2 corner luminaire versions are available, which are designed for different installation options and therefore differ in the arrangement of the integrated C-LED modules. Both variants can be used on both rear sides thanks to the side-symmetrical body.
- 4 C-LED modules are required for securing the rear of the emergency vehicle
- Resistant LED technology (12 blue LEDs)
- 8 programmable flash frequencies (synchronous and alternating)
- Protection class IP5K4K, IP9K
- Lamp Type: LED – Number of LEDs: 24
- With flashing warning signal – Lens Colour: Crystal clear – LED colour: Blue
- fulfils ECE norm: R10 – Prot.type (IP Code): IP5K4/IPX9K
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.108111 kg |
|---|---|

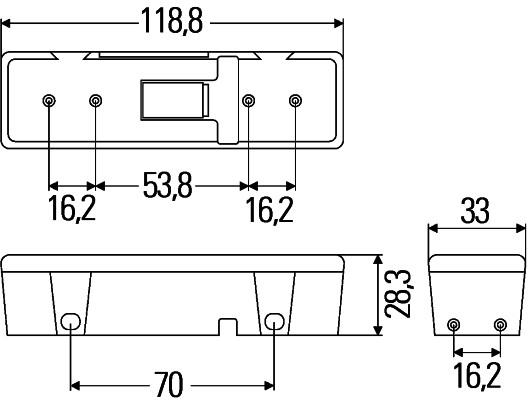

| Dimensions | 83 × 57 × 190 cm |
| Private Equivalent | 009048101 |
| Equivalent Parts | 2XD 009 048-101, 906608, 4710252, 566479, 009048101 |
| Mounting Type | Screw Connection / Fitting |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 24 V |
| Height | 33 mm |
| Light Function | With flashing warning signal |
| Light colour | blue |

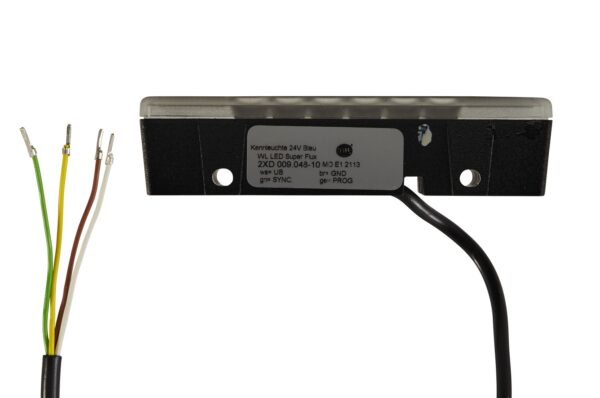

| Plug | open cable ends |
| Prot.type (IP Code) | IP5K4 / IPX9K |
| fulfils ECE norm | R10 |
| Number of LEDs | 24 |
| LED colour | blue |
| Lens Colour | Crystal clear |
| Housing Colour | black |
| Cable | 800 mm |
| Light Distribution | Off-road Lighting |
| Diffusing Lens Material | PMMA (Polymethylmethacrylate) |
| Housing material | ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) |
| Temperature range from | -40 °C |
| Temperature range to | +60 °C |
| Weight | 198 g |
| Quantity | 1 |
| Supplementary Article/Supplementary Info | Observe the national mounting, install. and operat. regs. |
