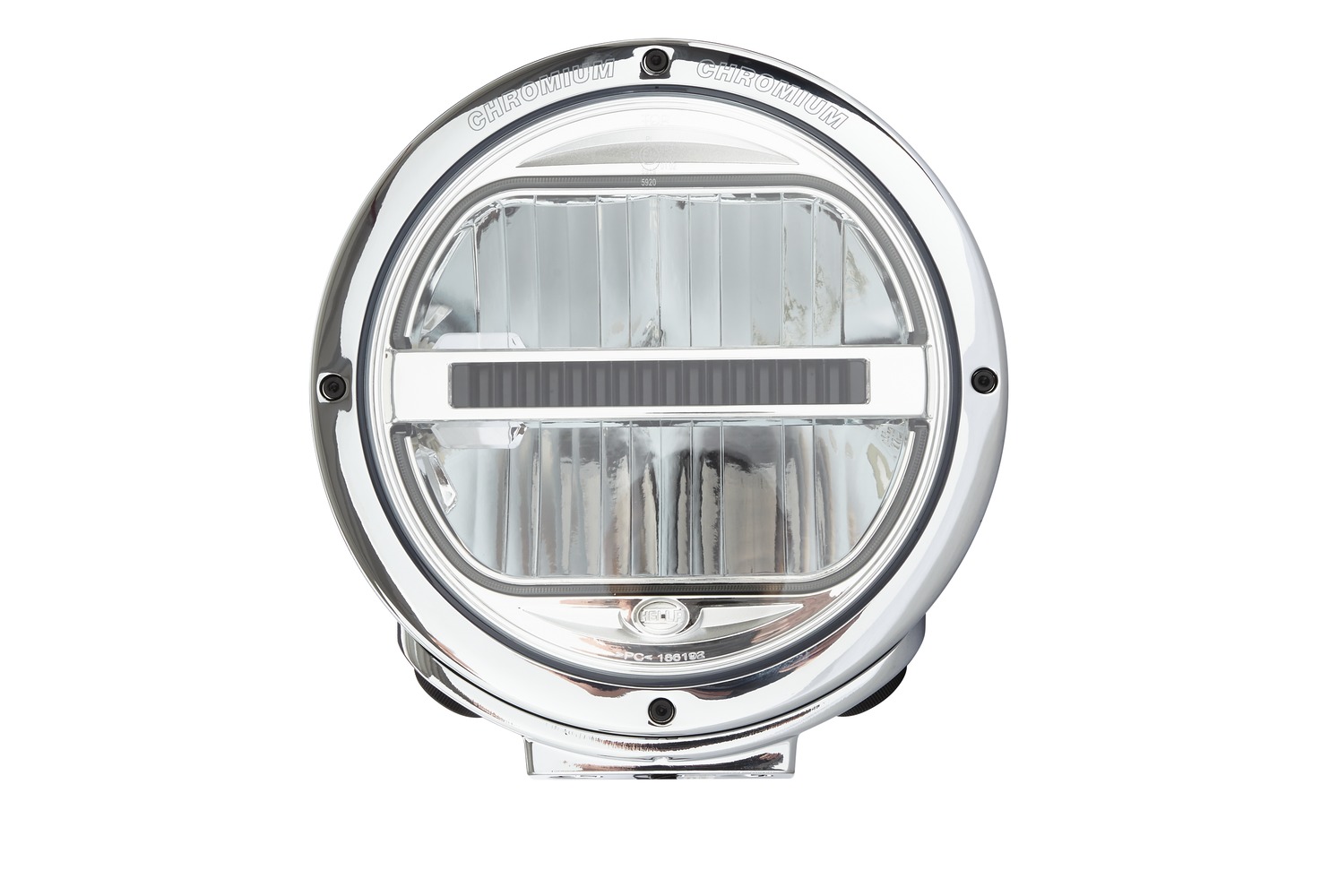

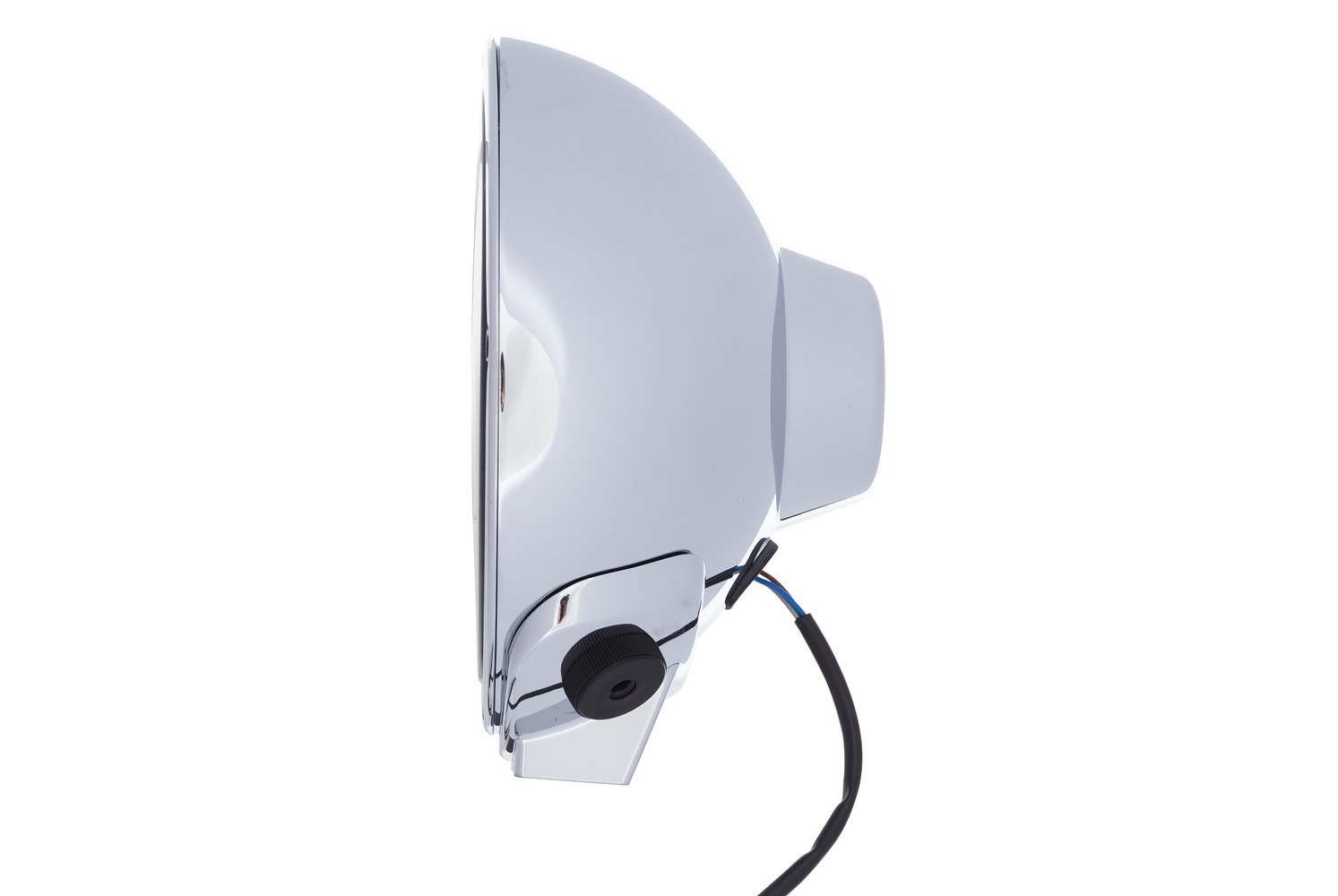

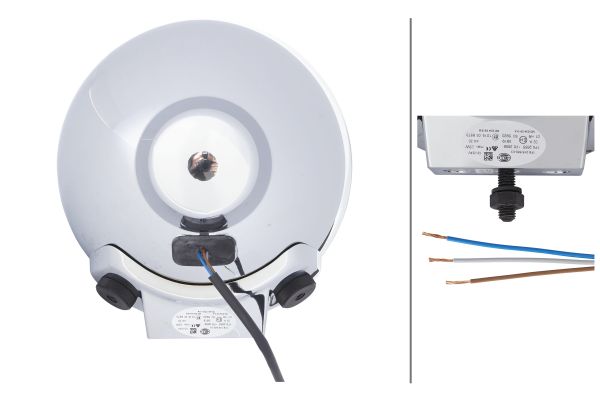

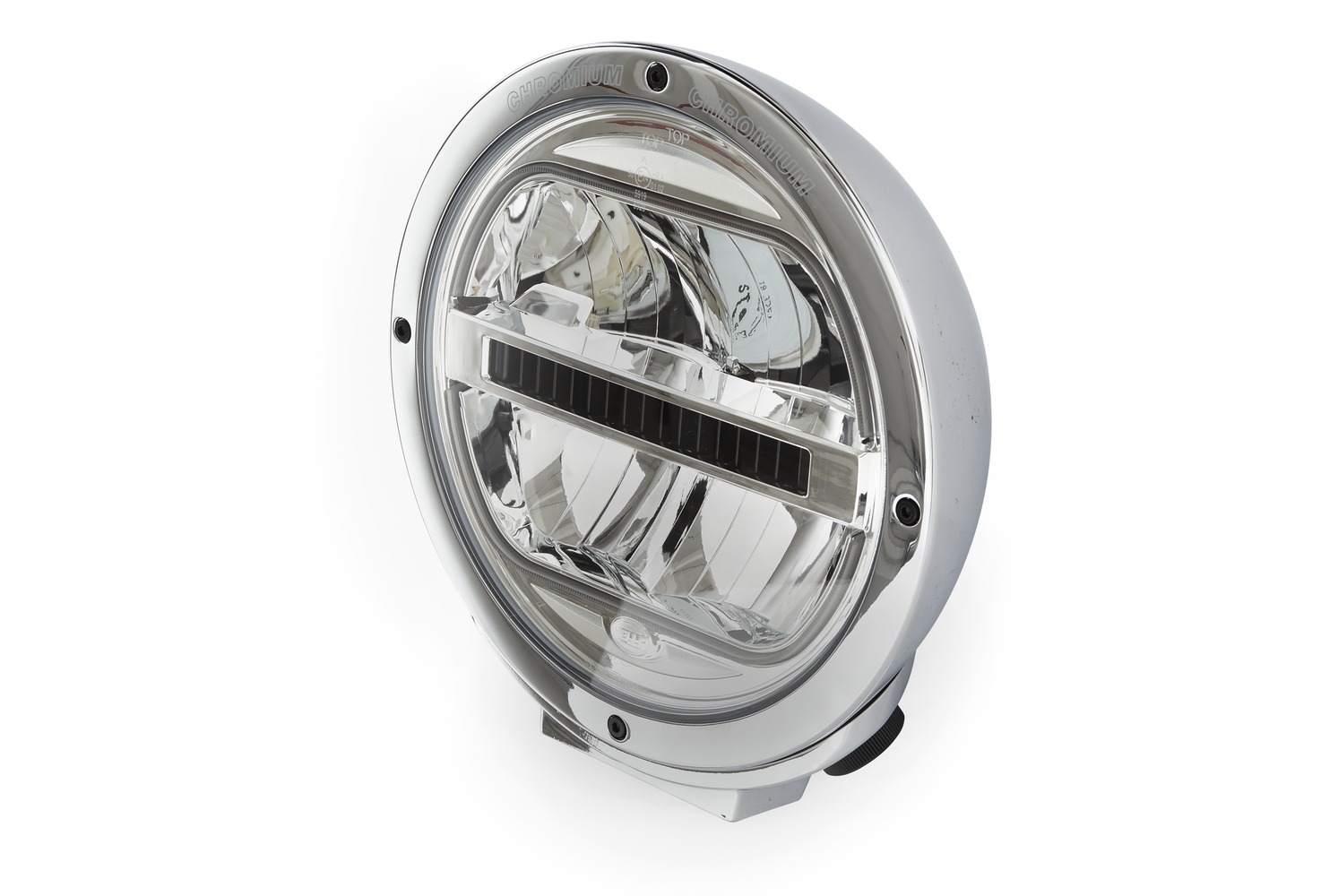

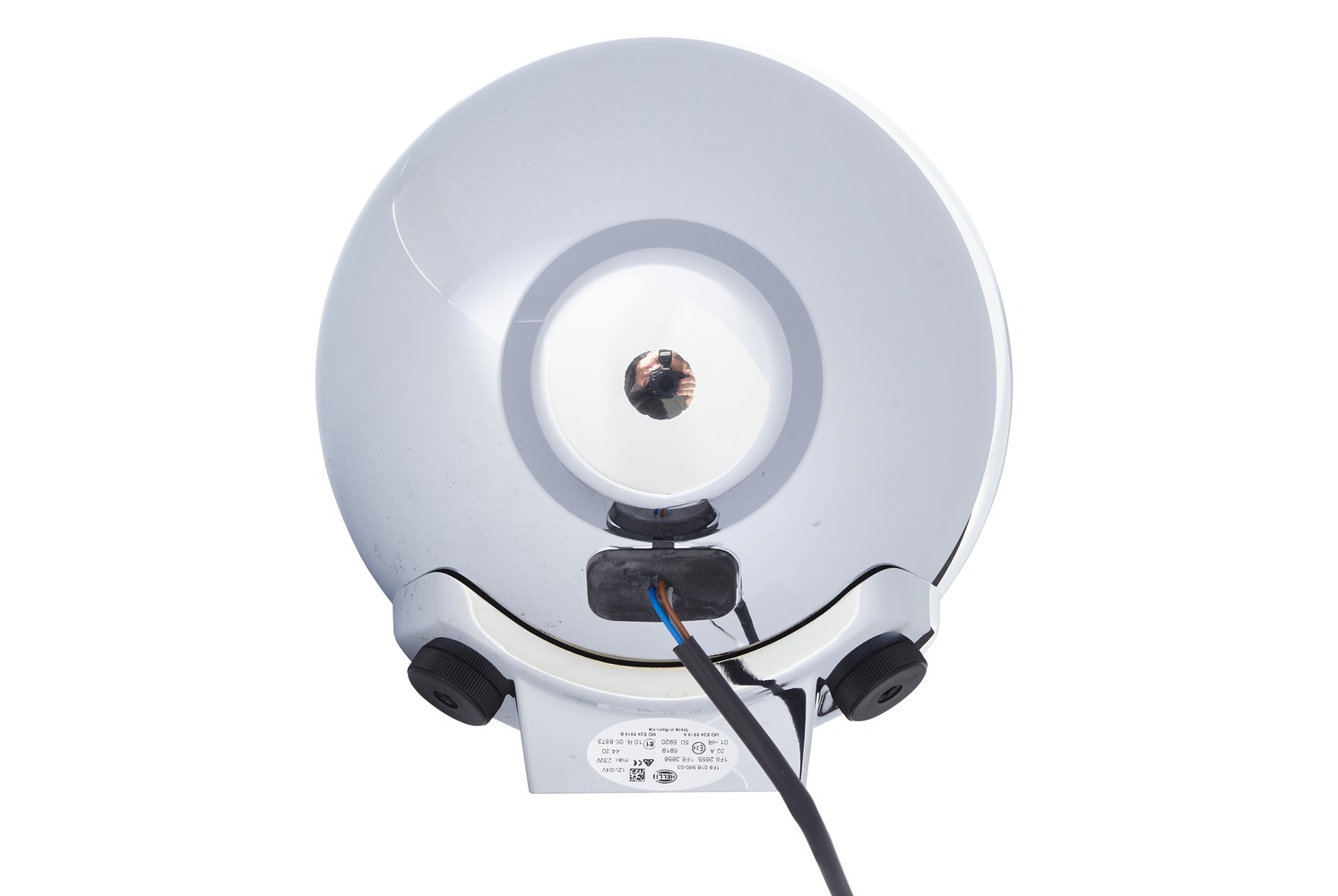

LED-Spotlight - Luminator LED - 24/12V

Hella Part no. PT/016560031

LED-Spotlight - Luminator LED - 24/12V

5.0 Excellent, from 2 customer reviews
£354.70 inc VAT
£295.58 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam, Position light

About this LED auxiliary lamp

LED-Spotlight - Luminator LED - 24/12V is a Hella LED auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is clear. Light functions: high beam, position light. Mounting: bolted. It carries R10 / R112 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/016560031, and it replaces or is equivalent to 1F8 016 560-031, 1544975, 2860454.

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

  • Auxiliary driving lamps with future-oriented look using the latest LED technology
  • The striking night design is realised by the LED position light with characteristic hexagonal contour design
  • Delay-free light signal thanks to attention-grabbing flasher function
  • The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
  • High-quality, robust, full-metal headlamp with die-cast zinc housing and mounting bracket
  • Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without top
  • Light functions: 2 - with position light (LED)/with high beam (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam, Position light
MountingBolted
FasteningSwivelling Mounting Bracket
Bulb typeLED
Fitting positionleft / right
Height222 mm
Overall height232 mm
Width222 mm
Depth131 mm
Fitting depth90 mm
ECE approvalR10 / R112 / R7

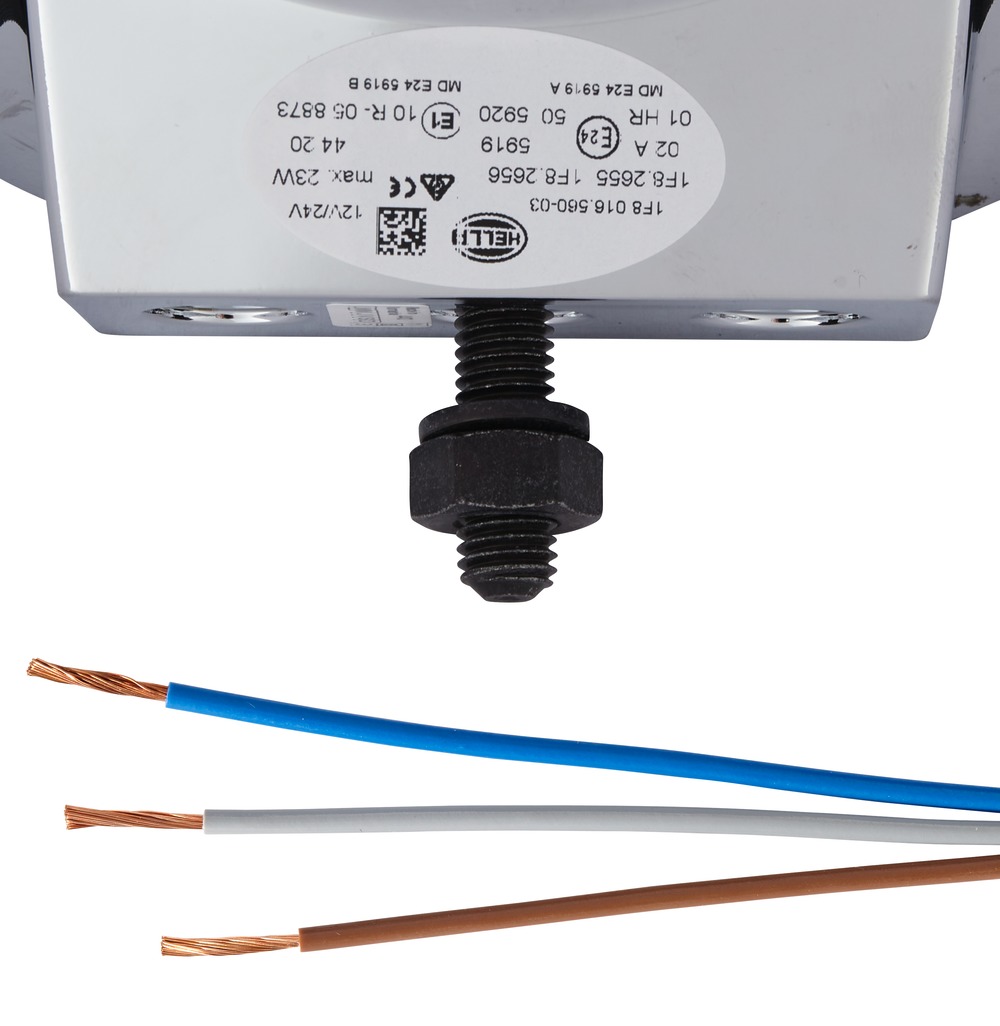

Cable800 mm
Housing colourchrome
Frame colourchrome
Shaperound
Housing typeMetal Housing
Diffusing lens typeClear diffusing lens
Weight2.67 kg
Part numberPT/016560031
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F8 016 560-031
  • 1544975
  • 2860454

Delivery and returns

In-stock orders placed before 3pm on a working day are dispatched the same day from our Lincolnshire warehouse, with tracking sent by email. UK mainland delivery for this item is £11.00, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
