LED-Spotlight - Luminator Compact LED - 24/12V

Hella Part no. PT/011815001

LED-Spotlight - Luminator Compact LED - 24/12V

5.0 Excellent, from 2 customer reviews
£381.80 inc VAT
£318.17 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam

About this LED auxiliary lamp

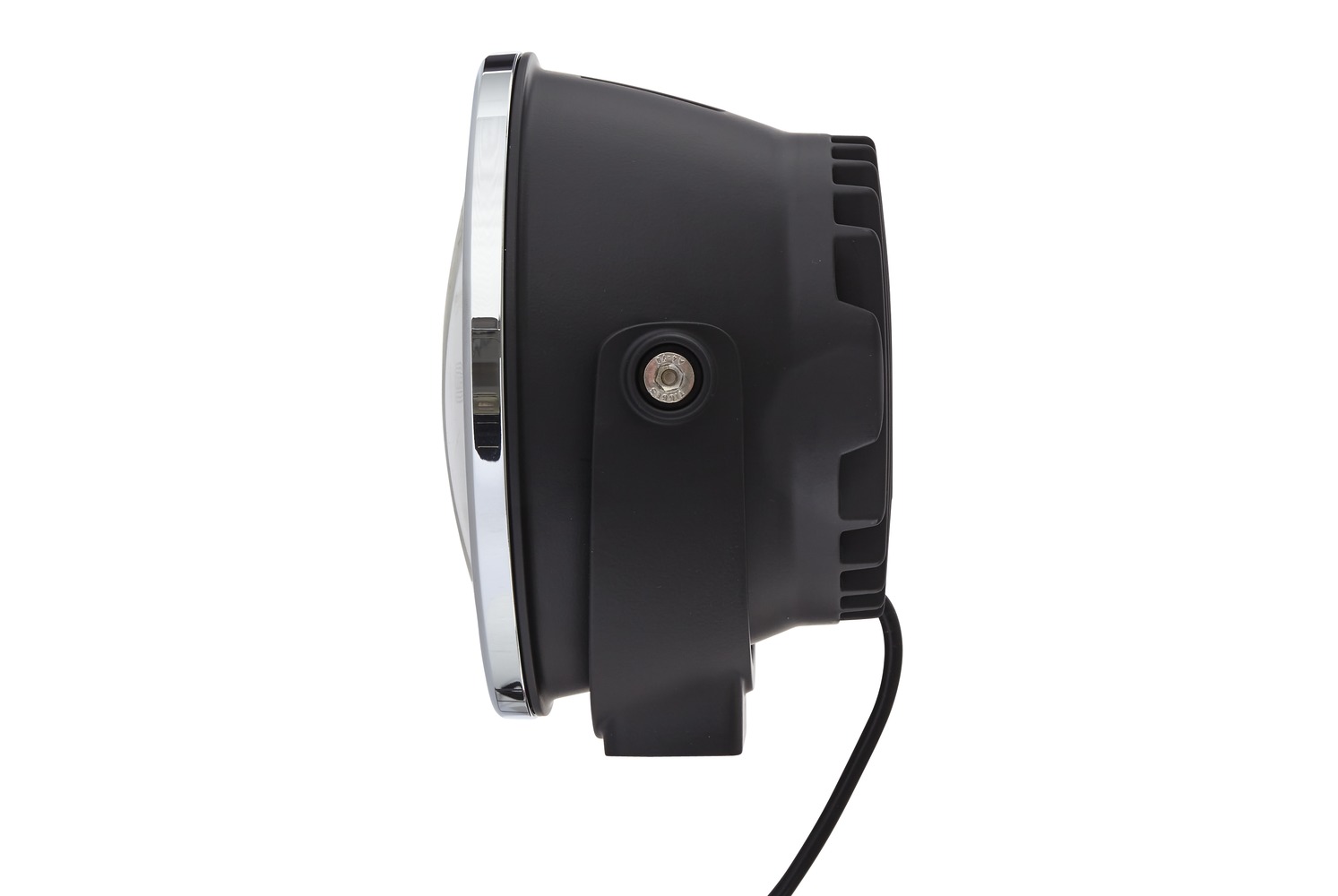

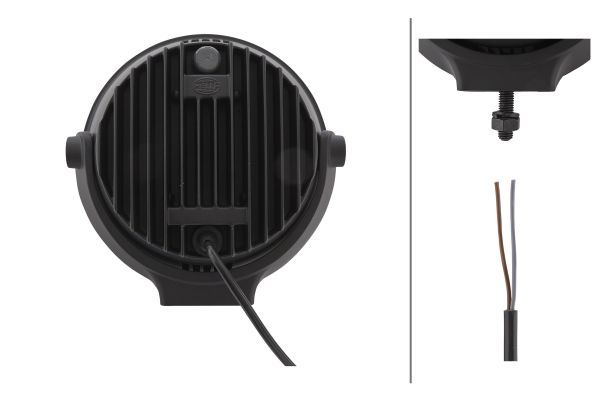

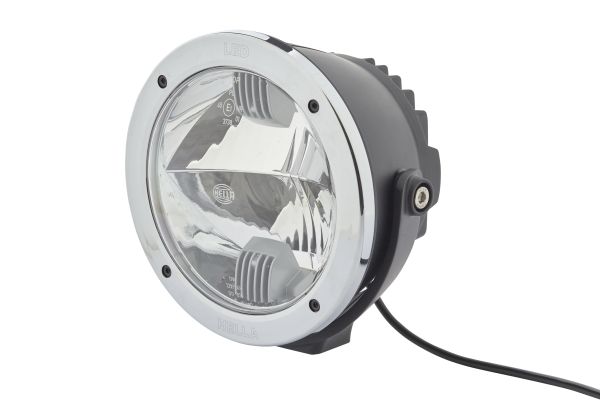

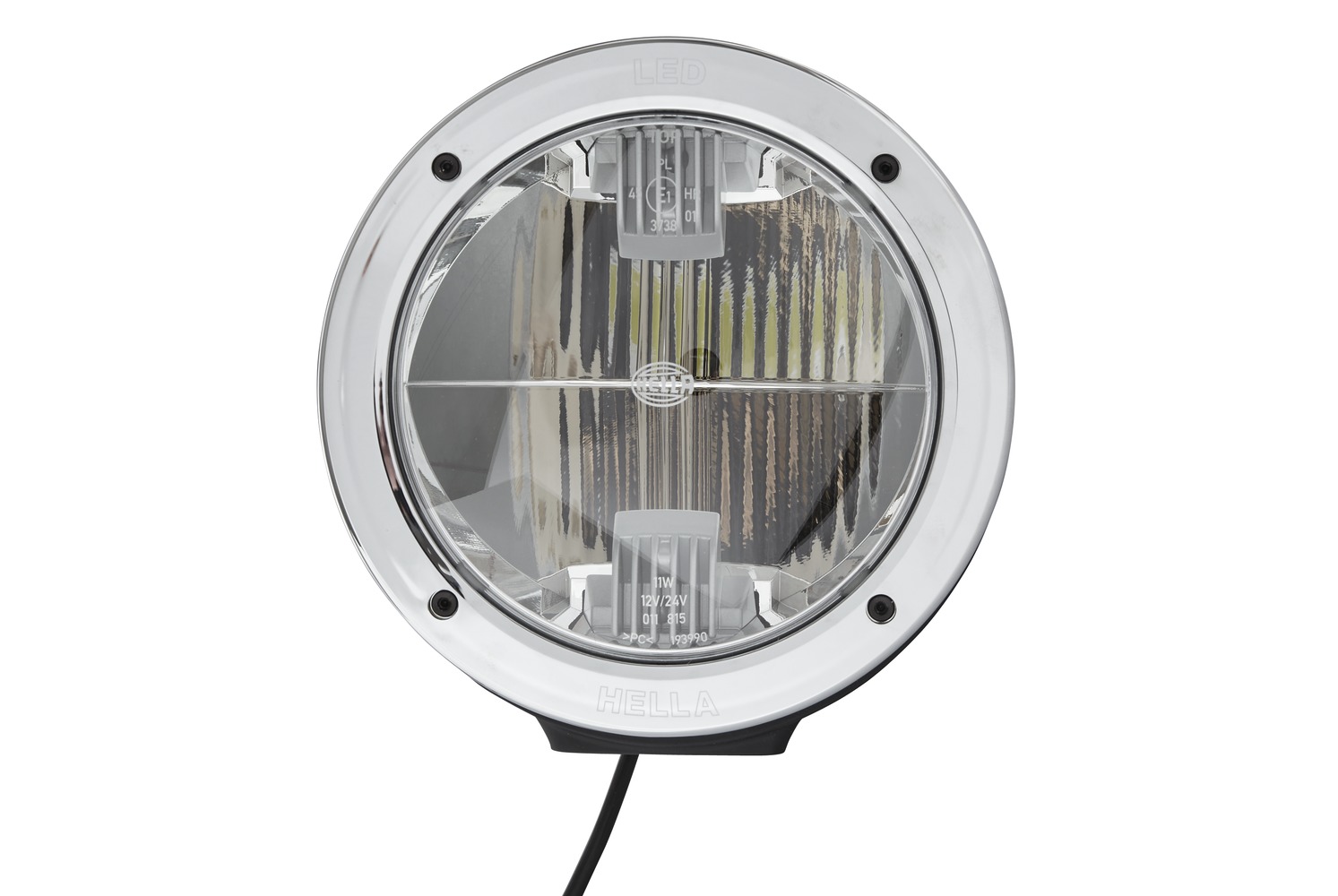

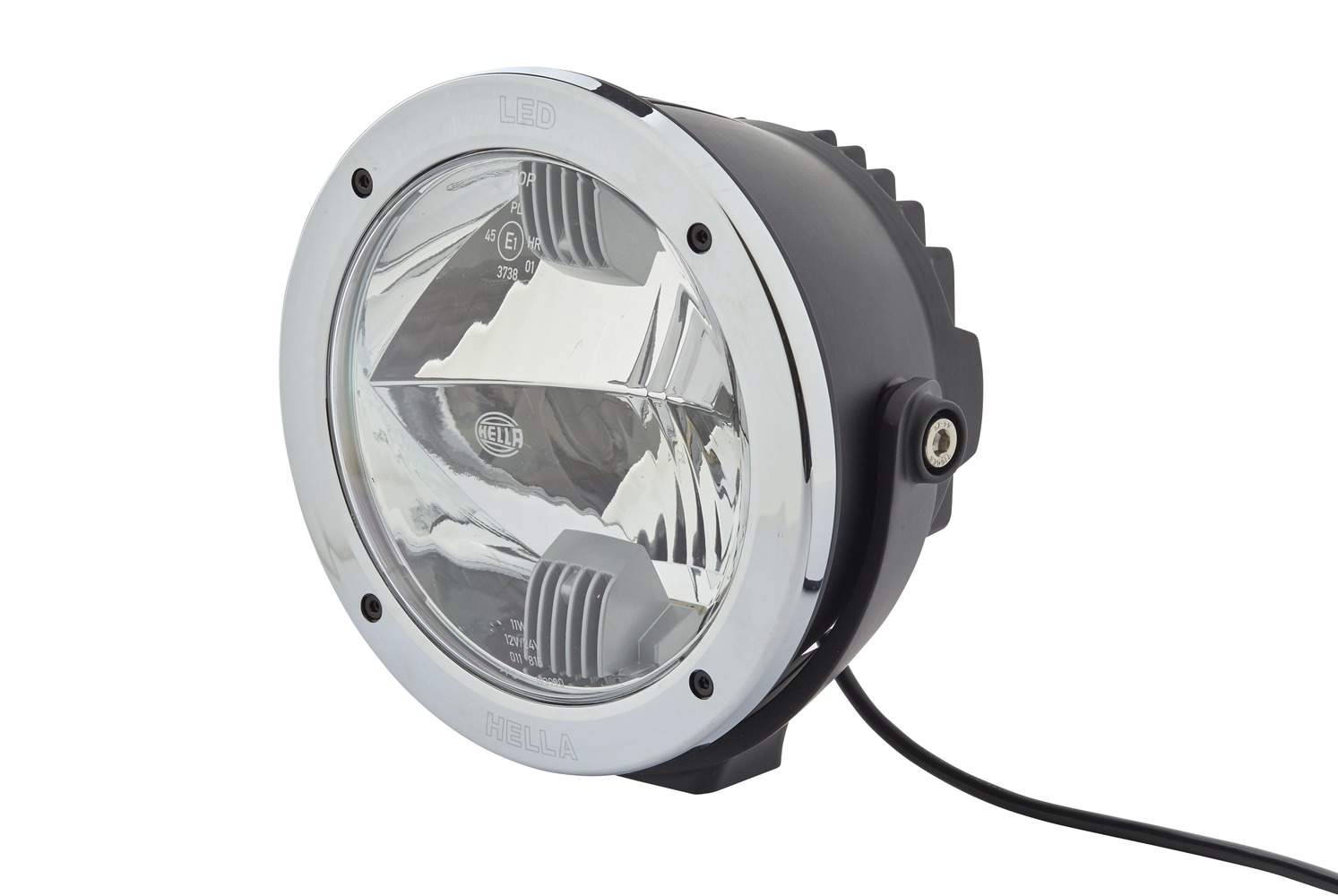

LED-Spotlight - Luminator Compact LED - 24/12V is a Hella LED auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is clear. Light functions: high beam. Mounting: bolted. It carries R112 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/011815001, and it replaces or is equivalent to 1F3 011 815-001, 2331313, 618470.

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

  • High-performance LED for long range, no more need to replace lamps
  • Illumination of the roadway by computer-calculated double reflector technology

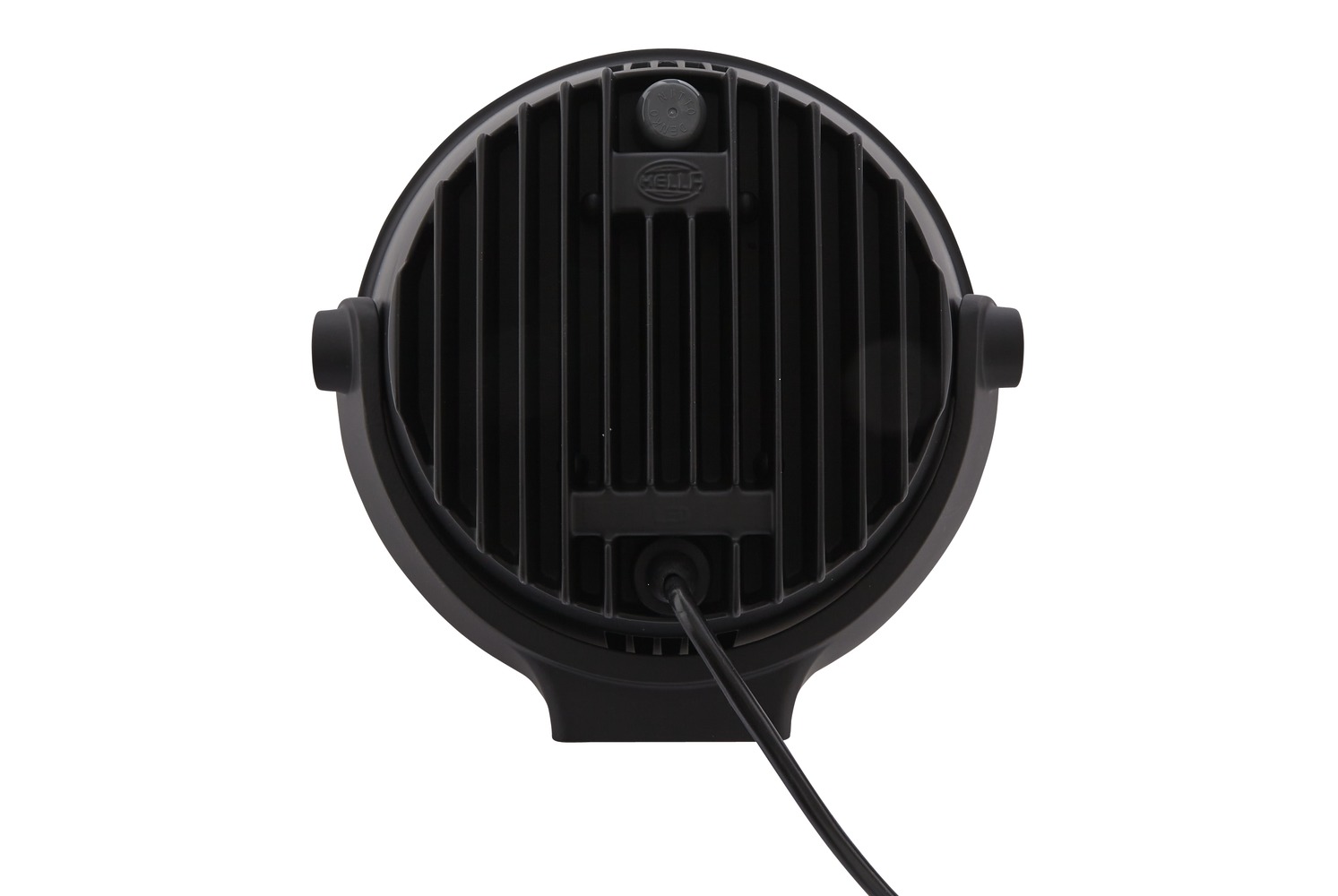

  • Integrated electronics and cooling fins for passive heat dissipation, no fan necessary
  • 75% energy saving compared to Xenon technology
  • Immediate light without delay when light flashes

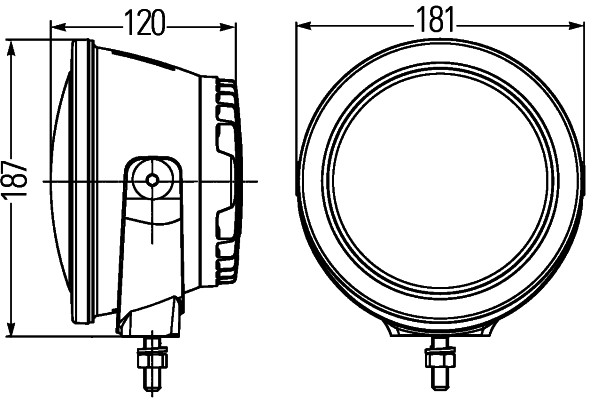

  • Width: 181mm - Height: 178mm - Depth: 120mm - Overall Height: 187mm - Lamp Type: LED - with LED - without top
  • Light functions: 1 - with high beam (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam

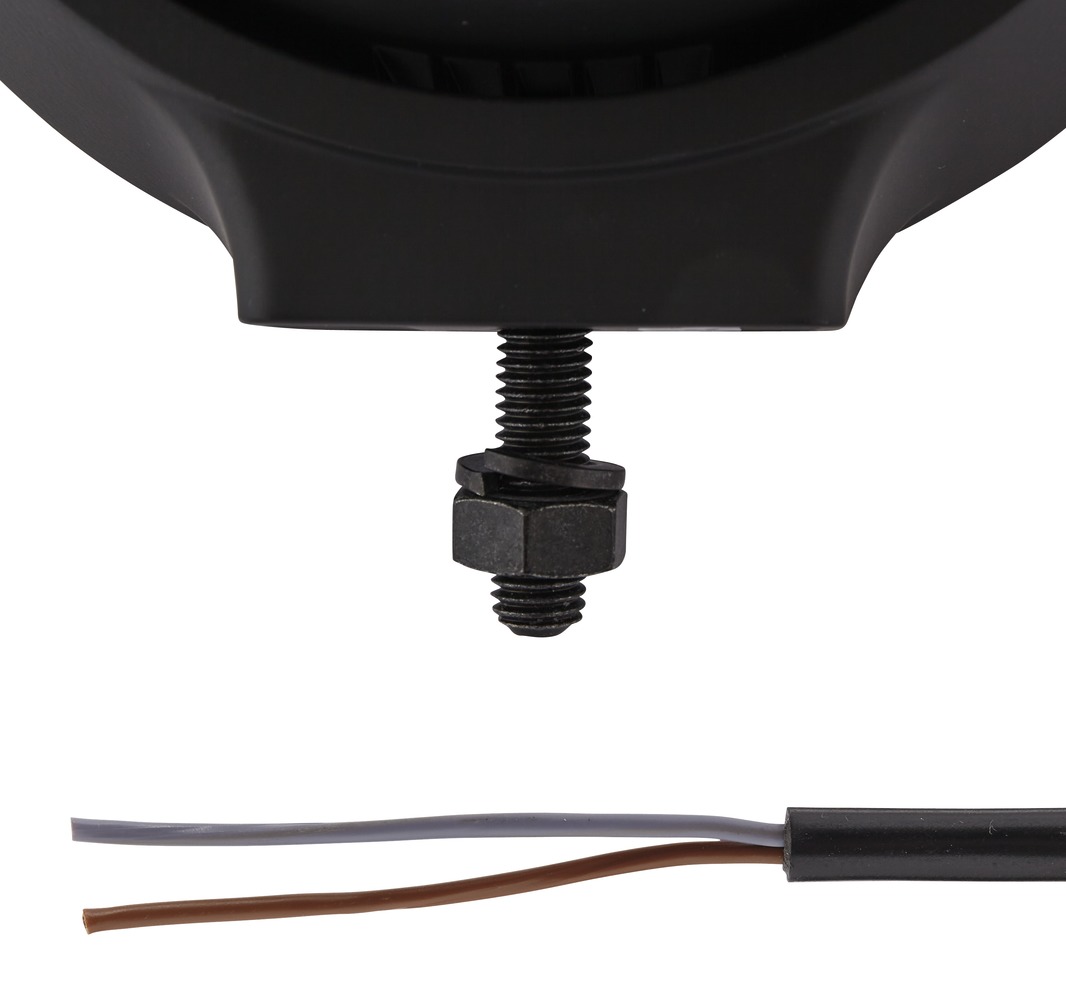

MountingBolted
FasteningSwivelling Mounting Bracket
Bulb typeLED
Fitting positionright / left
Height178 mm
Overall height187 mm
Width181 mm
Depth120 mm
ECE approvalR112 / R10
Cable3000 mm
Housing colourMat / black
Frame colourchrome
Shaperound
Housing typeMetal Housing
Diffusing lens typeClear diffusing lens
Weight1.67 kg
Part numberPT/011815001
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F3 011 815-001
  • 2331313
  • 618470
