LED-Worklight - Power Beam 1800 - 24V
5.0 Excellent, from 2 customer reviewsIn stock, 100 available
-
Dispatched within 1 working day
UK mainland delivery usually takes 2 to 3 working days - UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international
In stock
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 24V
- Technology
- LED
- IP rating
- IP67, IP69K
About this LED work light

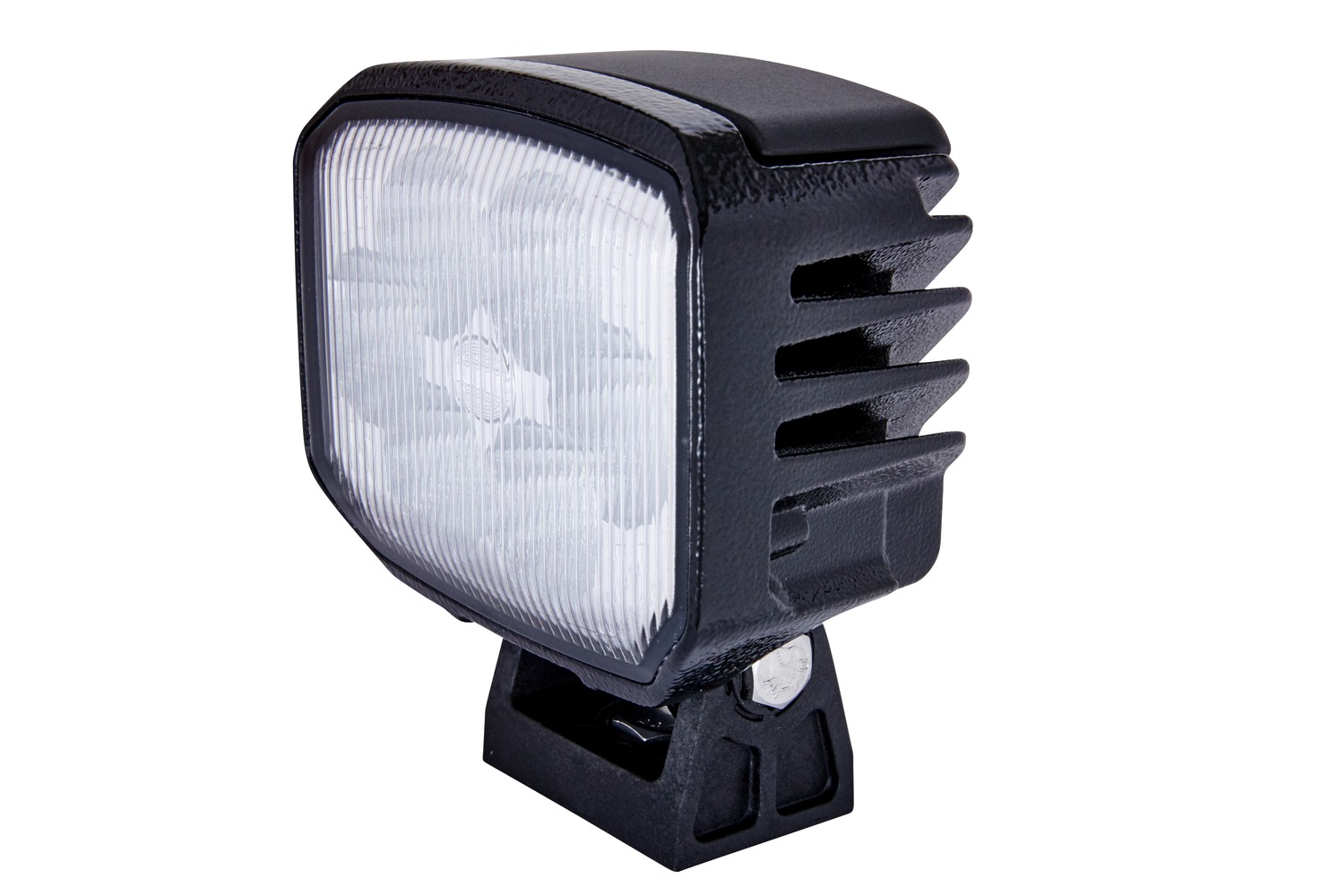

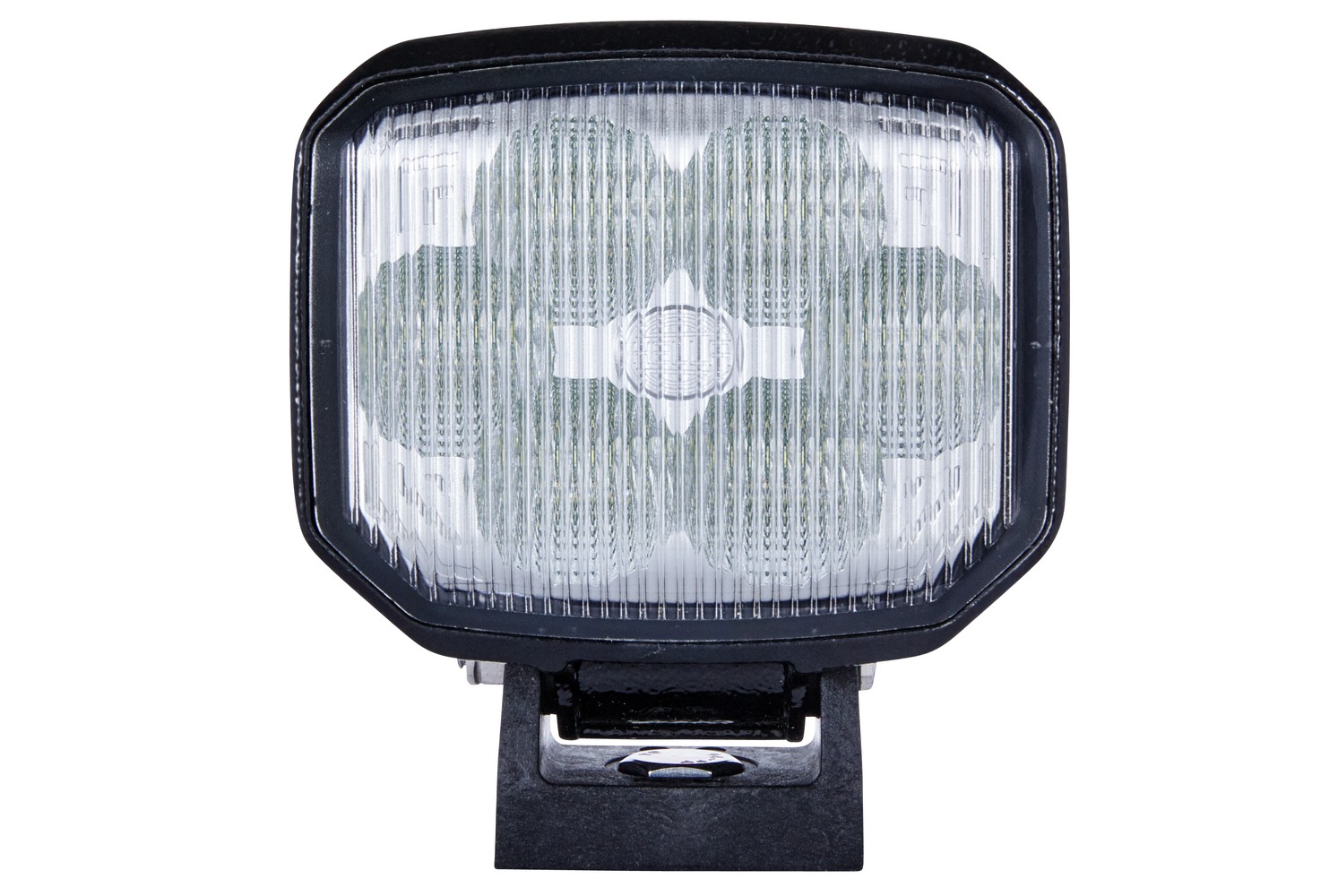

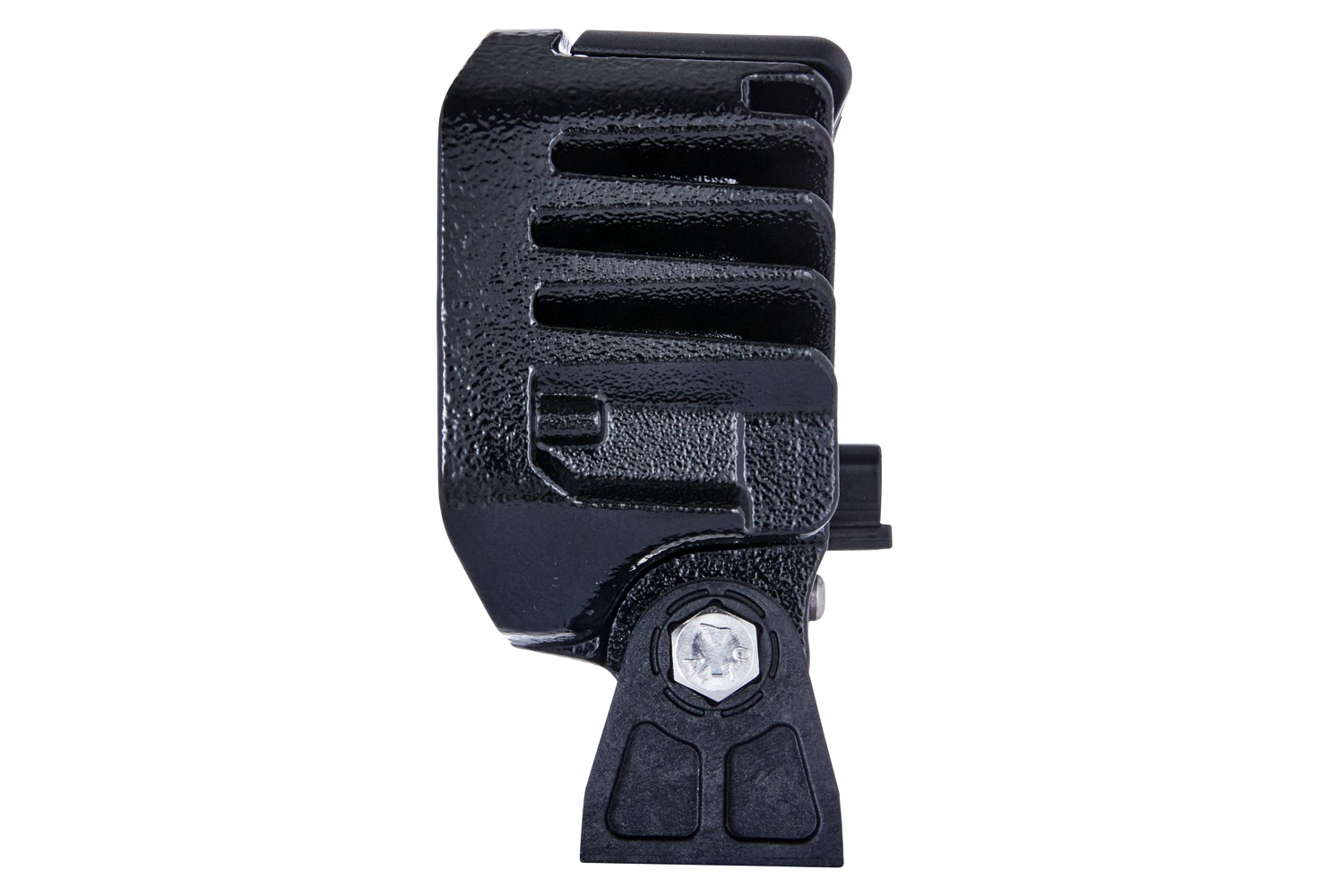

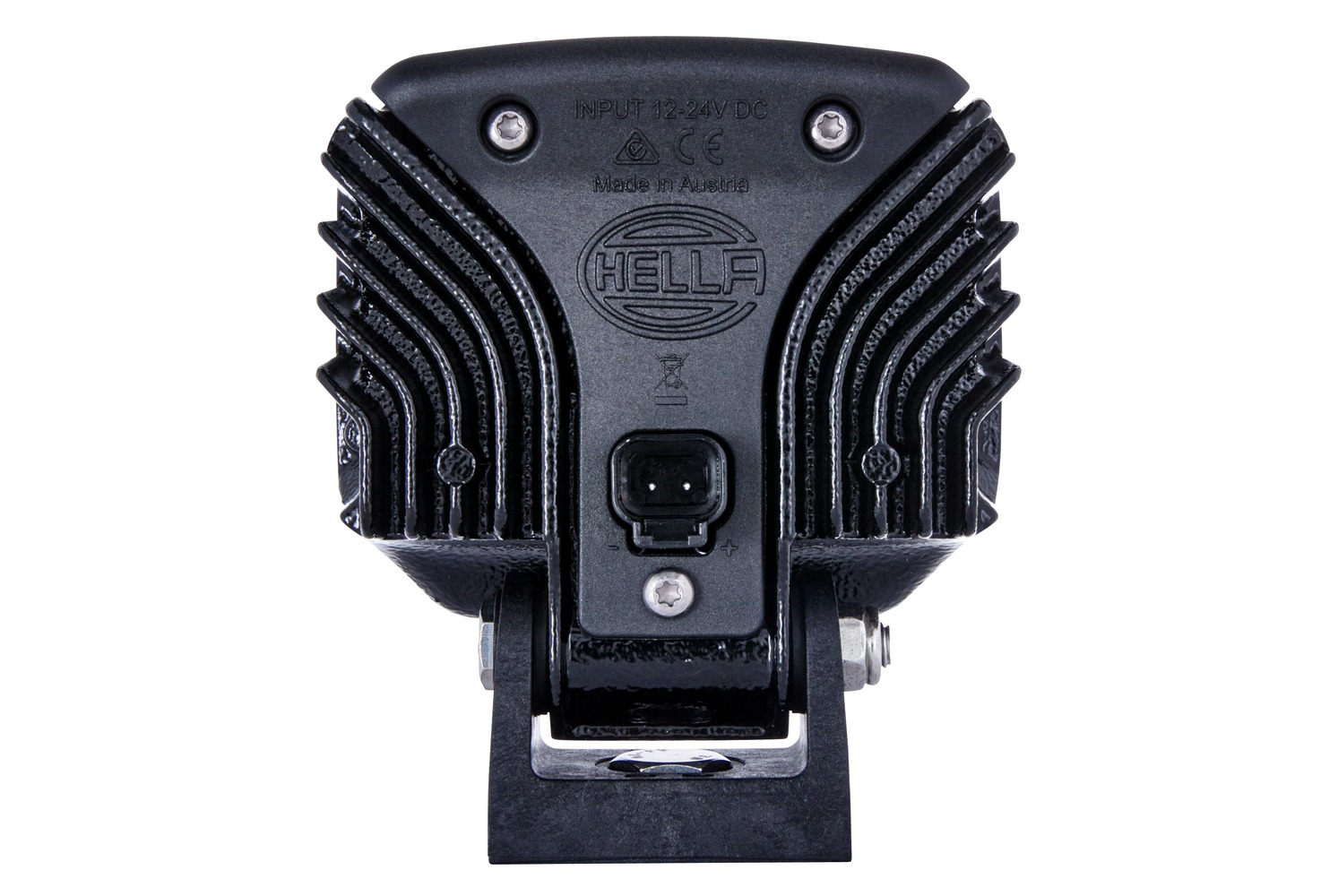

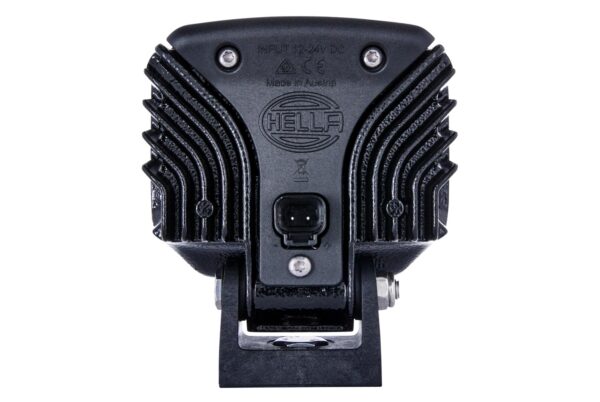

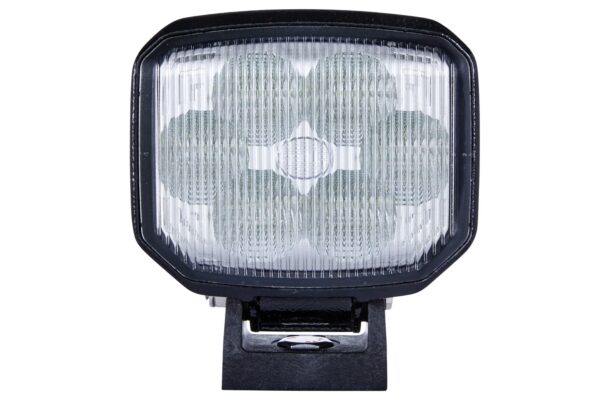

LED-Worklight - Power Beam 1800 - 24V is a Hella LED work light for 24V electrical systems. The light source is LED, the housing is sealed to IP67, IP69K. Mounting: bolted / mounting. It carries R10 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is PT/996388011, and it replaces or is equivalent to 1GA 996 388-011, 6635440047, AA6635440047, 503240772, U1251036006, 2570004 and 2 more.
The Power Beam 1800 is an ideal LED worklight that combines powerful light output in a practical design. The worklight is designed to be universally applicable due to its compact dimensions. The light output of the six high-performance LEDs is a powerful 1,850 lumens. The light is distributed with a specially developed multi-facet reflector that ensures homogeneous illumination. Thanks to different diffusing lenses, this worklight can be used for both close-range and long-range illumination. The energy consumption is only 36 watts. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye and preventing rapid eye fatigue when working at night. The Power Beam 1800 is equipped with an additional dimming function which can be realised through the adjustable duty cycle of the pulse width modulated signal (PWM). This can be made possible by interposing a conventional LED PWM dimmer in the supply line. (max. input current of the spotlight 1.5 A ; frequency 100 - 1,000 Hz).
- The light output of the six high-performance LEDs is a powerful 1,850 lumens.
- The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
- Due to different diffusing lenses, this worklight can be used for both close-range and long-range illumination.
- The Power Beam 1800 is equipped with an additional dimming function. This dimming can be realised by the adjustable duty cycle of the pulse width modulated signal (PWM).
- This can be achieved by interposing a conventional LED PWM dimmer in the supply line.
- Lamp Type: LED - Number of LEDs: 6 - Power consumption: 28W - Colour Temperature: 6500K
- Patterned diffusing lens
Specifications
| Voltage | 24V |
|---|---|
| Technology | LED |
| IP rating | IP67, IP69K |
| Mounting | Bolted / mounting |
| Bulb type | LED |
| Height | 129 mm |
| Width | 112 mm |
| Depth | 63 mm |
| Light distribution | Short distance lighting |
| ECE approval | R10 |

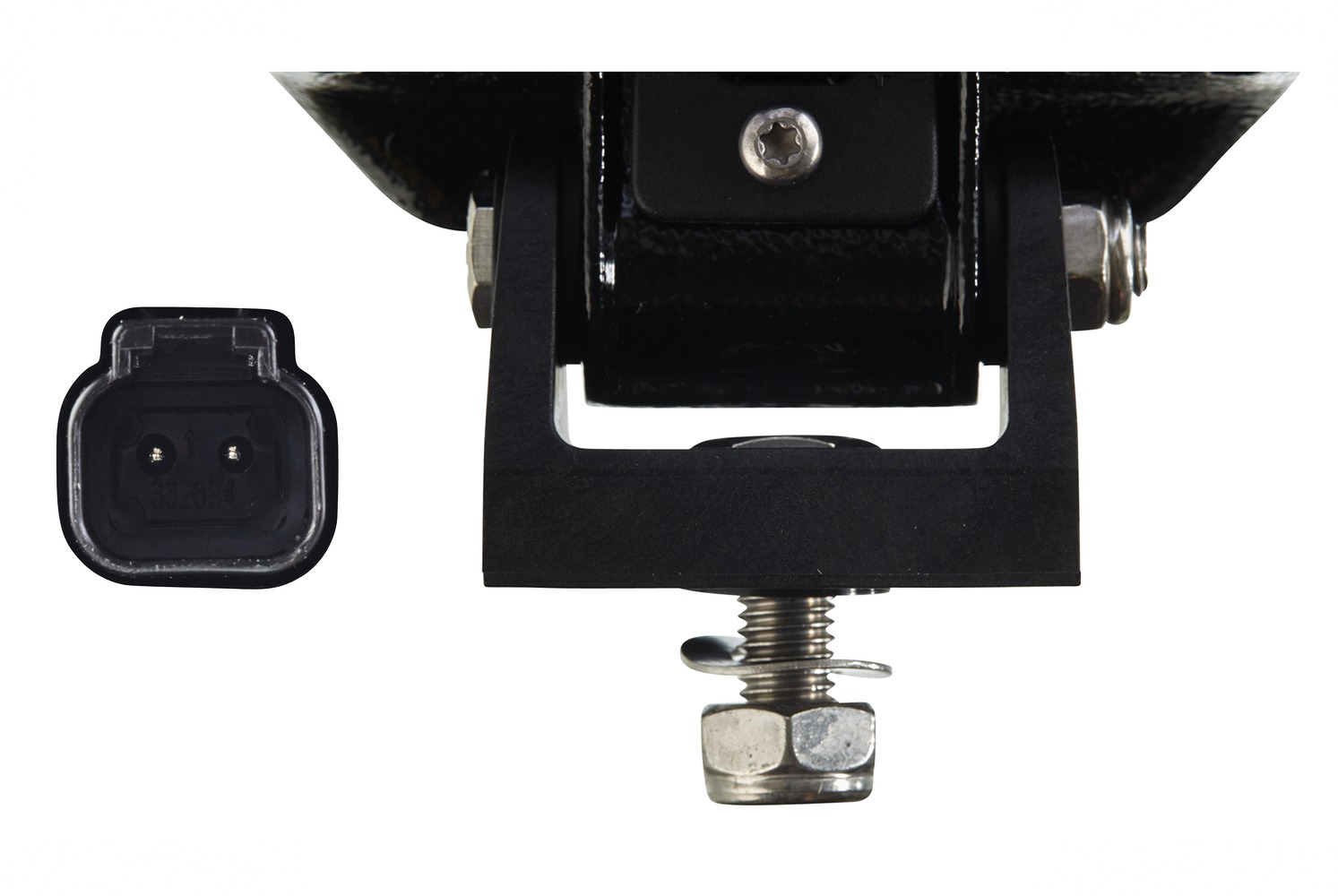

| Connector | DEUTSCH plug |
| Luminous flux | 1850 lm |
| Colour temperature | 6500 K |
| Number of LEDs | 6 |
| Power consumption | 28 W |
| Housing type | Aluminium Housing |
| Housing colour | black |
| Diffusing lens material | PC (Polycarbonate) |
| Diffusing lens type | Patterned diffusing lens |
| Weight | 601 g |
| Part number | PT/996388011 |
| Brand | Hella |
Part numbers
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1GA 996 388-011
- 6635440047
- AA6635440047
- 503240772
- U1251036006
- 2570004
- 107212
- A6635440047
