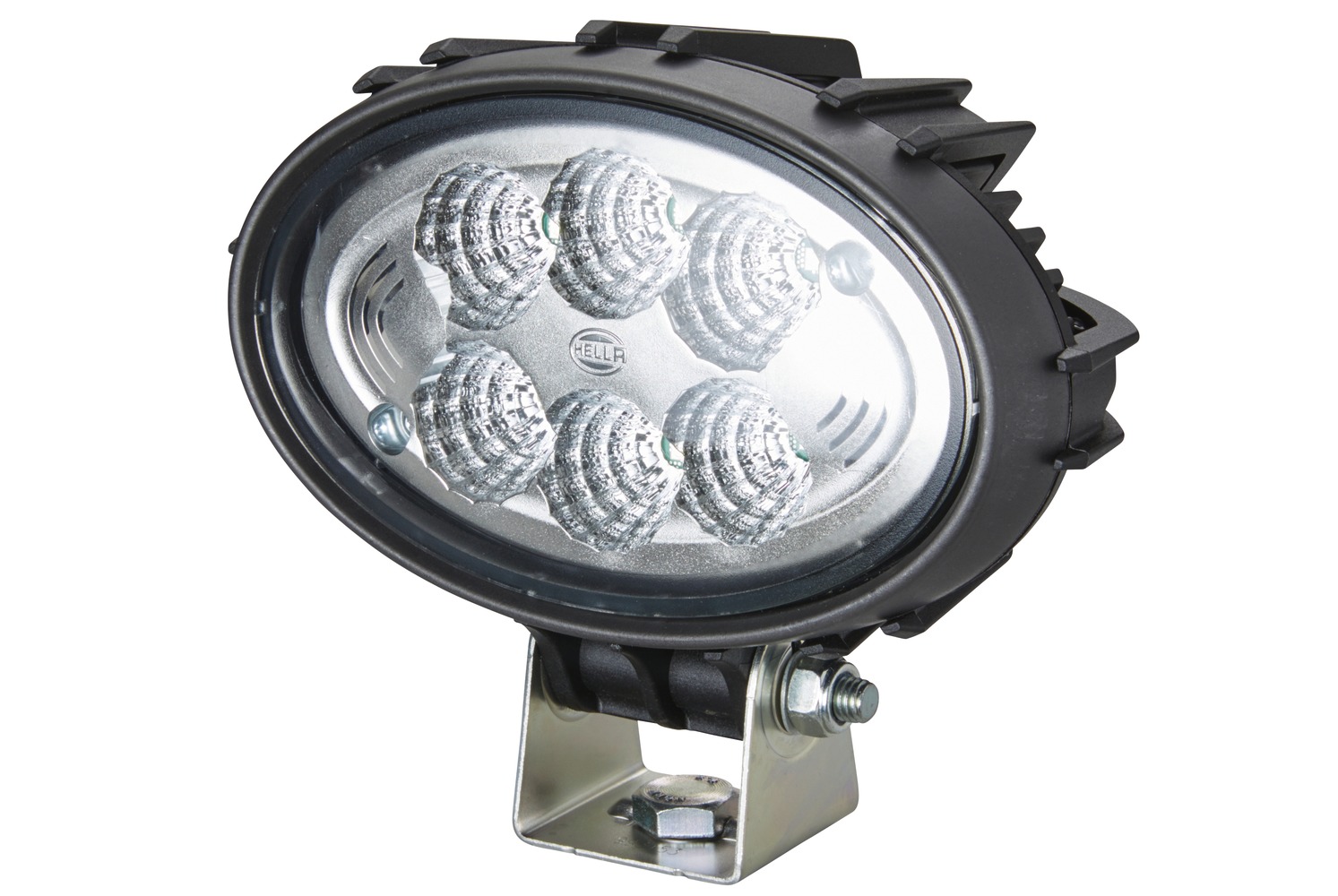

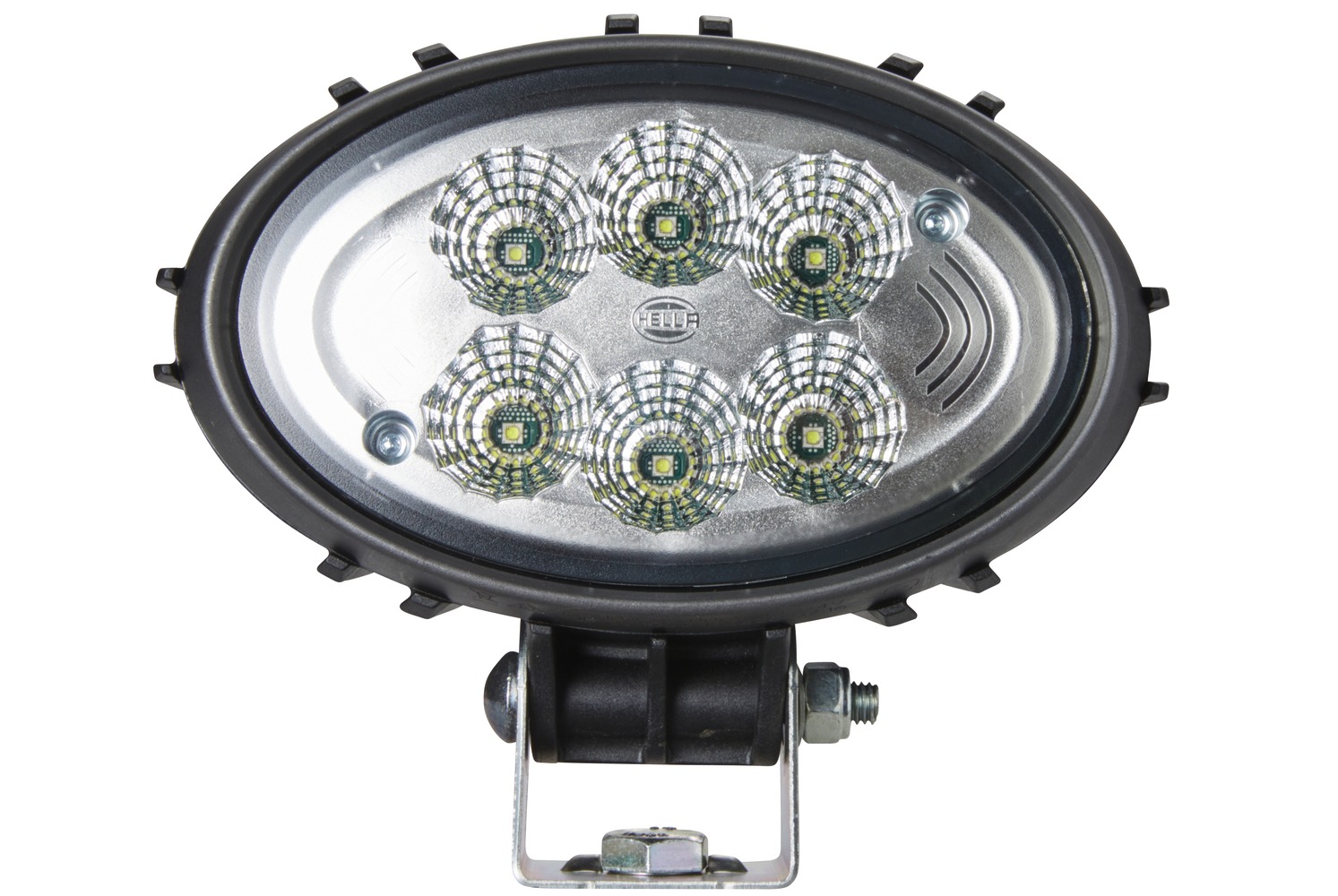

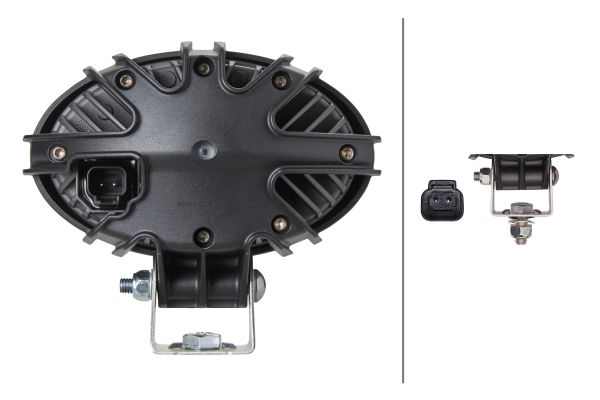

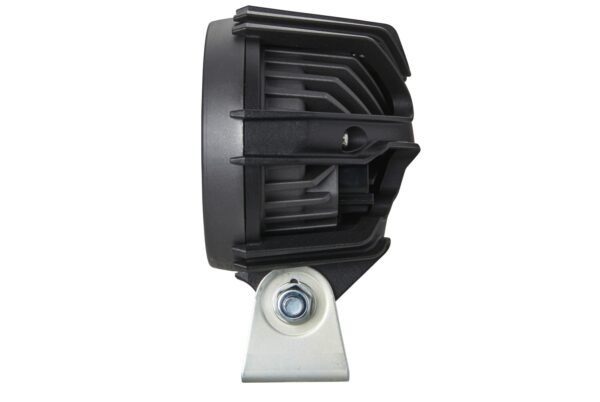

LED-Worklight – Oval 100 Compact – 12/24V
🚚 Estimated delivery: 3 Working Days
£114.18£114.18 Incl. VATExcl. VAT
In stock
The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing, which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1,850 lumens, the Oval 100 LED compact is ideal for replacing old halogen worklights (H3, H9) – with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.
- This spotlight comes with the innovative plastic housing, which offers complete corrosion resistance and many new mounting options.

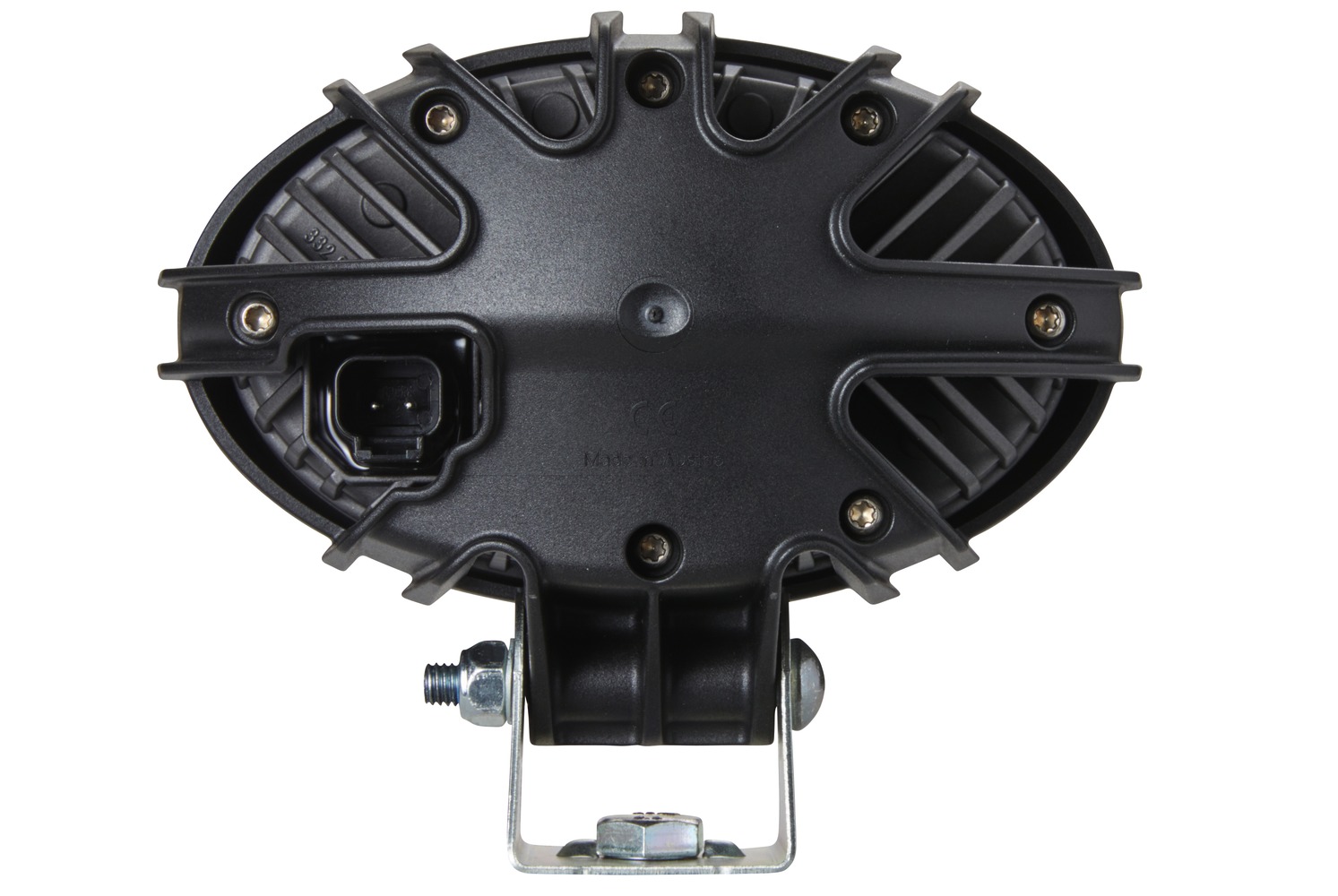

- The heat-conducting plastic housing is equipped with cooling fins on the rear side, which ensure the necessary heat dissipation of the 6 high-power LEDs.
- The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
- The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).
- The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
- Lamp Type: LED – Number of LEDs: 6 – Power consumption: 26W – Colour Temperature: 6500K
- Clear diffusing lens
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.5923 kg |
|---|---|
| Dimensions | 190 × 190 × 125 cm |
| Private Equivalent | 996761111 |
| Equivalent Parts | 1GA 996 761-111, 75171760000, ACW5176100, ACW5182290, 996761111 |
| Mounting Type | mounting / Bolted |
| Fastening Type | Swivelling Mounting Bracket |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |
| Height | 146 mm |
| Width | 166 mm |
| Depth | 83 mm |
| Light Distribution | Long-range illumination |
| fulfils ECE norm | R10 |

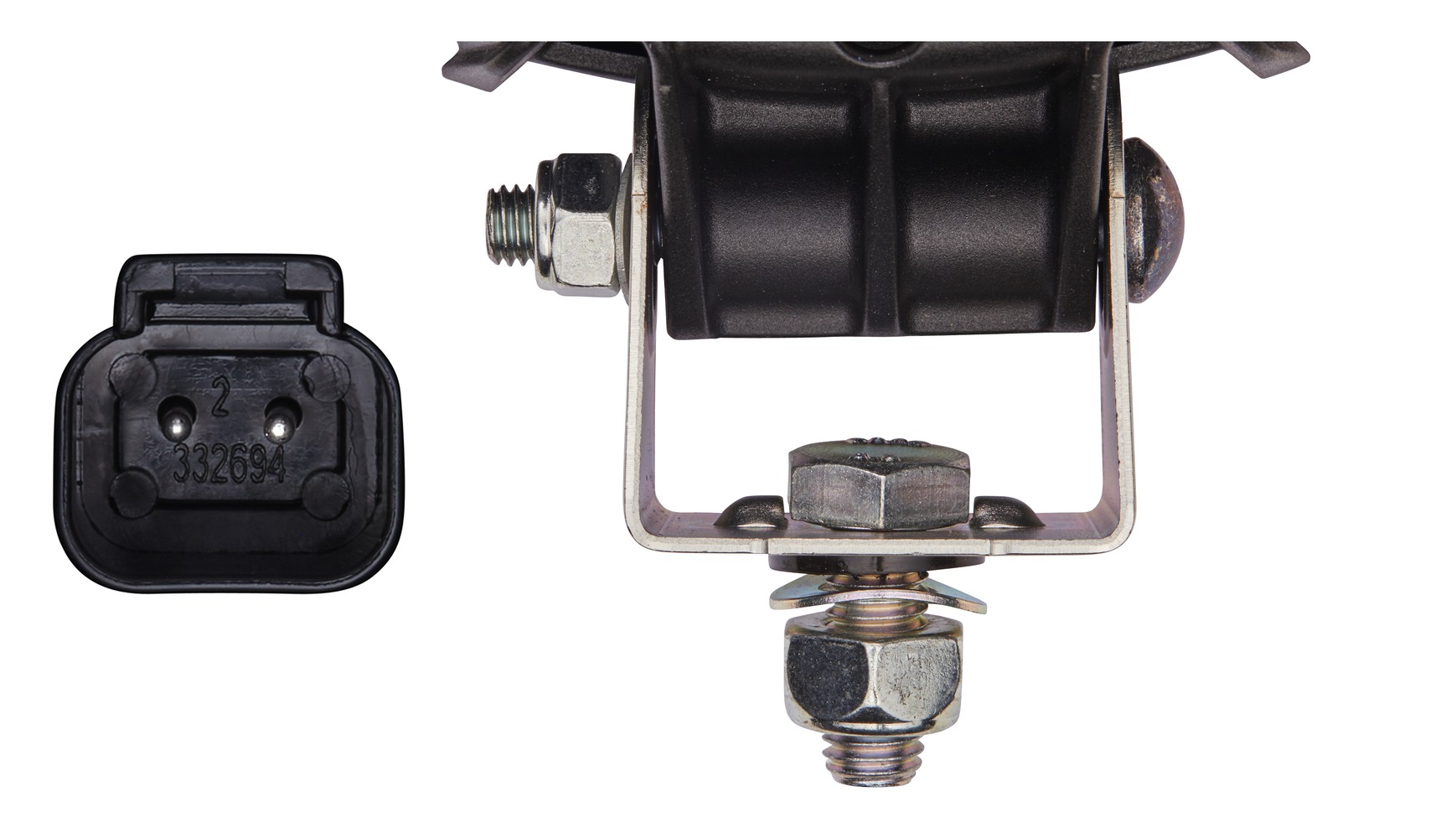

| Plug | DEUTSCH plug |
| Prot.type (IP Code) | IP6K7 / IP6K9K |
| Luminous Flux | 1850 lm |
| Colour Temperature | 6500 K |
| Number of LEDs | 6 |
| Power consumption | 26 W |
| Housing Type | Synthetic Material Housing |
| Housing Colour | black |
| Diffusing Lens Type | Clear diffusing lens |
Compatible Tractors:
| Manufacturer | Series | Models |
|---|---|---|
| Claas | - | Jaguar 830, Jaguar 840, Jaguar 850, Jaguar 860, Jaguar 870, Jaguar 890, Jaguar 900, Jaguar 930, Jaguar 940, Jaguar 950, Jaguar 960, Jaguar 970, Jaguar 980, Jaguar 990, Xerion 4000, Xerion 4200, Xerion 4500, Xerion 5000 |
| Massey Ferguson | - | MF 5711, MF 5712, MF 5713, MF 6713, MF 6714, MF 6715, MF 6716, MF 6718, MF 7714, MF 7715, MF 7716, MF 7718, MF 7719, MF 7720, MF 7722, MF 7724, MF 7726, MF 8727, MF 8730, MF 8732, MF 8735, MF 8737, MF 8740, MF 9545, MF 9565 |
