LED-Worklight – Oval 100 – 12/24V
🚚 Estimated delivery: 3 Working Days
£179.58£179.58 Incl. VATExcl. VAT
In stock

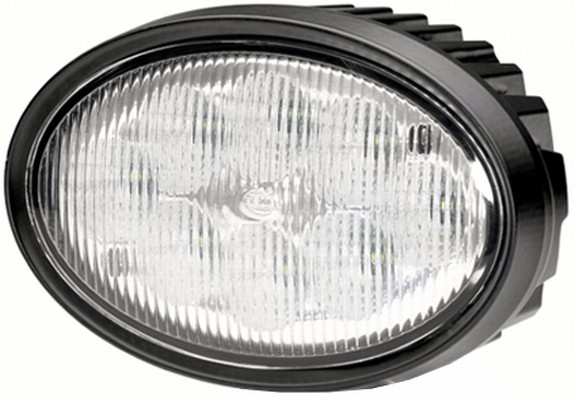

The Oval 100 LED worklight complements the modular series with the halogen and xenon variants with efficient LED technology. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Oval 100 LED can replace standard halogen worklights (e.g. H3 / 55 watts) – with a power consumption of only 25 watts. This makes the worklight ideal for use on vehicles with battery operation, and when the alternator is already heavily loaded. The light output is a powerful 1,700 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED can be mounted either upright (0°) or suspended (180°). With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The worklight’s black housing is made of aluminium and has cooling fins to dissipate the heat from the 8 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.
- The light output is a powerful 1,700 lumens. The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
- The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 8 high-power LEDs.
- The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
- A sensor also protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited.
- The integrated electronics are protected against polarity reversal and equipped with an LED error bypass.
- Lamp Type: LED – Number of LEDs: 8 – Power consumption: 25W – Colour Temperature: 6500K
- Patterned diffusing lens
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.766 kg |
|---|---|
| Dimensions | 190 × 143 × 125 cm |
| Private Equivalent | 996661021 |
| Equivalent Parts | 1GA 996 661-021, 5751347, 71480385, 996661021 |
| Mounting Type | Fitting / Screw Connection |
| Fastening Type | 2-point attachment |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |

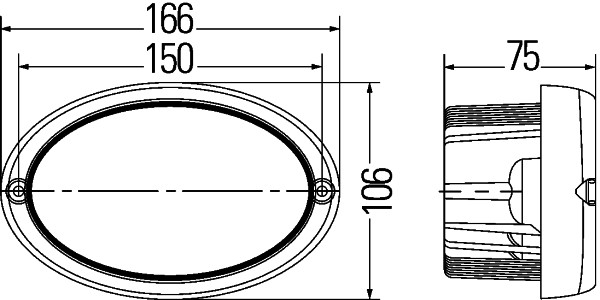

| Height | 106 mm |
| Width | 166 mm |
| Depth | 75 mm |
| Light Distribution | Short distance lighting |
| Registration Type | ADR/GGVS |
| fulfils ECE norm | R10 |
| Plug | DEUTSCH plug |
| Prot.type (IP Code) | IP6K9K / IP6K7 |
| Luminous Flux | 1700 lm |
| Colour Temperature | 6500 K |
| Number of LEDs | 8 |
| Power consumption | 25 W |
| Housing Type | Aluminium Housing |
| Housing Colour | black |
| Diffusing Lens Type | Patterned diffusing lens |
