LED-Worklight – Modul 90i – 12/24V
🚚 Estimated delivery: 3 Working Days
£194.39£194.39 Incl. VATExcl. VAT
In stock
The Modul 90i LED is a compact recessed worklight with powerful light output. The installation housing was dimensioned to add an LED worklight to HELLA’s existing 90 module series. The black aluminium housing has cooling fins that provide the necessary heat dissipation for the four high-performance multi-chip LEDs. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. Thanks to its powerful light output of 3,800 lumens, the Modul 90i LED can replace xenon worklights – with a power consumption of only 36 watts. This makes the worklight ideal for use on battery-operated vehicles and vehicles whose alternator is already heavily loaded. The light is distributed with a specially developed multi-facet reflector that ensures homogeneous illumination. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye. Thus preventing rapid eye fatigue when working at night.
- Thanks to its powerful light output of 3,800 lumens, the Modul 90i LED can replace xenon worklights.
- The black aluminium housing is equipped with cooling fins which provide the necessary heat dissipation for the four high-power multichip LEDs.
- In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
- The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
- The light from the spotlight is very similar to daylight. Therefore colours differ more clearly in the dark. This facilitates the human eye’s sensory perception.
- Lamp Type: LED – Number of LEDs: 4 – Power consumption: 42W – Colour Temperature: 6500K
- Patterned diffusing lens
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.663 kg |
|---|---|
| Dimensions | 143 × 127 × 167 cm |
| Private Equivalent | 996263501 |
| Equivalent Parts | 1G0 996 263-501, 75171680000, 47855631, 12211942, 1019055634, 86066077, ACW0511960, ACW051196A, G842900110070, H218PB2526010, 996263501 |
| Mounting Type | Screw Connection / Fitting |
| Fastening Type | Four-point attachment |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |

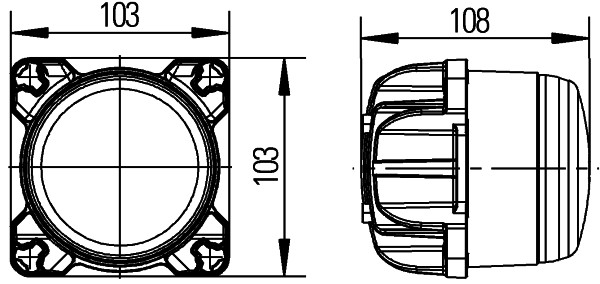

| Height | 103 mm |
| Width | 103 mm |
| Depth | 108 mm |
| Light Distribution | Short distance lighting |
| fulfils ECE norm | R10 |

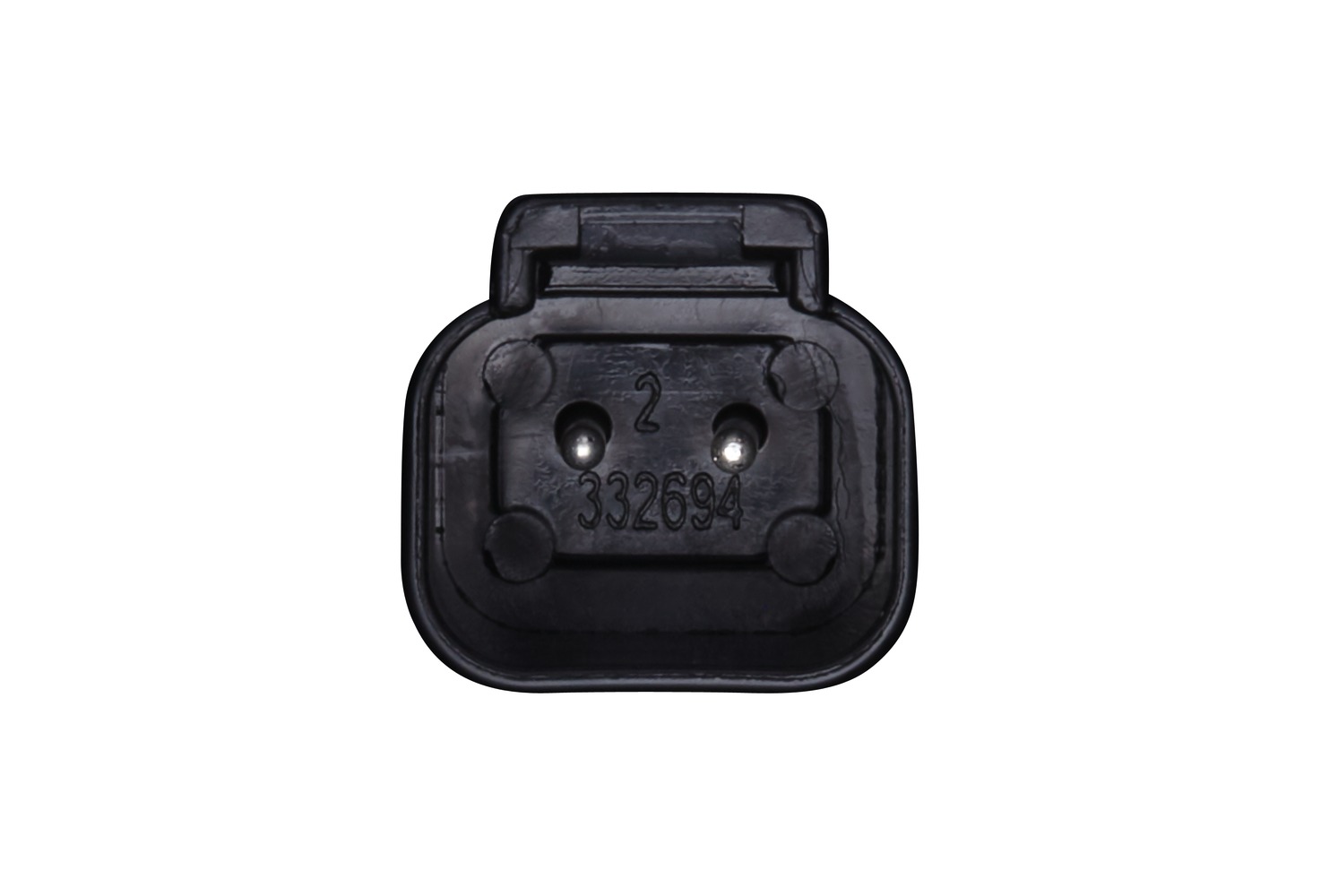

| Plug | DEUTSCH plug |
| Prot.type (IP Code) | IP6K7 / IP6K9K |
| Colour Temperature | 6500 K |
| Number of LEDs | 4 |
| Power consumption | 42 W |
| Housing Type | Aluminium Housing |
| Housing Colour | black |
| Diffusing Lens Material | Polyamid 12 |
| Diffusing Lens Type | Patterned diffusing lens |
| SVHC | 7439-92-1; Lead |
