LED-Worklight - Modul 70 Gen. III - 12/24V
5.0 Excellent, from 2 customer reviewsIn stock, 100 available
-
Dispatched within 1 working day
UK mainland delivery usually takes 2 to 3 working days - UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international
In stock
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- LED
- IP rating
- IP67, IP69K
About this LED work light
LED-Worklight - Modul 70 Gen. III - 12/24V is a Hella LED work light for 12/24V electrical systems. The light source is LED, the housing is sealed to IP67, IP69K. Mounting: magnetic / mounting. It carries R10 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is PT/996276631, and it replaces or is equivalent to 1G0 996 276-631, 5751289.
The Module 70 LED Generation III worklight uses four high-power LEDs as its light source. The LEDs are multivolt-compatible (12 and 24 V). With its low power consumption, the Module 70 LED Generation III is ideal for use on vehicles with battery operation or whose alternator is already heavily loaded. The Module 70 LED Generation III is resistant to shocks, vibrations and voltage fluctuations. The worklight does not require any maintenance after installation. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. With 6500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to be distinguished more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevents rapid eye fatigue.
- This worklight uses four high-power LEDs as light source.

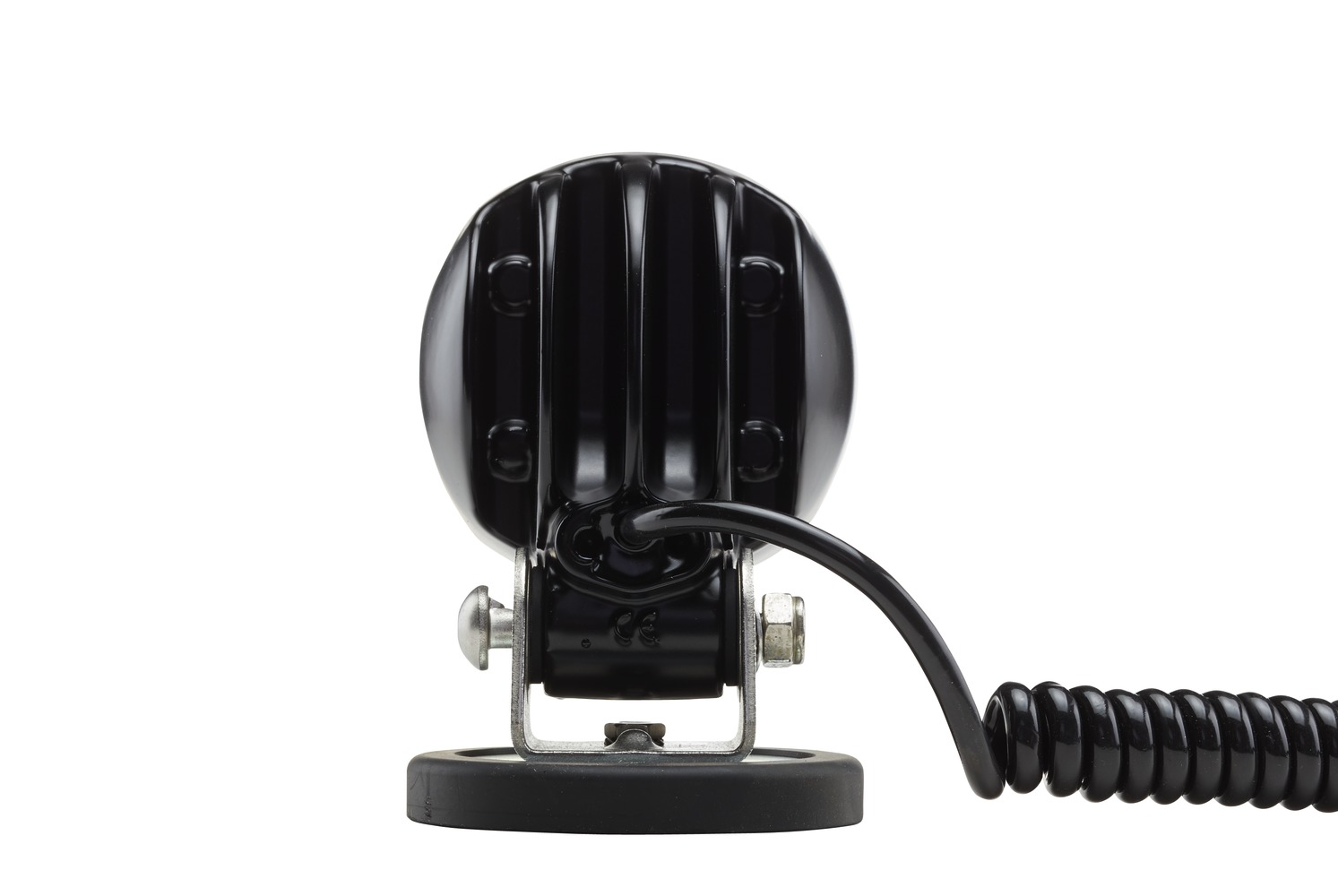

- The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the four high-power LEDs.
- Thanks to its low power consumption, the 70 LED Generation III module is ideal for use on battery-powered vehicles or whose alternator is already heavily loaded.
- The Modul 70 LED Generation III is absolutely resistant to shocks, vibrations and voltage fluctuations.
- At 6500 Kelvin, the light of the LED worklight is very similar to daylight.
- Lamp Type: LED - Number of LEDs: 4 - Power consumption: 13W - Colour Temperature: 6500K
- Patterned diffusing lens
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | LED |
| IP rating | IP67, IP69K |
| Mounting | Magnetic / mounting |
| Bulb type | LED |

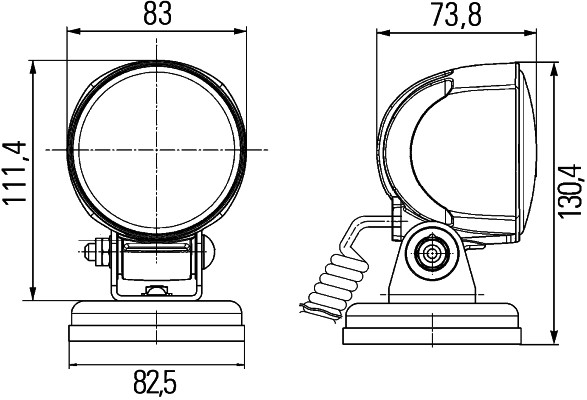

| Height | 122 mm |
| Width | 83 mm |
| Depth | 90 mm |
| Light distribution | Short distance lighting |
| ECE approval | R10 |
| Connector | DEUTSCH plug |
| Luminous flux | 800 lm |
| Colour temperature | 6500 K |
| Number of LEDs | 4 |
| Power consumption | 13 W |
| Cable | 3500 mm |
| Housing type | Aluminium Housing |
| Housing colour | black |
| Diffusing lens material | Polyamid 12 |
| Diffusing lens type | Patterned diffusing lens |
| Weight | 1.06 kg |
| Part number | PT/996276631 |
| Brand | Hella |
Part numbers
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1G0 996 276-631
- 5751289
