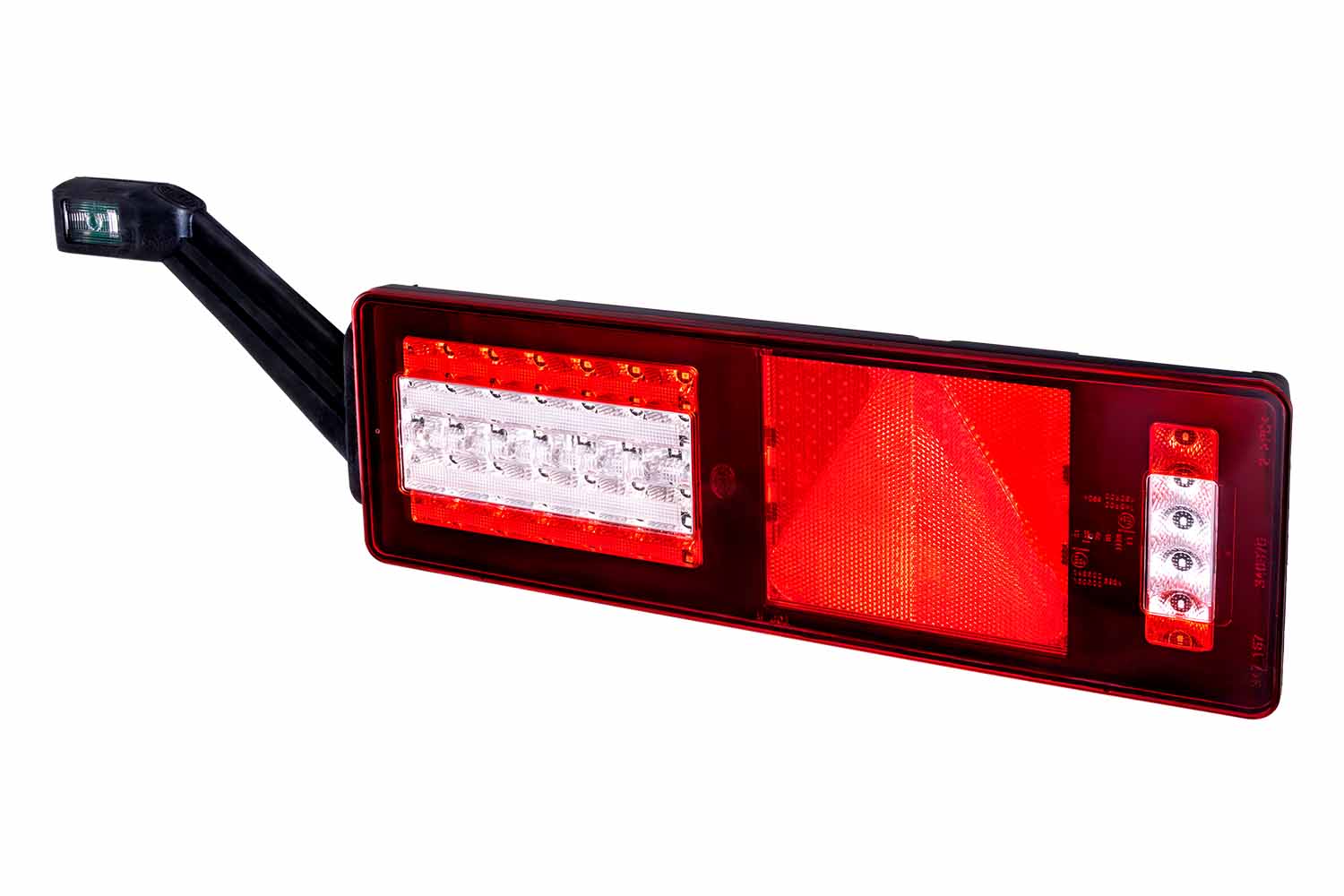

Rearlight – LED – 24V

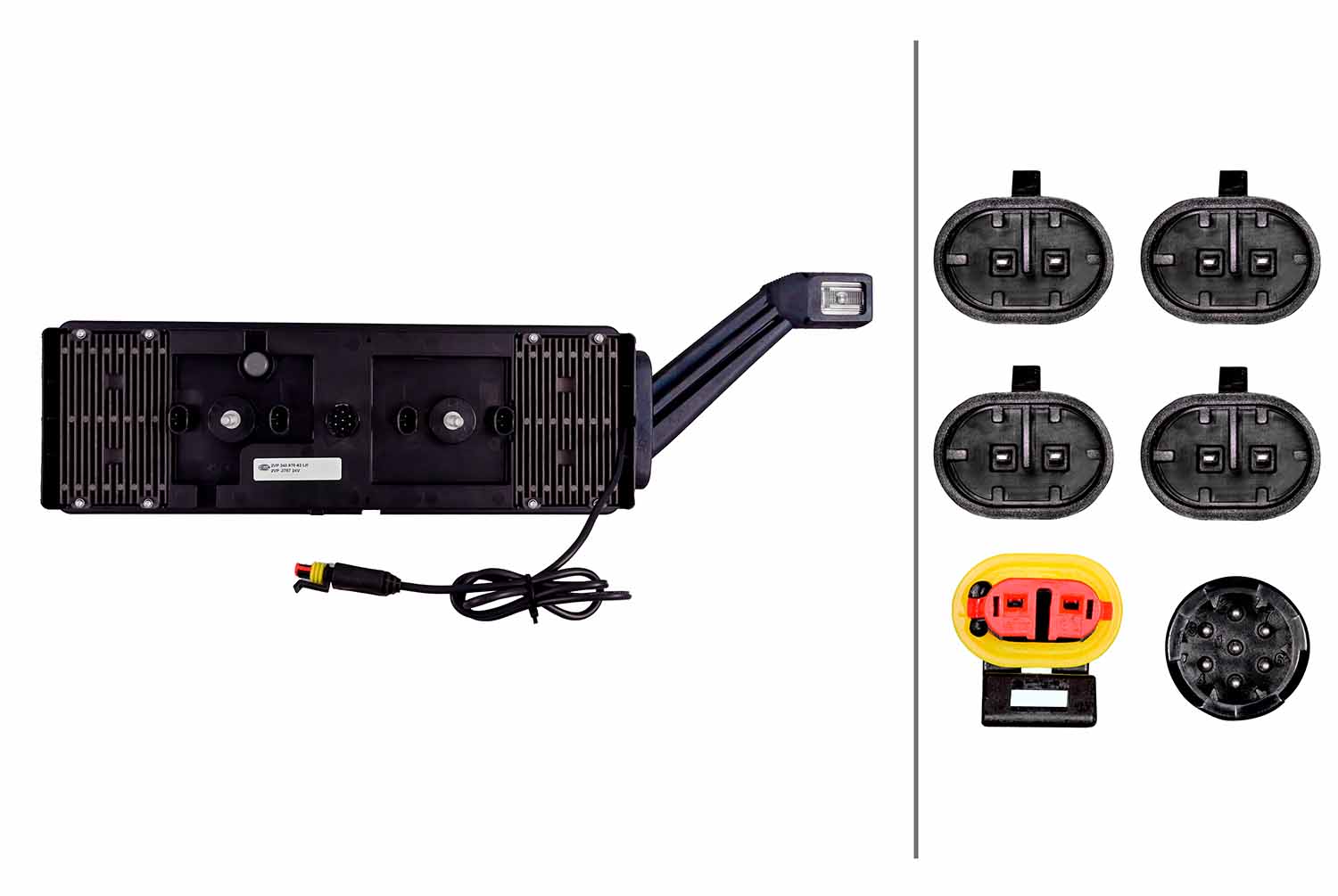

The full-LED combination rearlight for 24 V trucks and trailers impresses at first glance with its innovative design. Particularly striking is the patented LED light curtain with an area of 144 cm² for the tail light and the rear reflector behind it, as well as the dynamic flashing light. Due to the large light area, optimum visibility of the vehicle is ensured. This ensures a high level of safety. The combination rearlight is also extremely robust. The lens is bonded to the housing, the two-colour outer lens made of polycarbonate (PC) is impact-resistant. With a size of 410 x 140 mm and an installation depth of only 55.5 mm, it is also extremely compact. The electronics also meet the highest requirements. The high-power LEDs have a long service life and low power consumption. There are also versions of the light where the control for flashing side marker lights and the load simulation for brake and indicator lights are integrated into the system. This ensures a high level of compatibility. Another plus point of the combination rearlight is its future viability. It has a mechanical interface for sensors so that, for example, ultrasonic sensors can be connected on both sides.

• Full LED solution with innovative, patented LED light curtain for taillight function
• Robust and compact design for highest requirements
• High degree of flexibility for future requirements thanks to modular design
• Length: 586mm – Width: 86mm – Height: 180mm – Lamp Type: LED – Electromagnetic Compatibility (EMC)/for trailer/with indicator failure control/with ballast/with plug
• Light functions: 7 – with indicator (LED)/without dynamic indicator light/with stop light (LED)/with rear fog light (LED)/with reverse light (LED)/with reflector (triangular)/with taillight (LED)/with marker lamp (LED)
• Registration Type: ECE/ADR/GGVS – Prot.type (IP Code): IP6K9K
• Housing material: PC (Polycarbonate)/ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) – Housing Colour: Black
