Rearlight – LED – 12/24V
🚚 Estimated delivery: 3 Working Days
£154.69£154.69 Incl. VATExcl. VAT
In stock

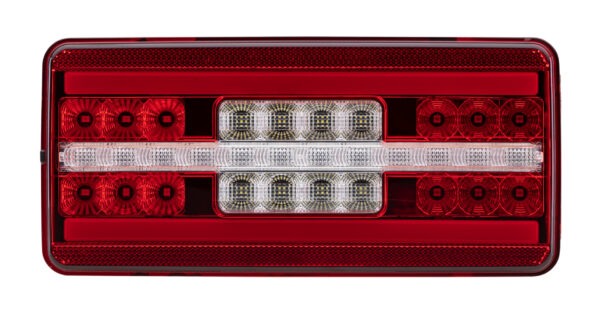

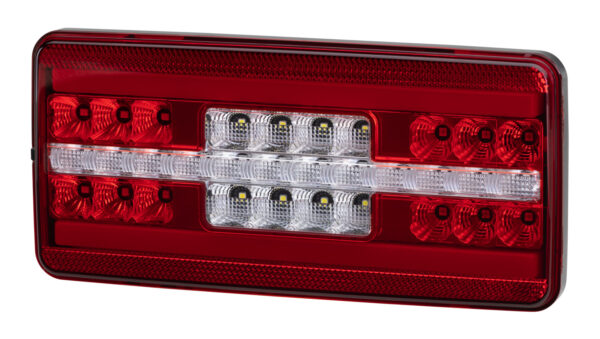

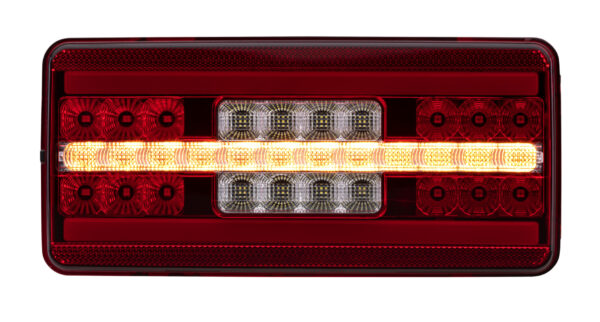

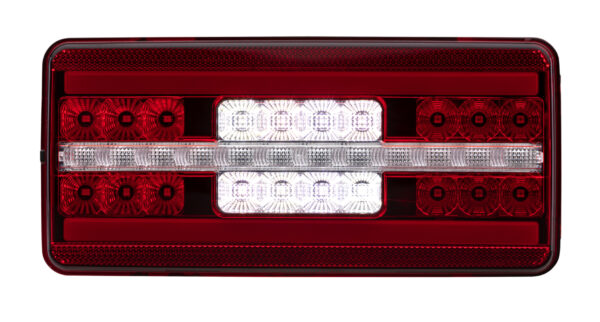

The innovative full-LED rear lamp 328 630 from HELLA covers all five light functions required at the rear of the vehicle using exclusively LEDs. The tail light’s “Glowing Body” technology is particularly eye-catching. The full-LED rear lamp 328 630 produces two, homogeneous light strips. Thanks to this technology, the tail light also looks very pleasant to the traffic behind. The full-LED rear lamp with installation dimensions of only 225 x 105 x 35 mm requires very little space. Horizontal and vertical version offer maximum flexibility and freedom for design. Both versions of the lamp generate an electronic ISO pulse for the direction indicator failure control. The horizontal version has a wiping direction indicator. Extrem robustness is another feature of HELLA’s LED lamps. The LED modules of the full-LED rear lamp 328 630 are completely sealed. The two colour (red and clear) polycarbonate cover lens is impact resistant and withstands tough every day use with ease.
- 5 light functions – 100% LED-technology

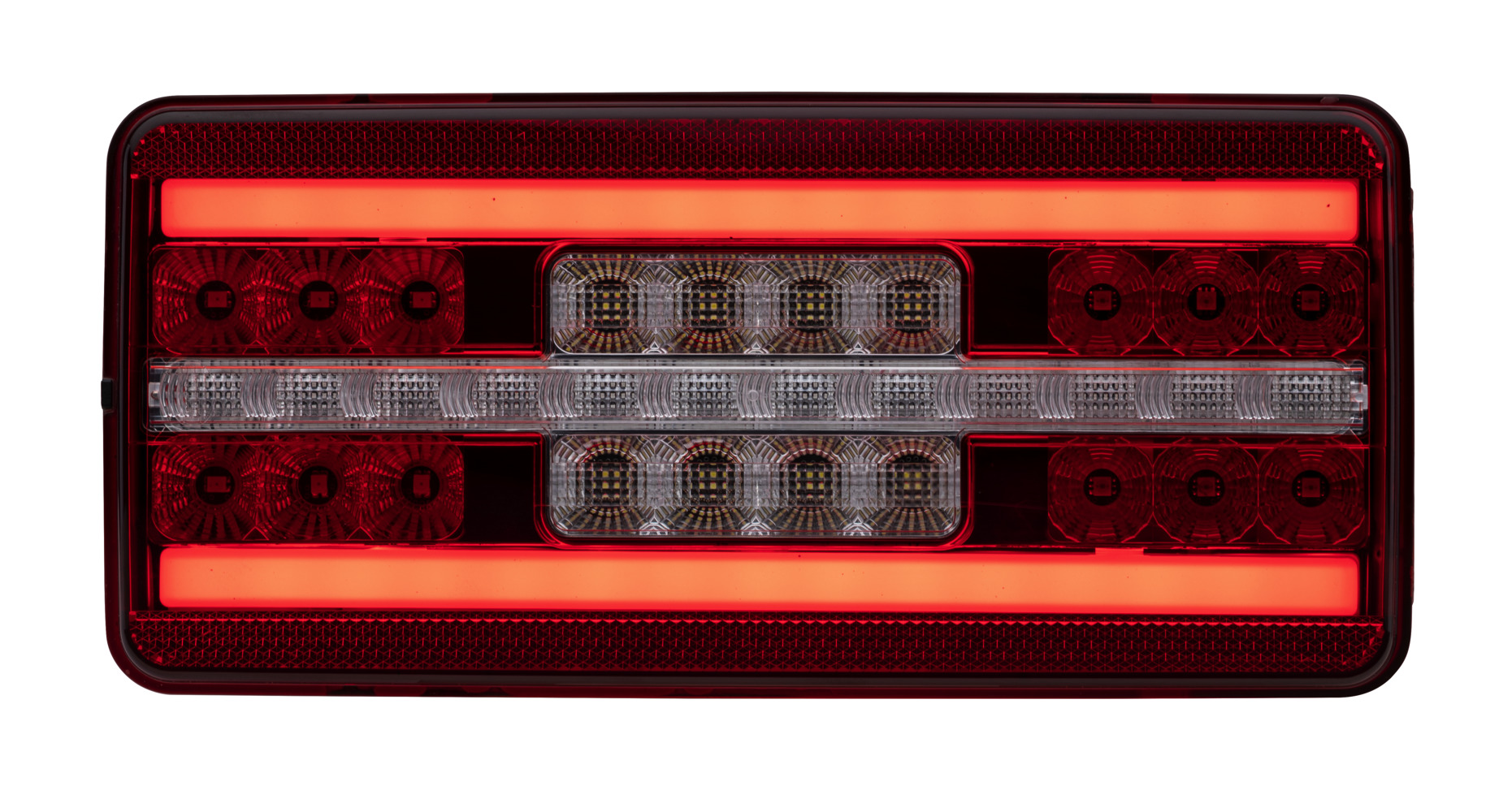

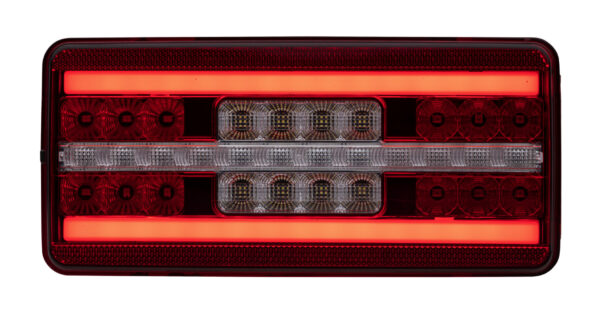

- Outstanding homogeneous tail light using “Glowing Body”
- Robust and compact design for tough demands
- Length: 225mm – Width: 105mm – Height: 34mm – Lamp Type: LED – Number of LEDs: 62

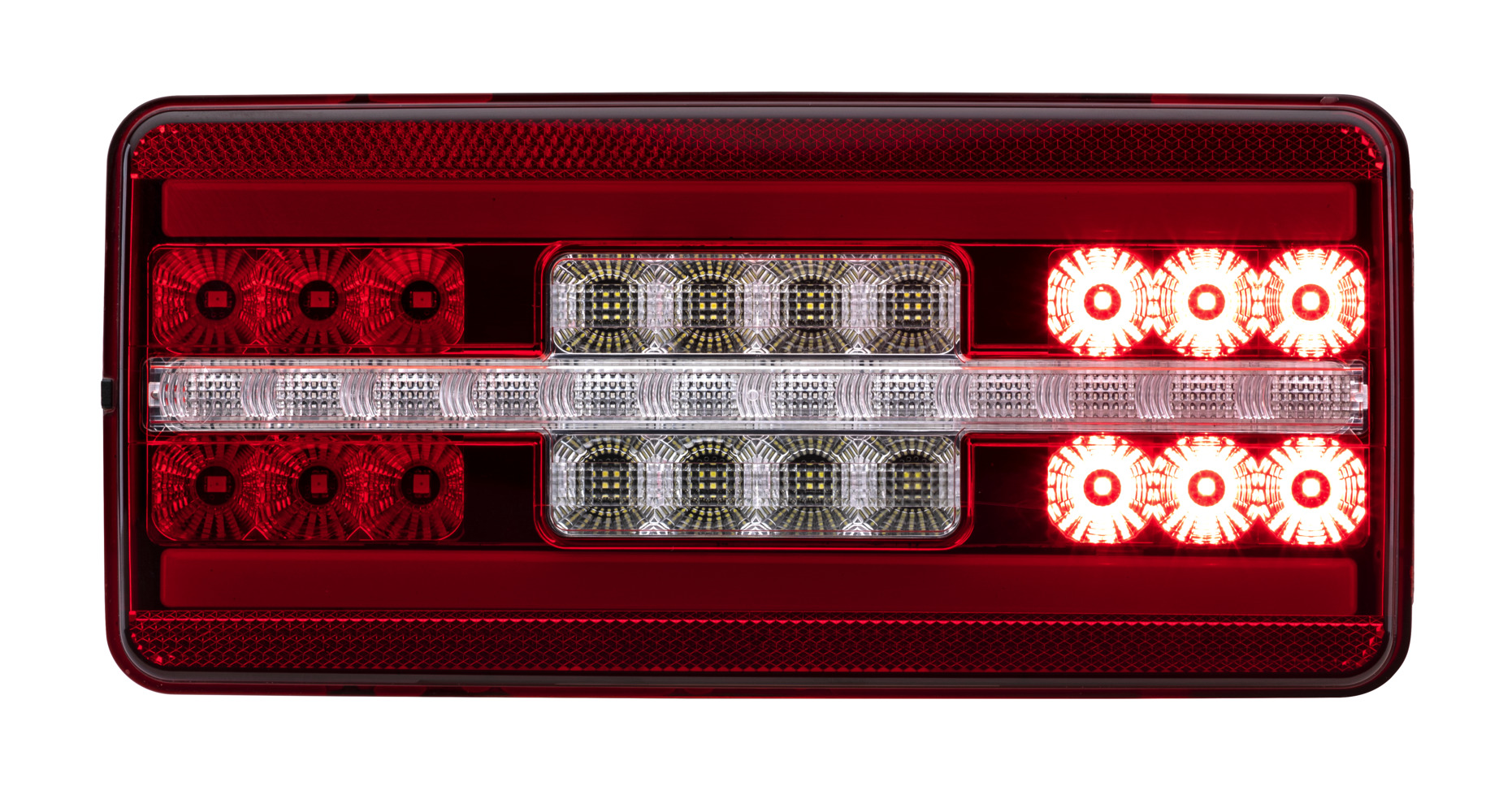

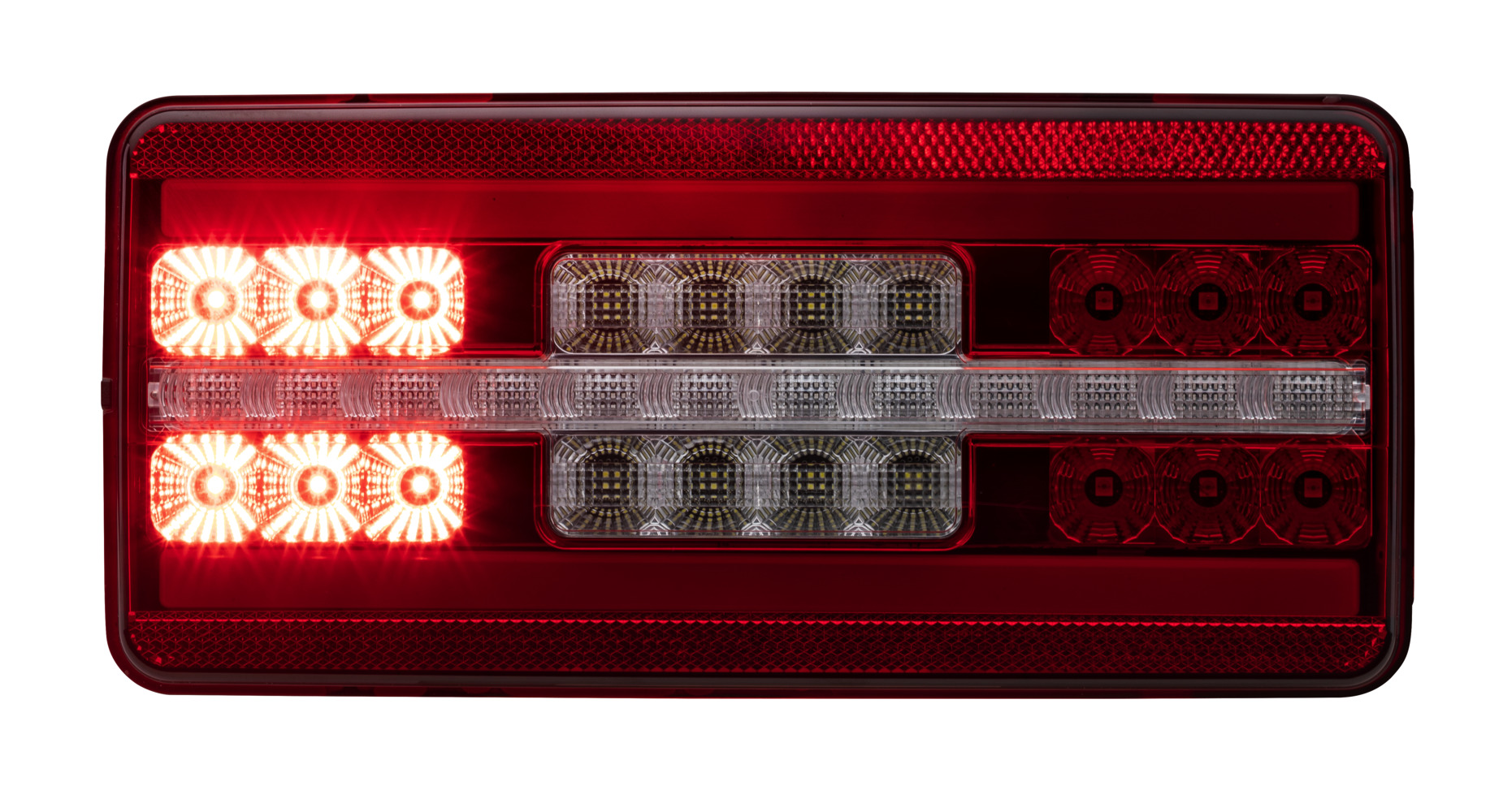

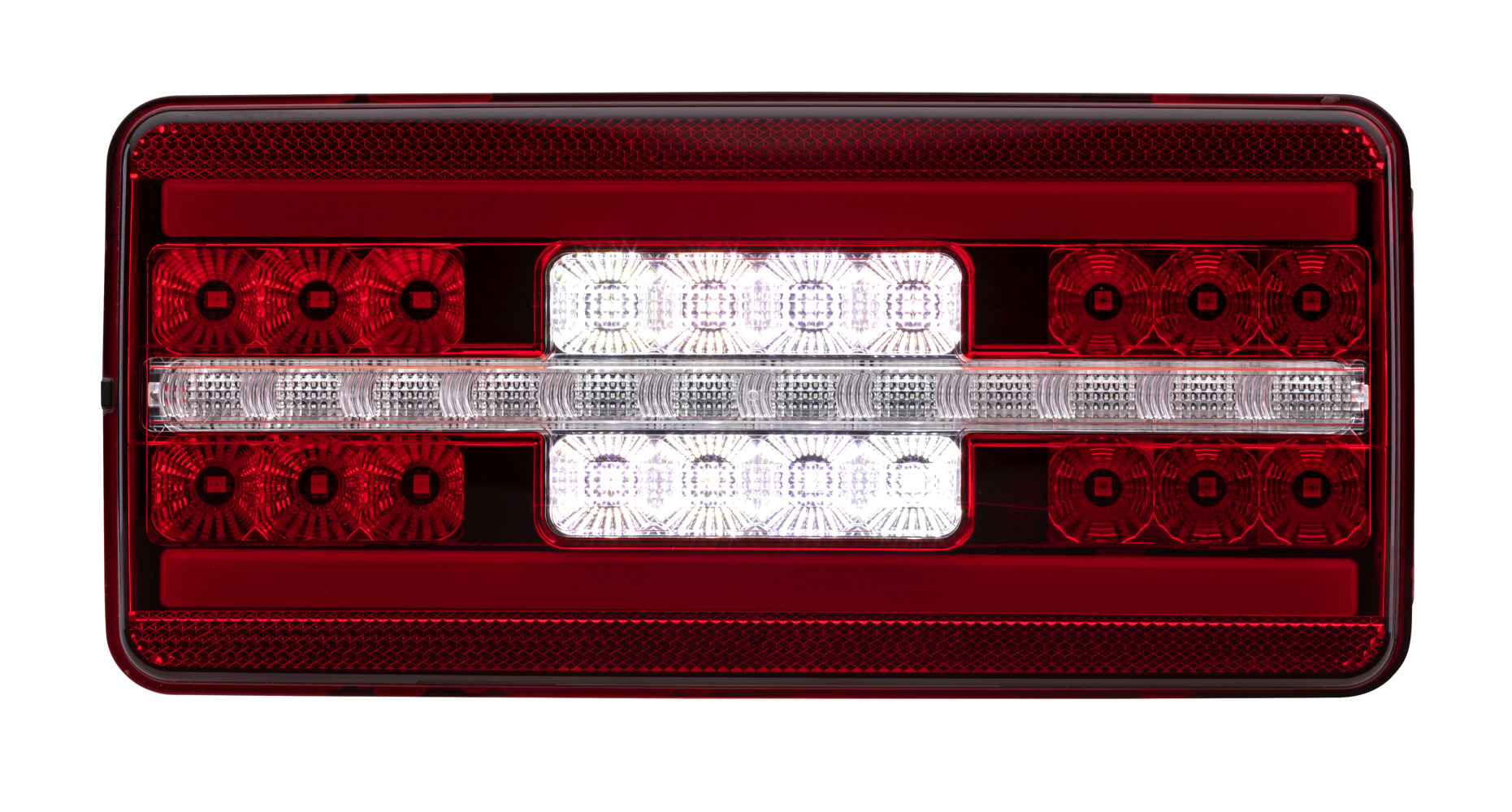

- Light functions: 5 – with stop light/with taillight/with indicator/with reverse light/with reflector
- Registration Type: ECE/ADR/GGVS/no SAE – Prot.type (IP Code): IP6K9K
- Synthetic Material Housing – Housing Colour: Black – LED colour: Red/White/Yellow – Lens Colour: Red/Crystal clear
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.4535 kg |
|---|---|
| Dimensions | 230 × 110 × 90 cm |
| Private Equivalent | 328630041 |
| Equivalent Parts | 2VP 328 630-041, 55204636, 4151010, 271017000, 13764919, 328630041 |
| Mounting Type | Bolted |
| Fastening Type | for horizontal fastening |
| Light Design | LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |
| Fitting Position | both sides |
| Height | 34 mm |
| Width | 105 mm |
| Length | 225 mm |
| Light Function | with stop light / with reverse light / with taillight / with reflector / with indicator |
| Light functions | 5 |

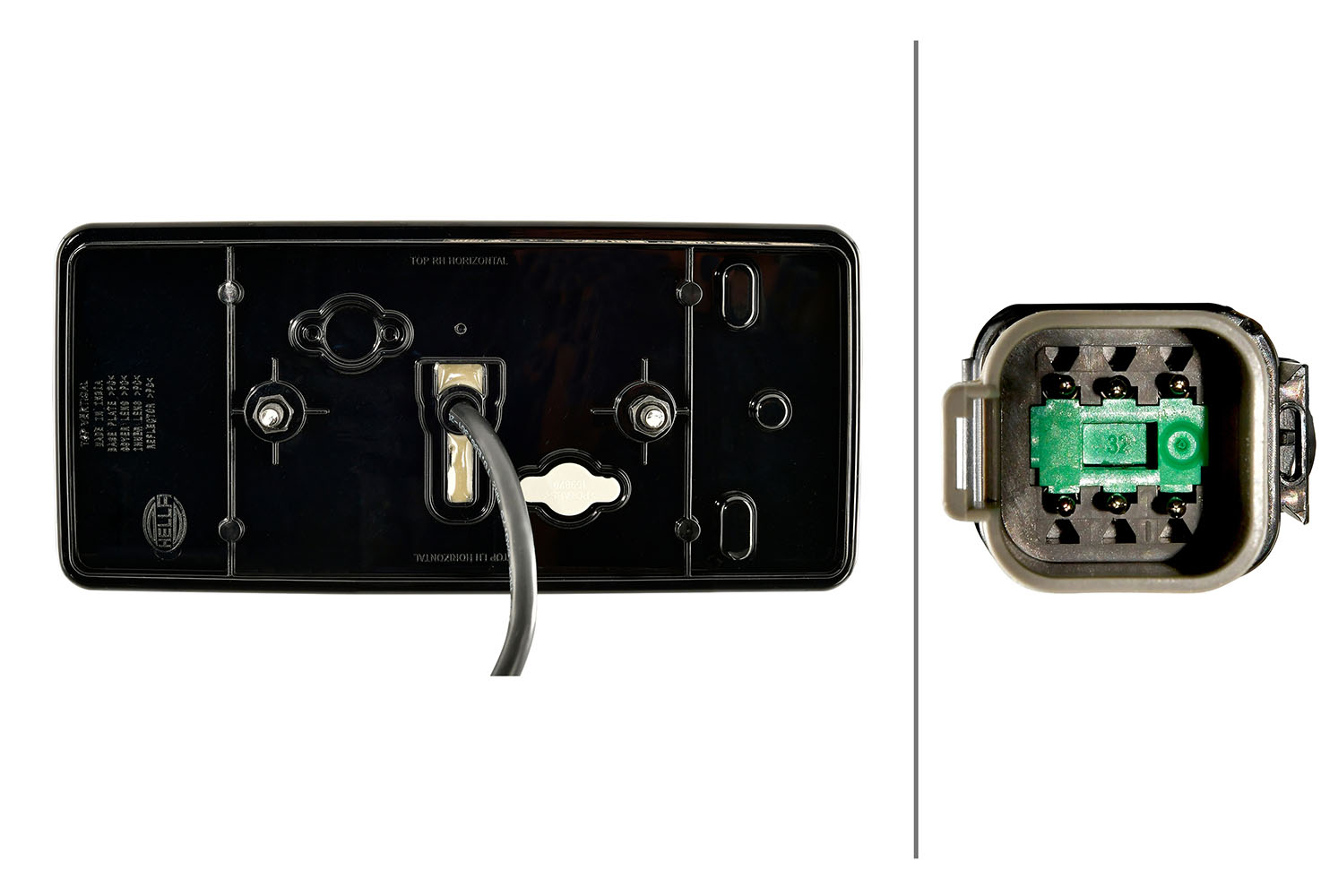

| Plug | DEUTSCH plug |
| Prot.type (IP Code) | IP6K9K |
| Registration Type | no SAE / ECE / ADR/GGVS |
| Number of LEDs | 62 |
| Cable | 280 mm |
| Housing Type | Synthetic Material Housing |
| Housing Colour | Black |
| Lens Colour | Red / Crystal clear |
| LED colour | Red / White / Yellow |
| Tightening Torque | 3.5 Nm |
| Quantity | 1 |
