Rearlight – Bulb – 12/24V
🚚 Estimated delivery: 3 Working Days
£19.22£19.22 Incl. VATExcl. VAT
In stock
HELLA combination rear lamps. A crowning finish for the rear of the vehicle. In road traffic, communication often takes place via light signals – which is why reliable lights from HELLA are indispensable for road safety. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA combination rearlights are also characterised by outstanding quality in terms of workmanship and stability – the long service life proves it. The wide range of variants gives the vehicle an individual and unique look. The combination options open up attractive styling possibilities for an unmistakable, brand-typical appearance, which is also playing an increasing role in vehicles in the commercial vehicle and agricultural sectors.
- Tail-stop-indicator light Ø 140 mm for horizontal mounting on towing vehicles and trailers (left / right) – with ECE approval, ADR/GGVS-tested, E-type approved
- The combination rearlight has 3 light functions: Brake light / Tail light / Indicator light
- Lamp type: P21W/R5W, without bulbs, without vibration damping, with grommet, tail light and brake light red, indicator light yellow, housing made of black plastic, 2 fixing screws M6

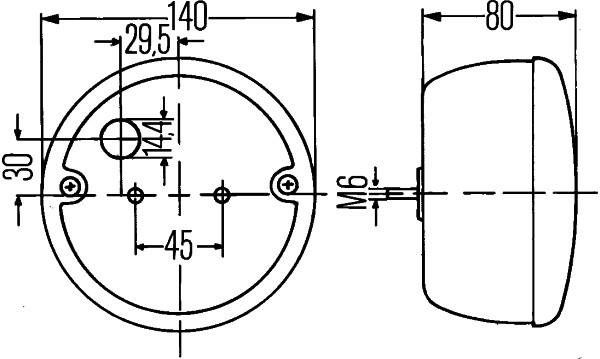

- Length: 140mm – Height: 80mm – Lamp Type: R5W/P21W – without bulbs/without indicator failure control/with bolts/screws
- Light functions: 3 – with taillight/with stop light/with indicator
- Registration Type: ECE/ADR/GGVS – Prot.type (IP Code): IP5K4K
- Synthetic Material Housing – Housing Colour: Black – Lens Colour: Red/Yellow
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.326 kg |
|---|---|
| Dimensions | 143 × 127 × 167 cm |
| Private Equivalent | 001685211 |
| Equivalent Parts | 2SD 001 685-211, 15446303, V27600050, 42024987, 21EK10180, 563048, 3416722, 41200526, 90816159135, 1934225, 20223824, 16514023, X842070990002, X860400050250, X880000922244, 56091, DP012166, 76533220, 4160513A, 607106501, 337846, 641987, 3515160139, 22345, 60516, 4158831, 718942, 2749, 402131, 2800036001, 77896, LSX0435888, 5002586, 4918, 8176131, 5802071, 58020710, 3360, 152626, 1020000350, 5800500, 235733003, 5254, 10001450, A0015446303, 001685211 |
| Mounting Type | Bolted / mounting |
| Fastening Type | for horizontal fastening |
| Light Design | Bulb |
| Lamp Type | P21W / R5W |
| Voltage | 24 V / 12 V |
| Fitting Position | left / right |
| Height | 80 mm |
| Length | 140 mm |
| Light Function | with stop light / with indicator / with taillight |
| Light functions | 3 |
| Plug | Blade Terminal |
| Prot.type (IP Code) | IP5K4K |
| Registration Type | ECE / ADR/GGVS |
| Housing Type | Synthetic Material Housing |
| Housing Colour | black |
| Lens Colour | red/yellow |
| Supplementary Article/Info 2 | without bulbs / with bolts/screws / without indicator failure control |
| Quantity | 1 |
| SVHC | 80-05-7; 4,4-isopropylidenediphenol |
Compatible Tractors:
| Manufacturer | Series | Models |
|---|---|---|
| John Deere | - | 1850 |
| Case IH | - | 940 |
| Fiat Kobelco | - | E 145, E 165, E 175, E 215 |
| Caterpillar | - | MH 3037 |
| New Holland | - | MH 5.6, MH 6.6, MH 8.6, MH City, MH Plus, WE 150, WE 170, WE 190, WE 230, WE 240 |
| Claas | - | Scorpion 746, Scorpion 756 |
| Case | - | WX 165, WX 185 |
