Position Light - Halogen - 24V

Hella Part no. A25-000624 Previously PT/003563187

Position Light - Halogen - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£12.34 ex VAT
£14.81 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £3.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
Halogen
Lens colour
Clear
Light functions
Position light
IP rating
IP65

About this position lamp

Position Light - Halogen - 24V is a Hella position lamp for 24V electrical systems. The light source is Halogen, the lens is clear, the housing is sealed to IP65. Light functions: position light. Mounting: fitting. It carries R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000624 (previously PT/003563187), and it replaces or is equivalent to 2PF 003 563-187, 906513, 36252606009, 4675, 90519927, 11145743.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • Halogen position light for installation (left / right) - with ECE approval
  • The position light has 1 light function: Position light

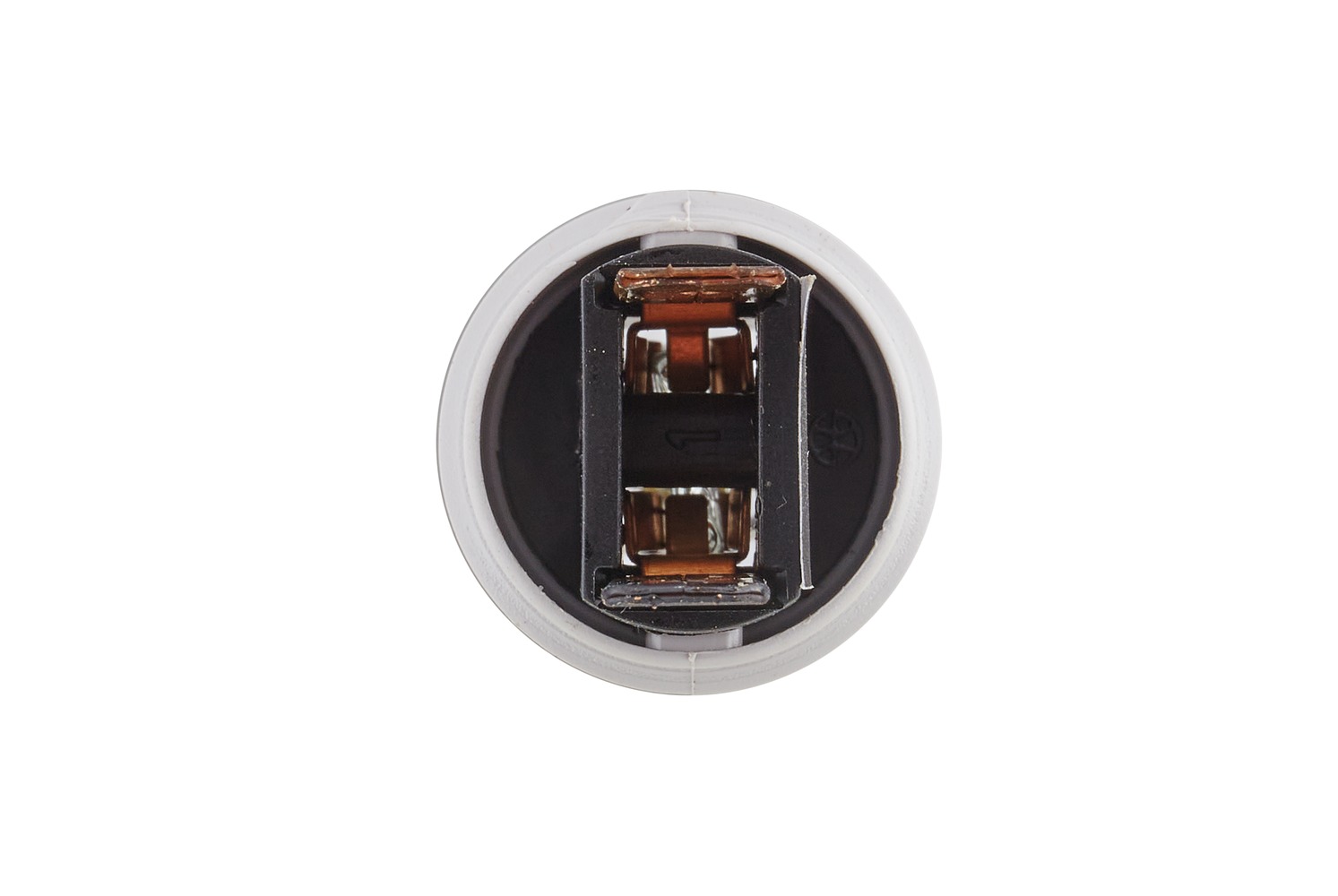

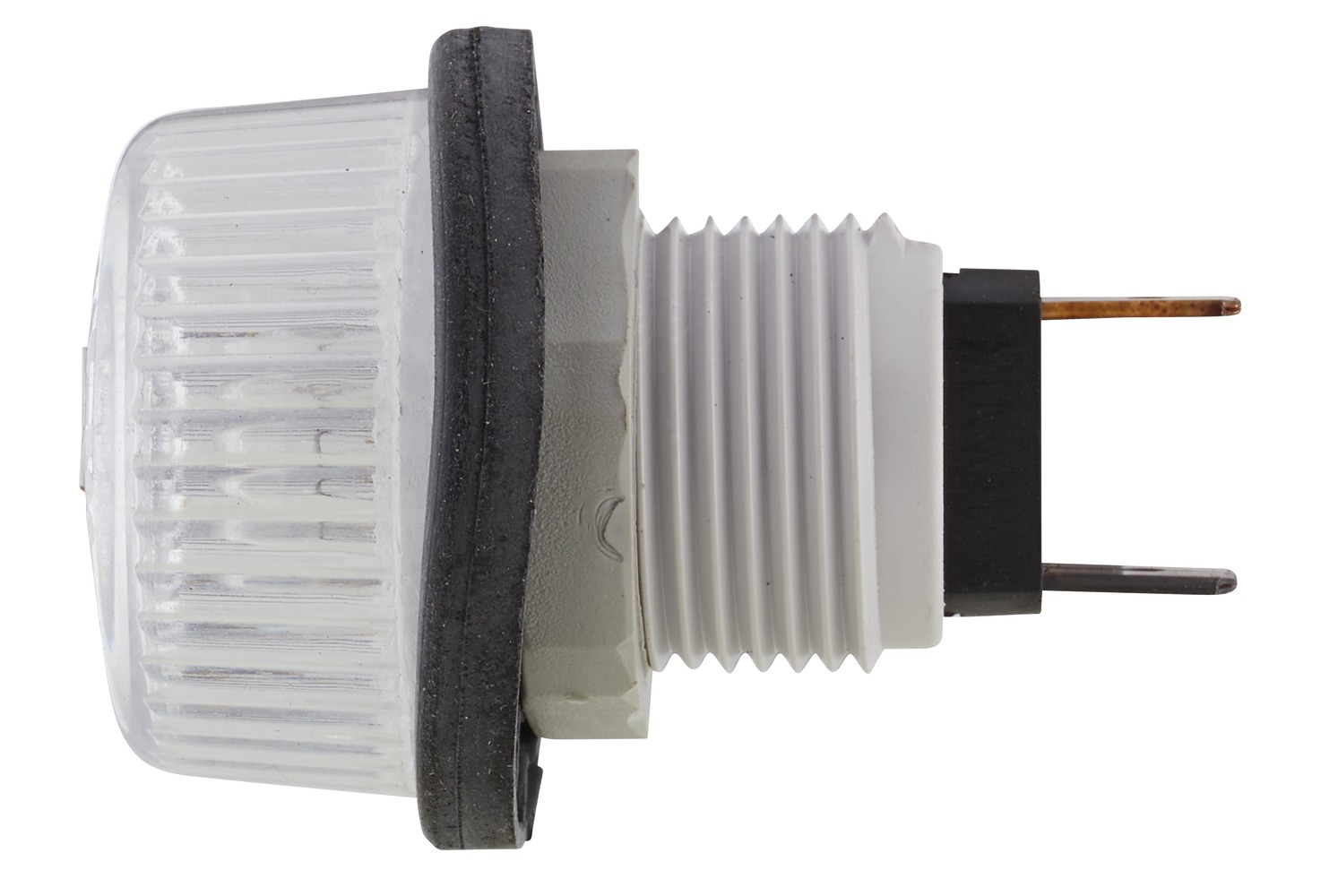

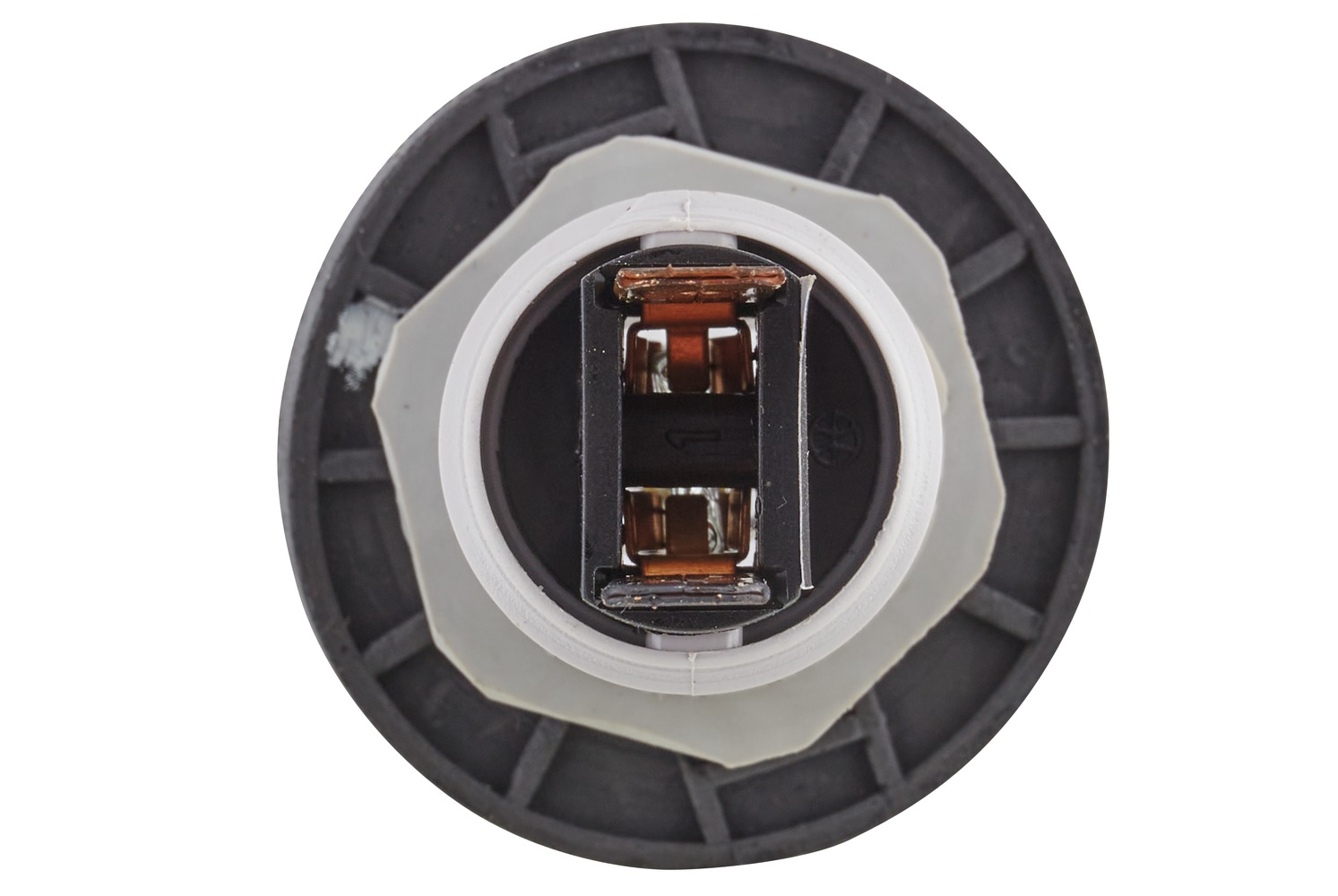

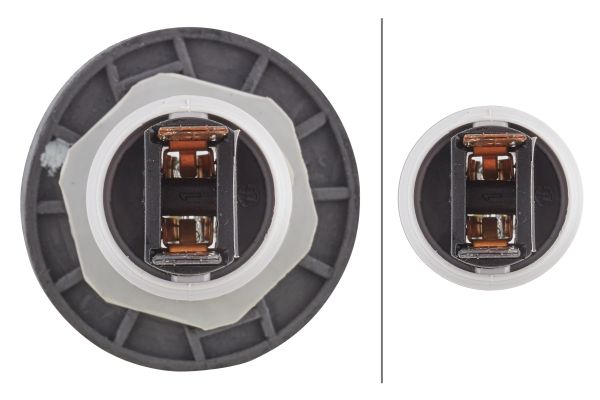

  • Lamp type: W5W, with 24V bulb, without leads, with plastic nut M20 x 1.5 and 2 flat plugs 6.3 mm, fixing of the lamp by screwing the plastic nut behind
  • Length: 21mm - Width: 49mm - Height: 49mm - Lamp Type: W5W
  • Light functions: 1 - with position light
  • Registration Type: ECE - fulfils ECE norm: R7 - Prot.type (IP Code): IP65
  • Housing Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage24V
TechnologyHalogen
Lens colourClear
Light functionsPosition light
IP ratingIP65
MountingFitting
Fasteningfor horizontal fastening
Bulb typeW5W
Fitting positionFront
Height49 mm
Width49 mm
Length21 mm
Dust coverwith dust cover
ECE approvalR7
Housing colourblack
Power consumption5 W
Weight15 g
Part numberA25-000624
BrandHella

Part numbers

Our part number for this item is A25-000624. It was previously listed as PT/003563187, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PF 003 563-187
  • 906513
  • 36252606009
  • 4675
  • 90519927
  • 11145743

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery for this item is £3.00 ex VAT, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
