Position Light - Halogen - 12V

Hella Part no. PT/003563177

Position Light - Halogen - 12V

5.0 Excellent, from 2 customer reviews
£12.95 inc VAT
£10.79 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £3.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12V
Technology
Halogen
Lens colour
Clear
Light functions
Position light
IP rating
IP65

About this position lamp

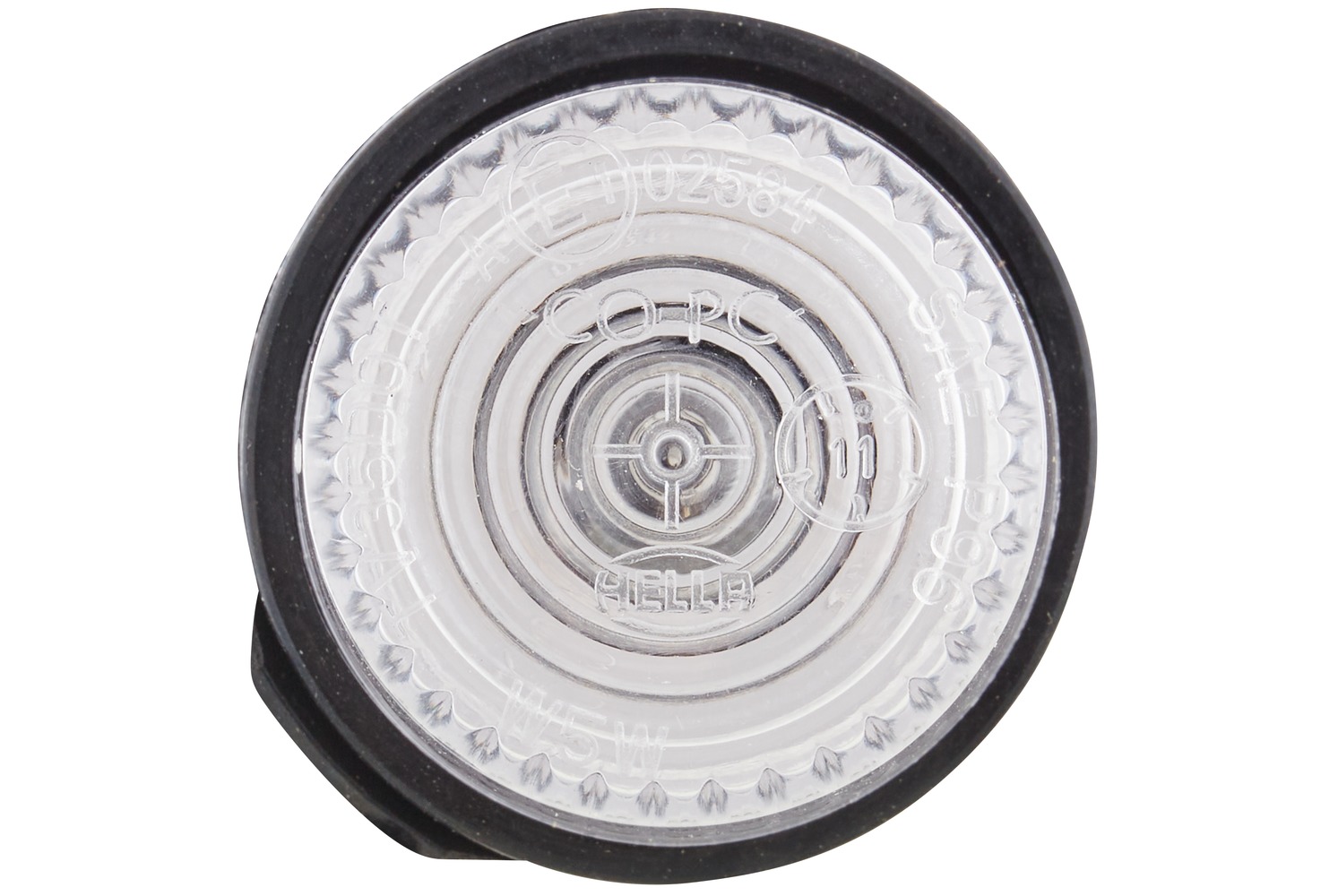

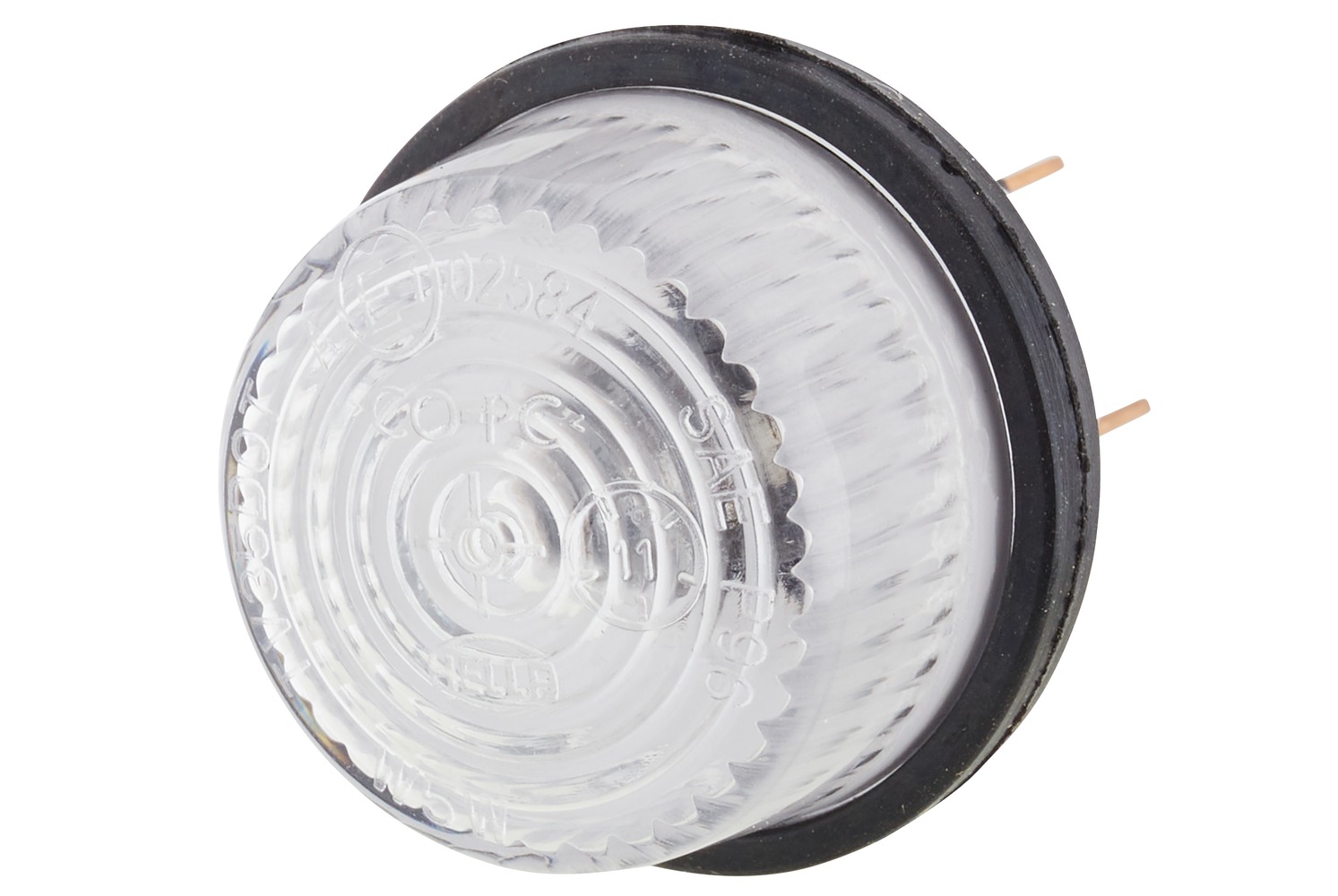

Position Light - Halogen - 12V is a Hella position lamp for 12V electrical systems. The light source is Halogen, the lens is clear, the housing is sealed to IP65. Light functions: position light. Mounting: fitting. It carries R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/003563177, and it replaces or is equivalent to 2PF 003 563-177, 356317, 8352940, IE400705035, 90514480, 1380211 and 3 more.

HELLA marker lights. With the number plate, clearance, position and indicator lights from HELLA, you ensure that the vehicle is optimally visible to all road users even in the dark and in difficult visibility conditions. A real plus for safety in any operational situation, whether on the road or in the field. For these luminaires, too, we rely on the highest quality and the use of efficient technologies. HELLA marker lights are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's marker lights.

  • Halogen position light for installation (left / right) - with ECE approval
  • The position light has 1 light function: Position light

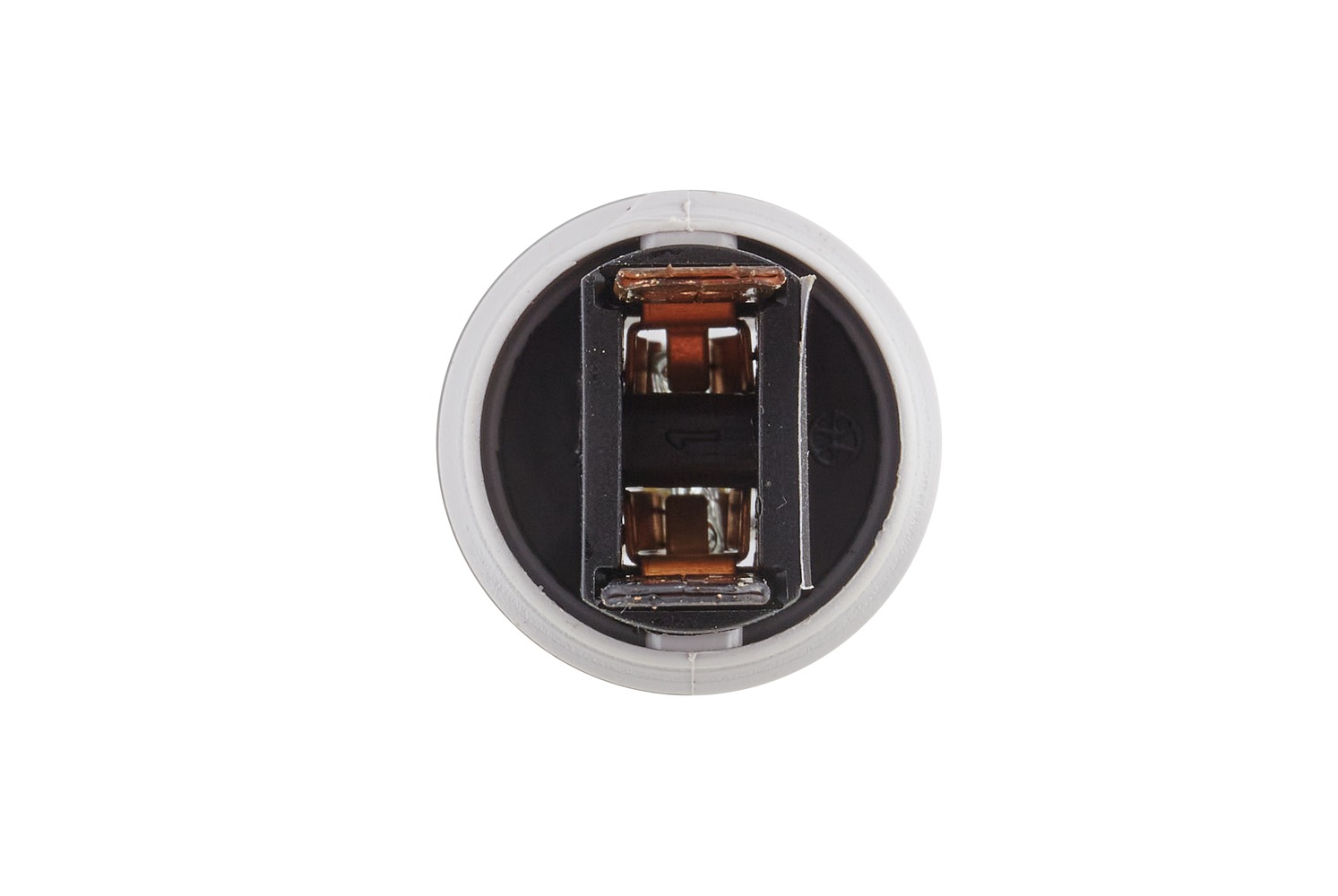

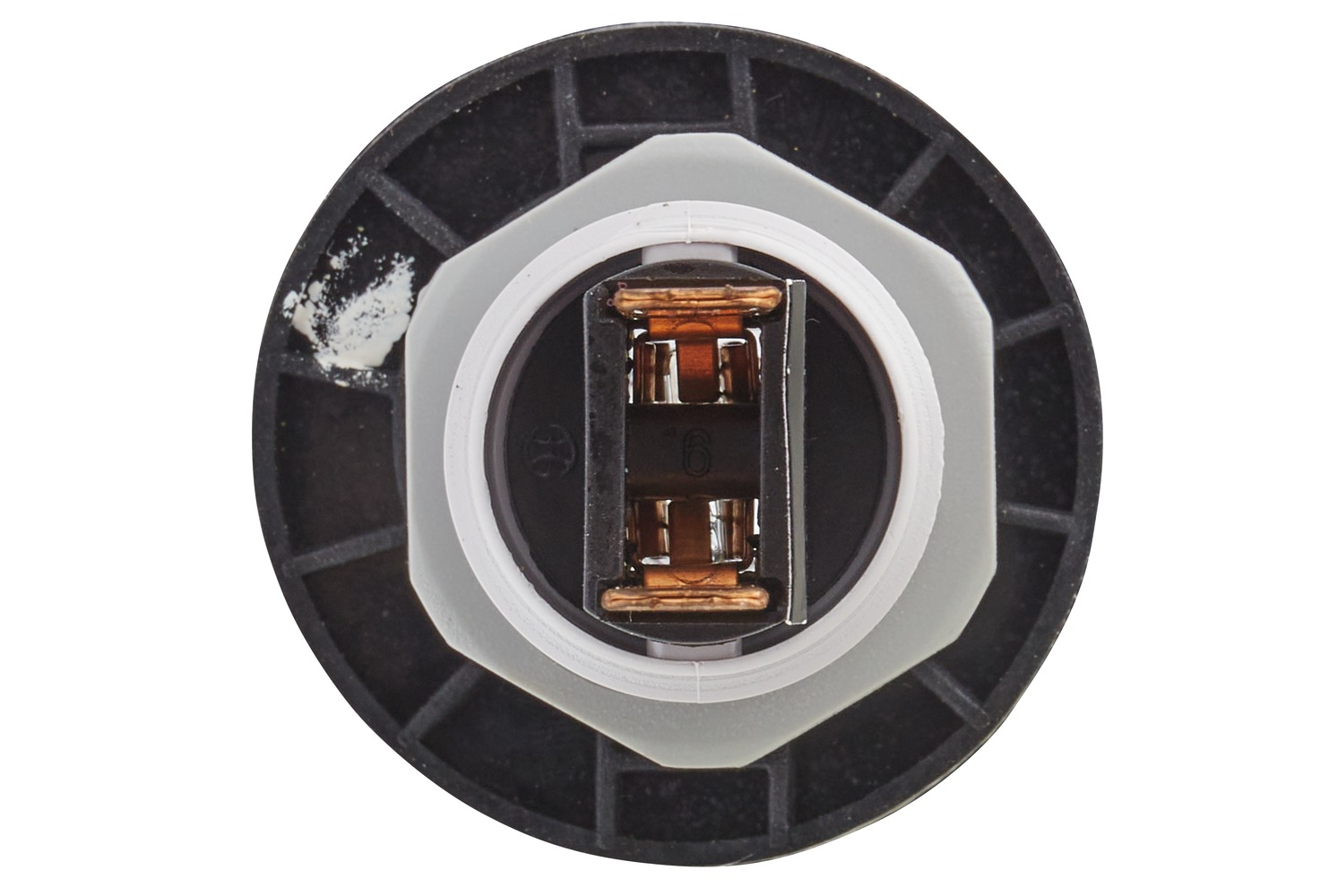

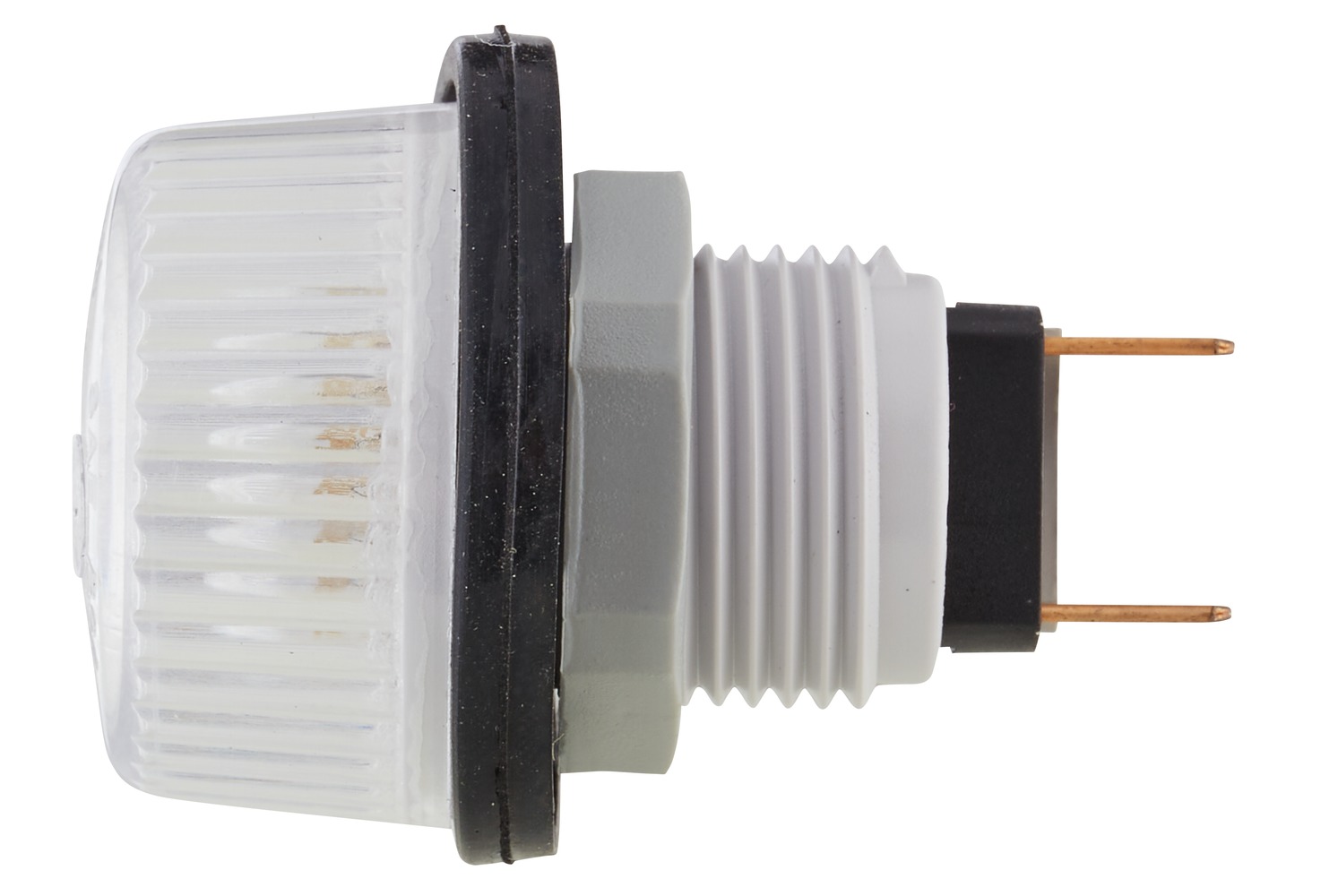

  • Lamp type: W5W, with 12V bulb, without leads, with plastic nut M20 x 1.5 and 2 flat plugs 6.3 mm, fixing of the lamp by screwing the plastic nut behind

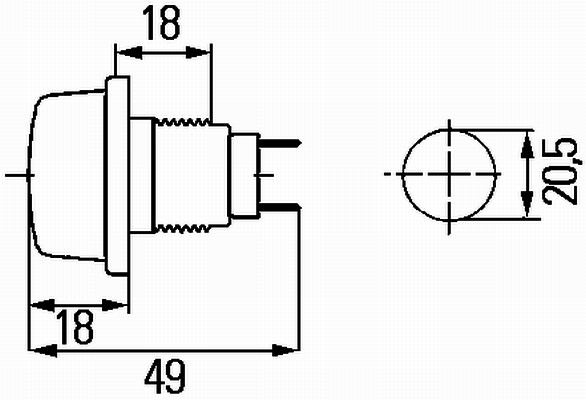

  • Length: 21mm - Width: 49mm - Height: 49mm - Lamp Type: W5W
  • Light functions: 1 - with position light
  • Registration Type: ECE - fulfils ECE norm: R7 - Prot.type (IP Code): IP65
  • Housing Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage12V
TechnologyHalogen
Lens colourClear
Light functionsPosition light
IP ratingIP65
MountingFitting
Fasteningfor horizontal fastening
Bulb typeW5W
Fitting positionFront
Height49 mm
Width49 mm
Length21 mm
ECE approvalR7
Dust coverwith dust cover
Housing colourblack
Power consumption5 W
Weight16 g
Part numberPT/003563177
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2PF 003 563-177
  • 356317
  • 8352940
  • IE400705035
  • 90514480
  • 1380211
  • 138021100
  • 1413057
  • 800796500
