Symmetric/LED-Spotlight – Modul 60 – 12V
🚚 Estimated delivery: 3 Working Days
£122.96£122.96 Incl. VATExcl. VAT
In stock
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.
- Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
- The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
- The products are also durable and resistant to vibration, dirt and water.
- Enables easy changeover from halogen to LED technology.

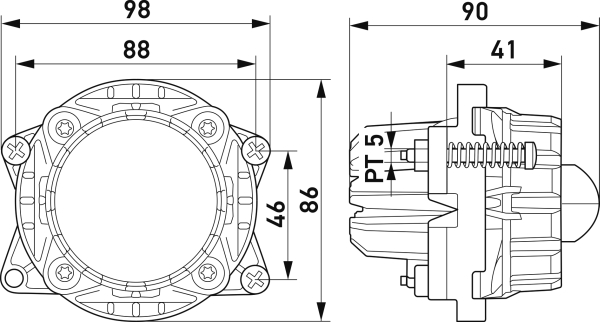

- Width: 98mm – Height: 86mm – Depth: 90mm – Fitting Depth: 52mm – Lamp Type: LED – with LED – with carrier frame/Electromagnetic Compatibility (EMC)
- Light functions: 1 – with high beam (LED)
- Registration Type: CCC – fulfils ECE norm: R113/R10/R149
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.342 kg |
|---|---|
| Dimensions | 95 × 95 × 125 cm |
| Private Equivalent | 998670051 |
| Equivalent Parts | 1KL 998 670-051, 998670051 |
| Mounting Type | Screw Connection |
| Fastening Type | 3-point attachment |
| Light Design | LED / Symmetric |
| Lamp Type | LED |
| Voltage | 12 V |
| Fitting Position | right / left |
| Height | 86 mm |
| Width | 98 mm |
| Depth | 90 mm |
| Fitting Depth | 52 mm |
| Light Function | with high beam (LED) |
| Light functions | 1 |
| Registration Type | CCC |
| fulfils ECE norm | R10 / R149 / R113 |
| Reference number | 12.5 |
| Housing Colour | black |
| Lens Colour | Crystal clear |
| Frame Colour | black |
| Shape | round |
| Housing Type | Metal Housing |
| Diffusing Lens Type | Clear diffusing lens |
| Supplementary Article/Info 2 | Electromagnetic Compatibility (EMC) / with carrier frame |
| Supplementary Article/Supplementary Info | with LED |
| SVHC | 7439-92-1; Lead |
