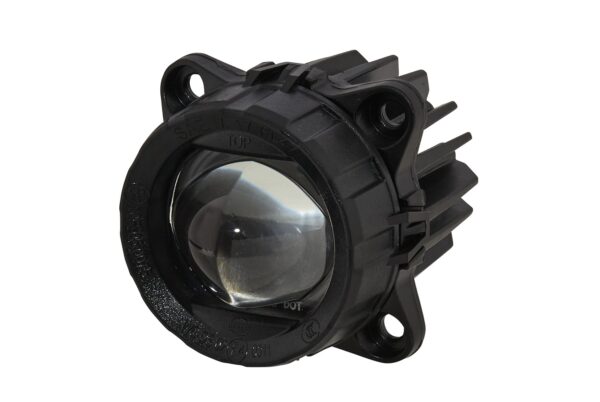

LED/Symmetric-Headlight – Modul 60 – 12V
🚚 Estimated delivery: 3 Working Days
£117.70£117.70 Incl. VATExcl. VAT
In stock
Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA’s compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.
- Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
- The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
- The products are also durable and resistant to vibration, dirt and water.
- Enables easy changeover from halogen to LED technology.
- Width: 68mm – Height: 68mm – Depth: 84mm – Lamp Type: LED – Electromagnetic Compatibility (EMC)/without carrier frame
- Light functions: 1 – with low beam (LED)
- Registration Type: CCC – fulfils ECE norm: R10/R113 – for right-hand traffic – Prot.type (IP Code): IP6K9K/IP6K7
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.284 kg |
|---|---|
| Dimensions | 95 × 75 × 75 cm |
| Private Equivalent | 998670021 |
| Equivalent Parts | 1TL 998 670-021, 46840001, 998670021 |
| Mounting Type | Fitting |
| Fastening Type | 3-point attachment |
| Lamp Type | LED |
| Light Design | LED / Symmetric |
| Voltage | 12 V |
| Fitting Position | left / right |
| Width | 68 mm |
| Height | 68 mm |
| Depth | 84 mm |
| Light functions | 1 |
| Prot.type (IP Code) | IP6K7 / IP6K9K |
| fulfils ECE norm | R10 / R113 |
| Registration Type | CCC |
| Housing Colour | black |
| Illuminated Area | 46 mm |

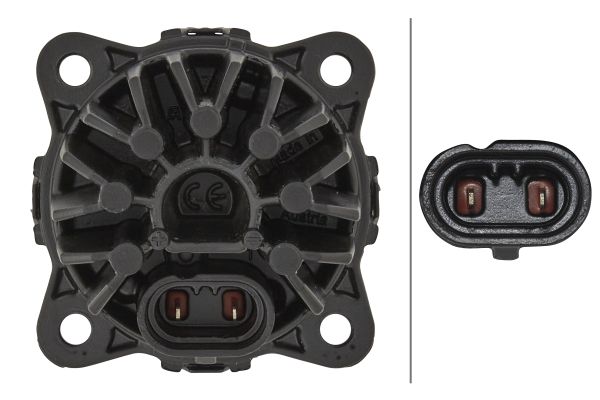

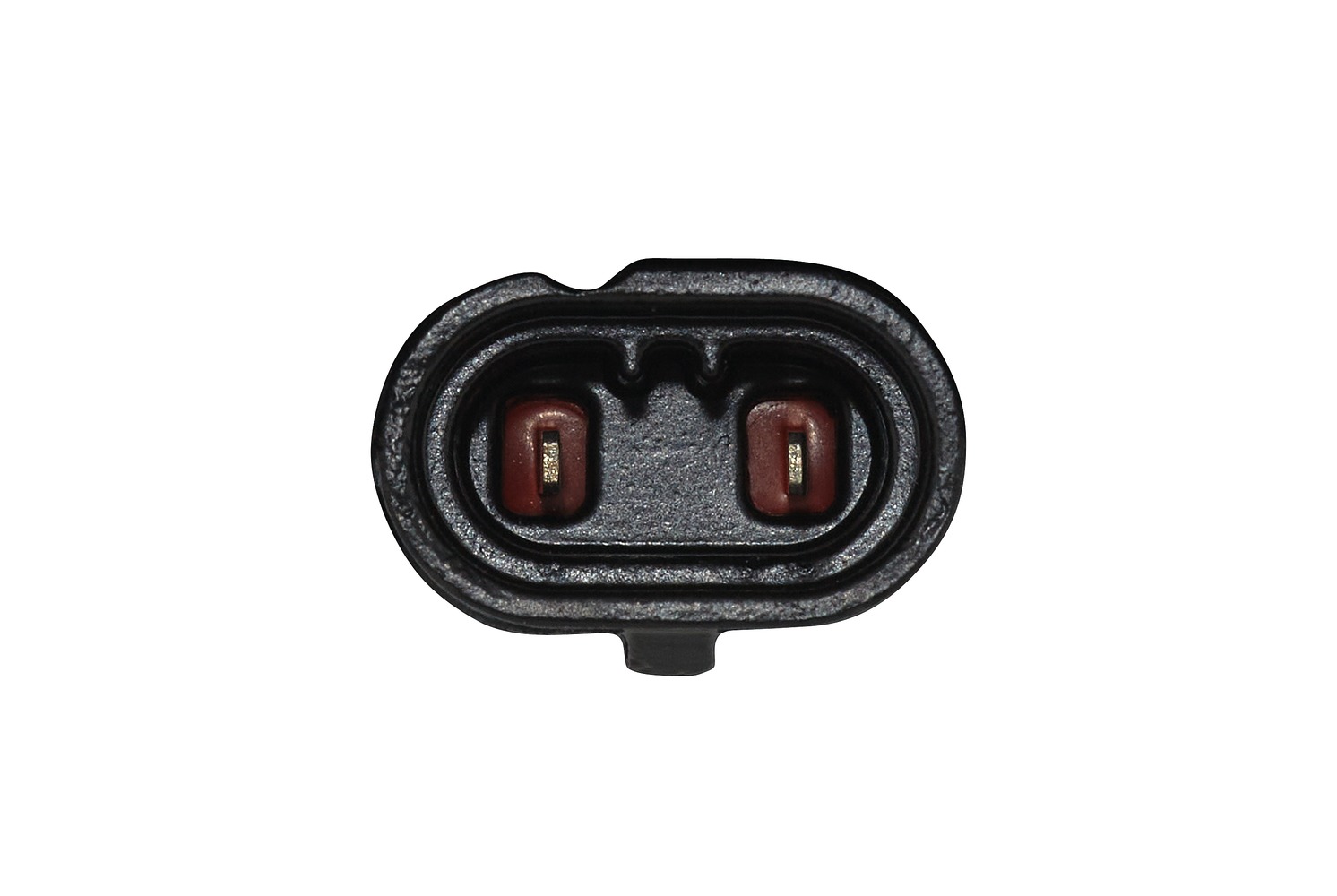

| Connector type | TYCO connector (HB3) |
| Diffusing Lens Material | Glass |
| Lens Colour | transparent |
| Supplementary Article/Info 2 | Electromagnetic Compatibility (EMC) / without carrier frame |
| SVHC | 7439-92-1; Lead |
| Light Function | with low beam (LED) |
| Left-hand/Right-hand Traffic | for right-hand traffic |
