LED-Headlight – C140 – 24/12V
🚚 Estimated delivery: 3 Working Days
£561.04£561.04 Incl. VATExcl. VAT
In stock

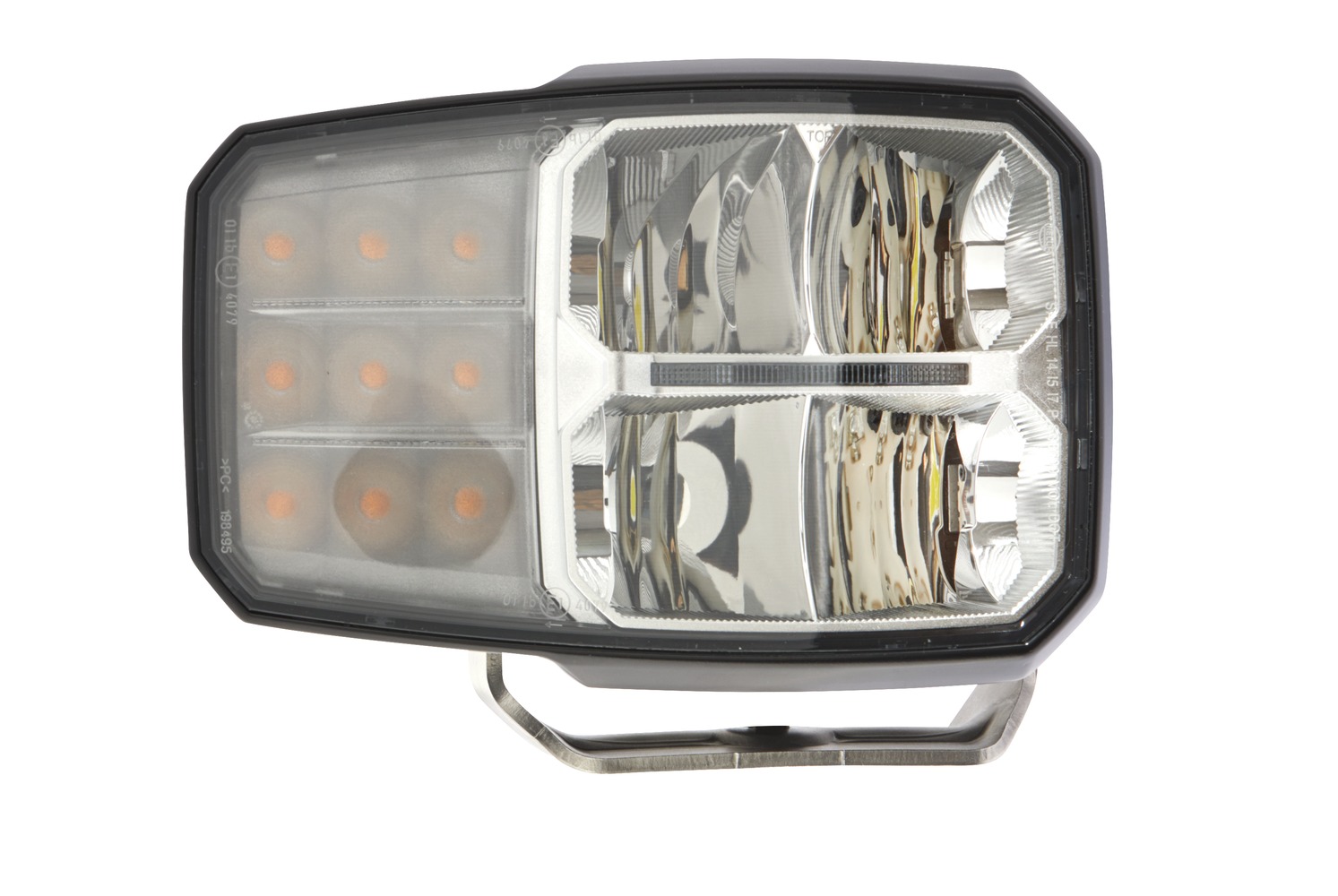

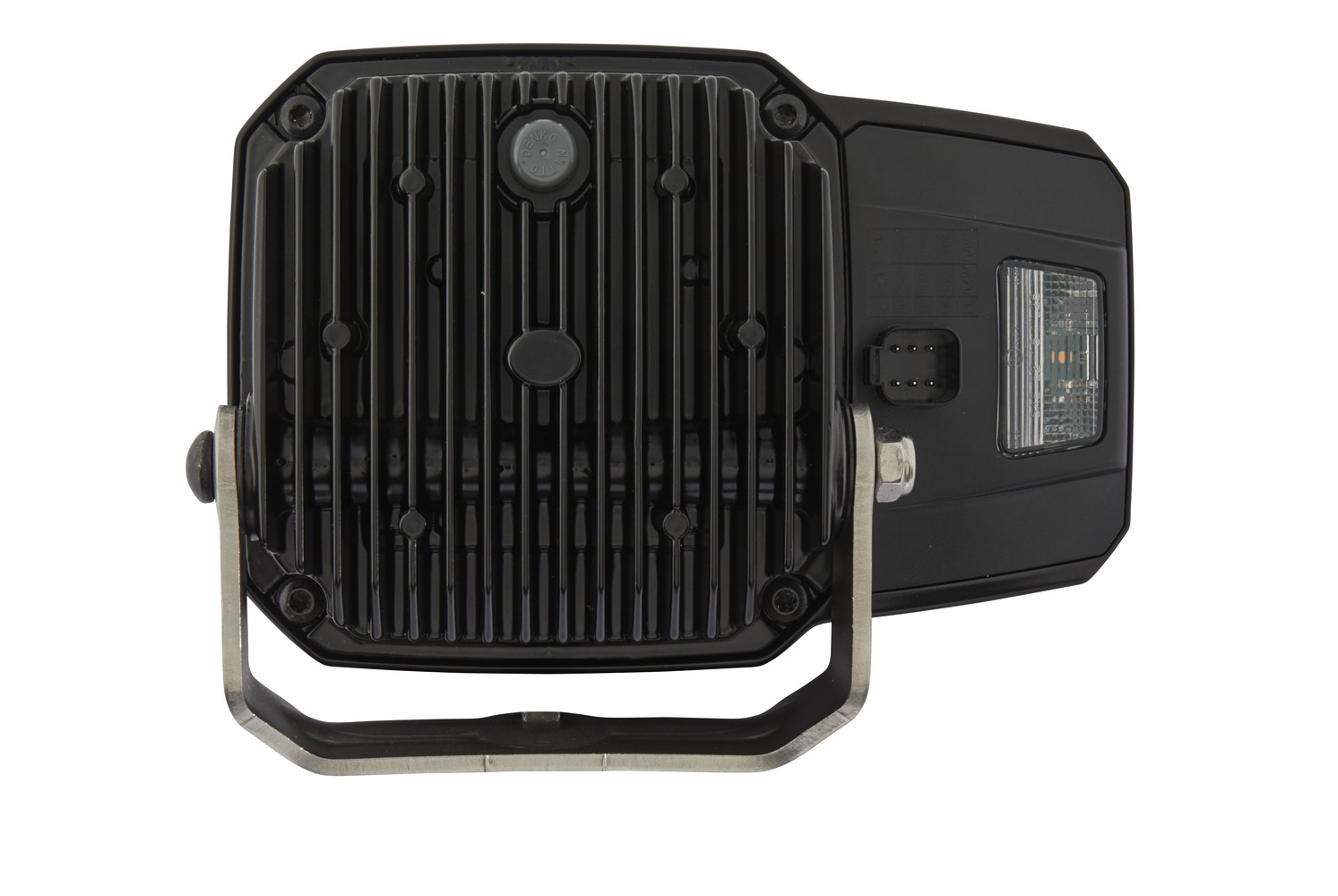

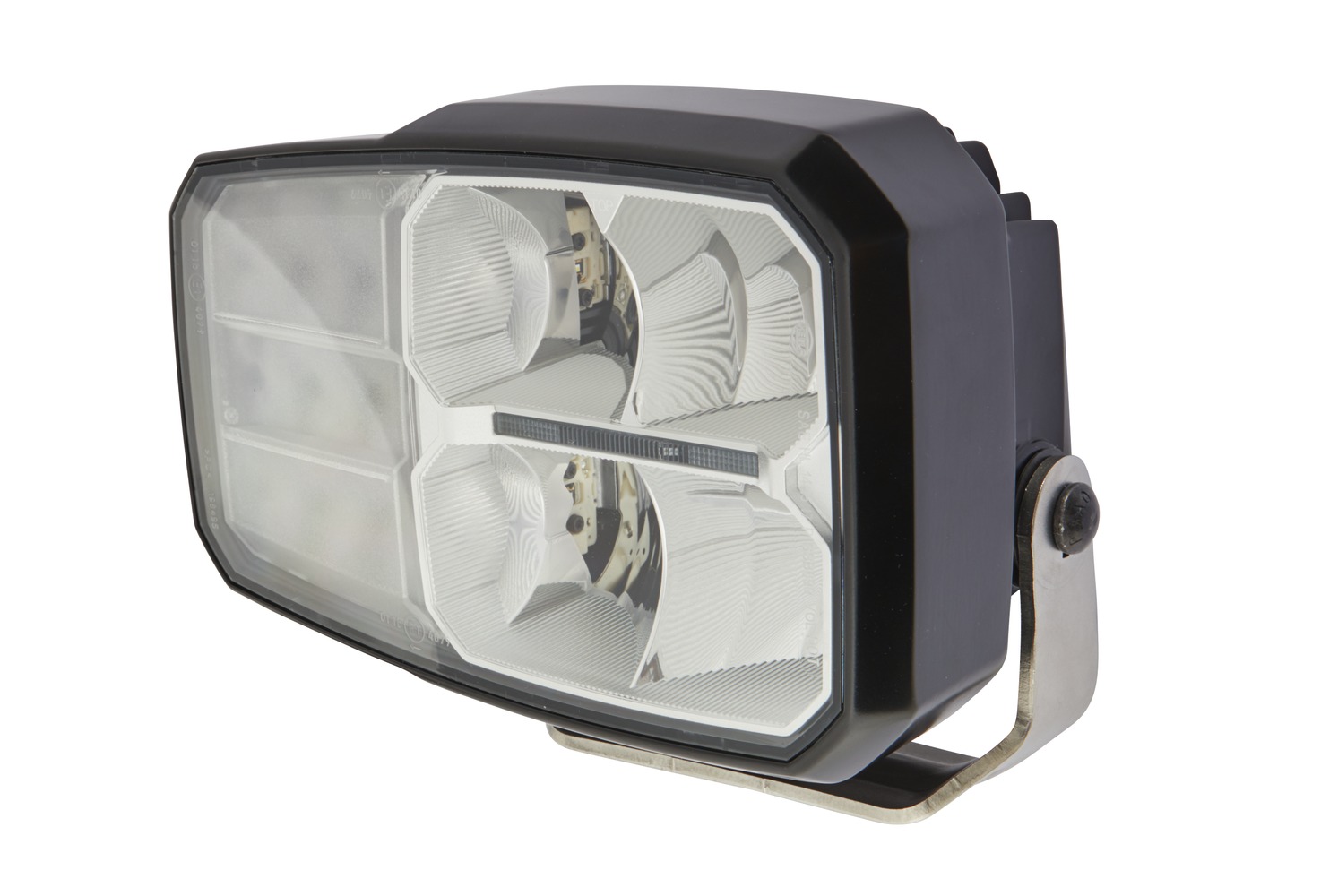

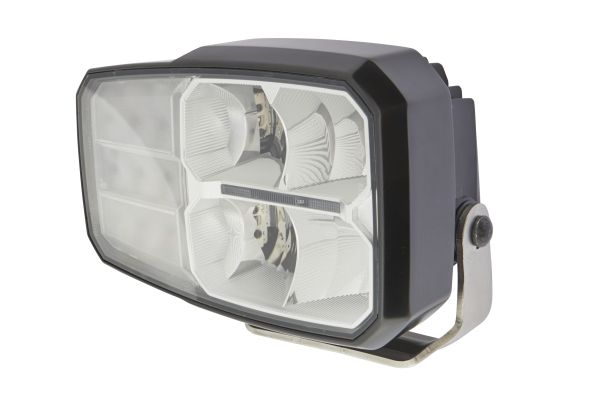

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.
- Combination main headlamp in 100% LED technology
- Excellent light distribution
- For extreme and highly demanding applications

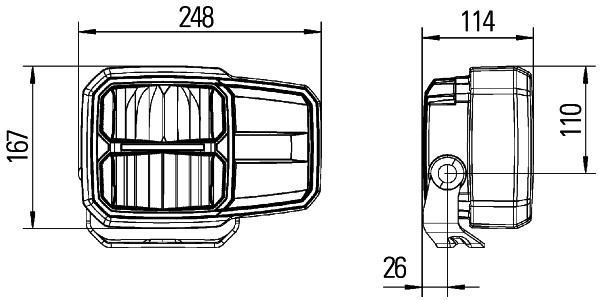

- Width: 248mm – Height: 167mm – Depth: 114mm – Lamp Type: LED
- Light functions: 4 – with indicator/with low beam/with high beam/with position light
- Registration Type: ECE/SAE – fulfils ECE norm: R10/R112 – for right-hand traffic – Prot.type (IP Code): IP6K9K
- Housing material: PC (Polycarbonate) – Housing Colour: black – Diffusing Lens Material: Plastic – Lens Colour: transparent
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 2.92 kg |
|---|---|
| Dimensions | 285 × 250 × 190 cm |
| Private Equivalent | 996374021 |
| Equivalent Parts | 1EE 996 374-021, 21WD23130, U1251036010, 17450000, 30100502418, AT504138, 164515, 564839, 76553655, 52713785, 12105927, 1000362653, 51890196, 12407166, B9409095, 1019058512, 5800134, 117647, TW30093, 996374021 |
| Mounting Type | mounting |
| Fastening Type | Horizontal fastening |
| Lamp Type | LED |
| Light Design | LED |
| Voltage | 12 V / 24 V |
| Fitting Position | right |
| Width | 248 mm |
| Height | 167 mm |
| Depth | 114 mm |
| Light Function | with low beam / with position light / with high beam / with indicator |
| Light functions | 4 |
| Prot.type (IP Code) | IP6K9K |
| Registration Type | SAE / ECE |
| fulfils ECE norm | R10 / R112 |

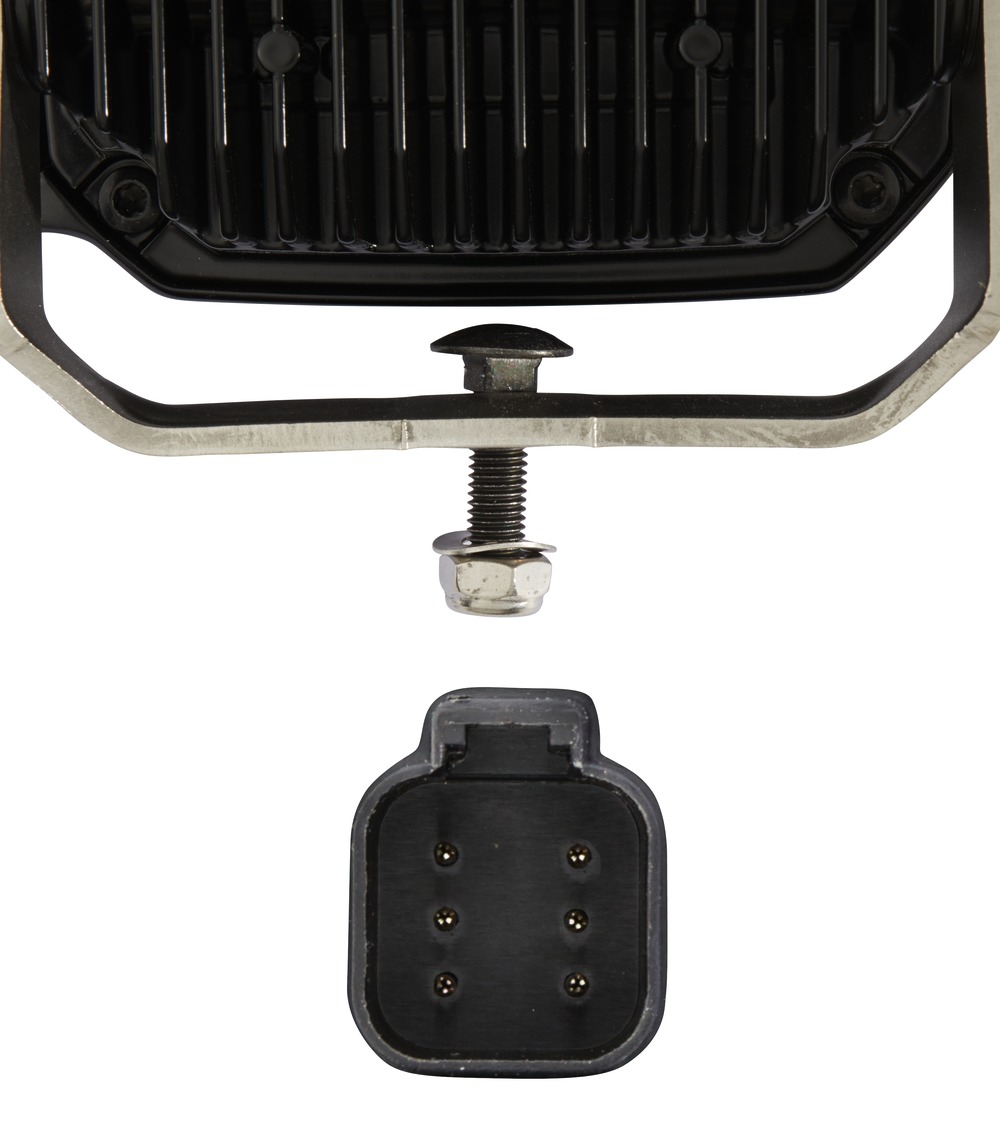

| Plug | DEUTSCH plug |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Housing Colour | black |
| Diffusing Lens Material | Plastic |
| Lens Colour | transparent |
| Housing material | PC (Polycarbonate) |
