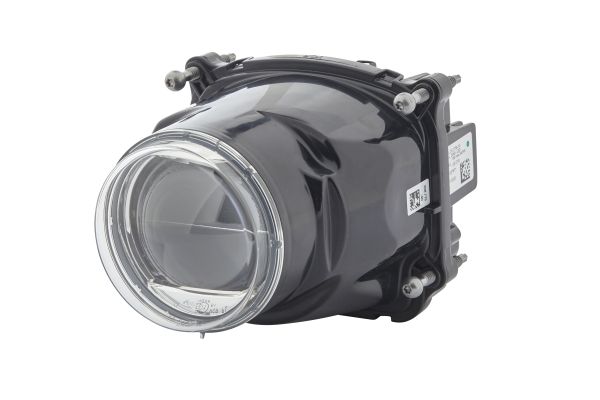

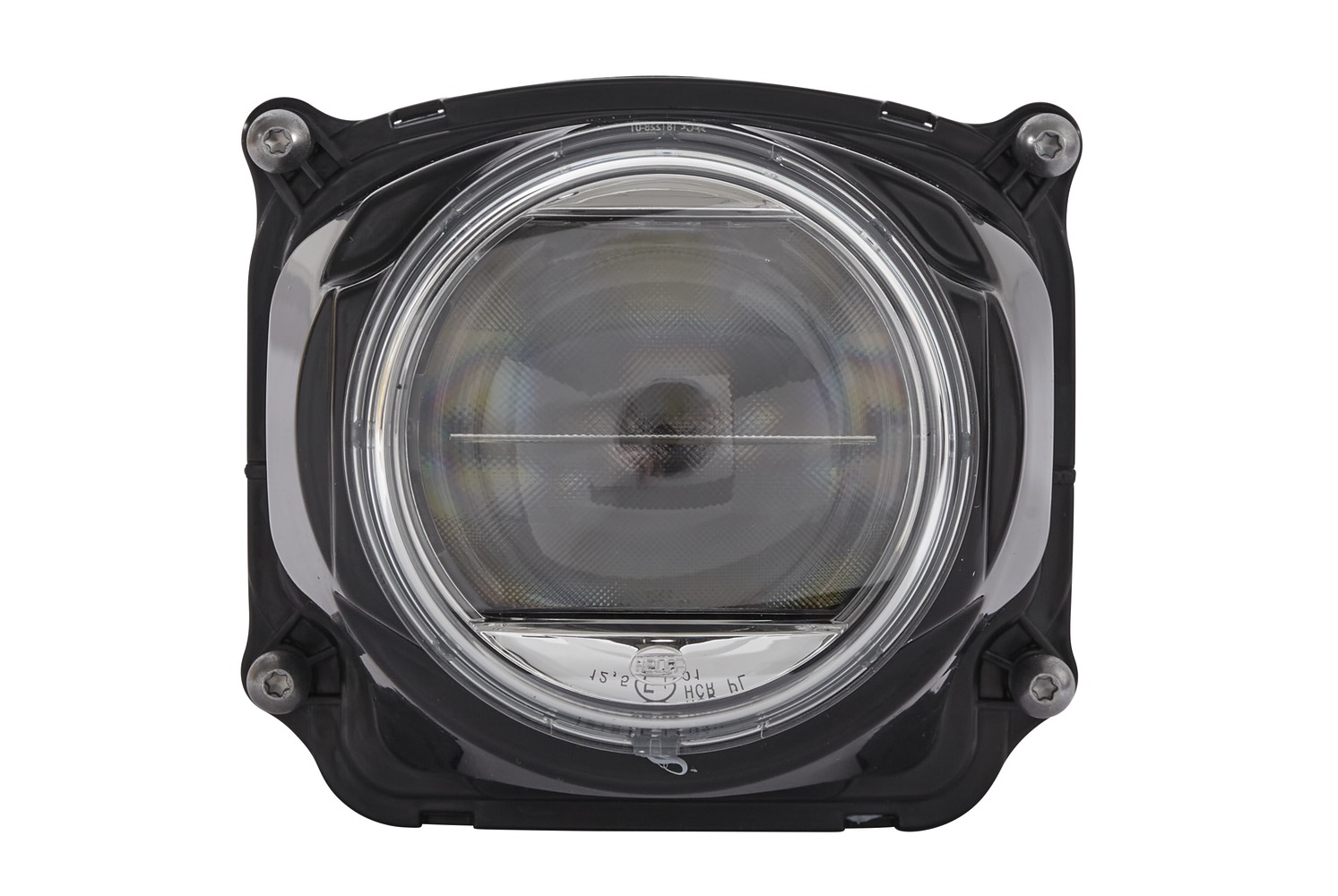

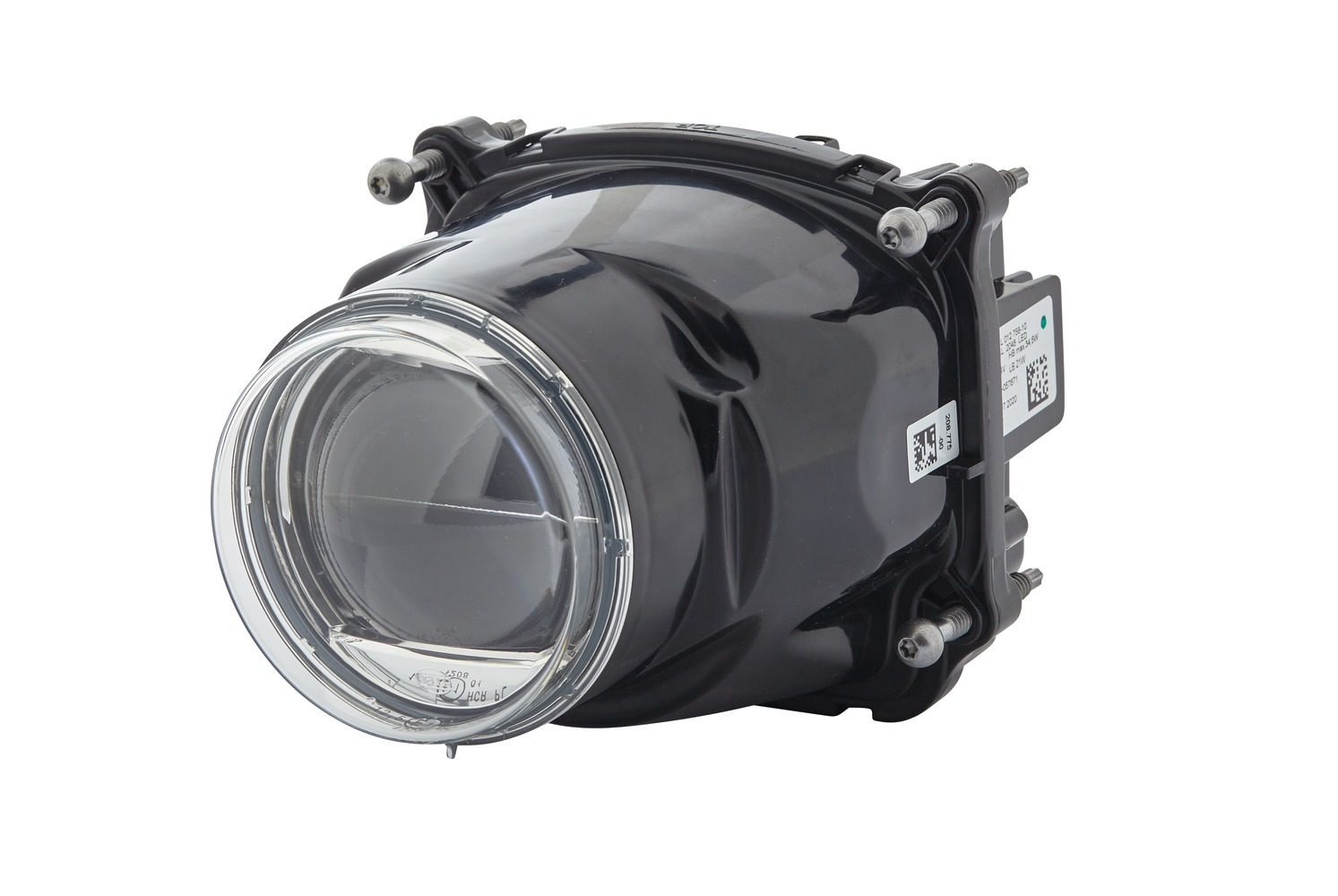

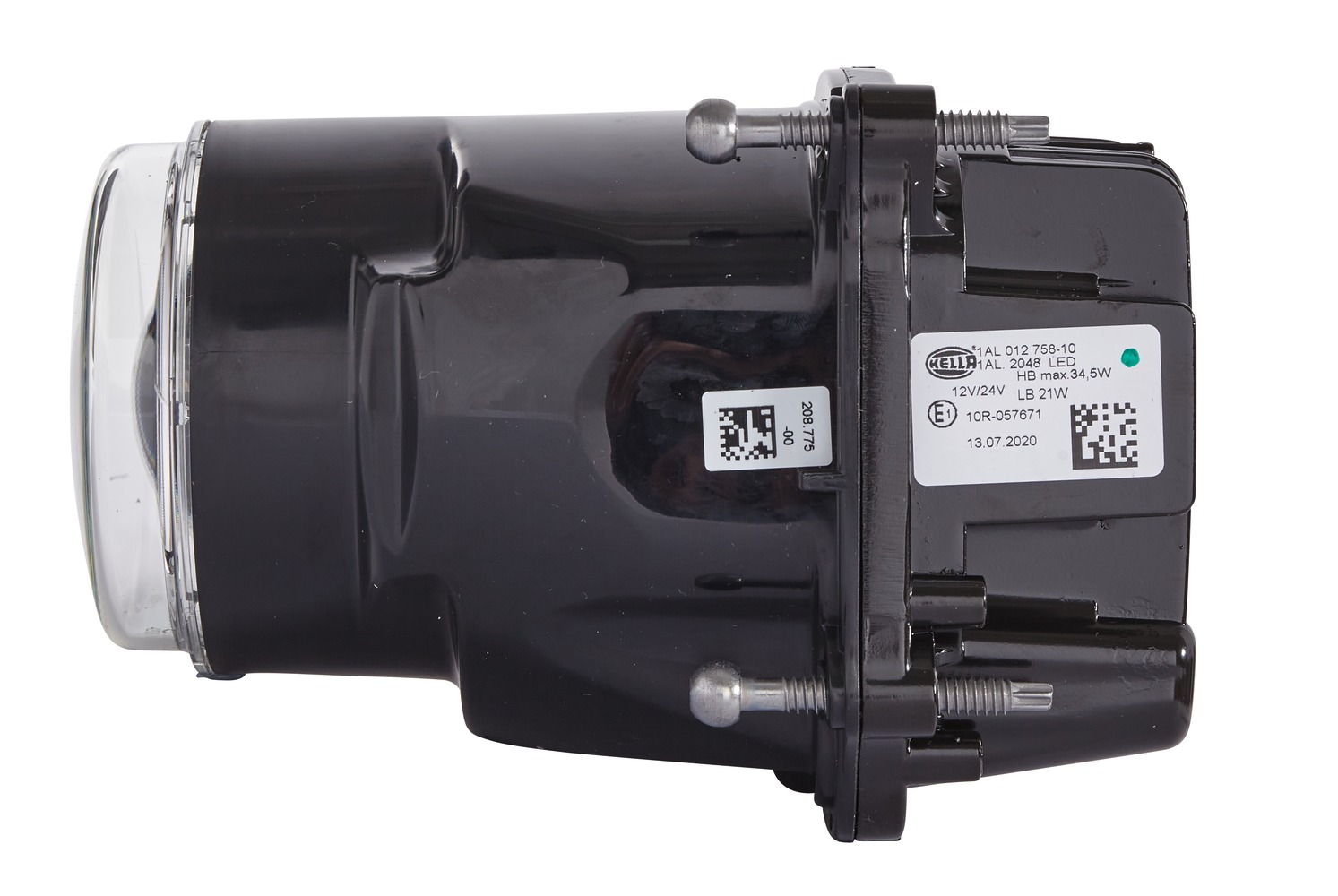

DE/LED-Insert, headlight – 90mm Performance Bi-LED L5570 – 12/24V
🚚 Estimated delivery: 3 Working Days
£347.10£347.10 Incl. VATExcl. VAT
In stock
HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
- The Bi-LED module of the 2. The second generation combines dipped and main beam light and impresses with its advanced light / electronics.
- The 55 x 70 polycarbonate lens projects light from the reflector in the desired direction without the need for optics.
- The module has a hardened plastic cover lens, it has no moving parts and is passively cooled.
- An integrated function output for failure control is inherent to the product.
- Electromagnetic compatibility (EMC) tested and EC type approval granted.

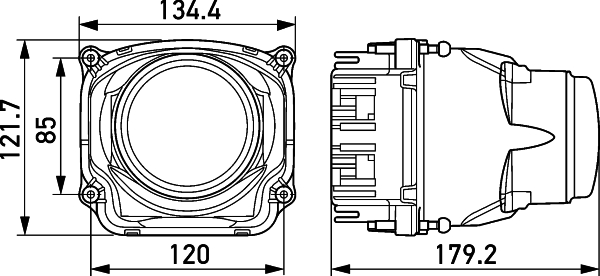

- Ø: 90mm – Width: 134mm – Height: 122mm – Depth: 179mm – Lamp Type: LED – without bulb – Electromagnetic Compatibility (EMC)
- Light functions: 2 – with high beam (LED)/with low beam (LED)
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 1.681 kg |
|---|---|
| Dimensions | 190 × 143 × 125 cm |
| Private Equivalent | 012758101 |
| Equivalent Parts | 1AL 012 758-101, 75123130000, H218PA1002020, H218PA1002020WIRD305, 12237620, 800000607, 412100296, 412100552, 012758101 |
| Mounting Type | Screw Connection / Fitting |
| Fastening Type | Four-point attachment |
| Light Design | DE / LED |
| Lamp Type | LED |
| Voltage | 12 V / 24 V |
| Height | 122 mm |
| Width | 134 mm |
| Depth | 179 mm |
| Ø | 90 mm |
| Light Function | with low beam (LED) / with high beam (LED) |
| Light functions | 2 |
| fulfils ECE norm | R112 / R10 |
| Plug | DEUTSCH plug |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Lens Colour | Crystal clear |
| Housing Colour | black |
| Illuminated Area | 122 mm |
| Shape | round |
| Supplementary Article/Info 2 | Electromagnetic Compatibility (EMC) |
| Supplementary Article/Supplementary Info | without bulb |
| Quantity | 1 |
