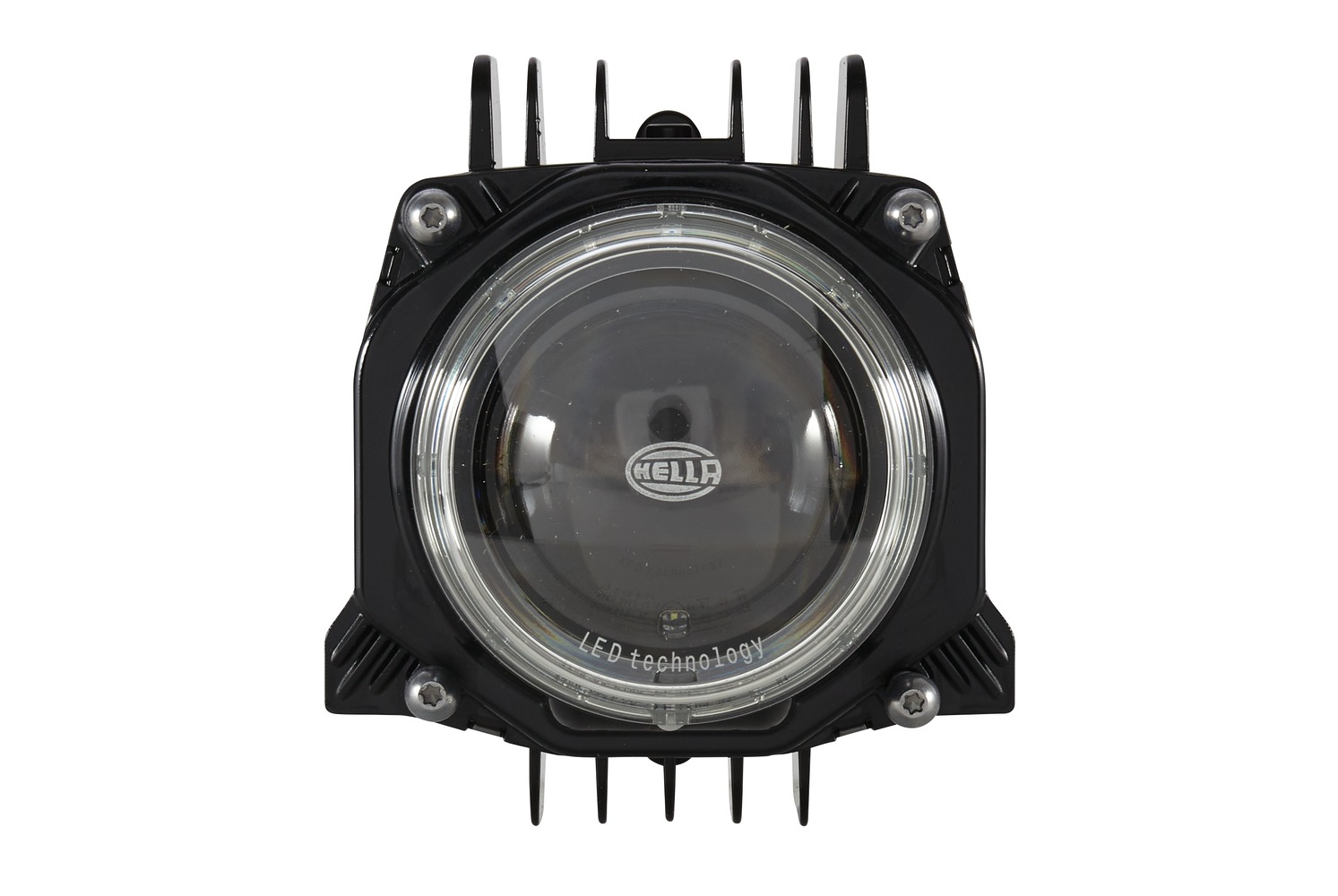

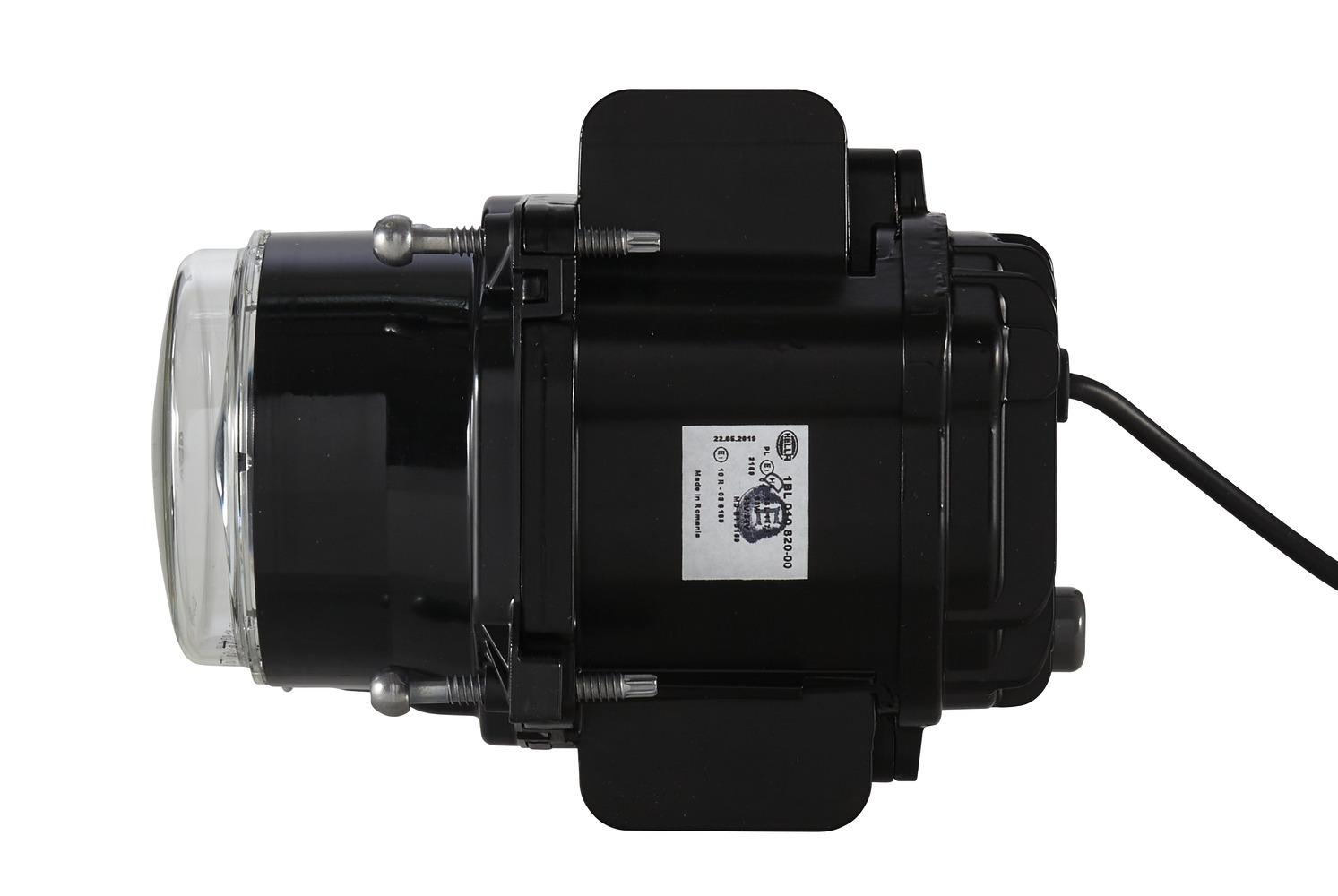

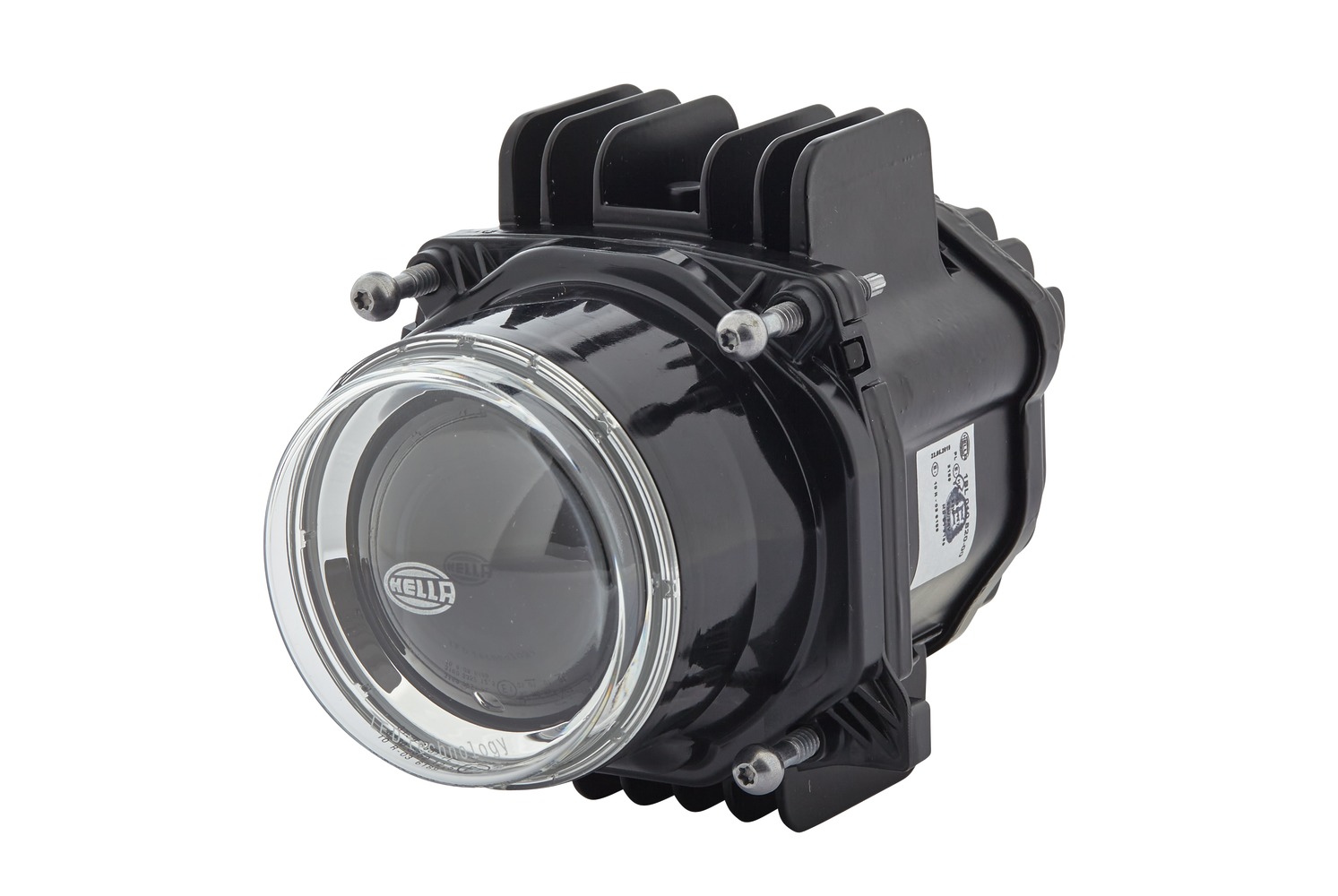

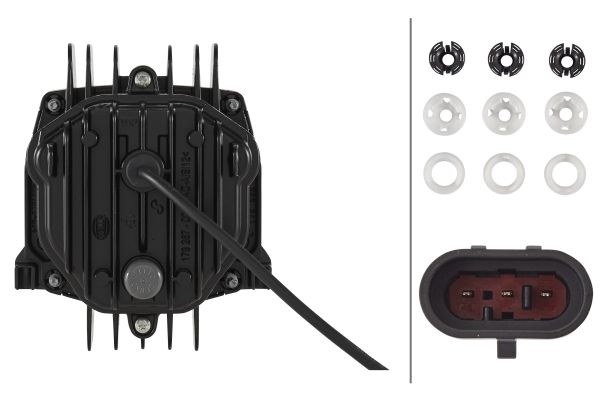

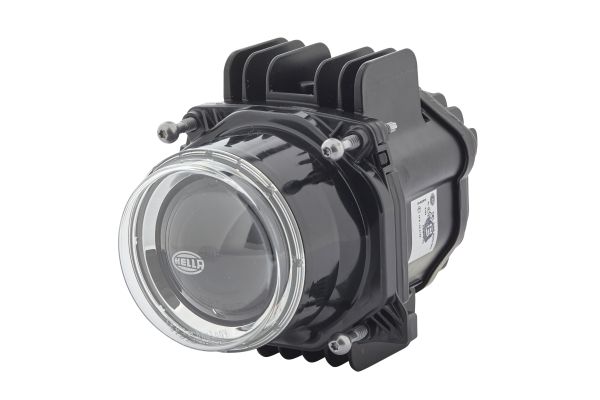

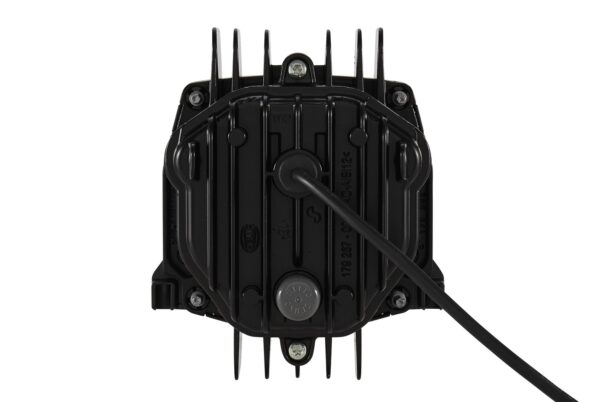

DE/LED-Headlight – 90mm Performance Bi-LED L70 – 12V
🚚 Estimated delivery: 3 Working Days
£434.98£434.98 Incl. VATExcl. VAT
In stock
HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
- 90 mm cover lens: Made of plastic especially resistant to stone chipping. Optics-free – for direct view of the lens.
- 70 mm lens: Optic-free, made of glass, the light from the reflector is projected in the desired direction. Excellent light output and extremely homogeneous illumination with little stray light.
- Free-form reflector: Computer-calculated free-form plastic reflector focuses the light through the precision lens.
- Simple installation with 4 pre-mounted adjusting screws on the vehicle body or optionally on an additional support frame (accessory).
- Can be ideally combined with other modules of the 90 mm series.
- Height: 143mm – Depth: 182mm – Lamp Type: LED – with control unit
- Light functions: 2 – with low beam
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 190 × 143 × 167 cm |
| Private Equivalent | 010820801 |
| Equivalent Parts | 1BL 010 820-801, R01010169, 010820801 |
| Mounting Type | Fitting |
| Lamp Type | LED |
| Light Design | DE / LED |
| Voltage | 12 V |
| Fitting Position | right / left |
| Height | 143 mm |
| Depth | 182 mm |
| Light Function | with low beam |
| Light functions | 2 |
| fulfils ECE norm | R48 |
| Registration Type | ECE |

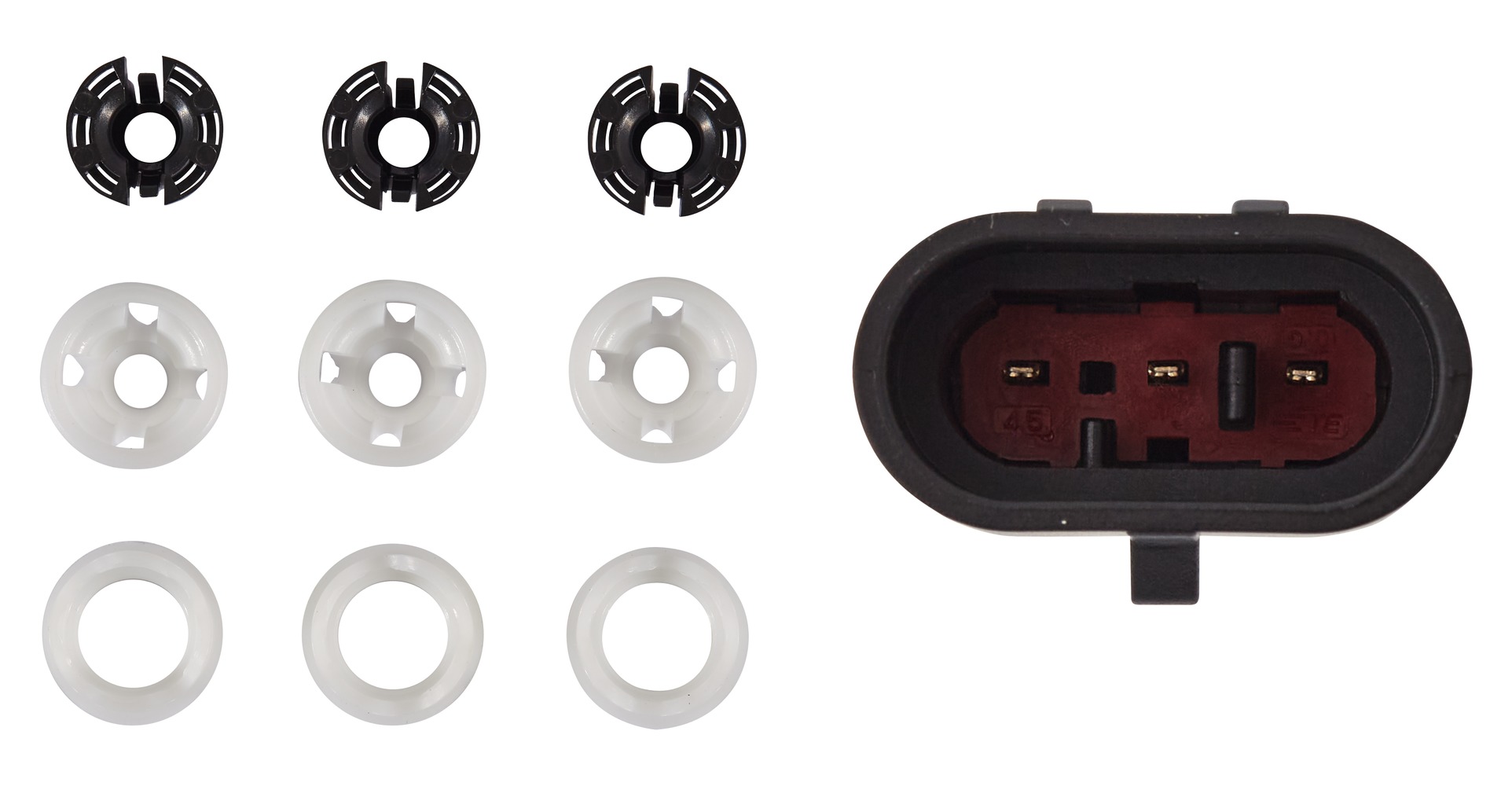

| Plug | AMP |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Shape | round |
| Illuminated Area | 90 mm |
| Supplementary Article/Supplementary Info | with control unit |
No tractors assigned.
