Headlight – 12V
🚚 Estimated delivery: 3 Working Days
£101.96£101.96 Incl. VATExcl. VAT
In stock

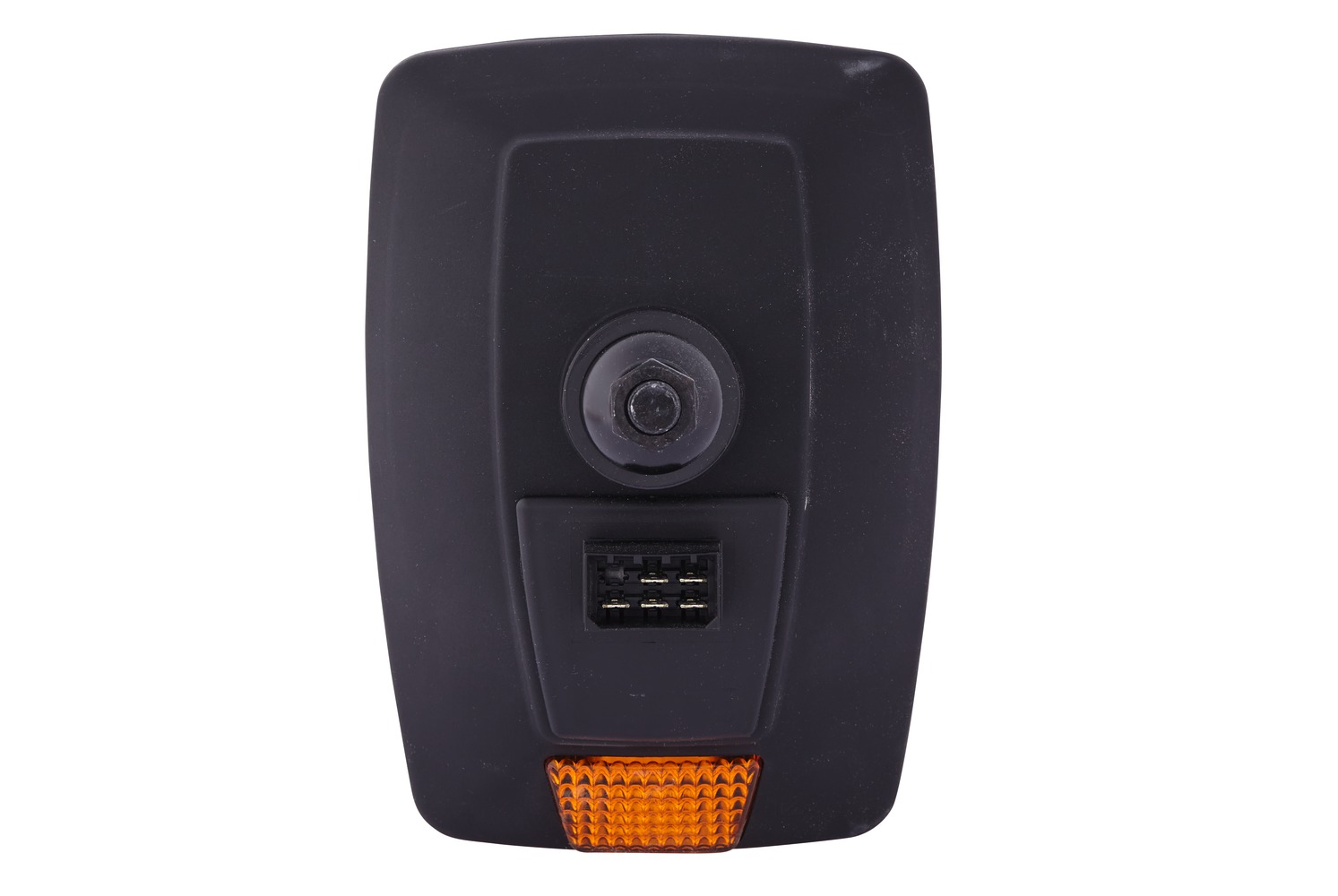

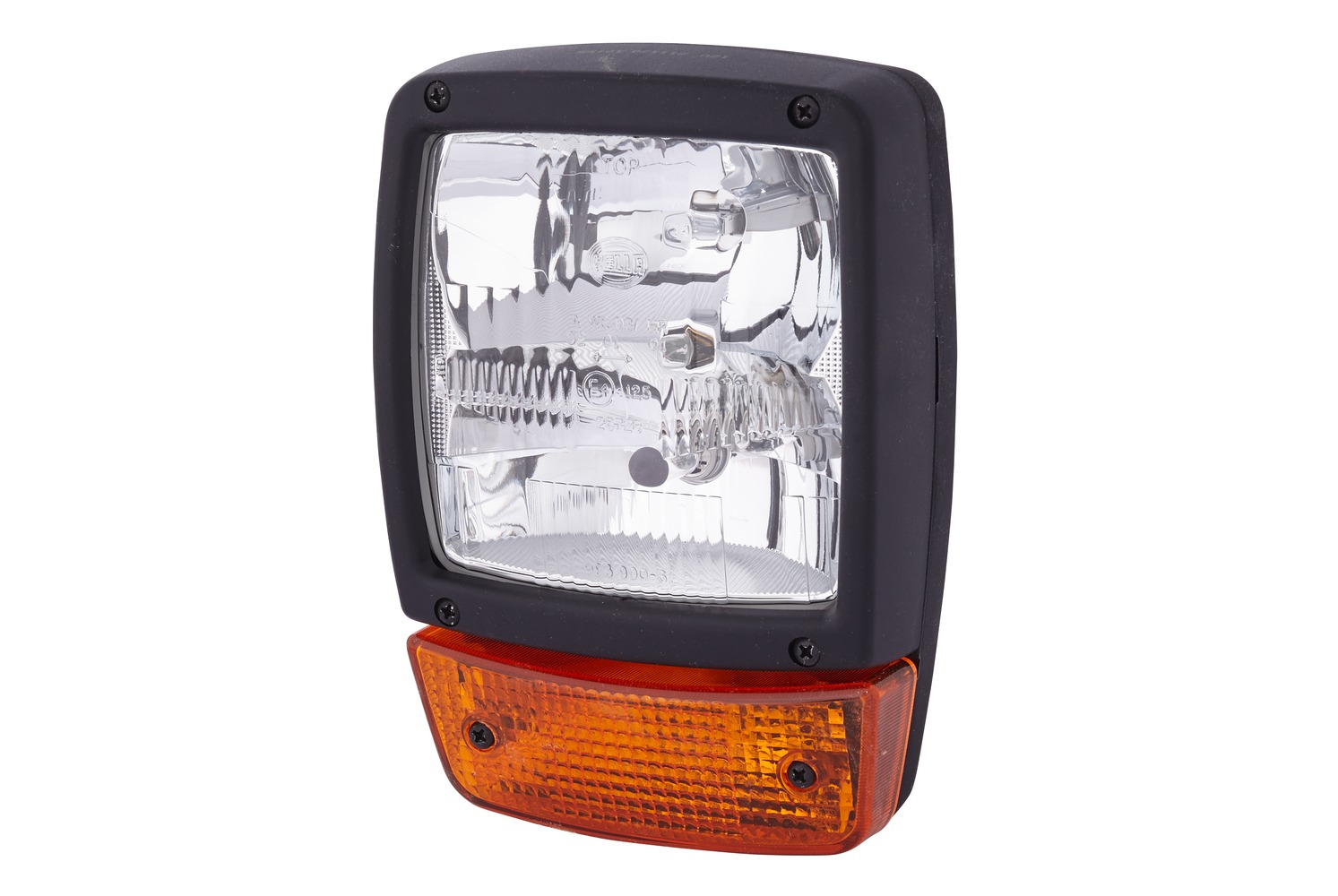

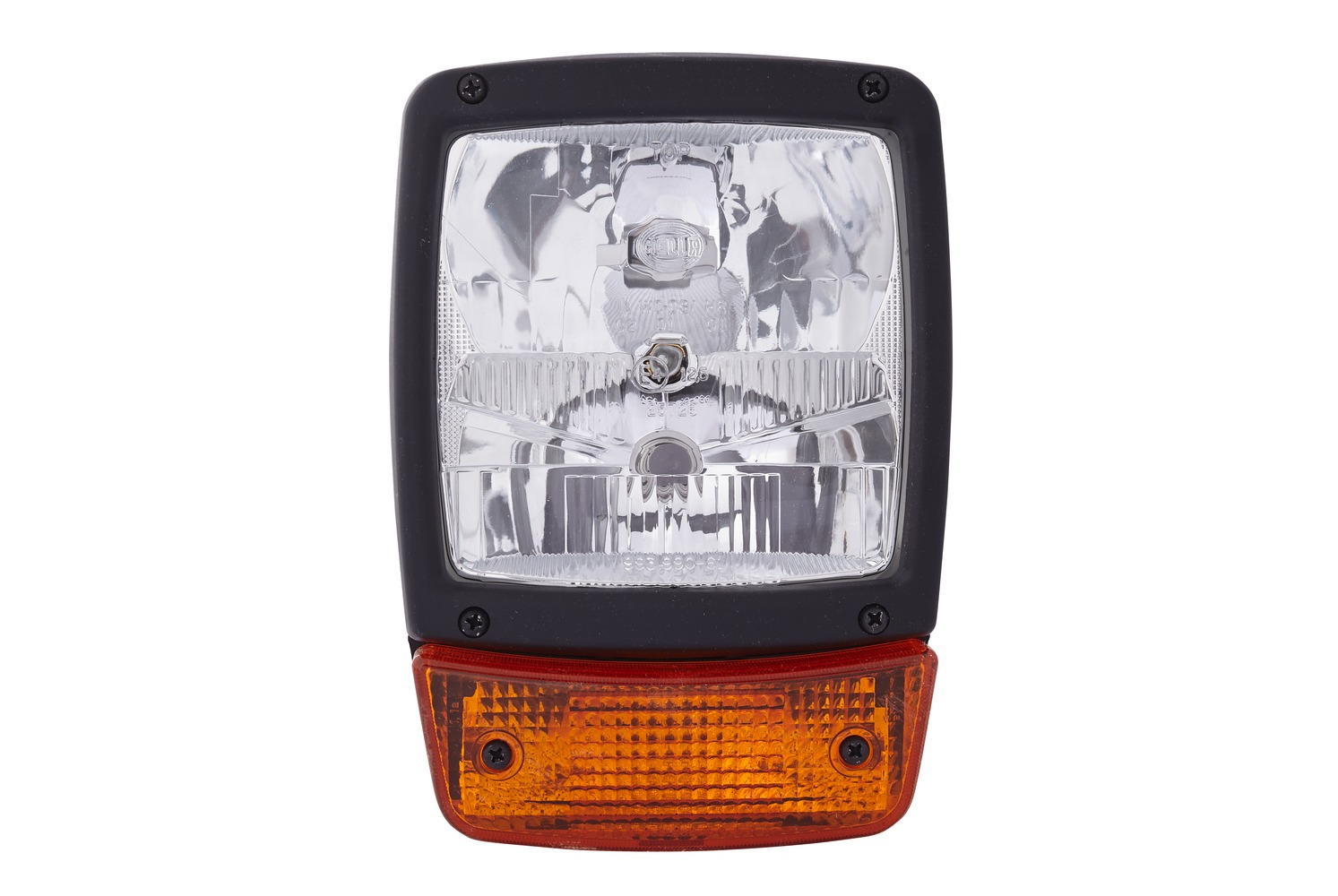

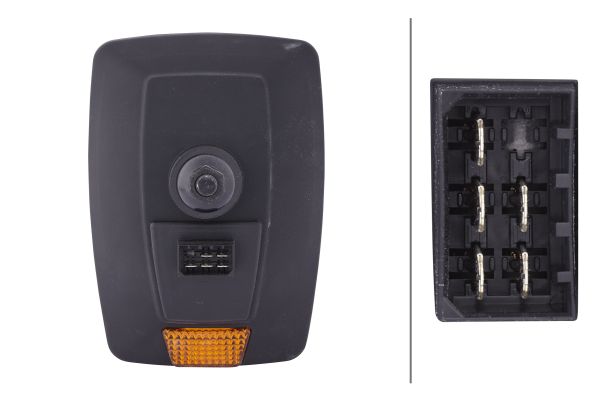

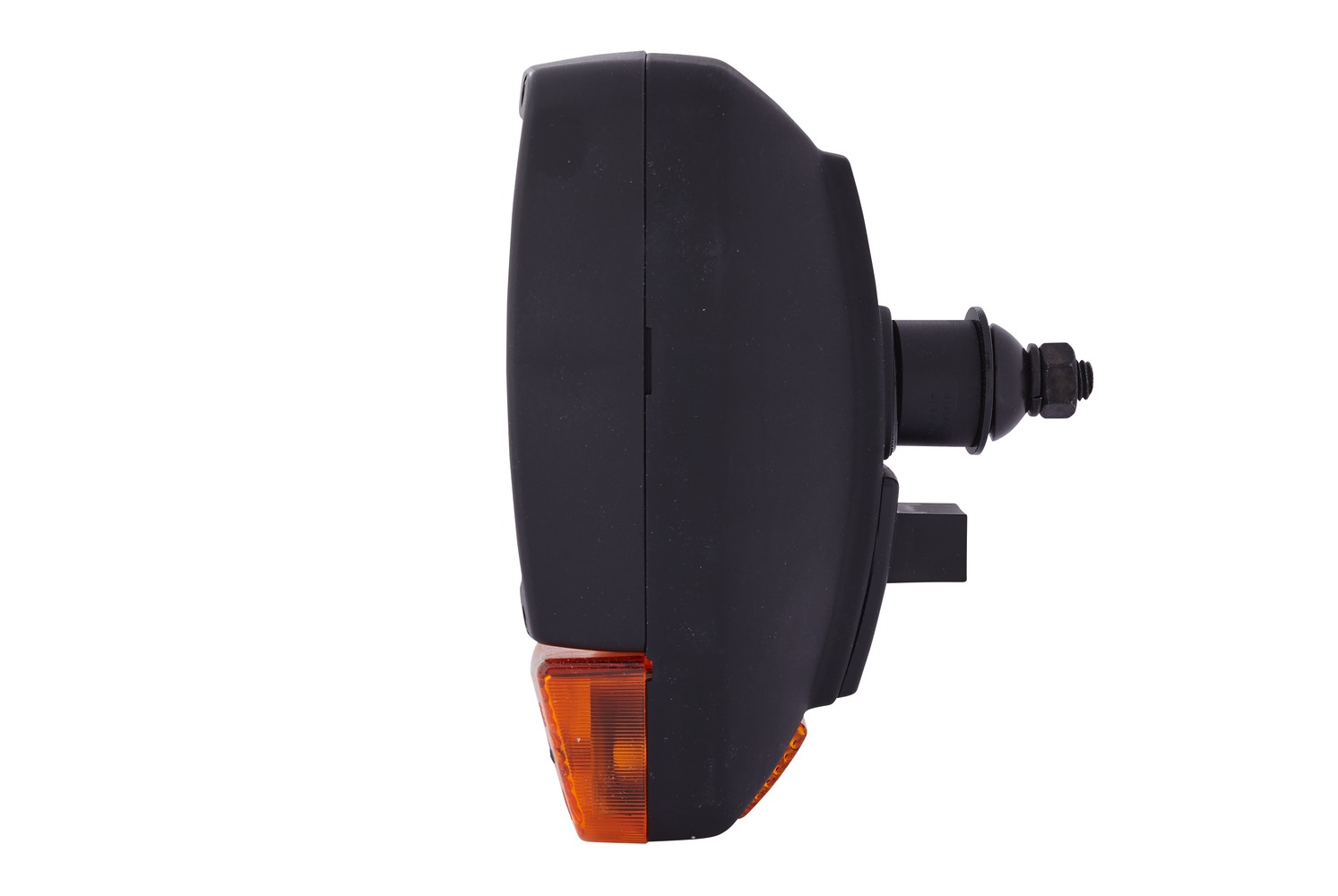

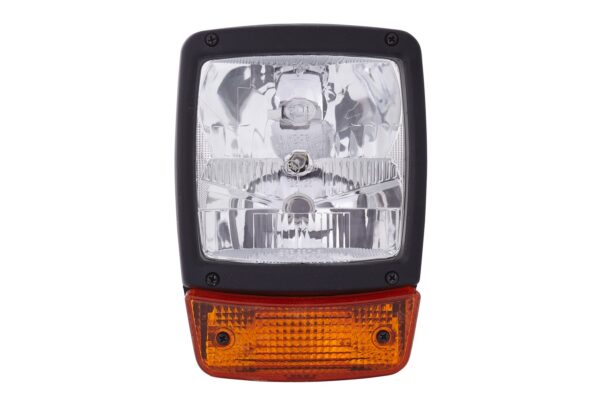

HELLA 1SA 996 120-471 Headlight – 12V – ECE – yellow – Plug: AMP – left/right
- The M120 combination headlamp is optimised for additional use on agricultural and construction machinery thanks to its homogeneous, wide and long-range illumination of the field of vision without inherent glare.
- The reflector is made of plastic with a glued glass diffuser.
- The housing and the glass holder frame are also made of plastic with a protruding edge to protect the diffusing lens.
- A major advantage of the M120 is its symmetrical light distribution. Thanks to this, no additional version of the headlamp for left-hand traffic is required.
- The spotlight is protected against water during high-pressure/steam jet cleaning according to IP protection class IP X9K.
- Width: 150mm – Height: 212mm – Depth: 101mm – Lamp Type: H7/H3/P21W/T4W – with bulbs
- Light functions: 4 – with high beam/with low beam/with position light/with indicator
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 1.099 kg |
|---|---|
| Dimensions | 190 × 190 × 167 cm |
| Private Equivalent | 996120471 |
| Equivalent Parts | 1SA 996 120-471, SP1068207, 996120471 |
| Mounting Type | mounting |
| Fastening Type | for vertical fastening |
| Lamp Type | P21W / T4W / H7 / H3 |
| Voltage | 12 V |
| Fitting Position | right / left |
| Width | 150 mm |
| Height | 212 mm |
| Depth | 101 mm |
| Light Function | with indicator / with high beam / with low beam / with position light |
| Light functions | 4 |
| Prot.type (IP Code) | IP5K4K / IPX9K |
| fulfils ECE norm | R113 |

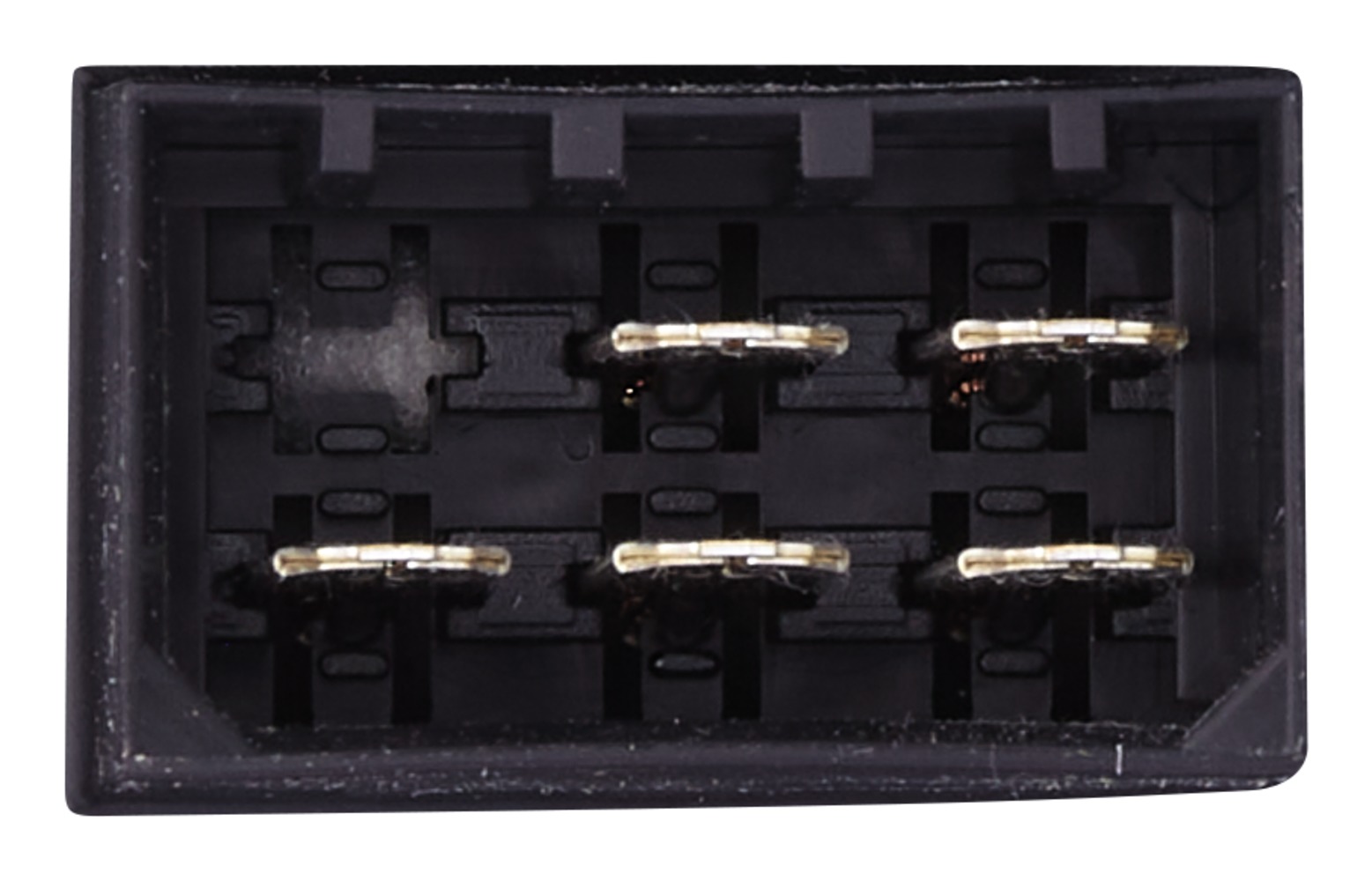

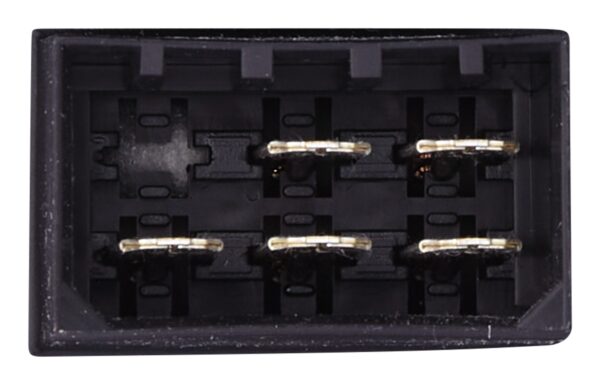

| Plug | AMP |
| Housing Colour | black |
| Connector type | AMP |
| Lens Colour | yellow |
| Supplementary Article/Info 2 | with bulbs |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Registration Type | ECE |
