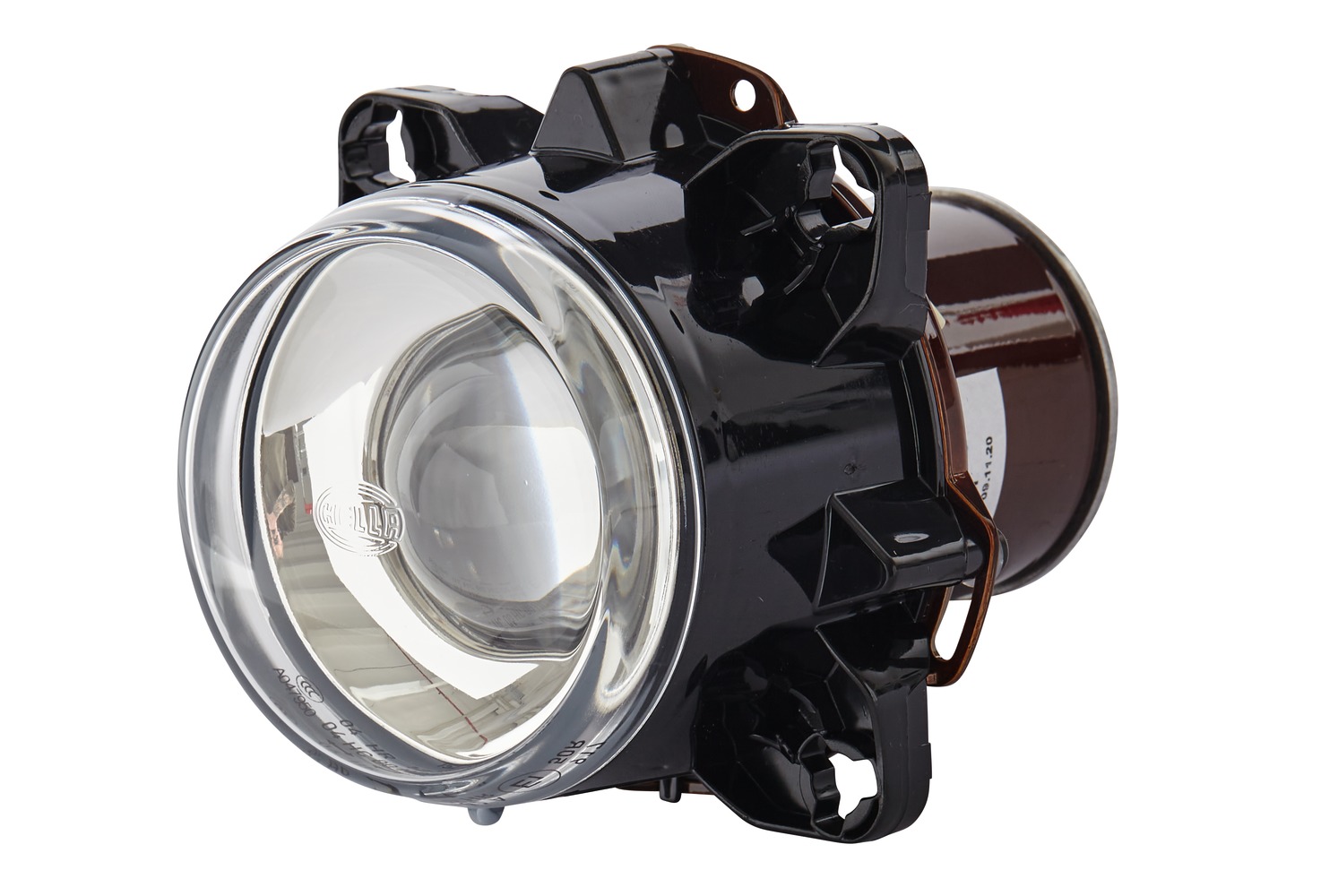

Halogen/DE-Insert, headlight – 90mm Essential – 12V
🚚 Estimated delivery: 3 Working Days
£56.24£56.24 Incl. VATExcl. VAT
In stock
HELLA front lighting. Look ahead – with front lighting solutions from HELLA. Nothing works without powerful headlights – neither on the road nor in the field. They are the vehicle’s eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA’s 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful – and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
- Individual front design thanks to modular construction
- Numerous application possibilities even in more demanding environments
- Optimised light output and homogeneous illumination with little stray light
- Ø: 90mm – Length: 140mm – Width: 103mm – Height: 119mm – Depth: 165mm – Lamp Type: H7 – with bulb – with fastening material
- Light functions: 1 – with low beam
- Registration Type: CCC – fulfils ECE norm: R8/R112 – for right-hand traffic
- Housing Colour: Black – Diffusing Lens Material: Glass – Lens Colour: Crystal clear
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 0.475 kg |
|---|---|
| Dimensions | 145 × 127 × 167 cm |
| Private Equivalent | 008193001 |
| Equivalent Parts | 1BL 008 193-001, 7700066386, 7700066387, KSP941751A, 11117172, SMME31640S8, 630503ET008, 69501644, 166410, 72437695, ACW1276090, G931900020140, G931901020140, G931901020141, 147243, 4287246M1, 47056439, 5751178, 10022140, 45604150000, NA156, 8041318, 1017245, 16031538, 417288, 41728800, 56933, 87995100, 842401117, 008193001 |
| Mounting Type | Fitting |
| Fastening Type | 3-point attachment |
| Light Design | Halogen / DE |
| Lamp Type | H7 |
| Voltage | 12 V |
| Fitting Position | left / right |
| Height | 119 mm |
| Width | 103 mm |
| Length | 140 mm |
| Depth | 165 mm |
| Ø | 90 mm |
| Light Function | with low beam |
| Light functions | 1 |
| fulfils ECE norm | R112 / R8 |
| Registration Type | CCC |
| Plug | Blade Terminal |
| Reference number | 12.5 |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Lens Colour | Crystal clear |
| Housing Colour | black |
| Illuminated Area | 90 mm |
| Shape | round |
| Diffusing Lens Material | Glass |
| Supplementary Article/Info 2 | with fastening material |
| Supplementary Article/Supplementary Info | with bulb |
| Quantity | 1 |
| SVHC | 7439-92-1; Lead |
Compatible Tractors:
| Manufacturer | Series | Models |
|---|---|---|
| Fendt | - | 819, 822, 824, 826, 828 |
| Claas | - | Ares 556, Ares 557, Ares 566, Ares 567, Ares 577, Ares 616, Ares 617, Ares 656, Ares 657, Ares 696, Ares 697, Celtis 426, Celtis 436, Celtis 446, Celtis 456, Lexion 5300, Lexion 5400, Lexion 5500, Lexion 620, Lexion 630, Lexion 640, Lexion 650, Lexion 660, Lexion 6600, Lexion 670, Lexion 6700, Lexion 6800, Lexion 6900, Lexion 740, Lexion 7400, Lexion 750, Lexion 7500, Lexion 760, Lexion 7600, Lexion 770, Lexion 7700, Lexion 780, Lexion 8700, Lexion 8800, Lexion 8900, Trion 520, Trion 530, Trion 640, Trion 650, Trion 660, Trion 720, Trion 730, Trion 750 |
| Renault | - | Celtis 426, Celtis 436, Celtis 446, Celtis 456 |
