Bulb-Headlight – Combi 220 – 12V
🚚 Estimated delivery: 3 Working Days
£107.30£107.30 Incl. VATExcl. VAT
In stock

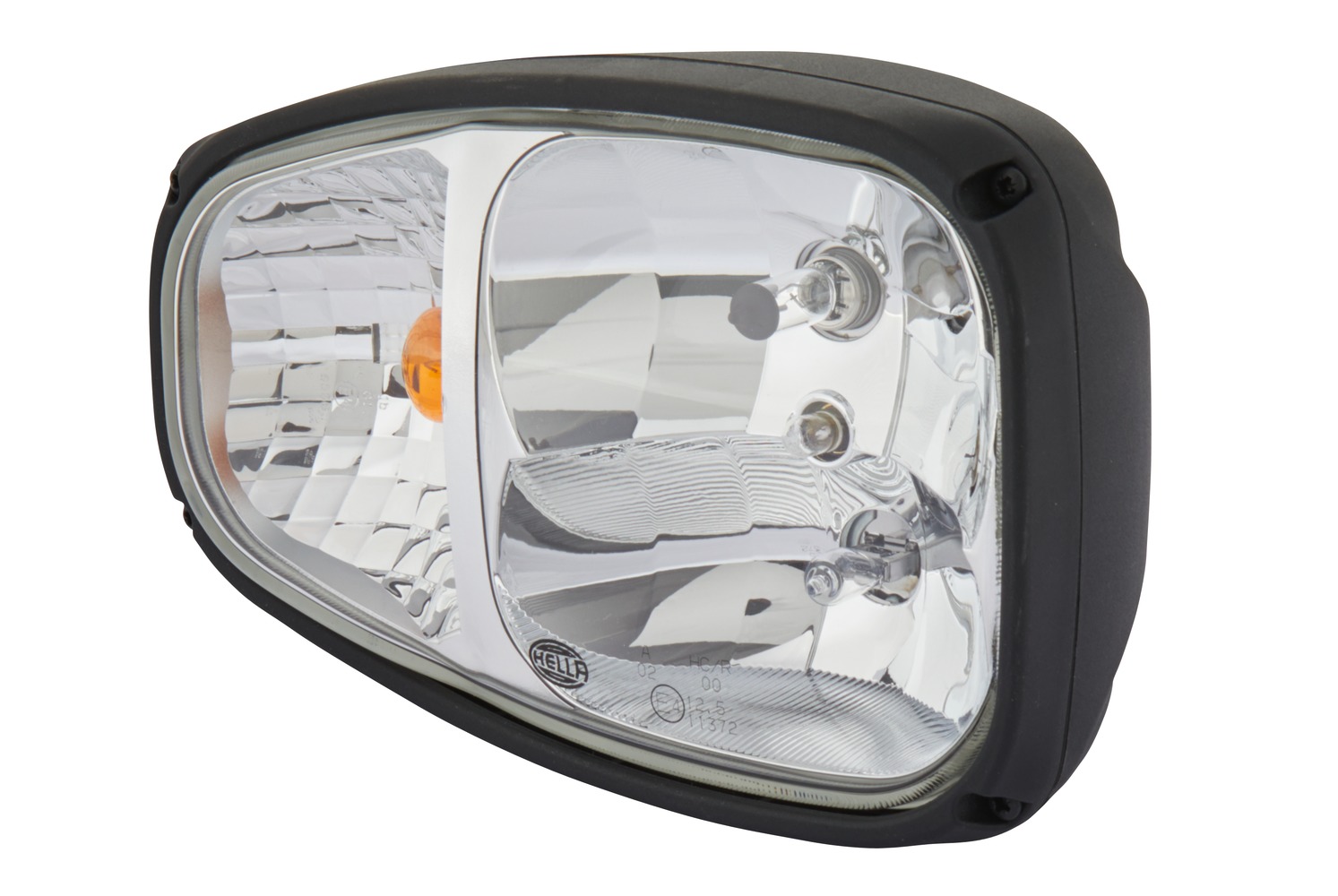

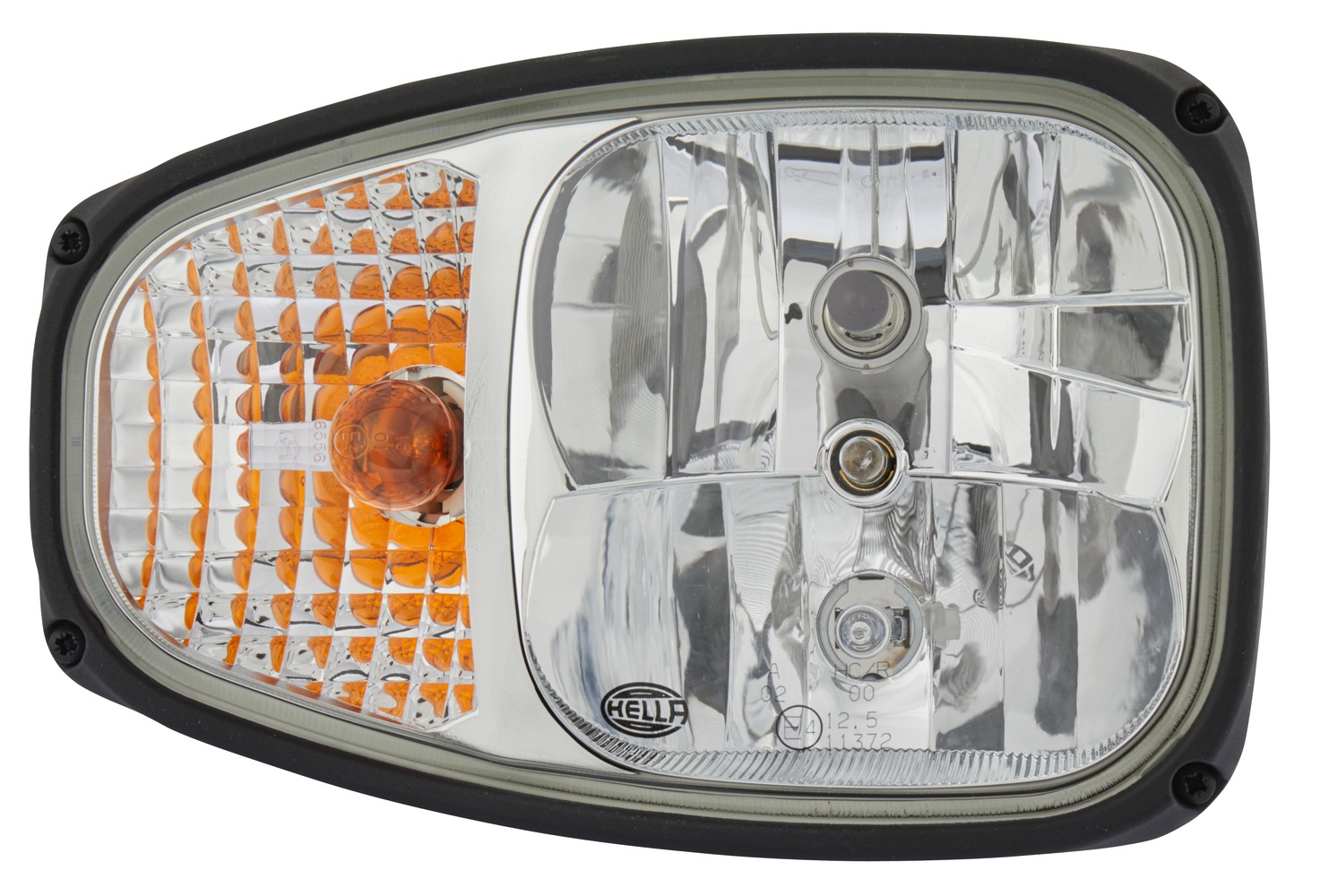

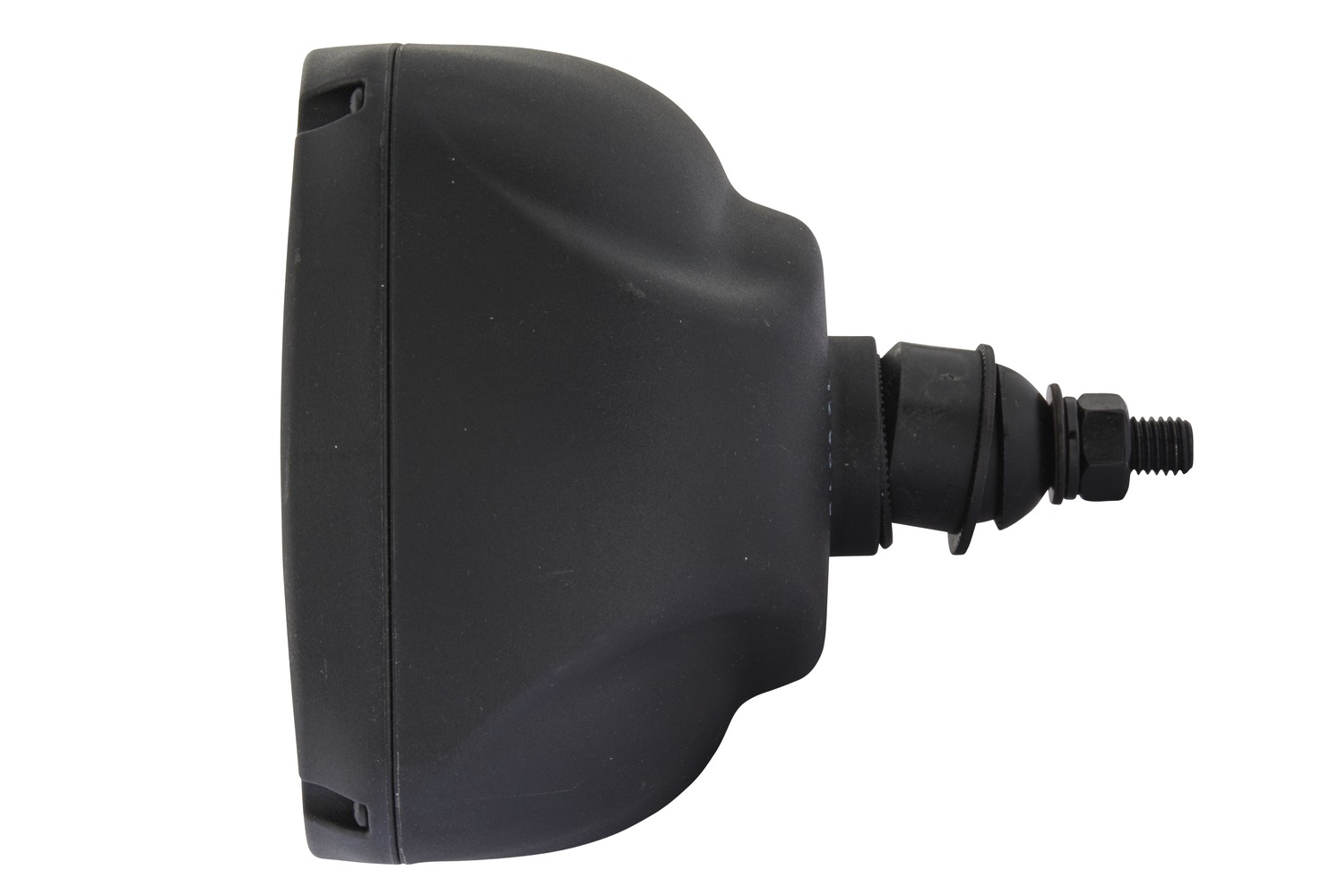

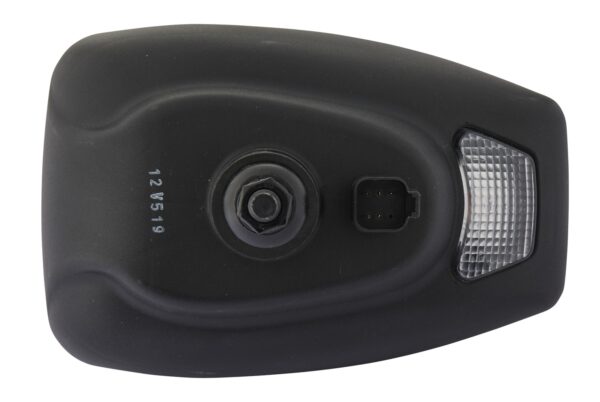

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions – H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.
- HELLA’s C220 halogen combi-headlamp is a main headlamp without optics.
- It implements the lighting functions H7 low beam, H3 high beam, position light and indicator.
- Due to its design, the halogen combi spotlight is also suitable for mounting on vertical surfaces and ensures optimum illumination of the work area.
- The lens of this main headlamp is made of tempered glass while the lamp housing is made of glass fibre reinforced plastic, which is acid and corrosion resistant.
- Dust-proof and protected against water during high pressure / steam jet cleaning according to IP protection class 6K9K.

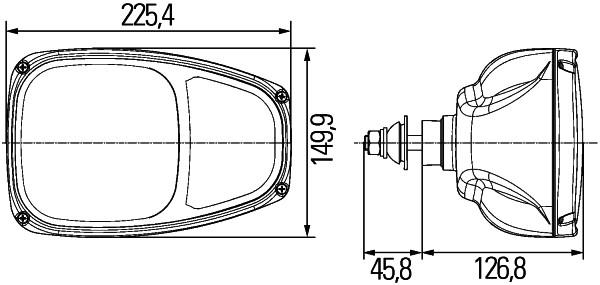

- Width: 225mm – Height: 150mm – Depth: 127mm – Lamp Type: T4W/H3/PY21W/H7 – with bulbs
- Light functions: 4 – with position light/with low beam/with high beam/with indicator
We aim to dispatch all orders within one working day of payment.
Standard UK delivery takes around 3 working days from dispatch.
Delivery details:
Free UK delivery on most orders over £75.
Express and international shipping options available at checkout.
Tracking details sent by email once your order leaves our warehouse.
Returns:
Returns accepted within 30 days of receipt if unused and in original packaging.
Faulty or incorrect items: contact us for a prepaid return label.
Refunds processed within 3–5 days of receiving your return.
For full details, visit our Delivery & Returns Policy
Additional information
| Weight | 1.158 kg |
|---|---|
| Dimensions | 190 × 190 × 250 cm |
| Private Equivalent | 996174221 |
| Equivalent Parts | 1EE 996 174-221, 42N0635240, R03F401001, 103134, 5350247537, 996174221 |
| Mounting Type | Fitting |
| Fastening Type | Horizontal fastening |
| Lamp Type | H3 / T4W / H7 / PY21W |
| Light Design | Bulb |
| Voltage | 12 V |
| Fitting Position | right |
| Width | 225 mm |
| Height | 150 mm |
| Depth | 127 mm |
| Light Function | with position light / with high beam / with indicator / with low beam |
| Light functions | 4 |
| Prot.type (IP Code) | IPX9K / IP6K4K |
| Registration Type | SAE / ECE |

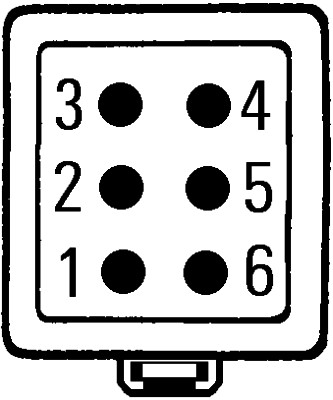

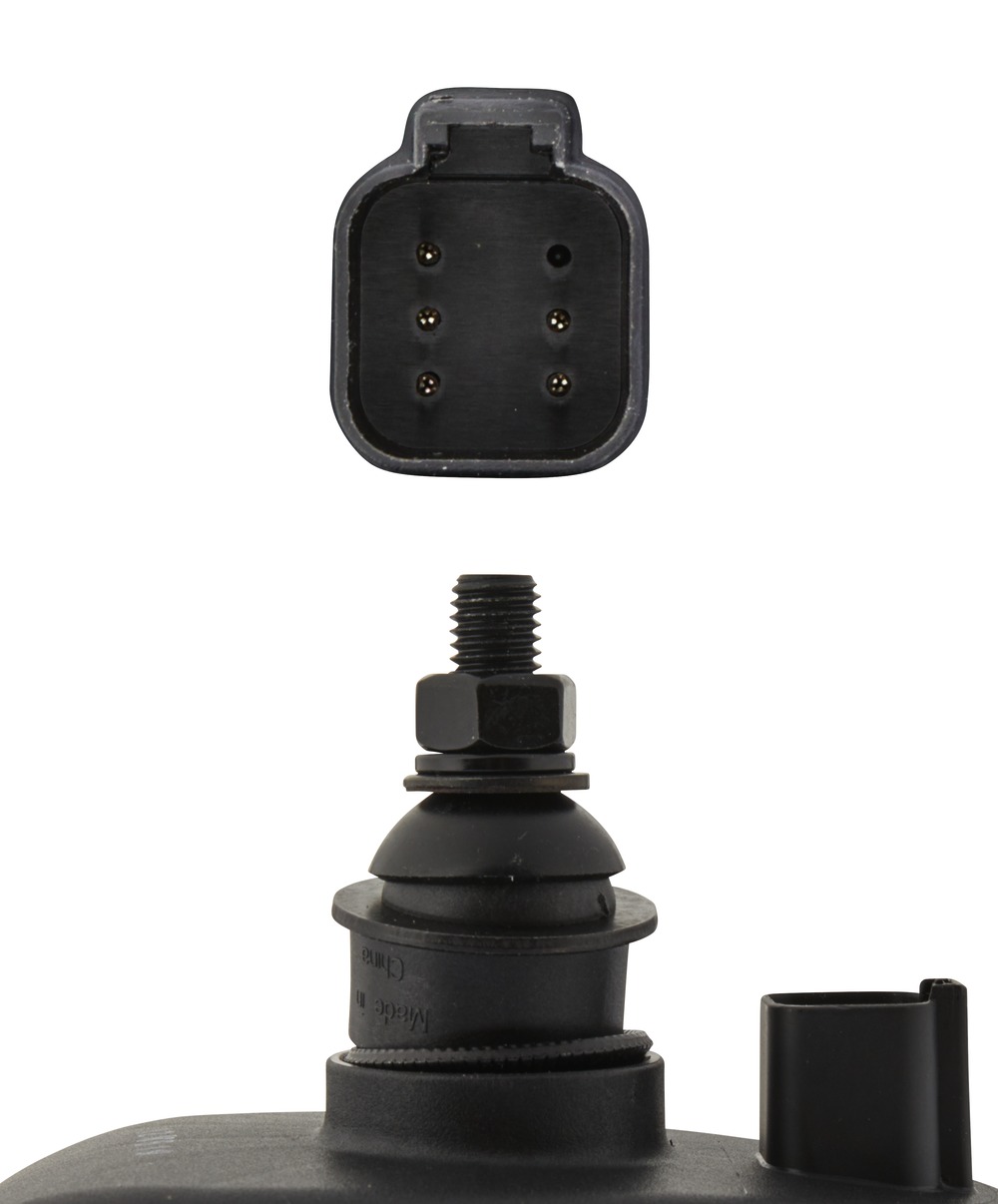

| Plug | DEUTSCH plug |
| Left-hand/Right-hand Traffic | for right-hand traffic |
| Housing Colour | Black |
| Additionally required parts | 8JA 201 022-831 |
| Diffusing Lens Material | Glass |
| Lens Colour | transparent |
| Diffusing Lens Type | Hardened diffusing lens |
| Supplementary Article/Info 2 | with bulbs |
