Hella Part no. A25-001530 Previously PT/009295067

Halogen/FF-Front Fog Light - Dynaview Evo2 - 24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£33.94 ex VAT
£40.73 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
24V
Technology
Halogen
Lens colour
Clear
Light functions
Fog light

About this fog lamp

Halogen/FF-Front Fog Light - Dynaview Evo2 - 24V is a Hella fog lamp for 24V electrical systems. The light source is Halogen, the lens is clear. Light functions: fog light. Mounting: fitting. It carries R19 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-001530 (previously PT/009295067), and it replaces or is equivalent to 1N0 009 295-067, 21694690, 906501, 5801404909, E5801404909, 44155640308 and 9 more.

The DynaView® Evo2 combines the cornering light and fog light safety functions in a compact round universal light. The cornering light is automatically activated whenever the vehicle takes a bend. When the vehicle comes out of the bend, a dimmer softly fades the extra light. Pendant or vertical mounting guarantees easy and convenient fixing. The cornering light and fog light constellation is ideal when combined with the matching 90 mm high-beam and low-beam headlamps. The fastening clamp or the carrier frame, whichever is the case, is included in the scope of delivery.

  • Halogen cornering and fog lights with FF technology
  • Crystal clear optical diaphragm
  • Vertical or suspended mounting

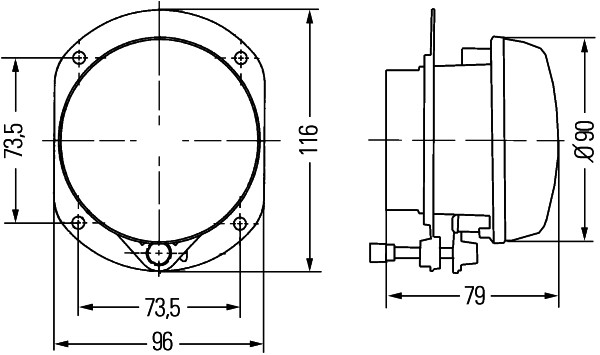

  • Ø: 90mm - Width: 96mm - Height: 116mm - Depth: 79mm - Fitting Depth: 79mm - Lamp Type: H7 - with bulb - with carrier frame
  • Light functions: 2 - with front fog light/with cornering light
  • Registration Type: SAE - fulfils ECE norm: R19
  • Housing Colour: Aluminium - Lens Colour: transparent

Specifications

Voltage24V
TechnologyHalogen
Lens colourClear
Light functionsFog light
MountingFitting
FasteningSuspended / Vertical
Bulb typeH7
Fitting positionright
Height116 mm
Width96 mm
Depth79 mm
Fitting depth79 mm
Ø90 mm
ECE approvalR19
Housing colourAluminium
Illuminated area90 mm
Shaperound
Diffusing lens typeClear diffusing lens
Weight371 g
Part numberA25-001530
BrandHella

Part numbers

Our part number for this item is A25-001530. It was previously listed as PT/009295067, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1N0 009 295-067
  • 21694690
  • 906501
  • 5801404909
  • E5801404909
  • 44155640308
  • 171708
  • 11017007
  • 94750726612
  • 50726612
  • 821HSW039
  • 802848
  • HZ5801404909
  • 20285672
  • 285672
