Halogen-Front Fog Light - Luminator Metal - 24/12V
Shop rating 4.3, from 4 customer reviews of Agri LightingAvailable to order
-
Ordered in from our supplier
It usually reaches us the next working day and is dispatched the day it arrives - Free UK mainland delivery on this item. Surcharge postcodes and international
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- Halogen
- Lens colour
- Clear
- Light functions
- Fog light
About this fog lamp

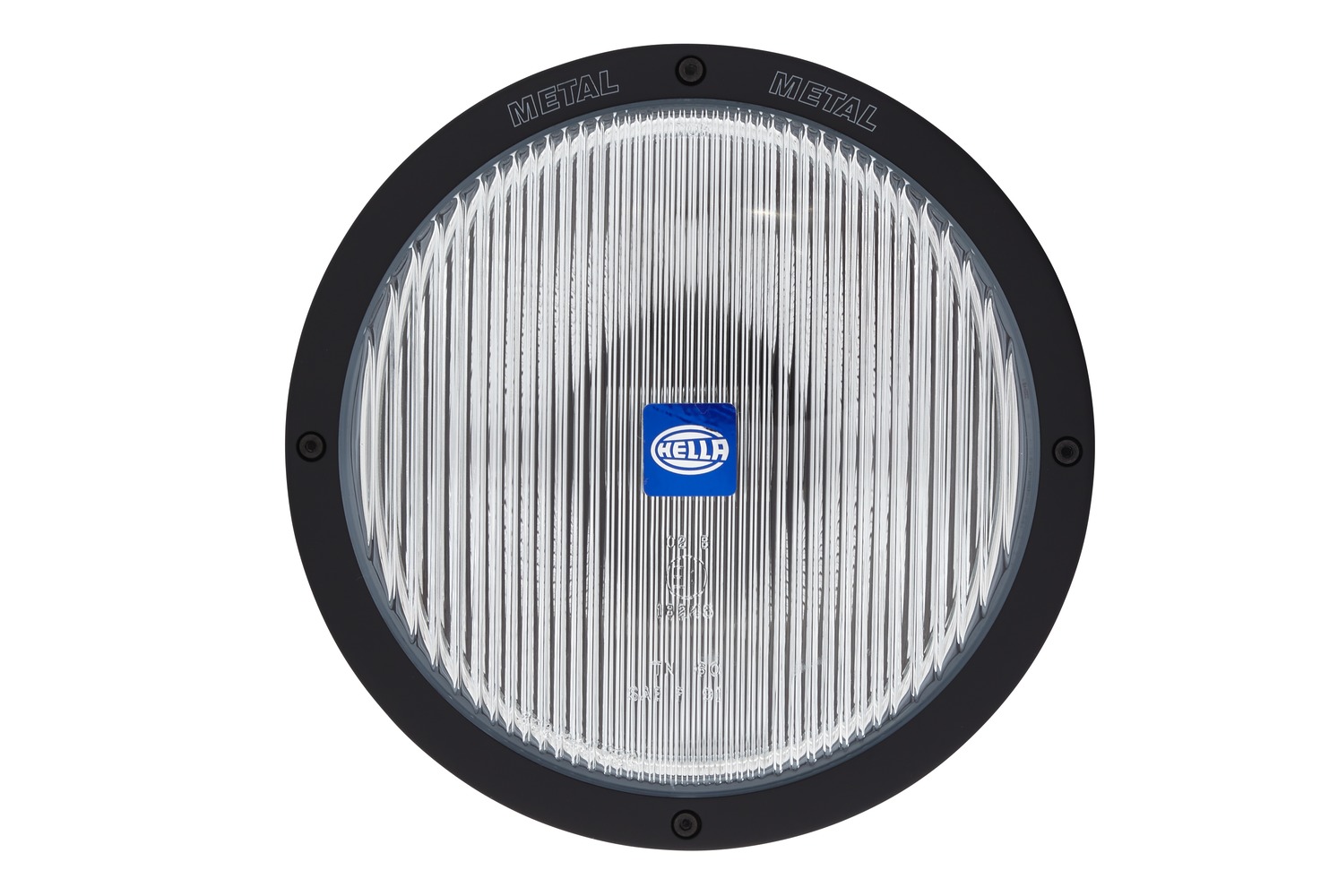

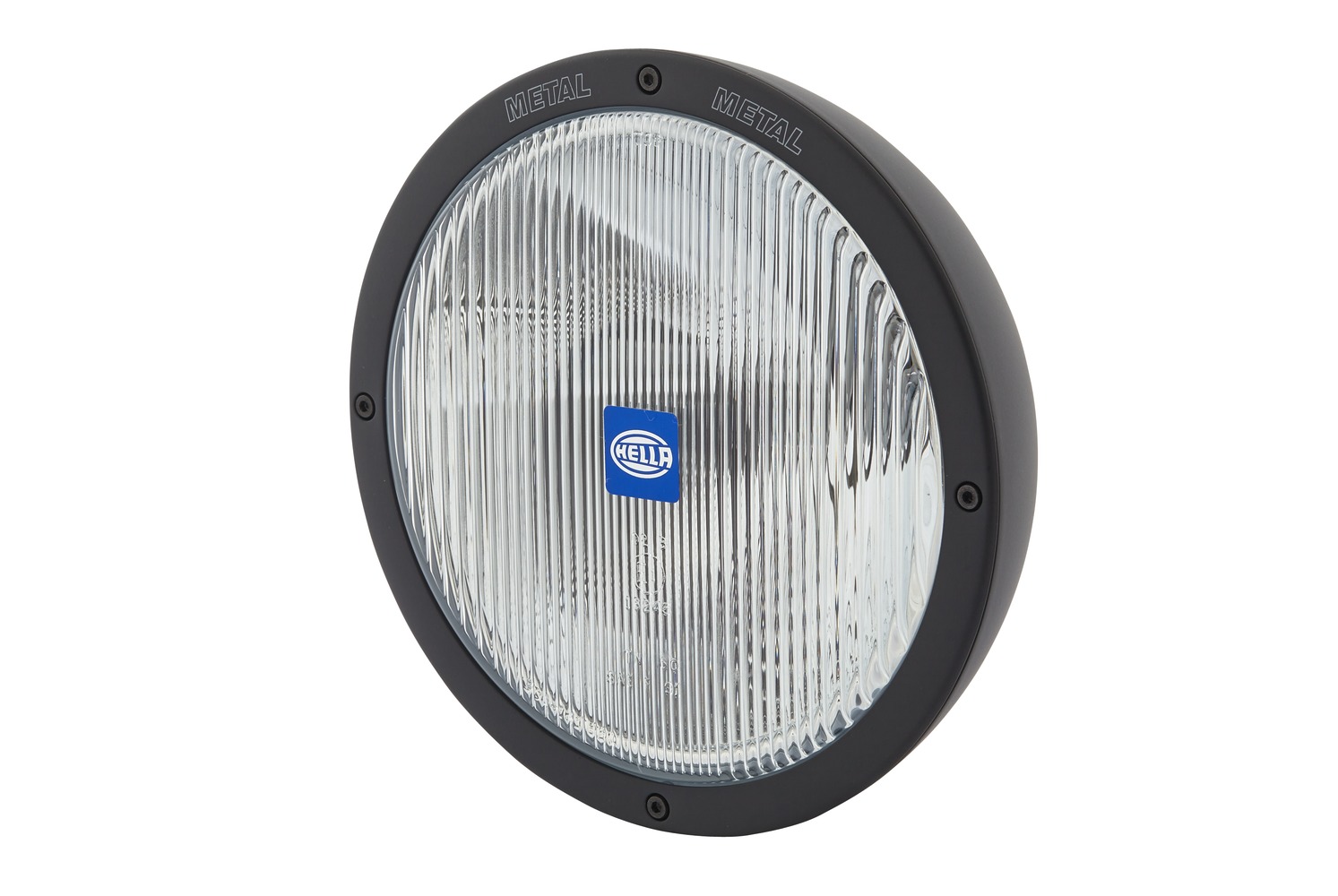

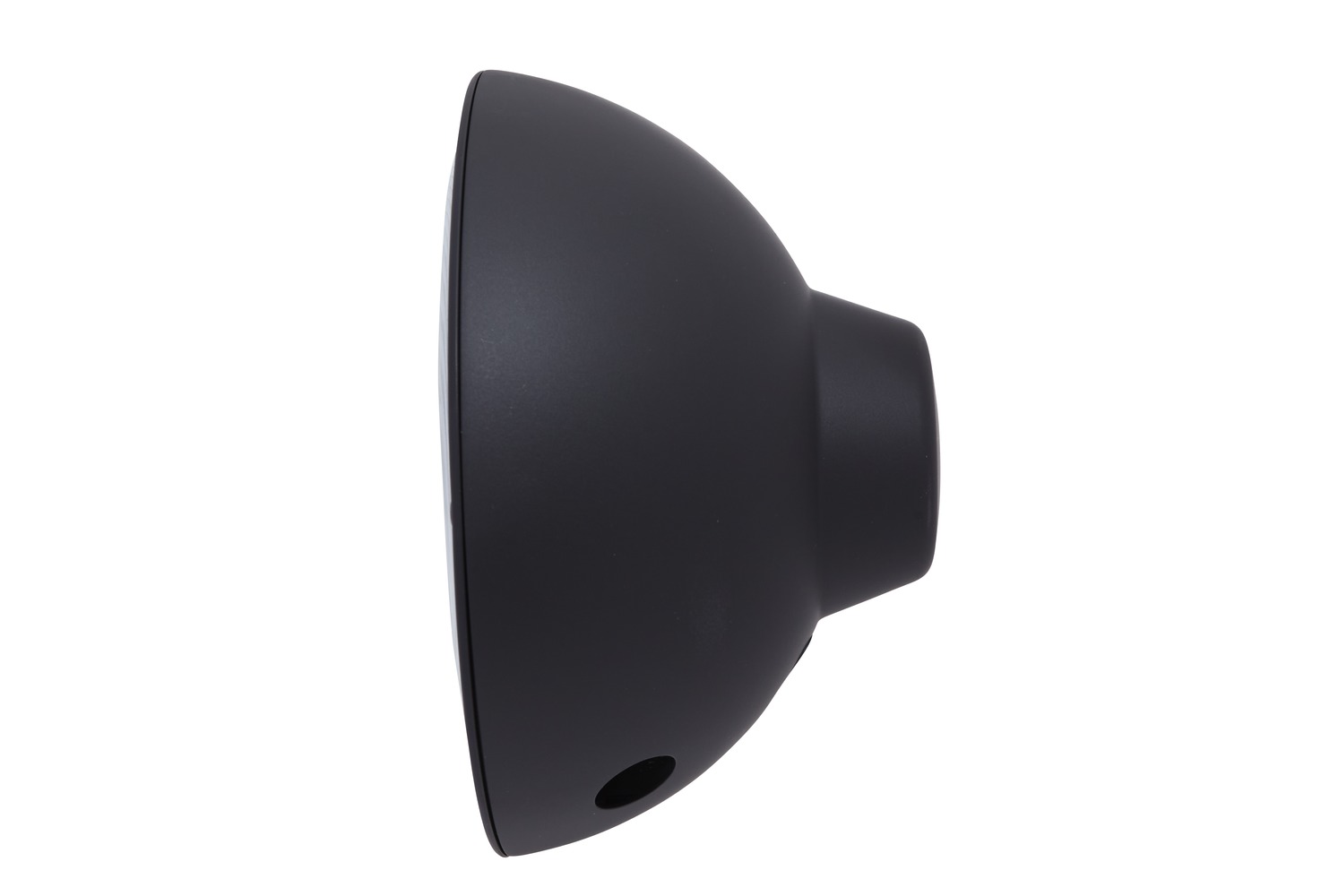

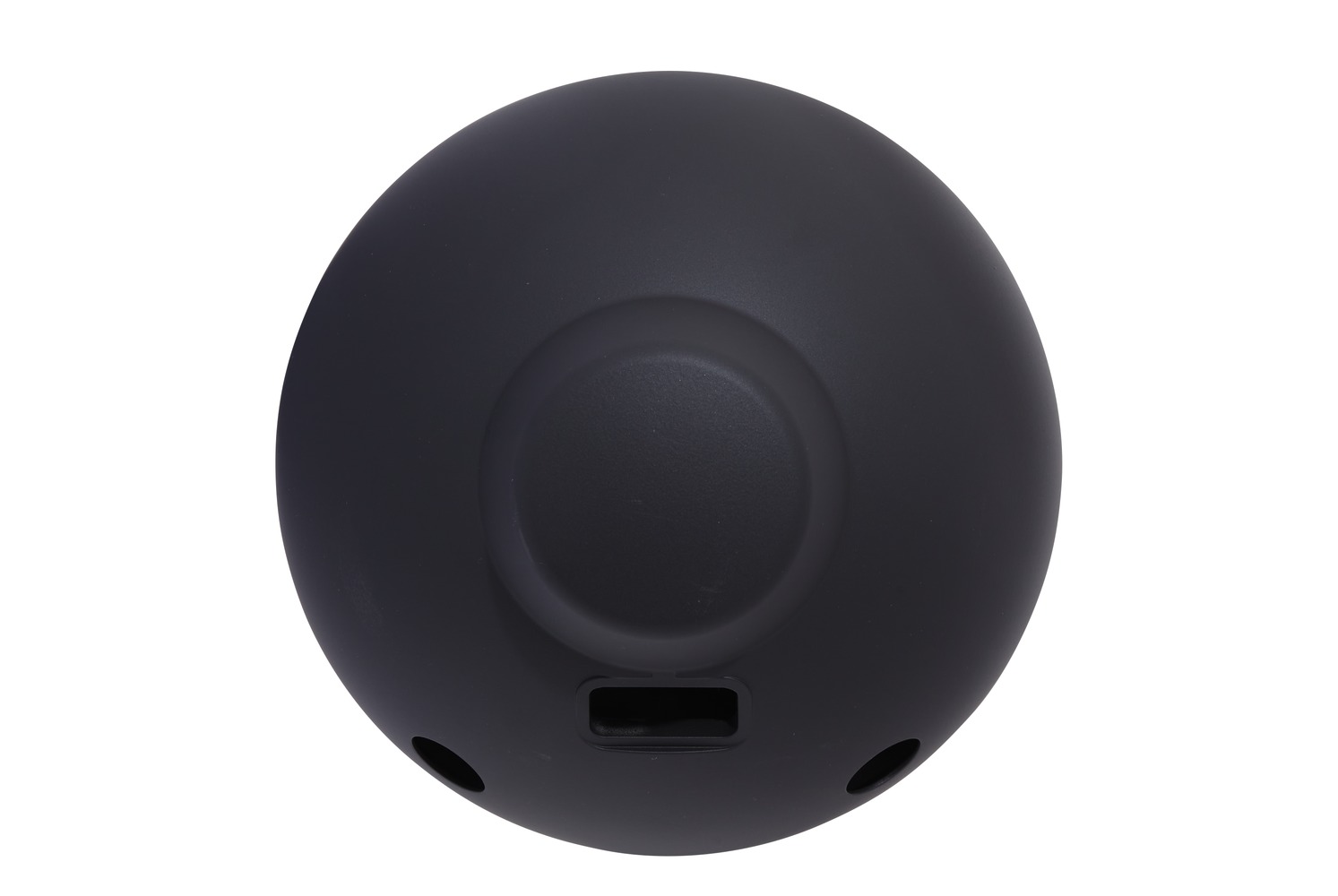

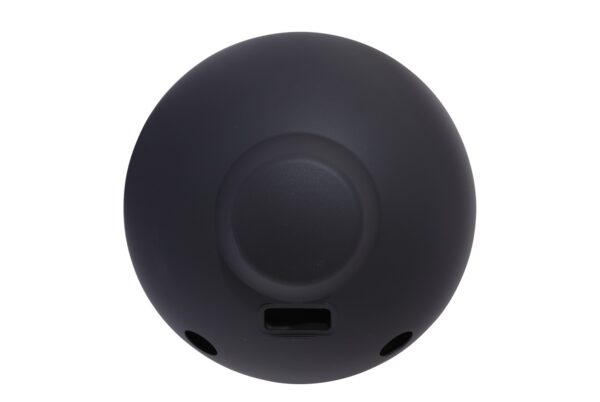

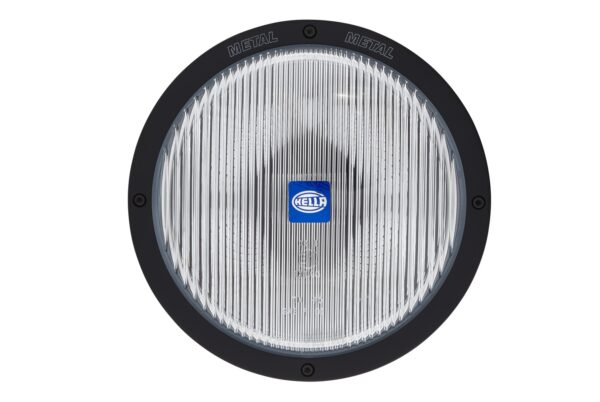

Halogen-Front Fog Light - Luminator Metal - 24/12V is a Hella fog lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: fog light. Mounting: bracket mounting / mounting. It carries R19 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is A25-000994 (previously PT/007560031), and it replaces or is equivalent to 1N8 007 560-031, Z1719631, 1529587.
HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.
- H3 fog light black with profiled fog lens
- Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders
- Housing, holder and ring made of die-cast zinc
- Ø: 224mm - Width: 224mm - Height: 233mm - Depth: 91mm - Fitting Depth: 130mm - Overall Height: 233mm - Lamp Type: H3 - without bulbs
- Light functions: 1 - with front fog light
- fulfils ECE norm: R19
- Housing Colour: Black - Lens Colour: transparent
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | Halogen |
| Lens colour | Clear |
| Light functions | Fog light |
| Mounting | Bracket mounting / mounting |
| Fastening | Vertical |
| Bulb type | H3 |
| Fitting position | right / left |
| Height | 233 mm |
| Overall height | 233 mm |
| Width | 224 mm |
| Depth | 91 mm |
| Fitting depth | 130 mm |
| Ø | 224 mm |
| ECE approval | R19 |
| Housing colour | black |
| Illuminated area | 186 mm |
| Shape | round |
| Diffusing lens type | Patterned diffusing lens |
| Weight | 2.49 kg |
| Part number | A25-000994 |
| Brand | Hella |
Part numbers
Our part number for this item is A25-000994. It was previously listed as PT/007560031, and either number finds it in the search.
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1N8 007 560-031
- Z1719631
- 1529587
