Hella Part no. A25-005822 Previously PT/016797001

LED-Spotlight - Rallye 3003 LED - 24/12V - 1050lm

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£248.09 inc VAT
£206.74 ex VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam, Position light
IP rating
IP67, IP69K

About this LED auxiliary lamp

LED-Spotlight - Rallye 3003 LED - 24/12V - 1050lm is a Hella LED auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: high beam, position light. Mounting: bolted. It carries R112 / R7 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-005822 (previously PT/016797001), and it replaces or is equivalent to 1F8 016 797-001, 1544970, 500051169, 2860455, 36740435.

The first Rallye 3003 auxiliary driving lamp in LED technology impresses with its outstanding light design. When switched on, the clear, cool-white light shows a characteristic light design both during the day and at night. EdgeLight technology has been applied for a more intense appearance of the position light. The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management. The LED headlight insert is replaceable. The PC lens is impact resistant and the impact resistant housing is made of high quality thermoplastic. The mounting brackets made of galvanized sheet steel allow a large adjustment range.

  • Auxiliary driving lamps with future-oriented look using the latest LED technology
  • The striking night design is realised by the LED position light with characteristic hexagonal contour design
  • Delay-free light signal thanks to attention-grabbing flasher function
  • The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
  • Impact-resistant housing made of high-quality thermoplastic
  • Width: 222mm - Height: 222mm - Depth: 125mm - Fitting Depth: 49mm - Overall Height: 243mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without top
  • Light functions: 2 - with position light (LED)/with high beam (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam, Position light
IP ratingIP67, IP69K
MountingBolted

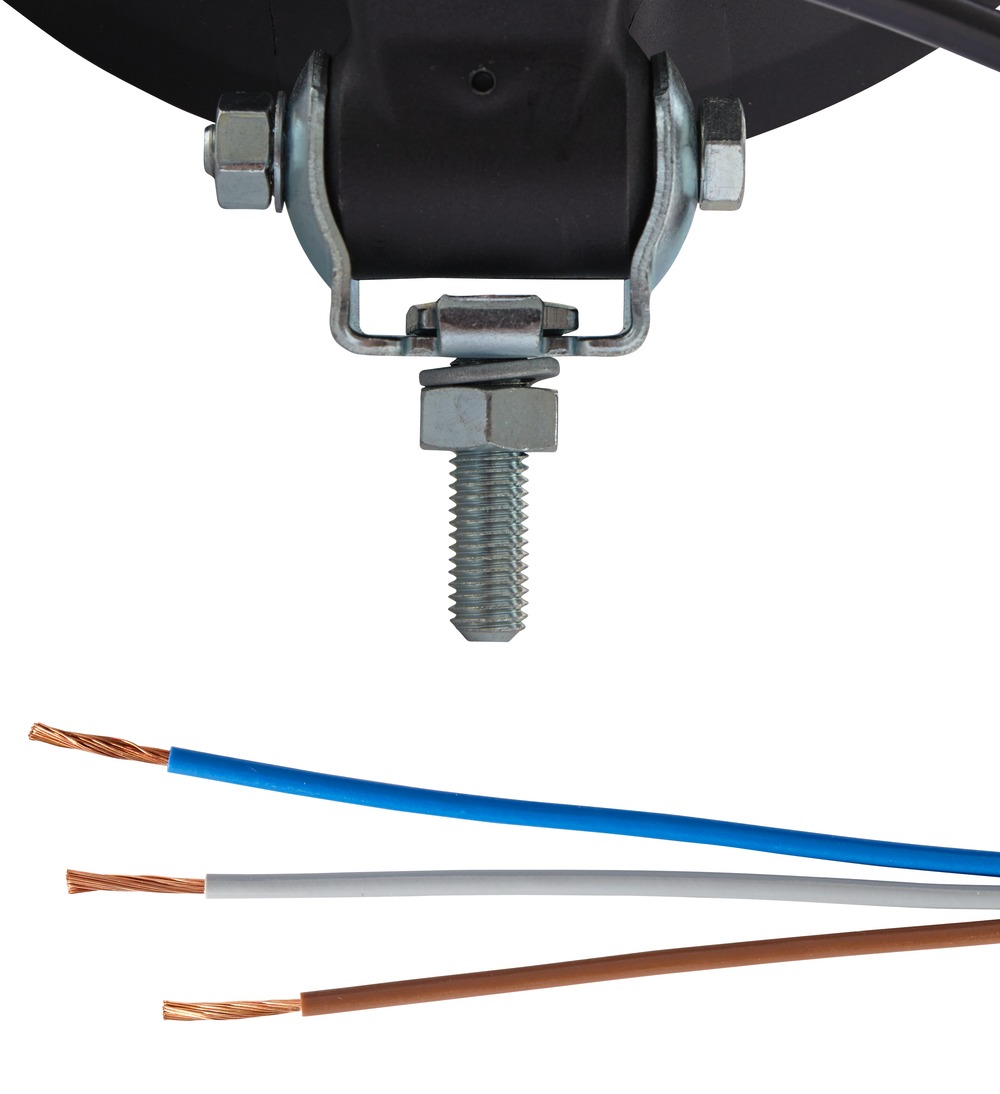

FasteningSwivelling Mounting Bracket
Bulb typeLED
Fitting positionright / left
Height222 mm
Overall height243 mm
Width222 mm
Depth125 mm
Fitting depth49 mm
ECE approvalR112 / R7 / R10
Cable800 mm
Housing colourblack
Frame colourchrome
Shaperound
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Luminous flux1050 lm
Colour temperature6000 K
Weight1577 g
Weight1.58 kg
Part numberA25-005822
BrandHella

Part numbers

Our part number for this item is A25-005822. It was previously listed as PT/016797001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F8 016 797-001
  • 1544970
  • 500051169
  • 2860455
  • 36740435

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. UK mainland delivery is free for this item, as it is on every order over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
