LED-Spotlight - Jumbo LED - 12/24V - 541lm

Hella Part no. PT/016773001

LED-Spotlight - Jumbo LED - 12/24V - 541lm

5.0 Excellent, from 2 customer reviews
£190.85 inc VAT
£159.04 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam, Position light
IP rating
IP67, IP69K

About this LED auxiliary lamp

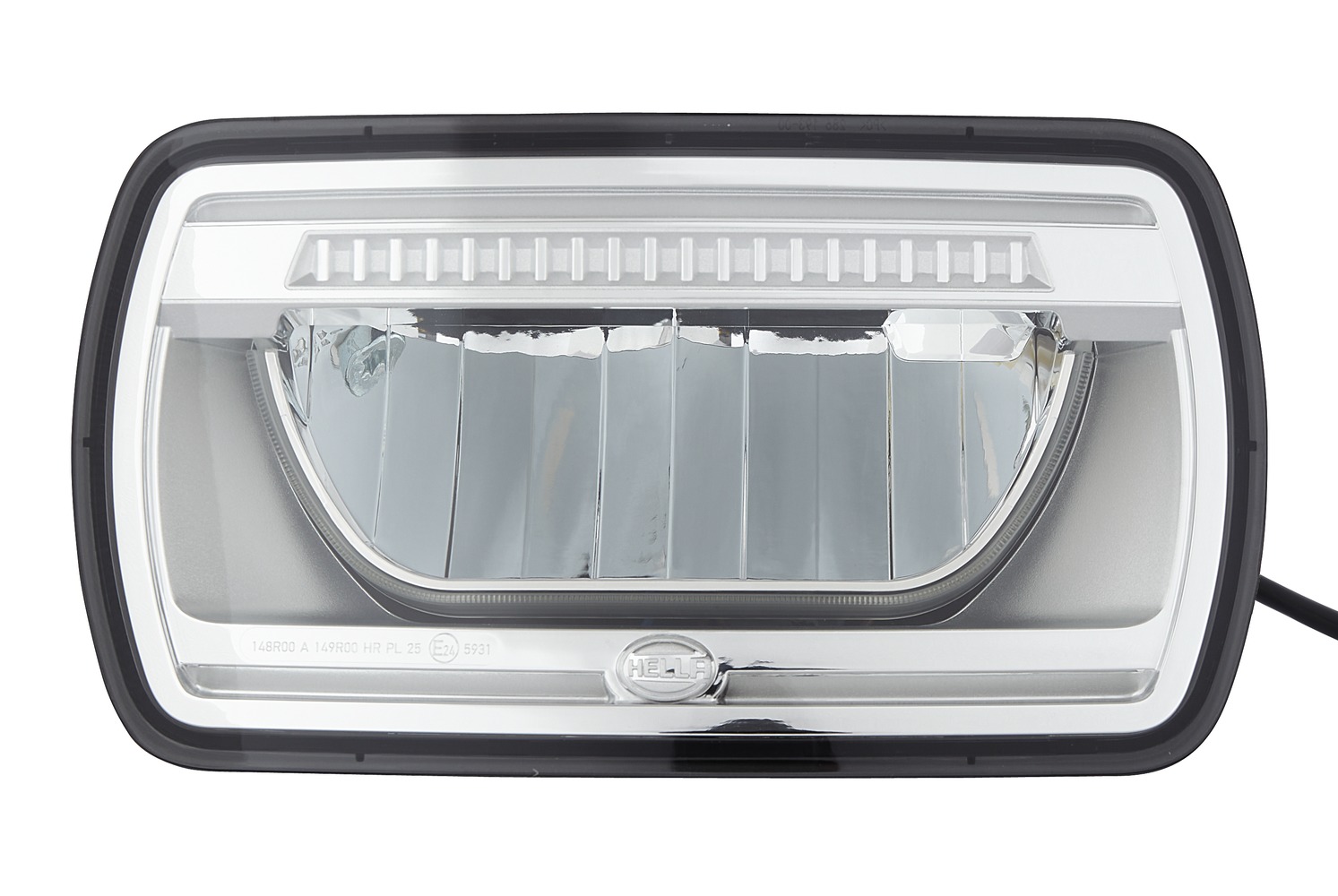

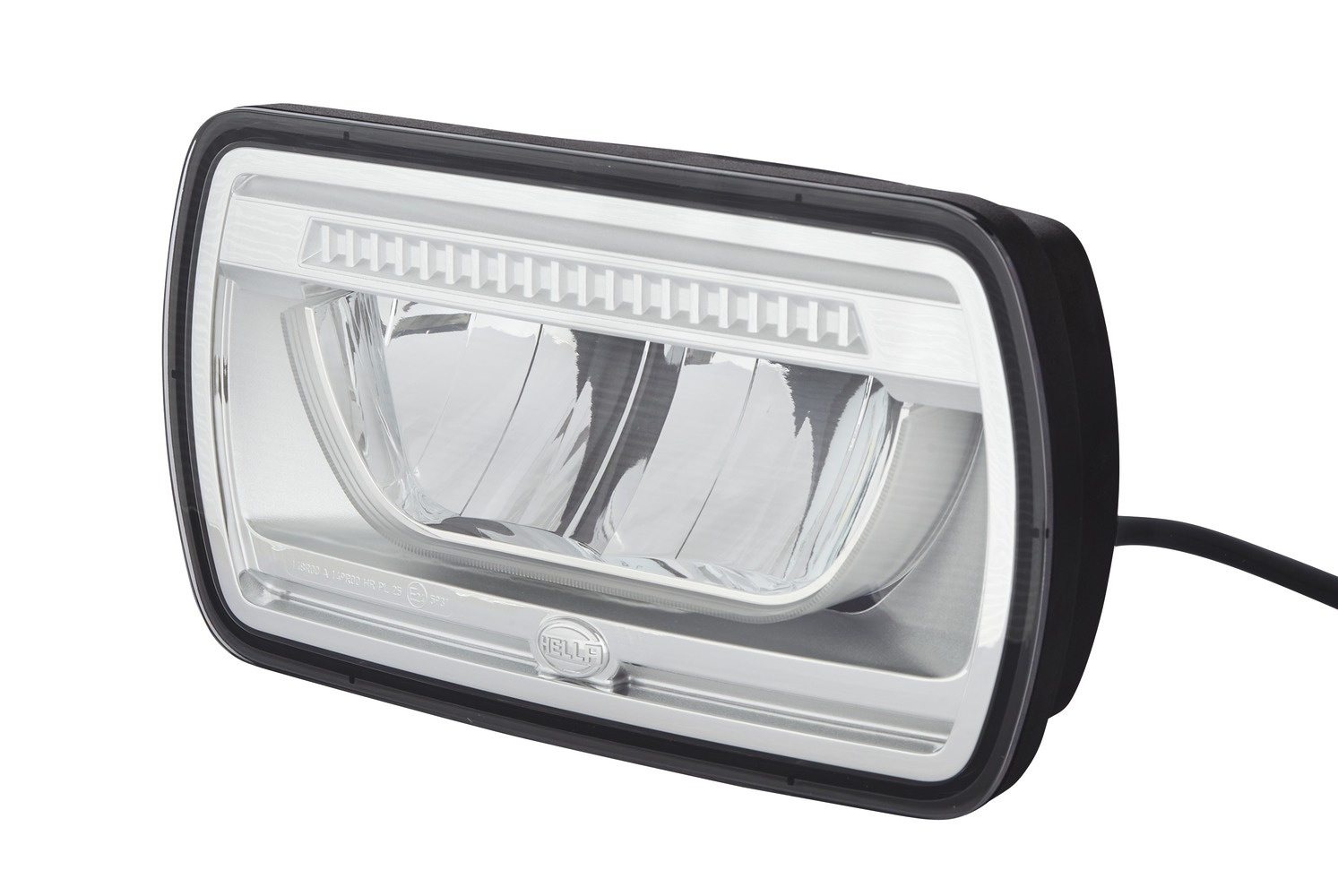

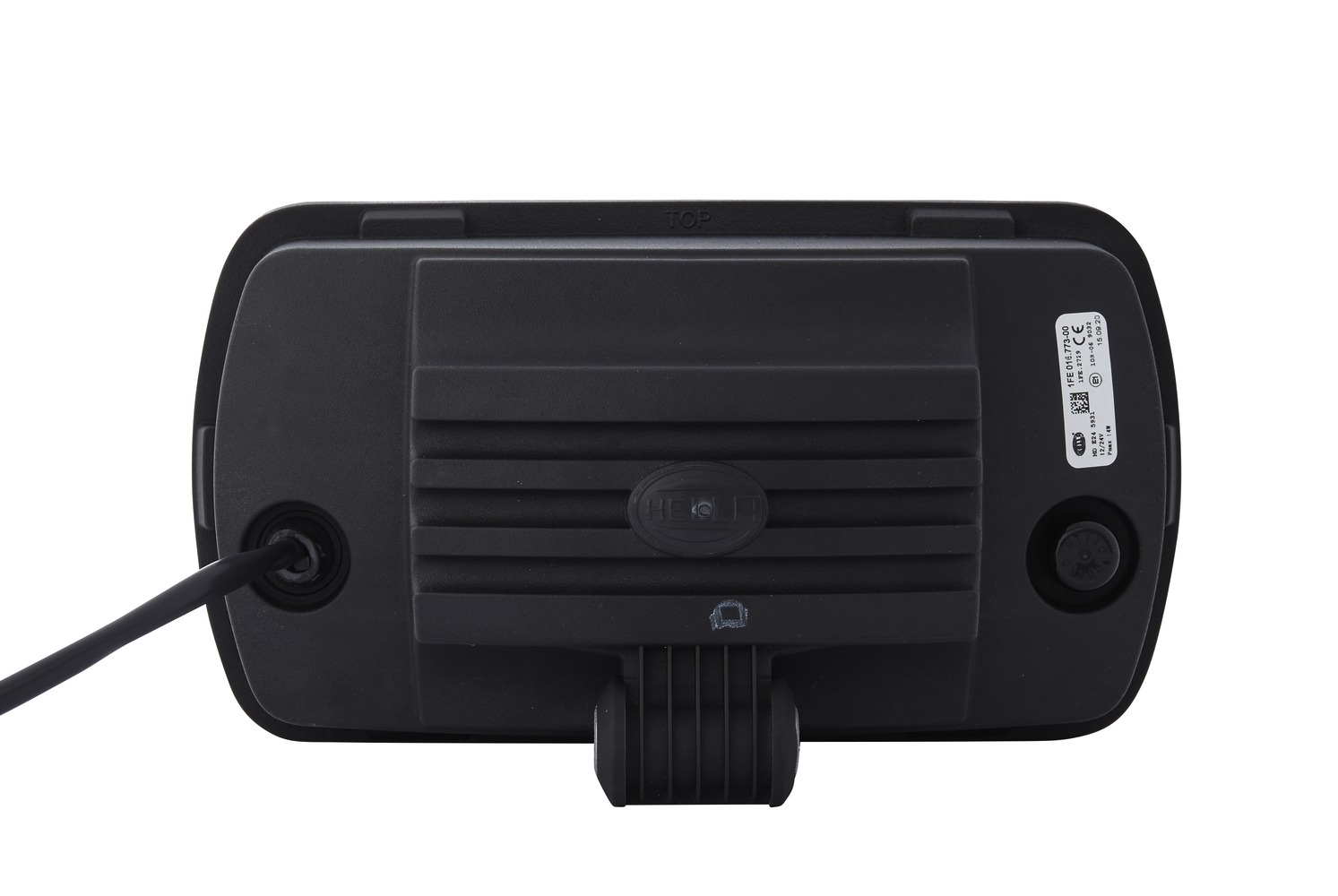

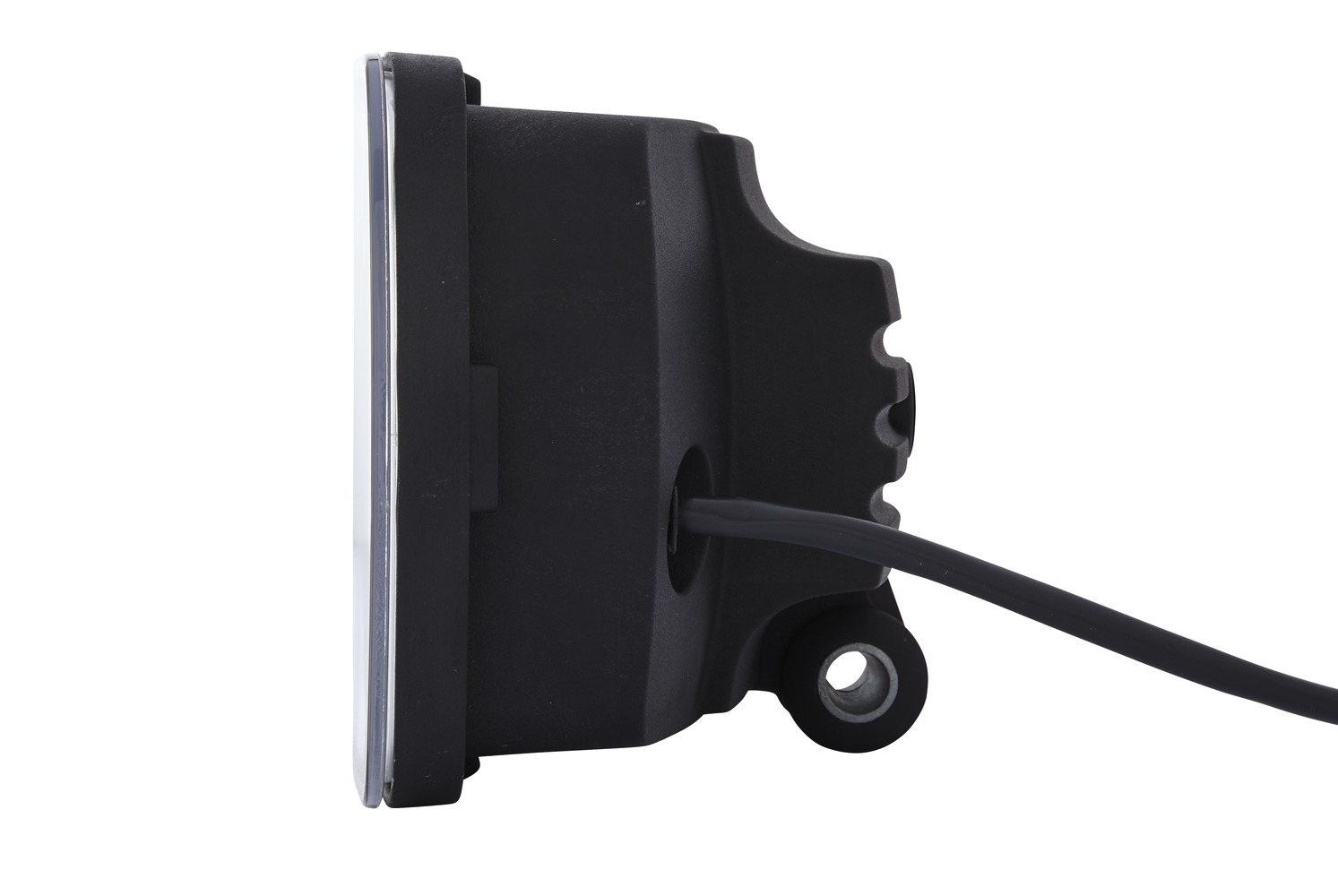

LED-Spotlight - Jumbo LED - 12/24V - 541lm is a Hella LED auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP67, IP69K. Light functions: high beam, position light. Mounting: mounting. It carries R149 / R10 / R148 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/016773001, and it replaces or is equivalent to 1FE 016 773-001, 1546063, 500051173, 2960072, SP1068124, 256093300085 and 1 more.

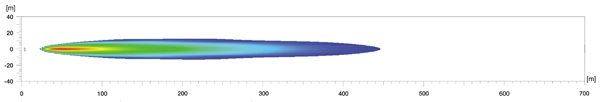

Jumbo LED - 100 % LED technology: Auxiliary high beam headlamp with state-of-the-art optics and impressive LED light pattern for individual style. Edge light technology intensifies the characteristic contours of the highly recognizable LED position light. Immediate response for attention-grabbing headlight flashing. Impact-resistant housing made of high-quality thermoplastic material. Sturdy fastening bracket made of zinc-coated sheet steel with wide adjustment range. Electronics components qualified according to automotive standard. Multi-voltage: suitable for 12 V and 24 V rated voltage. High beam with reference number 25 and with position light. ECE type-approved (ECE R149 high beam, ECE R148 position light, ECE R10 EMC). Weight 980 g (significantly lower weight than diecast aluminium housings of comparable size). Particularly energy-efficient and fuel-saving.

  • Auxiliary driving lamps with state-of-the-art optics and impressive LED light pattern for individual style
  • EdgeLight technology intensifies the characteristic contour of the striking LED position light
  • Delay-free light signal thanks to attention-grabbing flasher function
  • Impact-resistant housing made of high-quality thermoplastic
  • Particularly energy-efficient and fuel-saving
  • Width: 238mm - Height: 132mm - Depth: 113mm - Fitting Depth: 23mm - Overall Height: 141mm - Lamp Type: LED - with LED - without top
  • Light functions: 2 - with high beam (LED)/with position light (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam, Position light
IP ratingIP67, IP69K
Mountingmounting

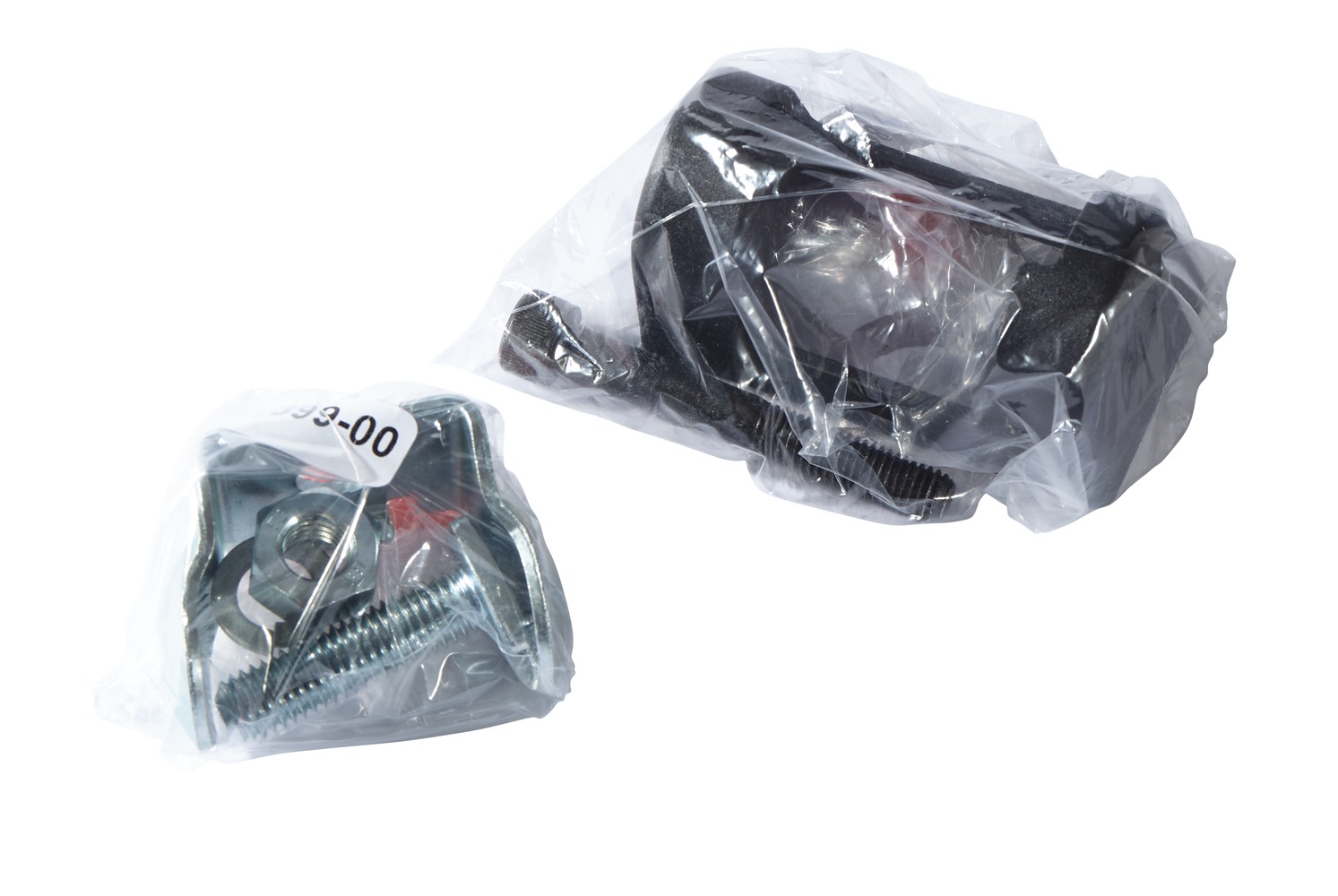

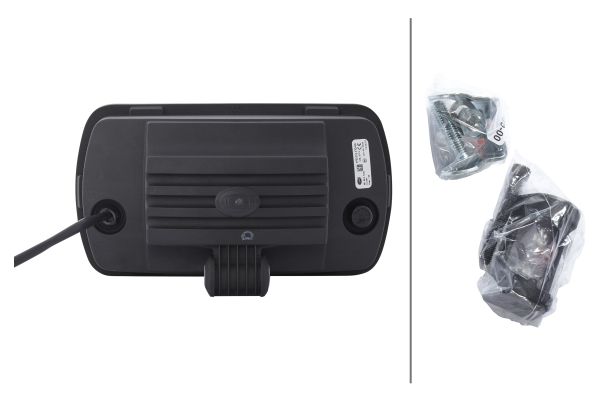

FasteningSwivelling Mounting Bracket
Bulb typeLED
Fitting positionright / left
Height132 mm
Overall height141 mm
Width238 mm
Depth113 mm
Fitting depth23 mm
ECE approvalR149 / R10 / R148
Cable800 mm
Housing colourblack
Shaperectangular
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Colour temperature6000 K
Luminous flux541 lm
Weight680 g
Housing materialThermoplast
Weight1.11 kg
Part numberPT/016773001
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1FE 016 773-001
  • 1546063
  • 500051173
  • 2960072
  • SP1068124
  • 256093300085
  • 36740443

Delivery and returns

In-stock orders placed before 3pm on a working day are dispatched the same day from our Lincolnshire warehouse, with tracking sent by email. UK mainland delivery for this item is £11.00, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
