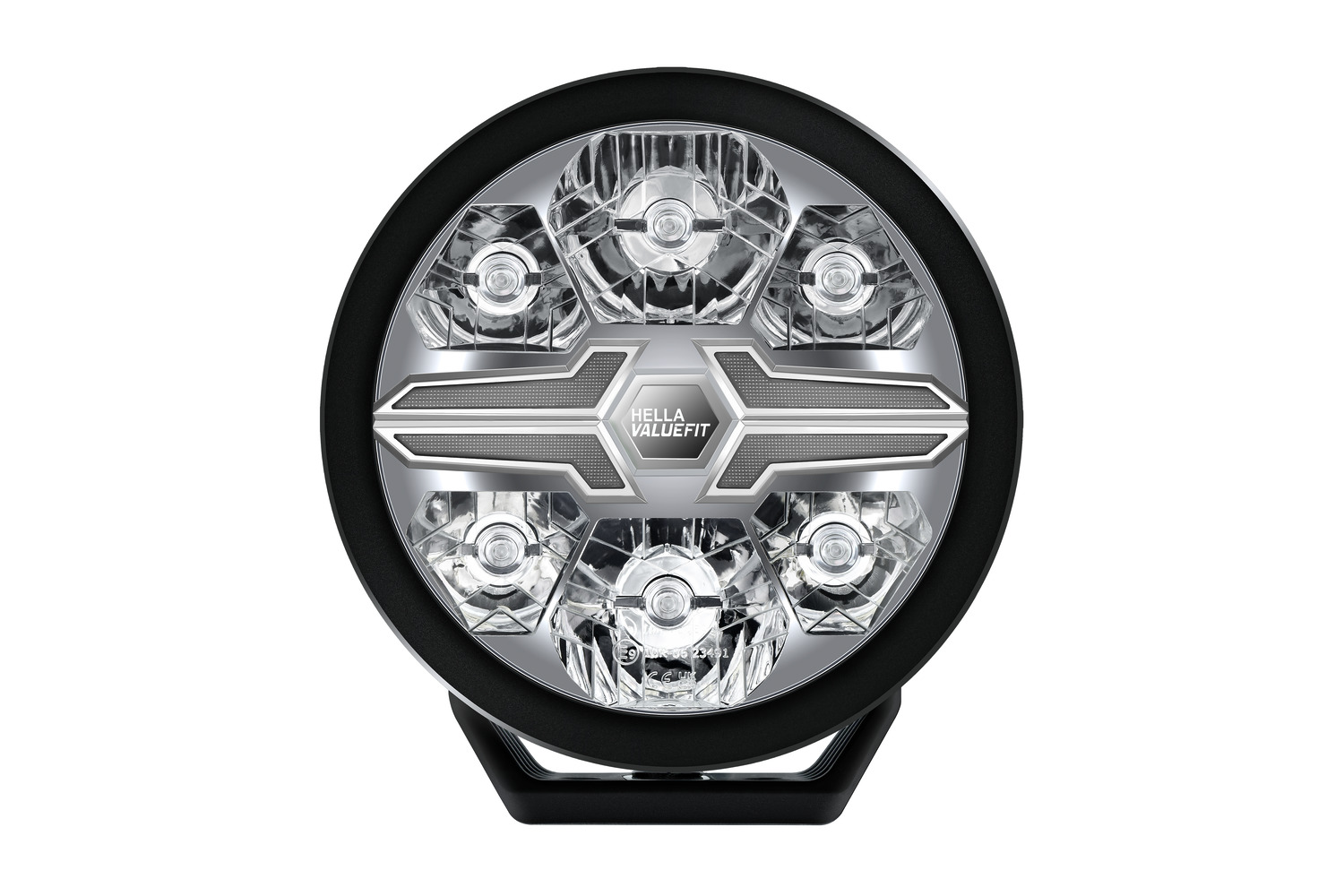

LED-Spotlight - Blade Black 9" - 12/24V - white/yellow (amber) - 1550lm

Hella Part no. PT/357199071

LED-Spotlight - Blade Black 9" - 12/24V - white/yellow (amber) - 1550lm

5.0 Excellent, from 2 customer reviews
£136.87 inc VAT
£114.06 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Amber, Clear, Smoked, White
Light functions
High beam, Position light
IP rating
IP67, IP69K

About this LED auxiliary lamp

LED-Spotlight - Blade Black 9" - 12/24V - white/yellow (amber) - 1550lm is a Hella LED auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is amber, clear, smoked, white, the housing is sealed to IP67, IP69K. Light functions: high beam, position light. Mounting: mounting. It carries R10 / R148 / R149 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/357199071, and it replaces or is equivalent to 1FJ 357 199-071, 1551463.

The powerful auxiliary headlights of the HELLA ValueFit Blade series make a statement on any vehicle. The innovative design of the LED position light with razor-sharp contour supports the characteristic look of the new Blade series. The robust auxiliary headlights are characterised by a high-quality look. The housing is made of aluminium and the holder of glass fibre (PAA + GF). Multivoltage: suitable for 12 V and 24 V nominal voltage.

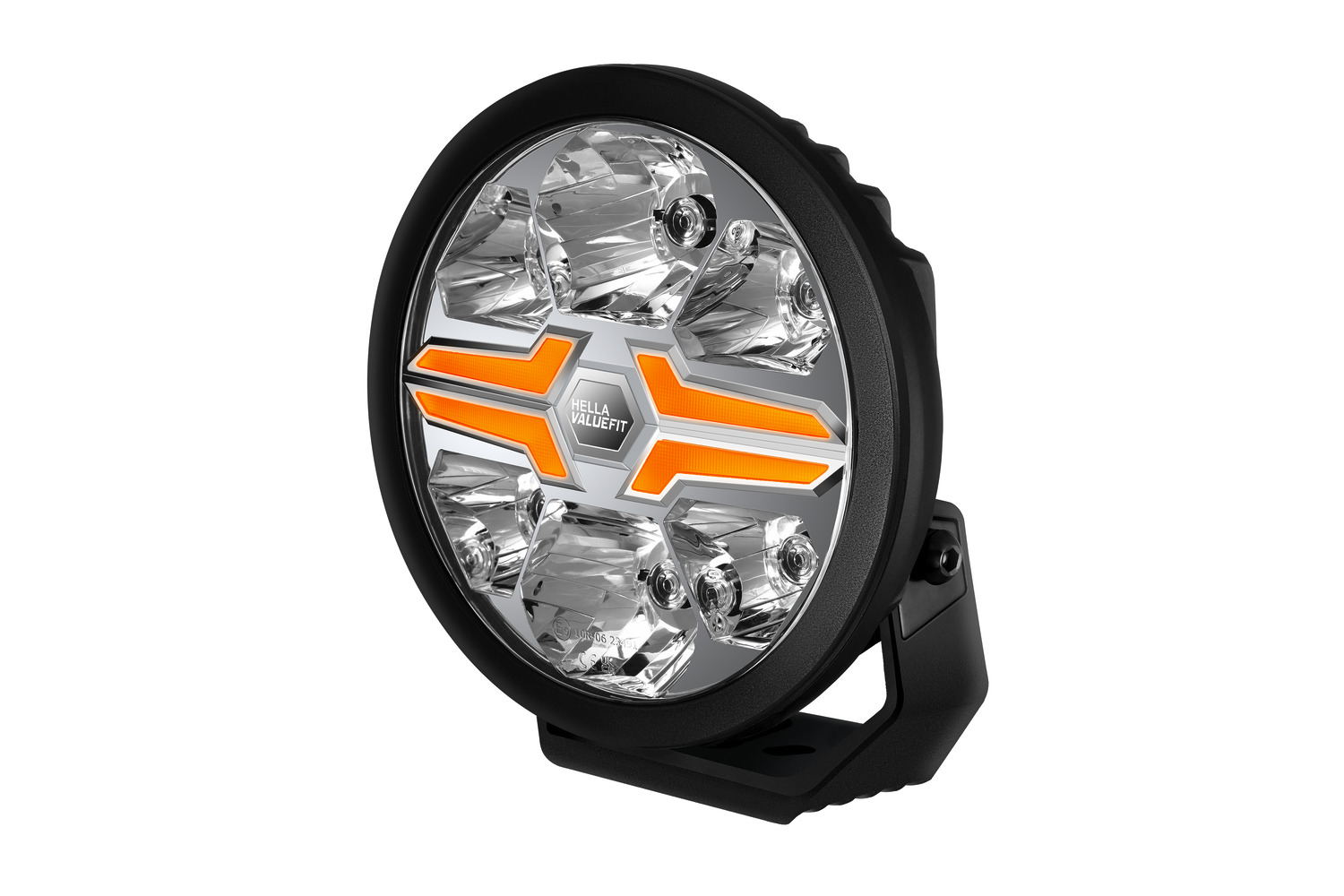

  • Round auxiliary headlamp with innovative LED position light design with razor-sharp contour. Position light colour: white or yellow (connection optional)
  • 9" version with black housing and ECE ref. 50. Ideal for upright mounting on off-road vehicles and SUVs.
  • High-quality robust auxiliary headlamp with aluminium housing and holder made of glass fibre (PA66 + GF). The low mounting depth of 115 mm allows flexible mounting in numerous mounting positions.
  • ECE type-approved (ECE-R149 high beam, ECE-R148 position light (white position light)
  • The YELLOW position light does not have ECE approval: its use may be restricted to off-road areas outside of road traffic in accordance with local regulations (see installation instructions). Available separately: 9" round protective cap

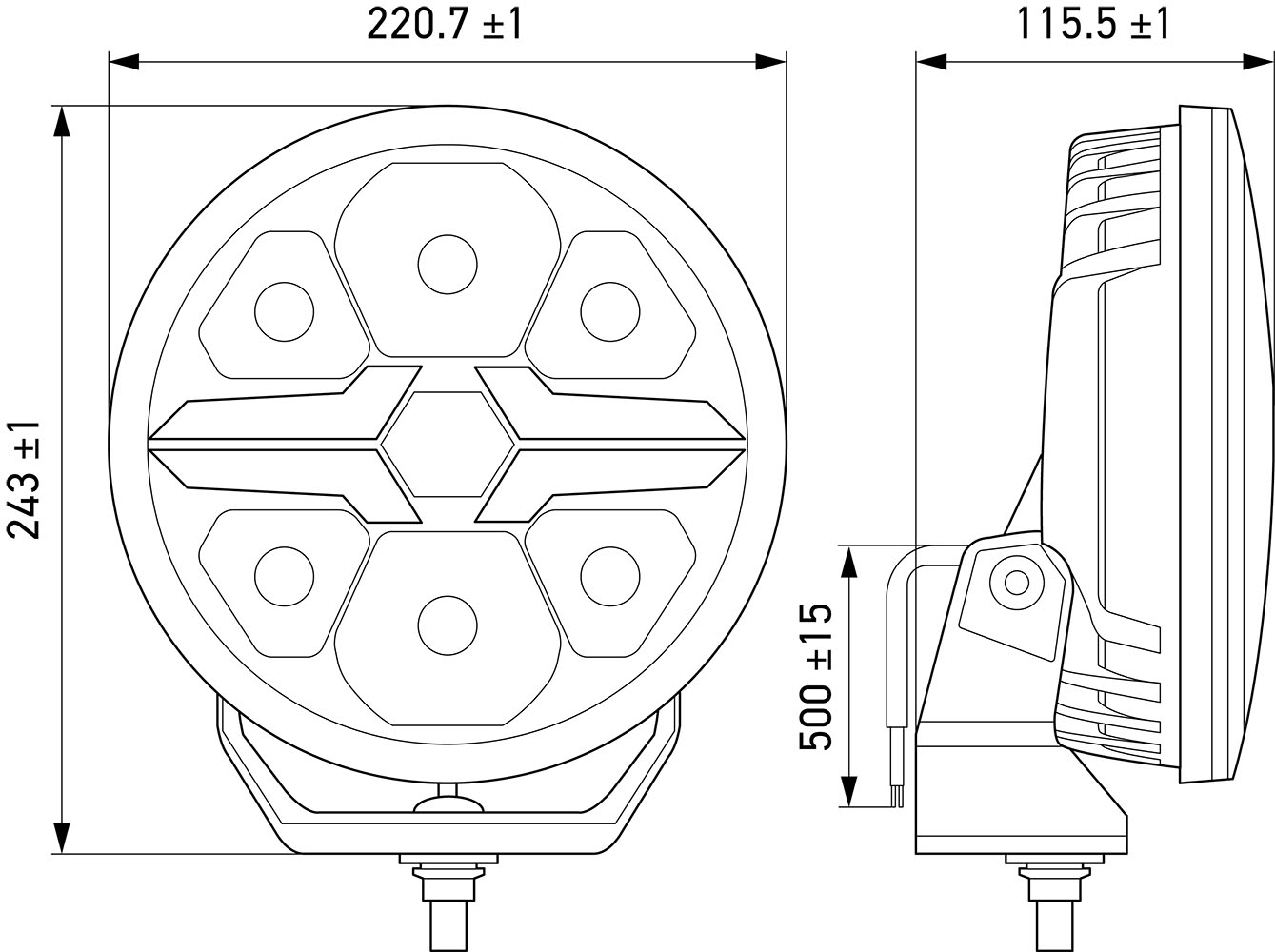

  • Length: 220mm - Width: 220mm - Height: 220mm - Depth: 116mm - Fitting Depth: 116mm - Overall Height: 243mm - Lamp Type: LED - with bolts/screws
  • Light functions: 2 - with high beam (LED)/with position light (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourAmber, Clear, Smoked, White
Light functionsHigh beam, Position light
IP ratingIP67, IP69K
Mountingmounting
FasteningScrew-on
Bulb typeLED
Fitting positionfrontal sided
Width220 mm
Height220 mm
Overall height243 mm
Depth116 mm
Fitting depth116 mm
ECE approvalR10 / R148 / R149

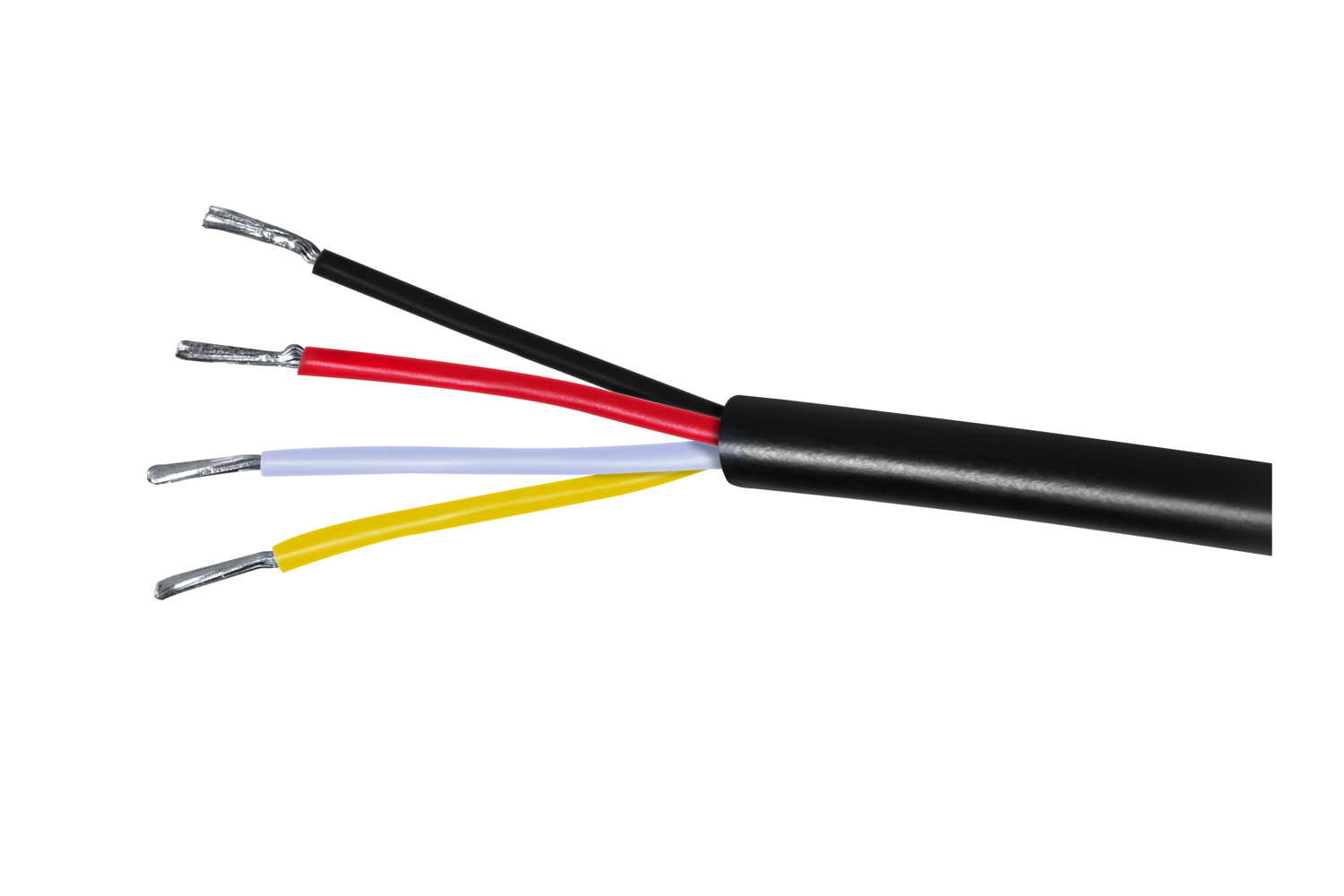

Cable500 mm
Frame colourblack
Shaperound
Housing typewith housing
Housing colourblack
MaterialFiberglass / Aluminium
Housing materialAluminium
Length9
Colour temperature6000 K
Weight1920 g
Luminous flux1550 lm
Weight1.75 kg
Part numberPT/357199071
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1FJ 357 199-071
  • 1551463
