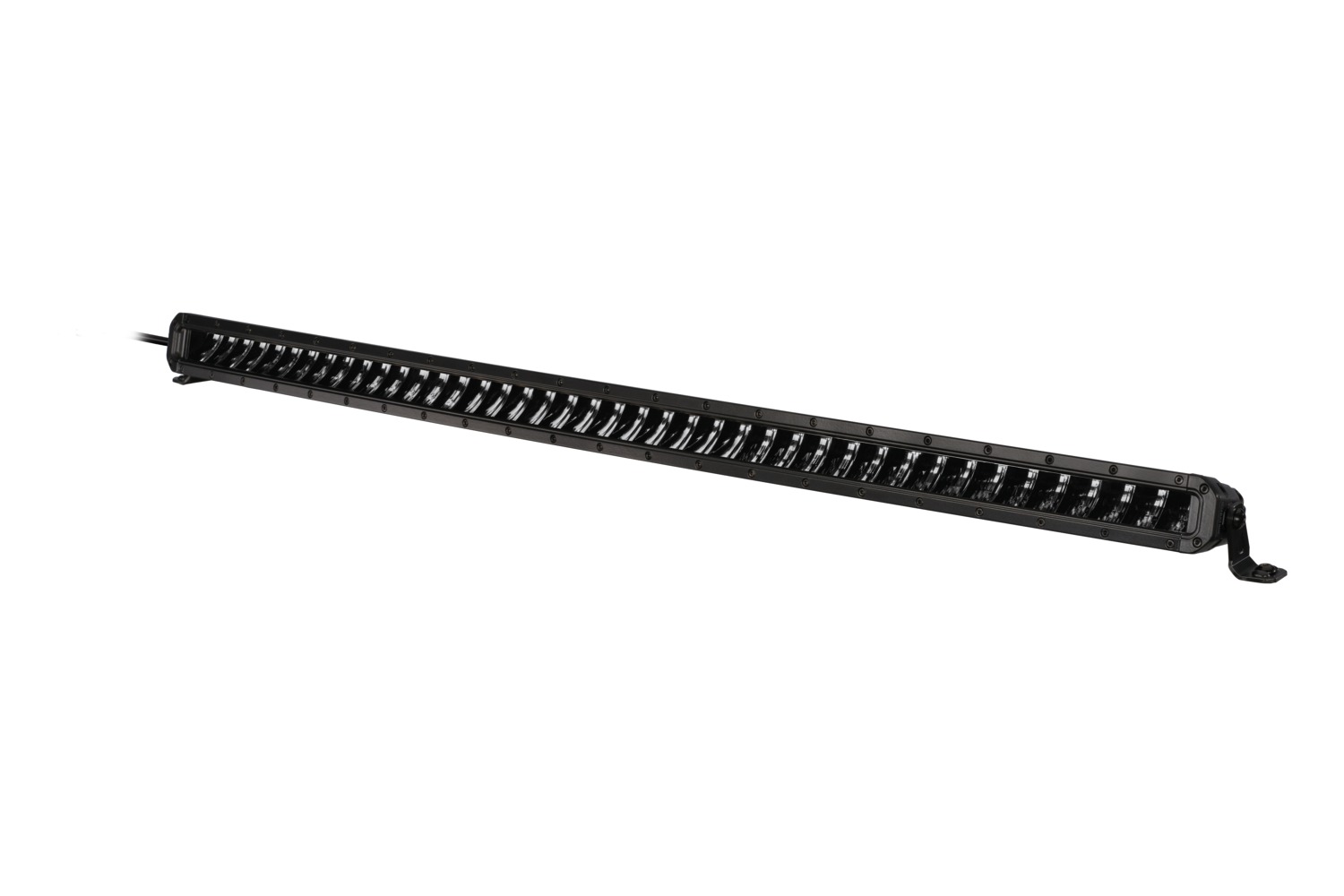

LED-Spotlight - Black Magic Tough Lightbar 40" - 12/24V - 6800lm

Hella Part no. PT/358196521

LED-Spotlight - Black Magic Tough Lightbar 40" - 12/24V - 6800lm

5.0 Excellent, from 2 customer reviews
£244.19 inc VAT
£203.49 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £6.50, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam
IP rating
IP68, IP69K

About this tractor light bar

LED-Spotlight - Black Magic Tough Lightbar 40" - 12/24V - 6800lm is a Hella tractor light bar for 12/24V electrical systems. The light source is LED, the lens is clear, the housing is sealed to IP68, IP69K. Light functions: high beam. Mounting: mounting / screw connection. It carries R149 / R10 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/358196521, and it replaces or is equivalent to 1FJ 358 196-521, 1550338.

The ECE type-approved HELLA Black Magic Lightbars provide high beam (ECE-R149) with a very powerful light output of up to 9,200 effective lumens, ideal for off-road situations where you need it most and for trucks that need really good light. Both the slim and double lightbars offer a high recognition effect with their stylish and robust look in an all-black design. Typical installation locations are on the roof or roof bar, the radiator grille or bumper. The product complies with the highest dust / waterproof class. The extra-long 2 m cable makes it easy to attach to your vehicle.

  • Typical Black Magic appearance including black brackets in a robust design
  • Powerful light output due to modern reflector system in all 14 ECE-approved versions!
  • Typical installation locations: Roof or roof bar, radiator grille or bumper. Recommended accessories: Holder set for rear mounting 8HG 358 176-371 (version "Slim")
  • 40˝ Slim Curved Lightbar, eTCS, ECE ref. 50
  • IP 68, IP 69K, ECE-R10, ECE-R149, 2,000 mm cable with open ends, 5,700 Kelvin

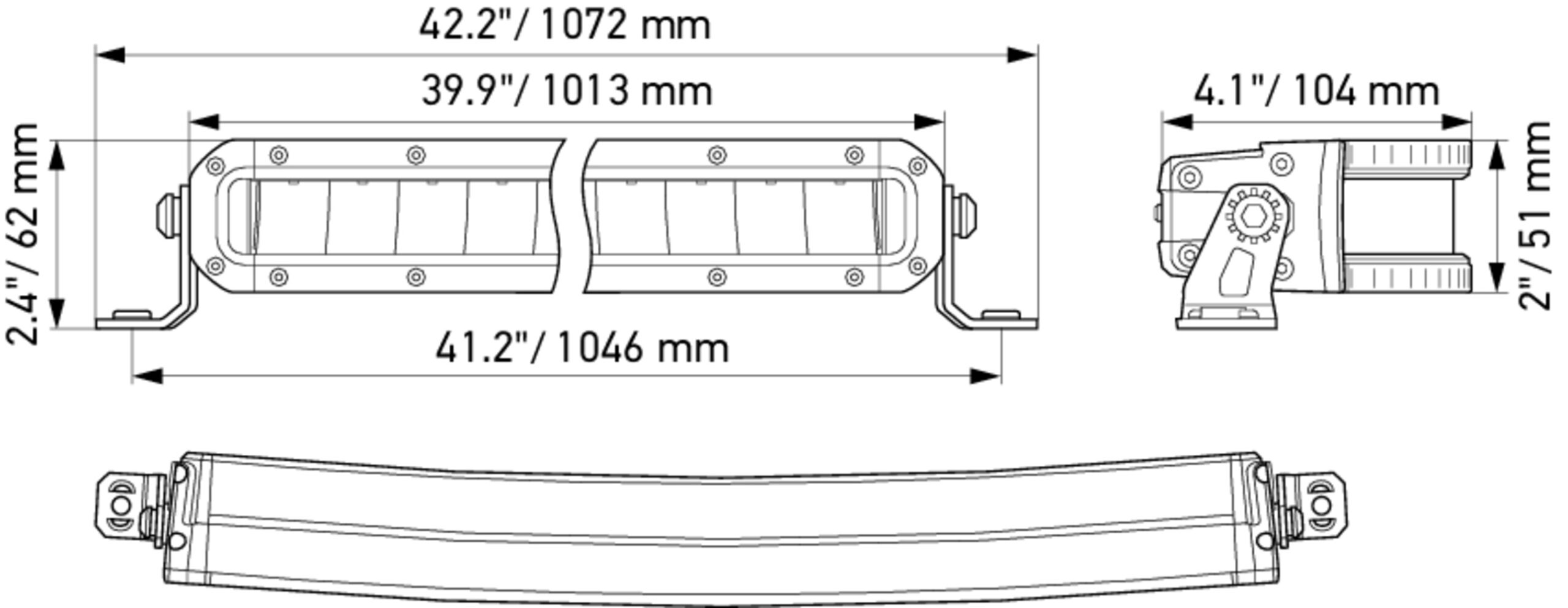

  • Length: 1013mm - Width: 50mm - Height: 62mm - Depth: 104mm - Lamp Type: LED
  • Light functions: 1 - with high beam (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam
IP ratingIP68, IP69K
Mountingmounting / Screw Connection
FasteningVertical
Bulb typeLED
Fitting positionFront
Height62 mm
Width50 mm
Depth104 mm
Luminous flux6800 lm
Colour temperature5700 K
ECE approvalR149 / R10
Cable2000 mm
Frame colourblack
Shapecurved / slim
Housing typeAluminium Housing
Housing colourblack
Length40
Weight4 kg
Part numberPT/358196521
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1FJ 358 196-521
  • 1550338
