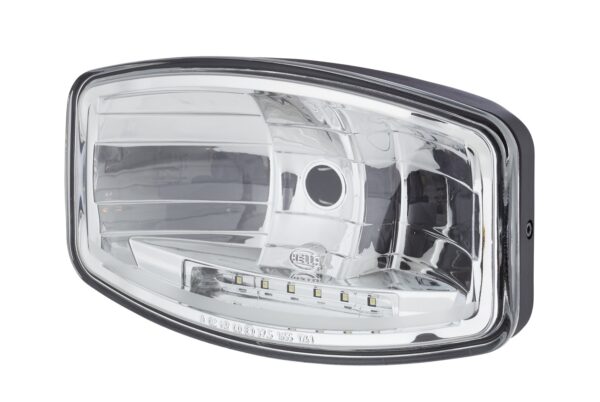

Hybrid/Halogen-Spotlight - Jumbo 320 - 24/12V

Hella Part no. PT/008773081

Hybrid/Halogen-Spotlight - Jumbo 320 - 24/12V

5.0 Excellent, from 2 customer reviews
£135.43 inc VAT
£112.86 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam, Position light

About this halogen auxiliary lamp

Hybrid/Halogen-Spotlight - Jumbo 320 - 24/12V is a Hella halogen auxiliary lamp for 12/24V electrical systems. The light source is LED, the lens is clear. Light functions: high beam, position light. Mounting: bolted. It carries R112 / R10 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/008773081, and it replaces or is equivalent to 1FE 008 773-081, 888549, 500051175, ZF252070113, 1934120, 20223650.

The HELLA Jumbo 320: A large headlamp for large vehicles. This auxiliary headlamp not only makes an impressive impression from the outside, but also knows how to convince with its technical specifications and material properties. The housings are made of robust plastic. High-boost reflectors specially developed for the rectangular shape provide maximum light output. The variant with additional LED position light with 6 high-performance LEDs also leads to significantly improved vehicle visibility and thus offers an additional safety gain.

  • H7 driving lamp with position light made of 6 high-power LEDs with bluish-white light
  • High-boost reflectors specially developed for the rectangular shape offer maximum luminous efficiency
  • Robust plastic housing
  • Die-cast metal reflector
  • Width: 247mm - Height: 141mm - Depth: 124mm - Fitting Depth: 23mm - Overall Height: 161mm - Lamp Type: LED/H7 - without bulb - without top
  • Light functions: 2 - with position light (LED)/with high beam
  • Registration Type: ECE - fulfils ECE norm: R7/R112/R10

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam, Position light
MountingBolted

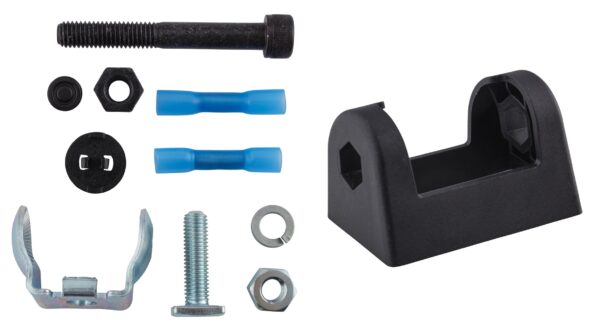

FasteningSwivelling Mounting Bracket
Bulb typeLED / H7
Fitting positionright / left
Height141 mm
Overall height161 mm
Width247 mm
Depth124 mm
Fitting depth23 mm
ECE approvalR112 / R10 / R7
Housing colourblack
Shaperectangular
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Weight1145 g
Weight1.13 kg
Part numberPT/008773081
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1FE 008 773-081
  • 888549
  • 500051175
  • ZF252070113
  • 1934120
  • 20223650
