Halogen-Spotlight - Rallye 3003 Compact - 24/12V

Hella Part no. PT/010119001

Halogen-Spotlight - Rallye 3003 Compact - 24/12V

5.0 Excellent, from 2 customer reviews
£62.03 inc VAT
£51.69 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
High beam

About this halogen auxiliary lamp

Halogen-Spotlight - Rallye 3003 Compact - 24/12V is a Hella halogen auxiliary lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam. Mounting: bolted. It carries R112 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/010119001, and it replaces or is equivalent to 1F3 010 119-001, 1529518, 840709, 17.5.

As a professional auxiliary headlamp, the HELLA Rallye 3003 combines many features: optimum light output, maximum reliability and a strong design. The ultra-light, corrosion-free and stable plastic housing contains concentrated technology that ensures the best visibility in every situation with high-boost reflectors, computer-optimised fine-tuning of light sources and free-form technology. The Rallye 3003 is also available with a position light. The variants with ring-shaped position light offer an ideal supplement and not only increase visibility for other road users but also set visual accents.

  • Auxiliary driving lamps with position light
  • Clear real glass pane
  • The headlamp housing is made of plastic of the highest quality. The particularly light, stable form of the premium housing is protected worldwide
  • Dimensions particularly suitable for trucks, large pick-ups and off-roaders
  • Width: 171mm - Height: 171mm - Depth: 117mm - Fitting Depth: 39mm - Overall Height: 192mm - Lamp Type: H1 - without bulb - without top
  • Light functions: 1 - with high beam
  • fulfils ECE norm: R112

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam
MountingBolted

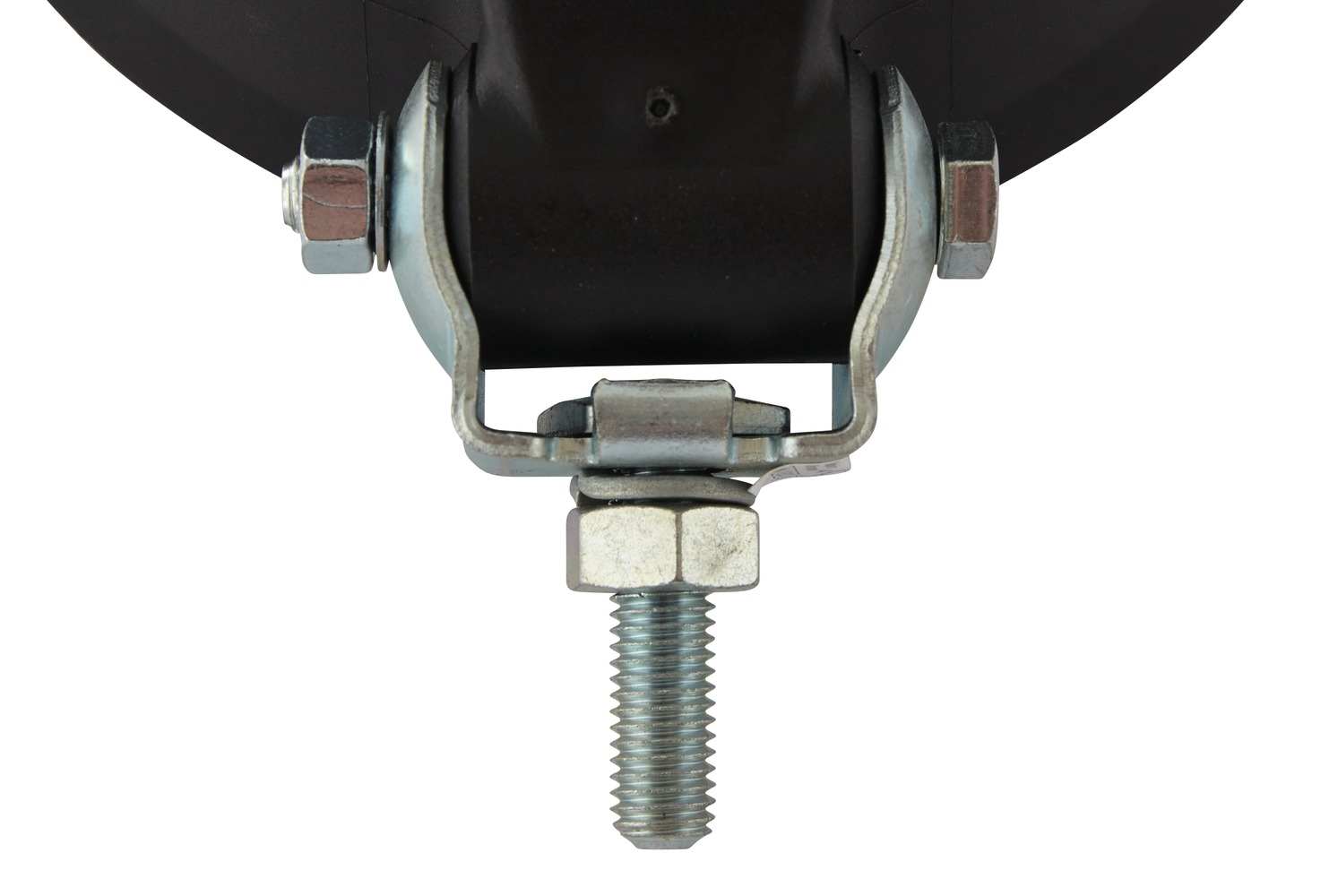

FasteningSwivelling Mounting Bracket
Bulb typeH1
Fitting positionleft / right
Height171 mm
Overall height192 mm
Width171 mm
Depth117 mm
Fitting depth39 mm
ECE approvalR112
Housing colourblack
Frame coloursilver
Shaperound
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Weight736 g
Part numberPT/010119001
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F3 010 119-001
  • 1529518
  • 840709
  • 17.5
