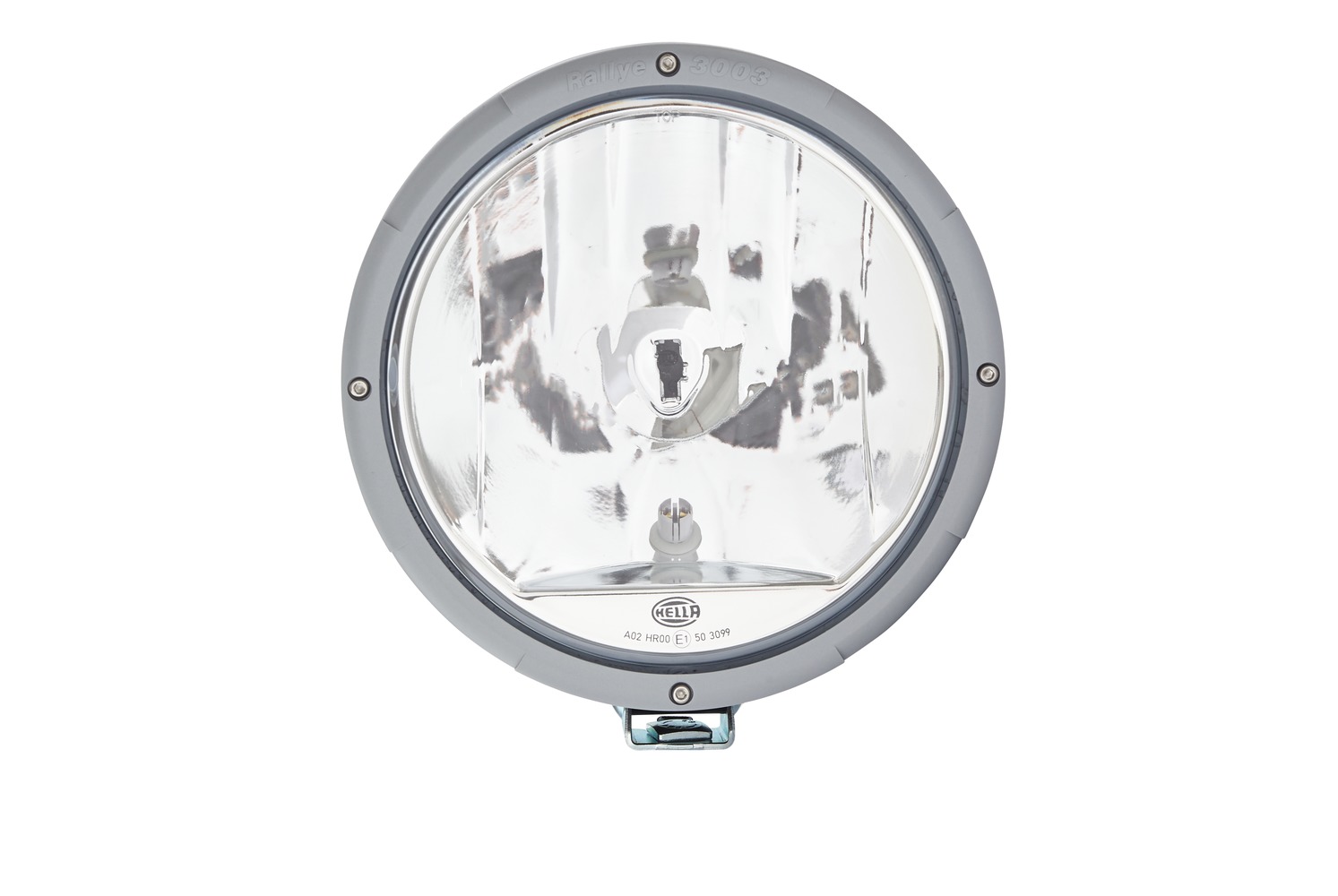

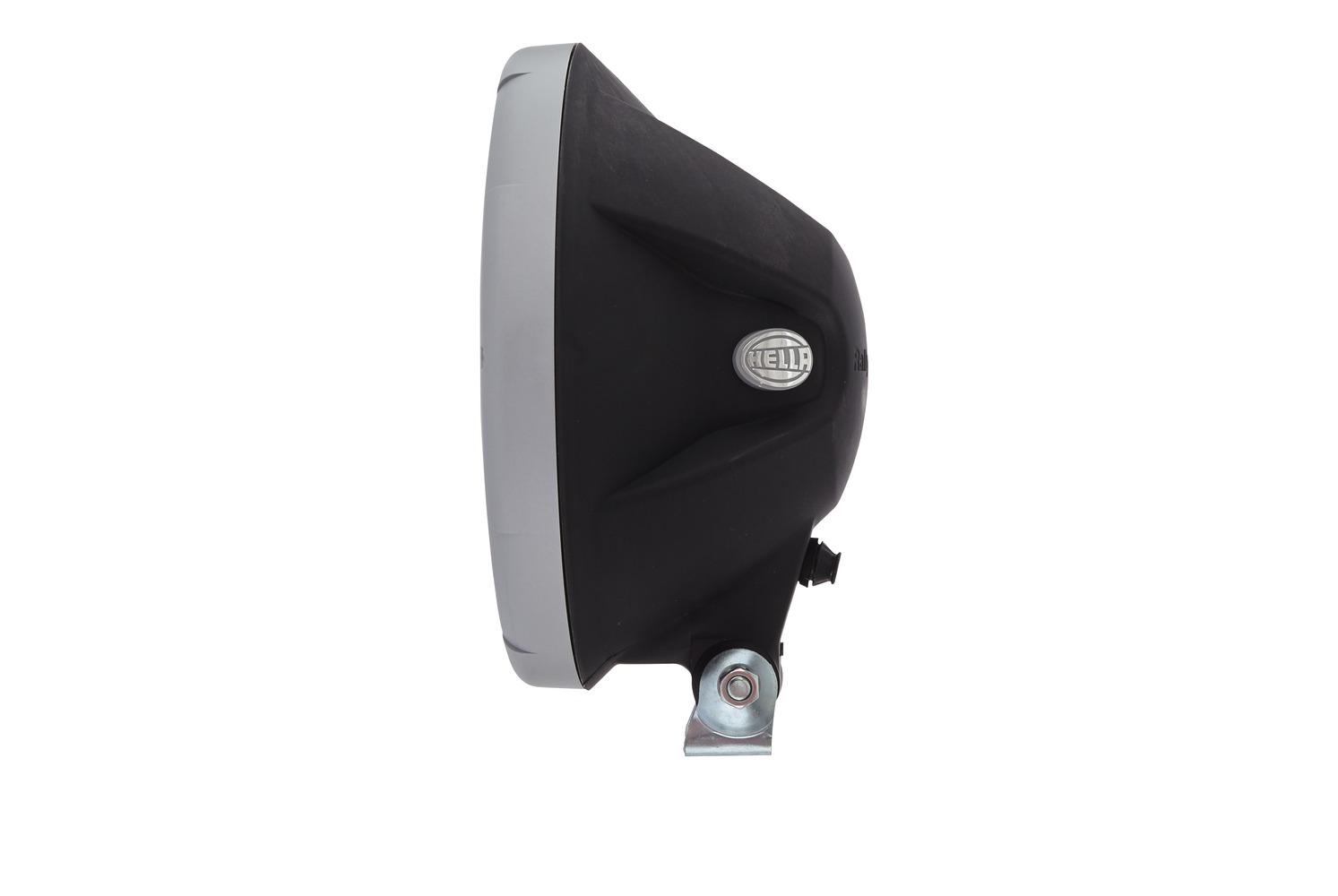

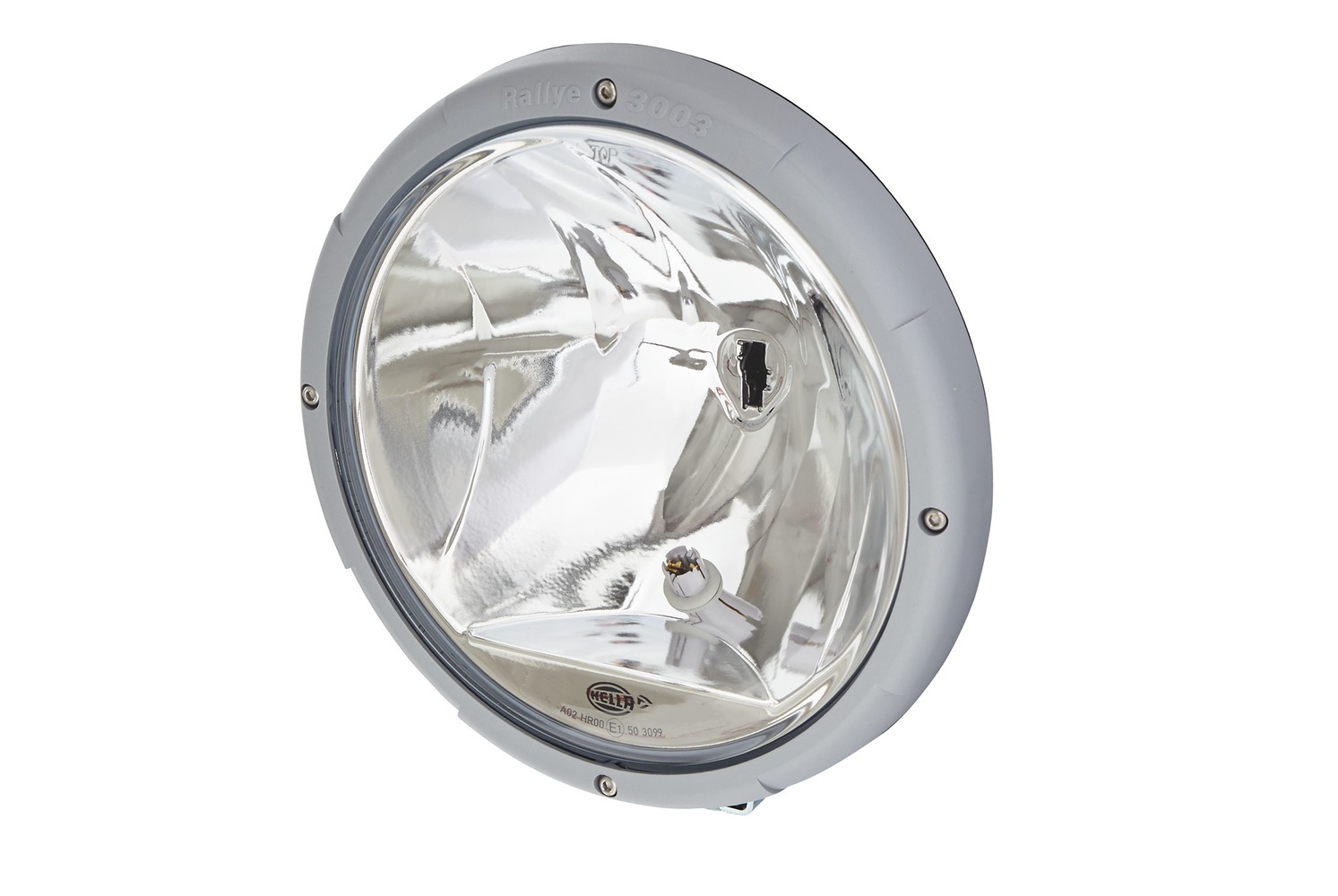

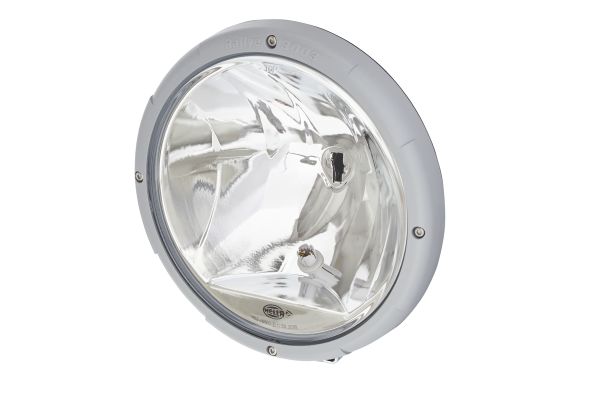

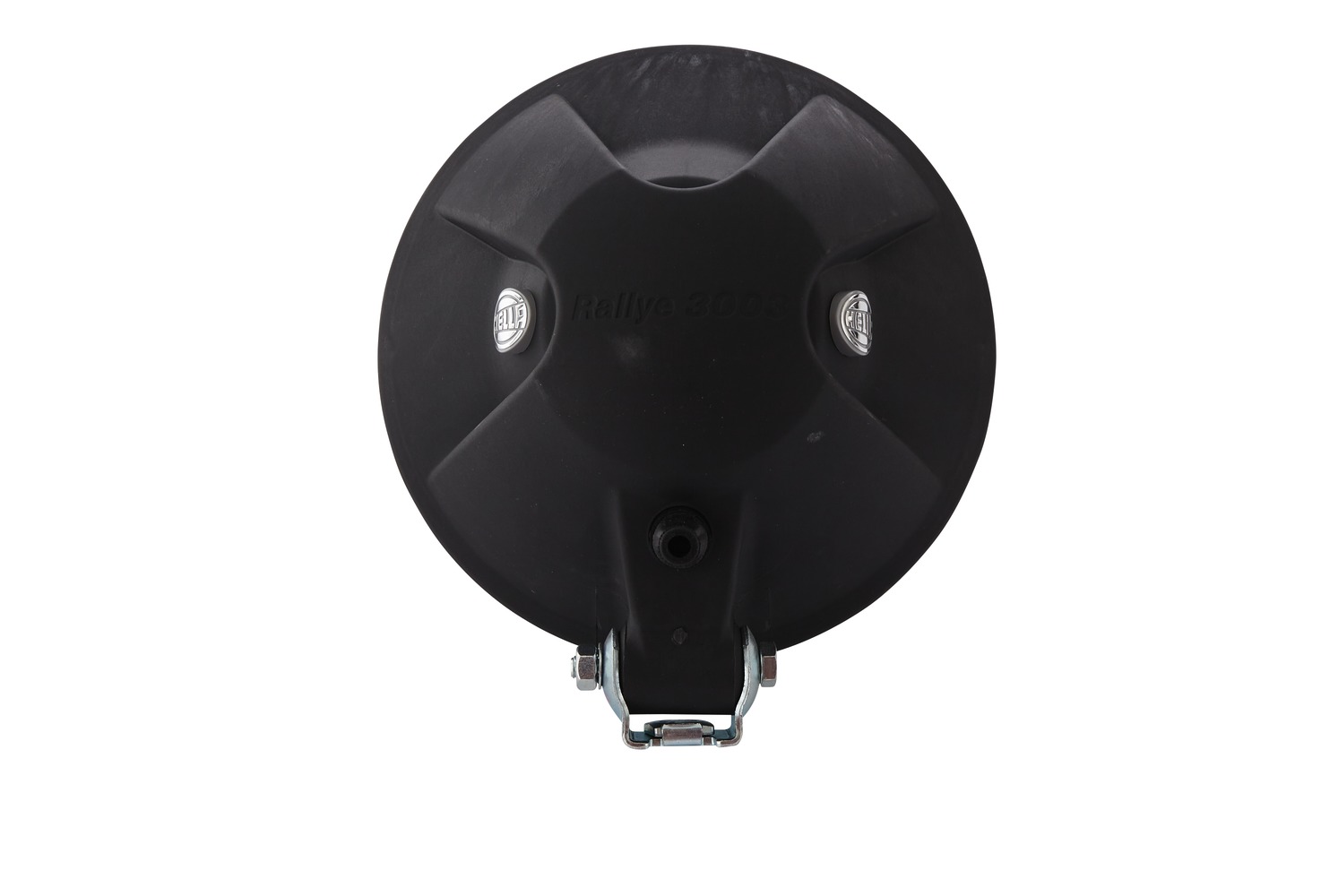

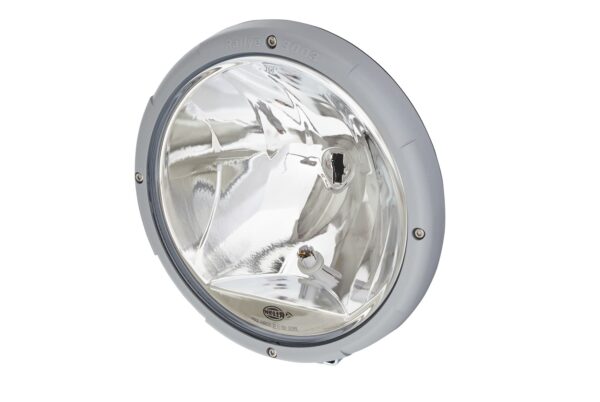

Halogen-Spotlight - Rallye 3003 - 12/24V

Hella Part no. A25-001662 Previously PT/009797321

Halogen-Spotlight - Rallye 3003 - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£53.73 ex VAT
£64.48 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
High beam, Position light

About this halogen auxiliary lamp

Halogen-Spotlight - Rallye 3003 - 12/24V is a Hella halogen auxiliary lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam, position light. Mounting: bolted. It carries R112 / R7 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-001662 (previously PT/009797321), and it replaces or is equivalent to 1F8 009 797-321, 1529529.

As a professional auxiliary headlamp, the HELLA Rallye 3003 combines many features: optimum light output, maximum reliability and a strong design. The ultra-light, corrosion-free and stable plastic housing contains concentrated technology that ensures the best visibility in every situation with high-boost reflectors, computer-optimised fine-tuning of light sources and free-form technology. The Rallye 3003 is also available with a position light. The variants with ring-shaped position light offer an ideal supplement and not only increase visibility for other road users but also set visual accents.

  • Halogen driving lamp incl. position light socket and alternative dummy plug
  • High-Boost reflector plus 10: Offers more than 10% additional radiance due to newly developed reflector - compared to the Rallye 3003 with Ref. 37
  • The ideal addition for truckers, off-roaders and SUVs for better lighting performance
  • Width: 222mm - Height: 222mm - Depth: 124mm - Fitting Depth: 49mm - Overall Height: 245mm - Lamp Type: H1/W5W - without bulb - without top
  • Light functions: 2 - with high beam/with position light
  • fulfils ECE norm: R7/R112
  • Synthetic Material Housing - Housing Colour: Black - Frame Colour: Silver - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam, Position light
MountingBolted

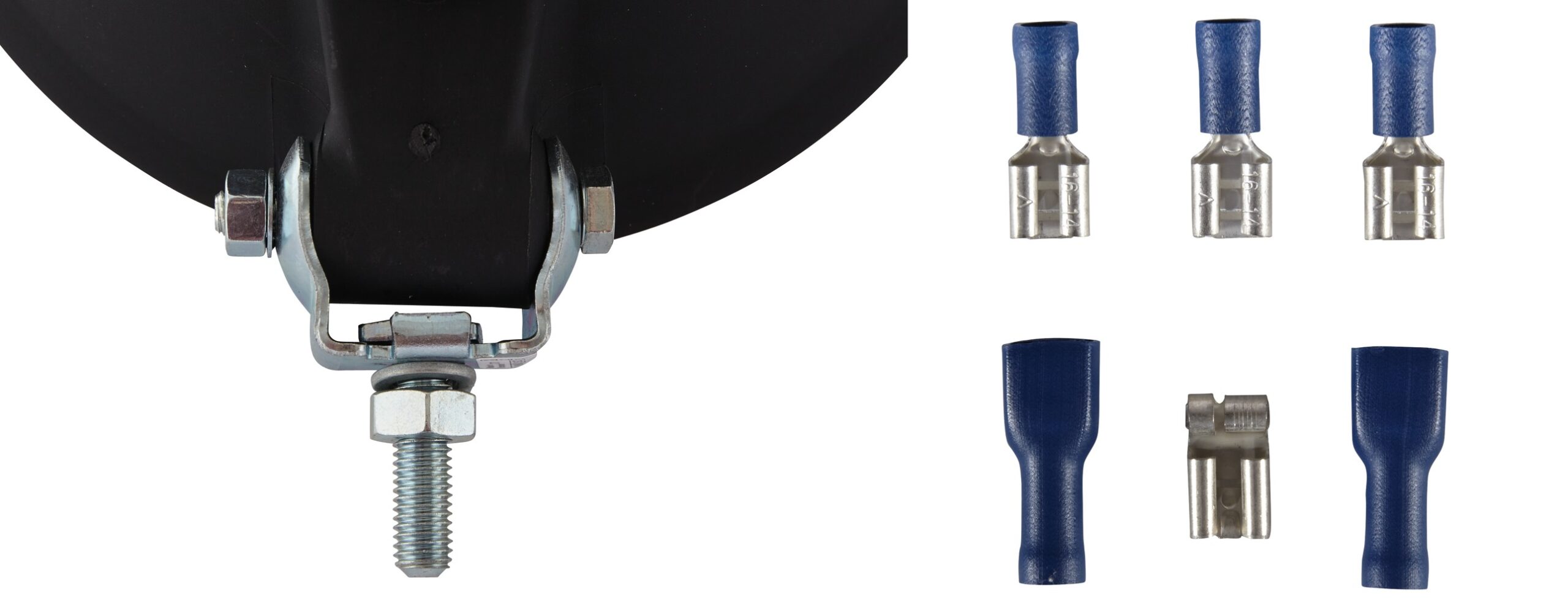

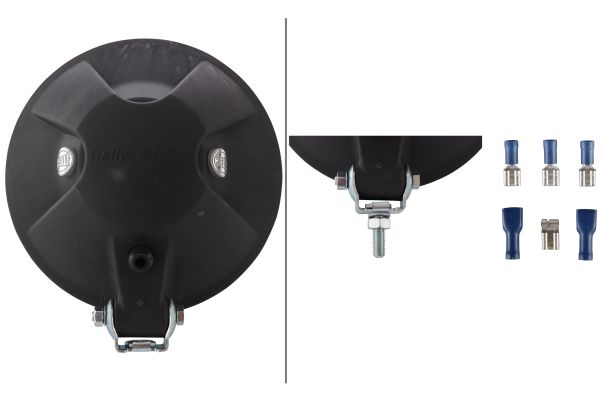

FasteningSwivelling Mounting Bracket
Bulb typeH1 / W5W
Fitting positionright / left
Height222 mm
Overall height245 mm
Width222 mm
Depth124 mm
Fitting depth49 mm
ECE approvalR112 / R7
Housing colourblack
Frame coloursilver
Shaperound
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Weight1.24 kg
Part numberA25-001662
BrandHella

Part numbers

Our part number for this item is A25-001662. It was previously listed as PT/009797321, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F8 009 797-321
  • 1529529
