Halogen-Spotlight - Rallye 3000 - 24/12V

Hella Part no. A25-000859 Previously PT/006800191

Halogen-Spotlight - Rallye 3000 - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£62.18 ex VAT
£74.62 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • UK mainland delivery £11.00 ex VAT, free on orders over £75 inc VAT. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
High beam, Position light

About this halogen auxiliary lamp

Halogen-Spotlight - Rallye 3000 - 24/12V is a Hella halogen auxiliary lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam, position light. Mounting: bolted. It carries R7 / R8 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-000859 (previously PT/006800191), and it replaces or is equivalent to 1F8 006 800-191, 4825680, 5323000, Q4825680, ZZ001803, 1299751 and 9 more.

The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!

  • H1 spotlight with position light for standing or pendant surface-mounting
  • ECE type-approved main beam (E1) for 12V and 24V vehicle wiring systems
  • Housing and glass-holding frame made of black, high-quality plastic
  • Width: 222mm - Height: 222mm - Depth: 126mm - Fitting Depth: 47mm - Overall Height: 253mm - Lamp Type: W5W/H1 - without bulb - without top
  • Light functions: 2 - with high beam/with position light
  • fulfils ECE norm: R7/R8
  • Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam, Position light
MountingBolted

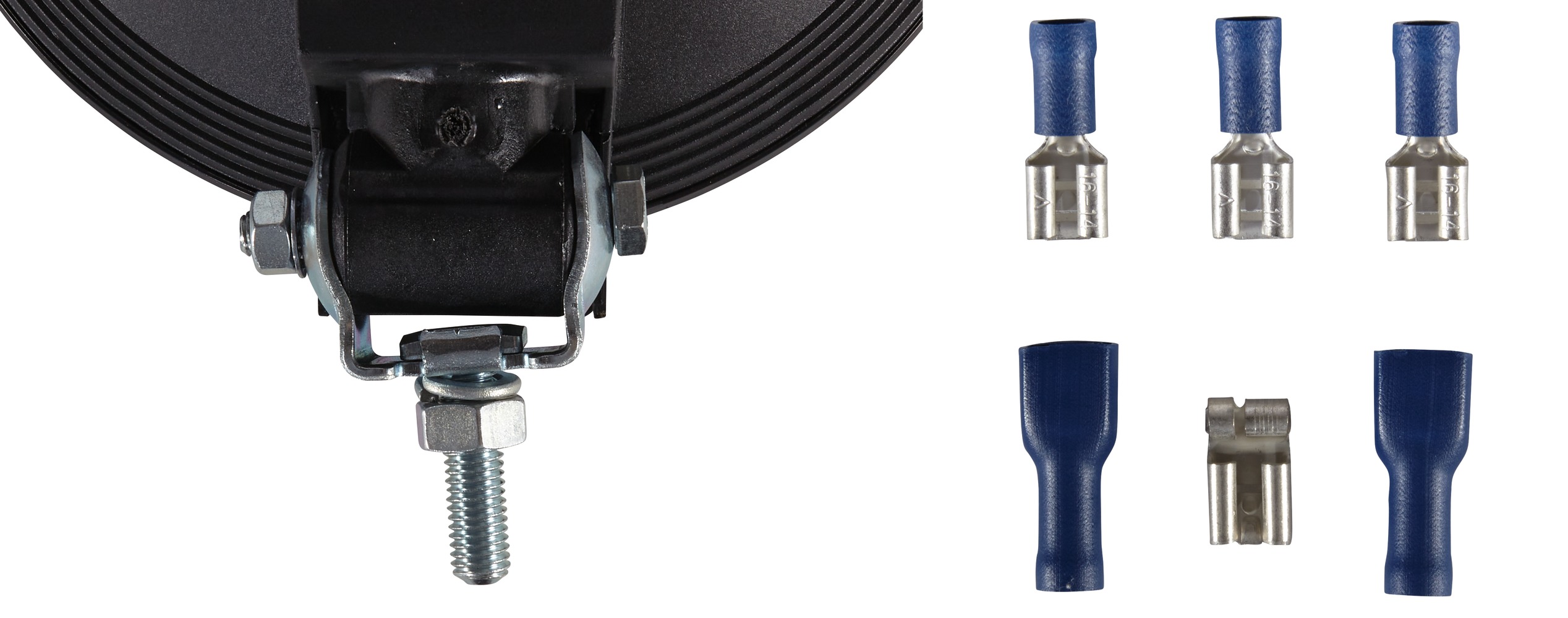

FasteningVertical / Swivelling Mounting Bracket
Bulb typeW5W / H1
Fitting positionright / left
Height222 mm
Overall height253 mm
Width222 mm
Depth126 mm
Fitting depth47 mm
ECE approvalR7 / R8
Housing colourblack
Frame colourblack
Shaperound
Housing typeMetal Housing
Diffusing lens typePatterned diffusing lens
Weight1.44 kg
Part numberA25-000859
BrandHella

Part numbers

Our part number for this item is A25-000859. It was previously listed as PT/006800191, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F8 006 800-191
  • 4825680
  • 5323000
  • Q4825680
  • ZZ001803
  • 1299751
  • 8125800191H
  • 1906605
  • 5001865642
  • 20487385
  • A0004825680
  • A0005323000
  • A00Q4825680
  • A5323000
  • 37.5
