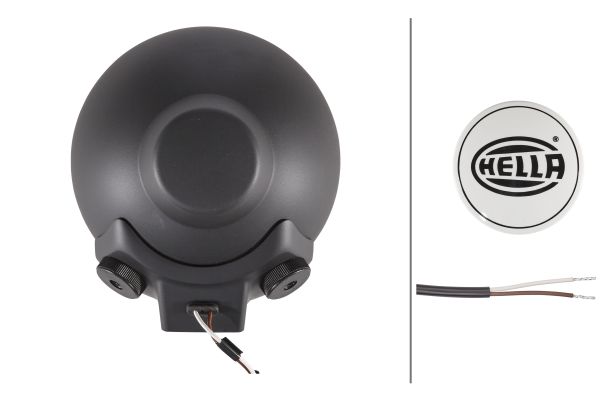

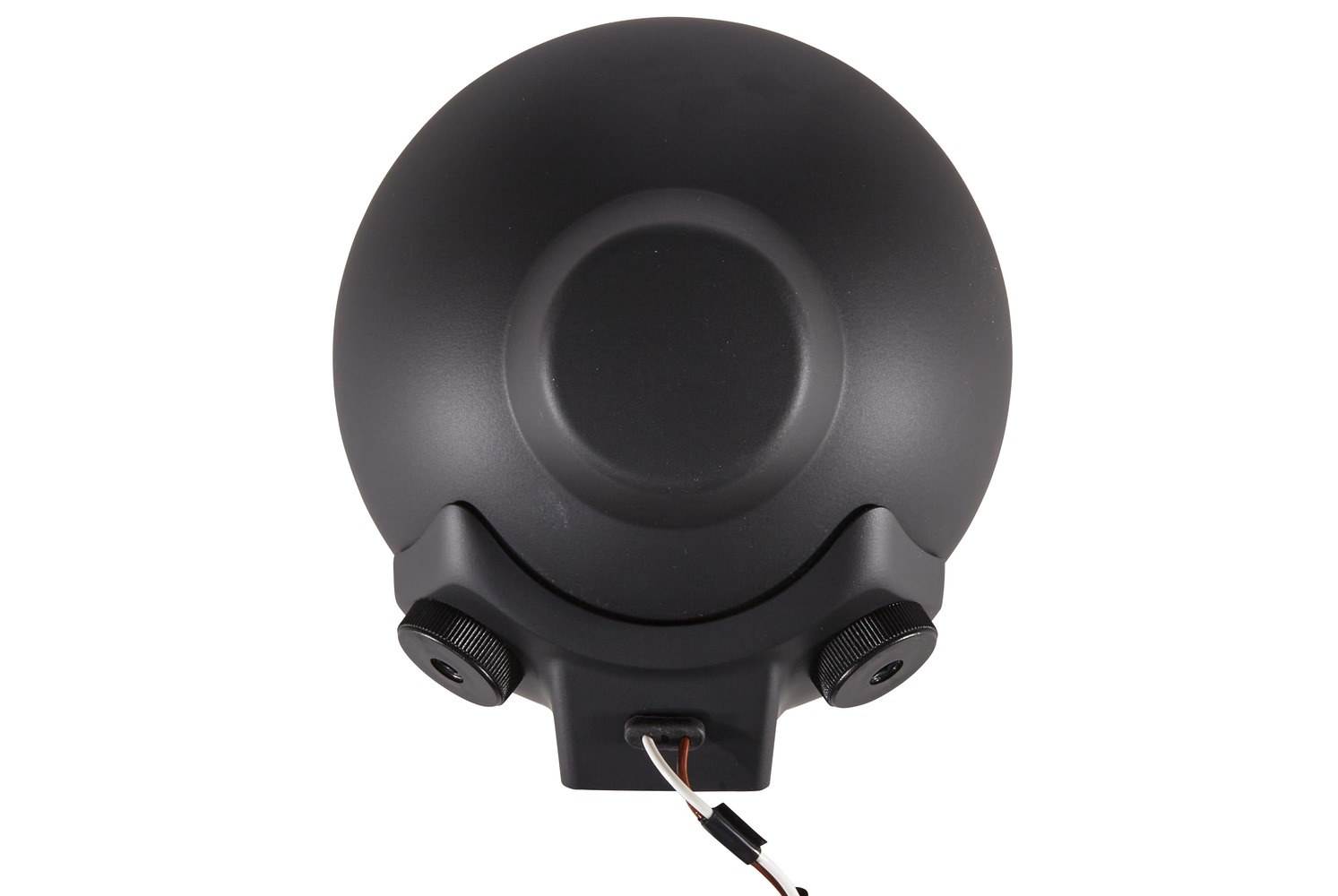

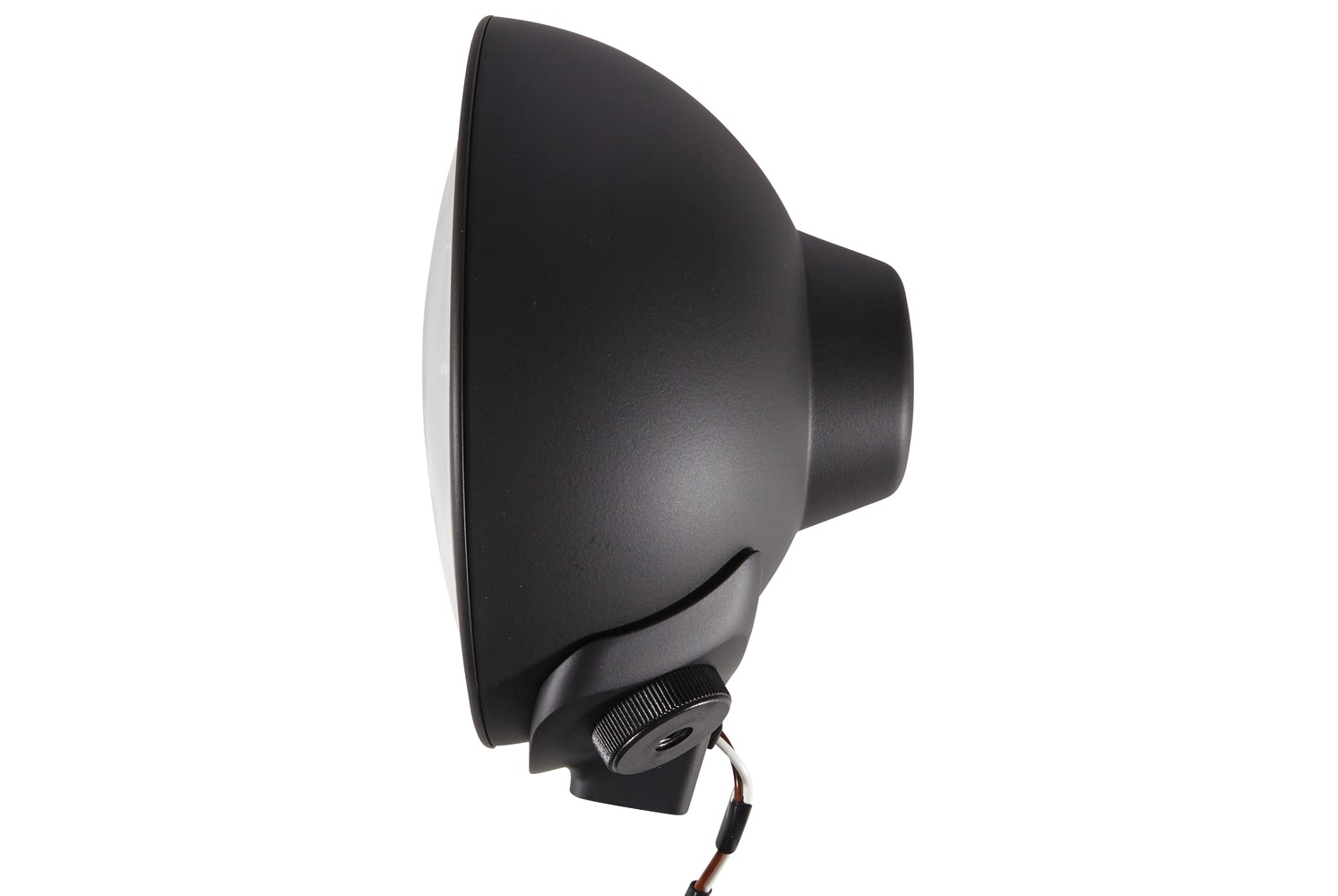

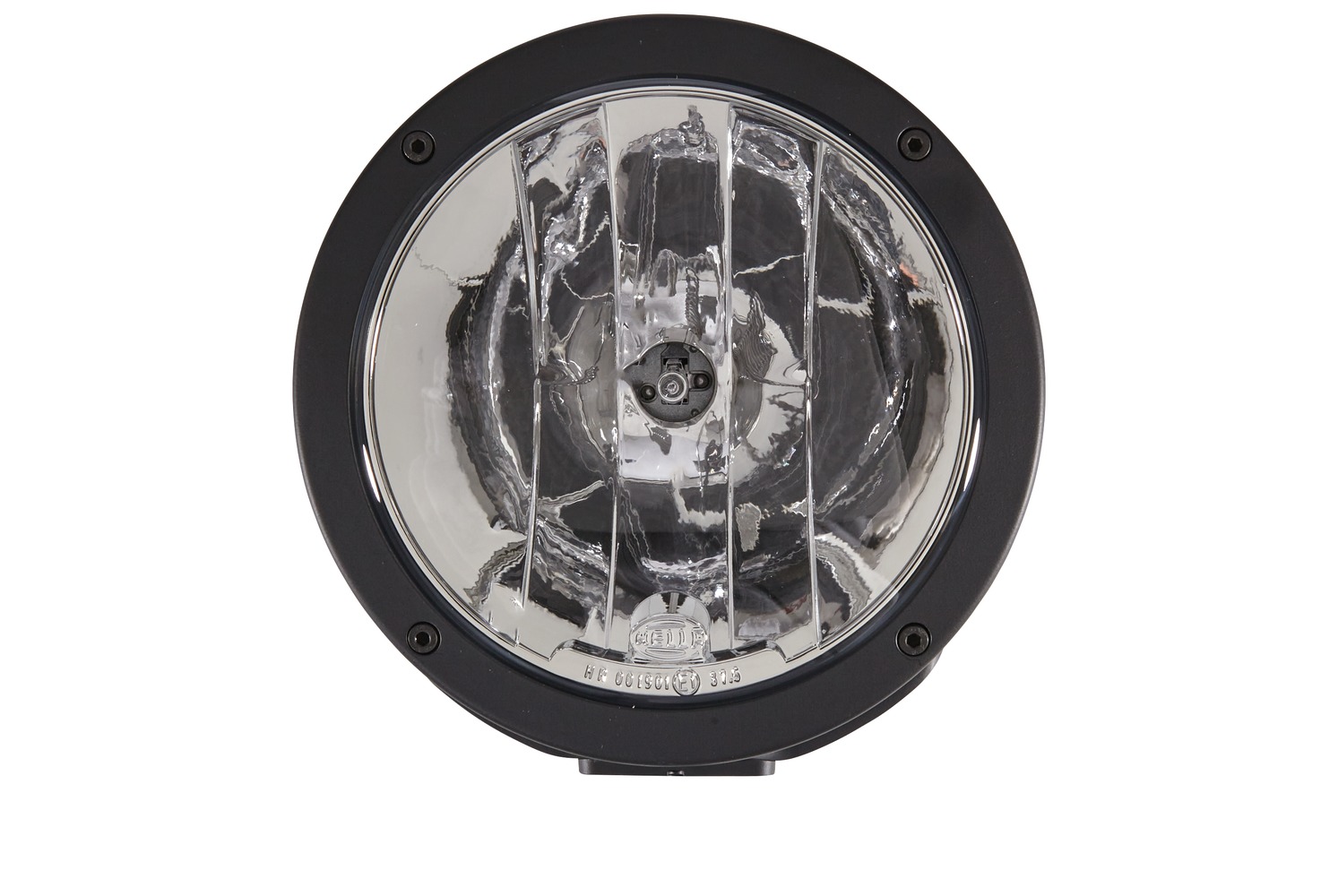

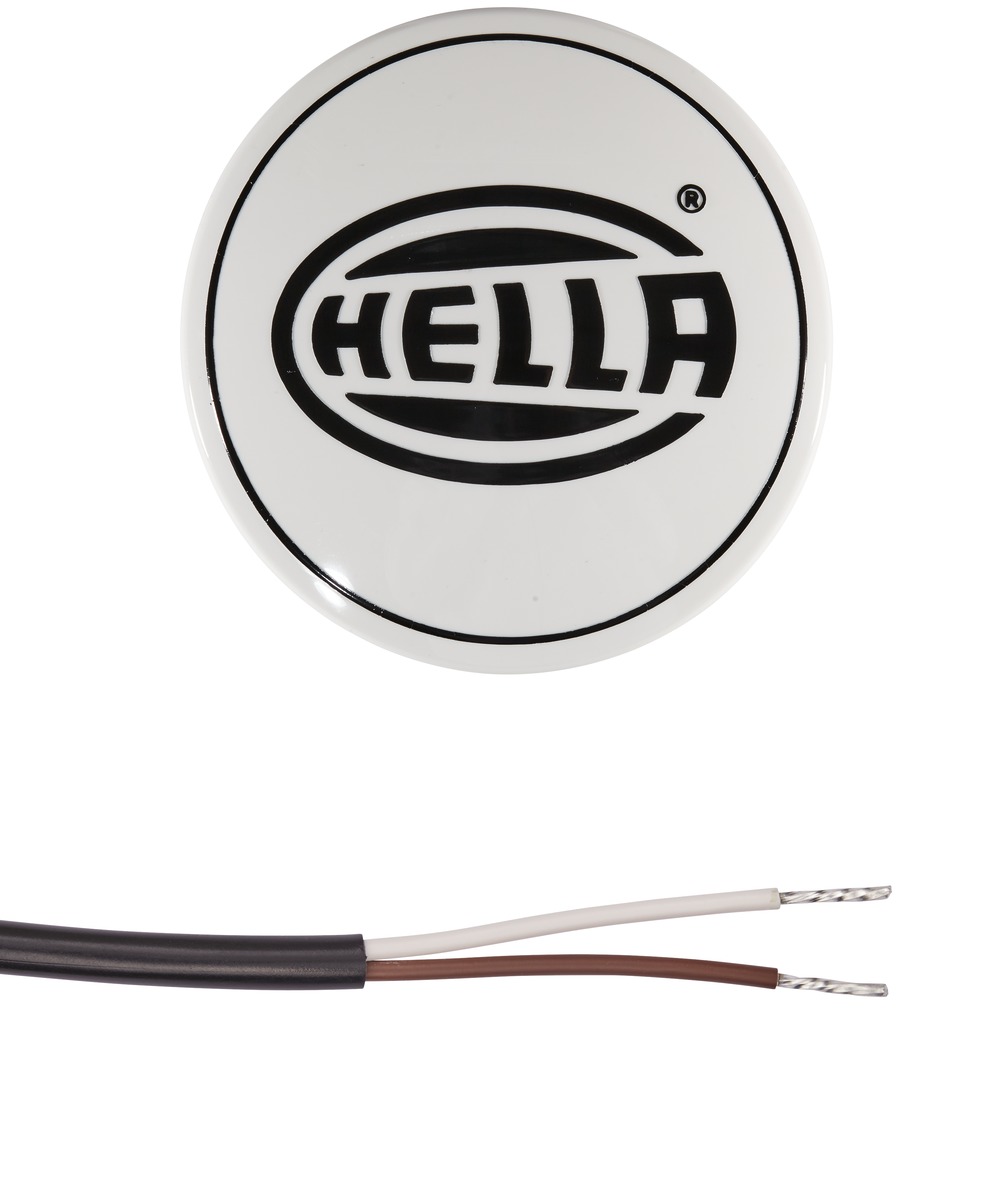

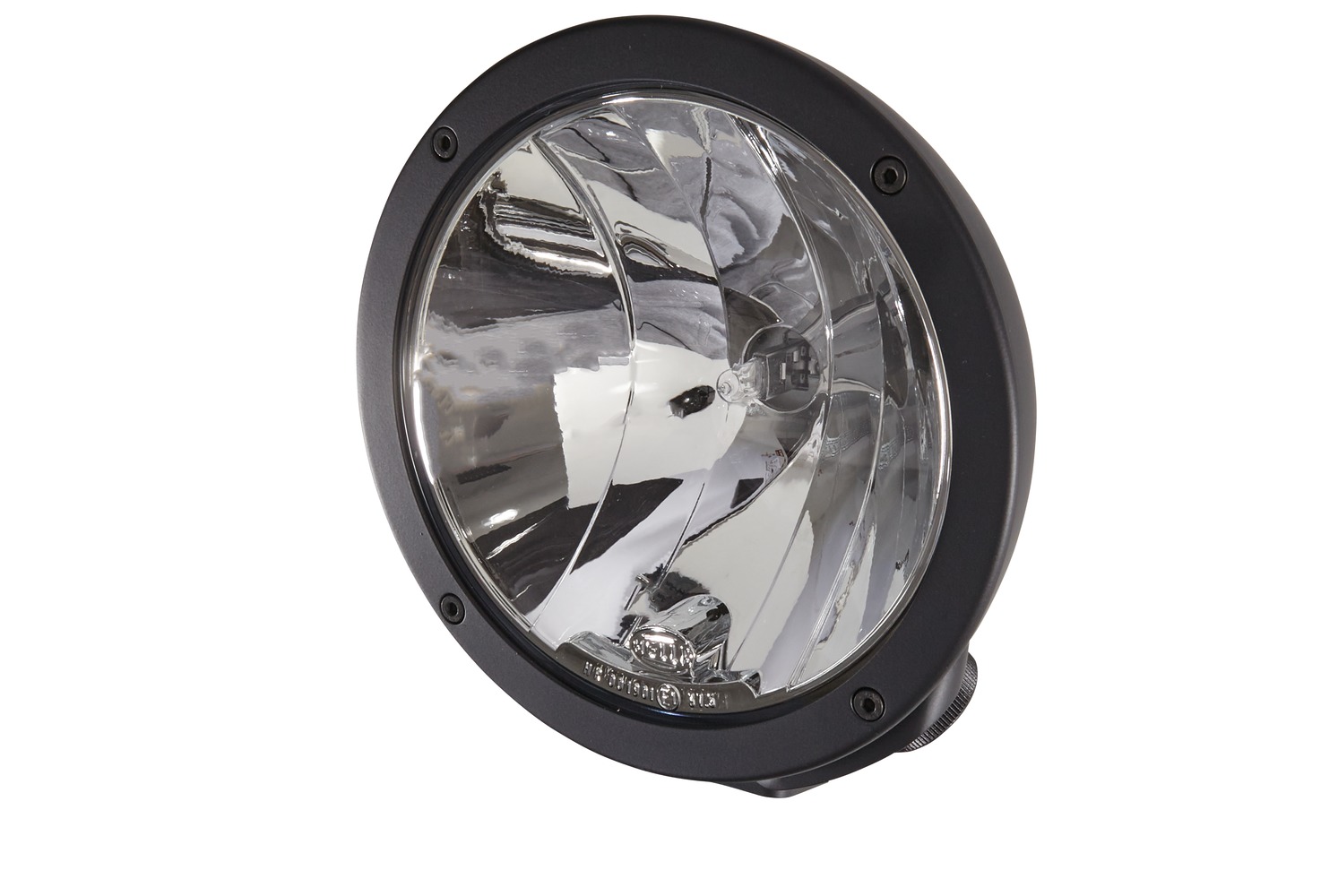

Halogen-Spotlight - Luminator Compact - 12V

Hella Part no. PT/009094181

Halogen-Spotlight - Luminator Compact - 12V

5.0 Excellent, from 2 customer reviews
£120.96 inc VAT
£100.80 ex VAT

In stock, 100 available

  • Dispatched within 1 working day
    UK mainland delivery usually takes 2 to 3 working days
  • UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international

In stock

Voltage
12V
Technology
Halogen
Lens colour
Clear
Light functions
High beam

About this halogen auxiliary lamp

Halogen-Spotlight - Luminator Compact - 12V is a Hella halogen auxiliary lamp for 12V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam. Mounting: bolted. It carries R112 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is PT/009094181, and it replaces or is equivalent to 1F3 009 094-181, 37.5.

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

  • H1 spotlight black, 12V (ECE Ref. 37,5)
  • Due to its impressive external dimensions, it is particularly suitable for trucks, large pick-ups and off-roaders
  • Housing, holder and ring made of die-cast zinc
  • Width: 171mm - Height: 172mm - Depth: 113mm - Fitting Depth: 49mm - Overall Height: 173mm - Lamp Type: H1 - with bulb - with top
  • Light functions: 1 - with high beam
  • fulfils ECE norm: R112
  • Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear

Specifications

Voltage12V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam
MountingBolted
FasteningSwivelling Mounting Bracket
Bulb typeH1
Fitting positionleft / right
Height172 mm
Overall height173 mm
Width171 mm
Depth113 mm
Fitting depth49 mm
ECE approvalR112
Cable800 mm
Housing colourblack
Frame colourblack
Shaperound
Housing typeMetal Housing
Diffusing lens typeClear diffusing lens
Weight1.61 kg
Part numberPT/009094181
BrandHella

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F3 009 094-181
  • 37.5

Delivery and returns

In-stock orders placed before 3pm on a working day are dispatched the same day from our Lincolnshire warehouse, with tracking sent by email. UK mainland delivery for this item is £11.00, and it is free on orders over £75 inc VAT. Highlands, islands and other surcharge postcodes are priced at checkout, and international delivery is priced by zone.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
