Halogen-Spotlight - Jumbo 320 - 24/12V

Hella Part no. A25-001365 Previously PT/008773001

Halogen-Spotlight - Jumbo 320 - 24/12V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£72.29 ex VAT
£86.75 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
Halogen
Lens colour
Clear
Light functions
High beam

About this halogen auxiliary lamp

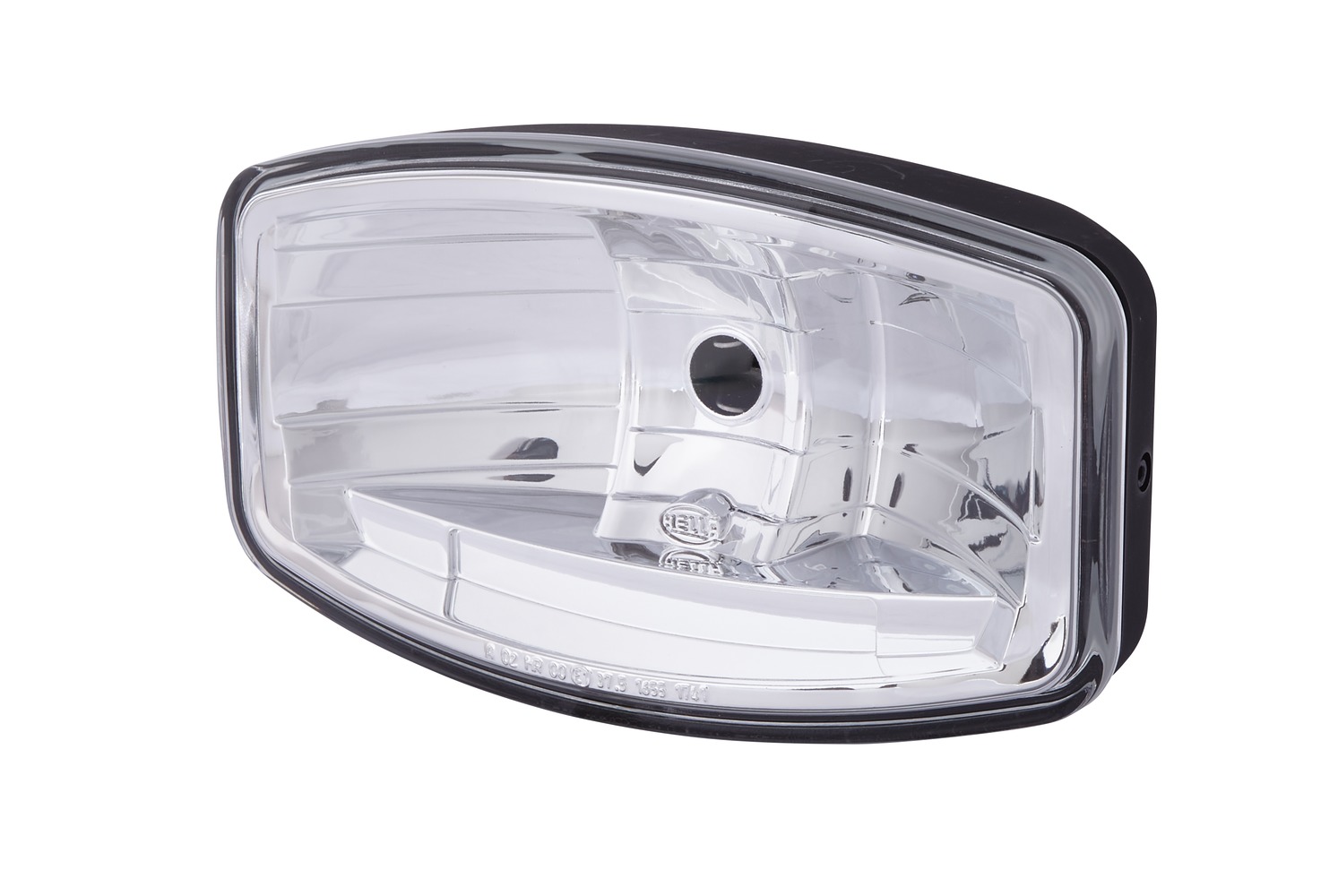

Halogen-Spotlight - Jumbo 320 - 24/12V is a Hella halogen auxiliary lamp for 12/24V electrical systems. The light source is Halogen, the lens is clear. Light functions: high beam. Mounting: bolted. It carries R112 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-001365 (previously PT/008773001), and it replaces or is equivalent to 1FE 008 773-001, 888539, ZF920006612, 37.5.

The HELLA Jumbo 320: A large headlamp for large vehicles. This auxiliary headlamp not only makes an impressive impression from the outside, but also knows how to convince with its technical specifications and material properties. The housings are made of robust plastic. High-boost reflectors specially developed for the rectangular shape provide maximum light output. The variant with additional LED position light with 6 high-performance LEDs also leads to significantly improved vehicle visibility and thus offers an additional safety gain.

  • H7 driving lamp with position light made of 6 high-power LEDs with bluish-white light
  • High-boost reflectors specially developed for the rectangular shape offer maximum luminous efficiency
  • Robust plastic housing
  • Die-cast metal reflector
  • Width: 247mm - Height: 141mm - Depth: 109mm - Fitting Depth: 23mm - Overall Height: 161mm - Lamp Type: H7 - without bulb - without top
  • Light functions: 1 - with high beam
  • fulfils ECE norm: R112

Specifications

Voltage12/24V
TechnologyHalogen
Lens colourClear
Light functionsHigh beam
MountingBolted

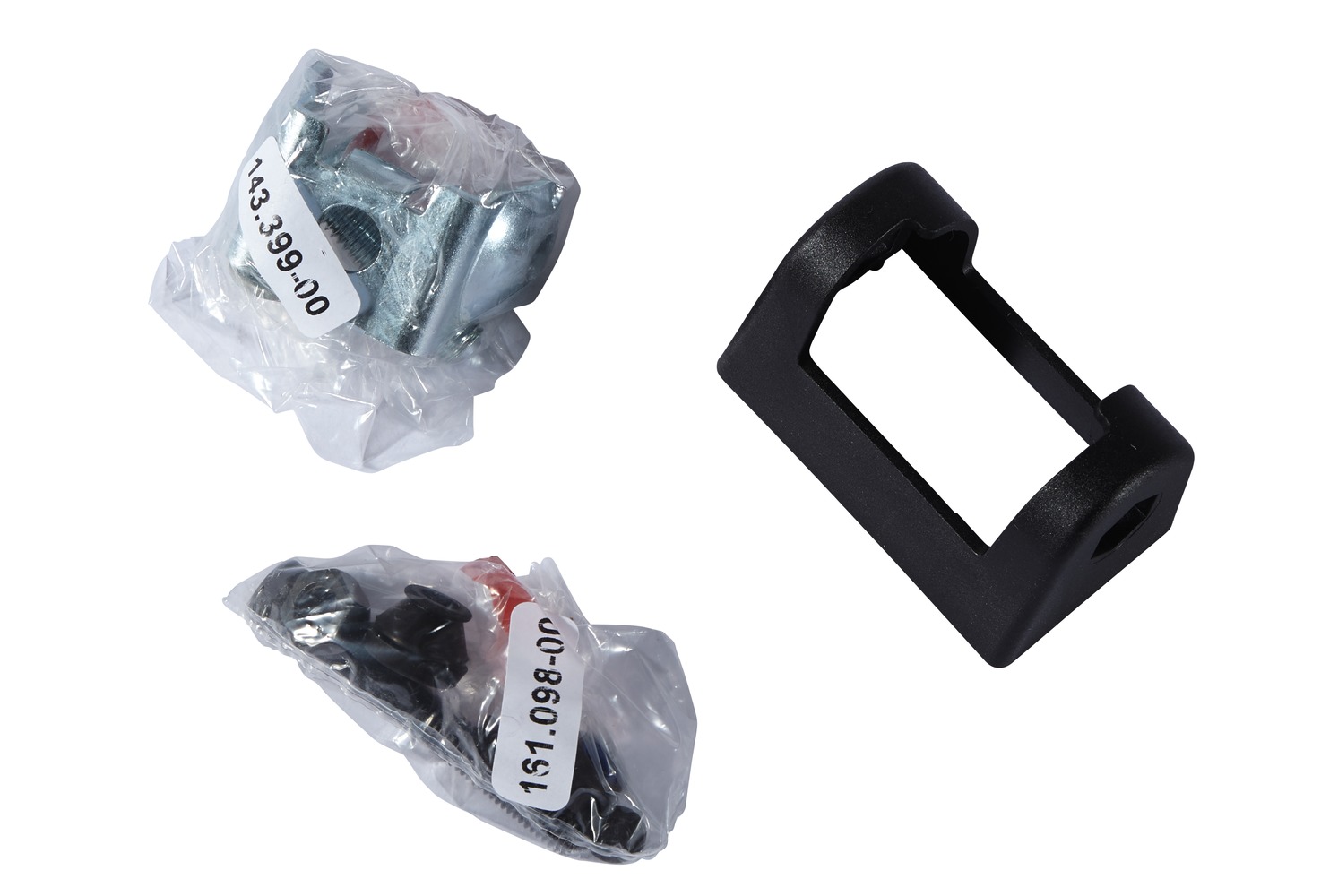

FasteningSwivelling Mounting Bracket
Bulb typeH7
Fitting positionleft / right
Height141 mm
Overall height161 mm
Width247 mm
Depth109 mm
Fitting depth23 mm
ECE approvalR112
Housing colourblack
Shaperectangular
Housing typeSynthetic Material Housing
Diffusing lens typeClear diffusing lens
Weight1.07 kg
Part numberA25-001365
BrandHella

Part numbers

Our part number for this item is A25-001365. It was previously listed as PT/008773001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1FE 008 773-001
  • 888539
  • ZF920006612
  • 37.5
