A tractor light fitment is the combination of bulb code, lamp housing, mounting pattern, electrical connector, and CAN-bus compatibility that allows a specific replacement or upgrade lamp to fit a specific tractor without modification. Getting it right takes 5 data points: brand, model, build year, lamp position, and original specification. Getting it wrong wastes money, delivery time, and workshop hours. This guide covers the methodology for identifying the correct part for any tractor across any major brand, with a brand-by-brand cheat sheet, common error patterns, and a buying checklist that works for John Deere, New Holland, Massey Ferguson, Case IH, Fendt, Valtra, JCB, Kubota, and any other agricultural machine.
How Tractor Light Fitment Identification Works
Tractor light fitment identification is the process of matching a replacement lamp to the original equipment specification using brand, model, year, position, and electrical data. The same method applies to every brand because every brand uses the same underlying data points: a chassis plate that confirms model and year, a bulb code or connector type that confirms electrical fit, and a part number system that allows cross-reference between OEM and aftermarket suppliers.
A tractor lighting system carries between 6 and 30 individual lamps depending on age and specification. Each lamp has its own fitment data. A modern Fendt 1050 carries headlamps, work lamps in 8 positions, beacon, rear cluster, and number plate light, totalling more than 20 individual lamp positions. A 1985 Massey Ferguson 290 carries 2 headlamps, 2 fender tail lamps, and 1 retro-fit beacon, totalling 5 positions. The identification method scales from one to the other.
Three things make tractor light identification harder than car or van identification. First, agricultural production runs are long: the same chassis number may have shipped with 3 different lighting specifications across 10 years. Second, retro-fit and dealer-fit lighting changes are common: the lamp on the tractor may not be the lamp the factory installed. Third, brands within the same group share parts: a modern Massey Ferguson lamp may cross-reference to Valtra; a modern New Holland lamp may cross-reference to Case IH. The methodology accounts for all 3.
The 5 Data Points You Need Before Buying
Tractor light fitment identification requires 5 data points to give a confident answer. Skipping any 1 raises the risk of ordering the wrong part. The 5 points are: brand, model, build year, lamp position, and original specification.
1. Brand
Brand identification is straightforward in most cases: the bonnet decal, the cab door decal, and the operator’s manual all state the brand. Some heritage tractors require more care because parent companies have changed several times. A David Brown becomes a Case David Brown, then a Case IH after 1985. A Ford tractor becomes a New Holland after 1991. A Steyr becomes a CNH Steyr after 1996. The lighting parts that fit a 1992 Ford 8240 are catalogued under New Holland, not Ford.
2. Model
The model number determines the chassis platform, which determines the lighting fitment. A John Deere 6155R uses the same headlamp as a 6175R; a 6155M does not. A Massey Ferguson 6700S uses one rear cluster spec; a 6700 uses another. A Case IH Puma 220 uses one work lamp connector; a Puma 240 (with the larger cab) uses another. Read the full model designation, not just the power tier.
3. Build Year
Build year resolves mid-production specification changes. A John Deere 6920 built in 2003 may carry a different headlamp from one built in 2006. A Massey Ferguson 6480 built before mid-2008 may use a different work lamp connector. The chassis plate confirms the year. Where the chassis plate is missing or unreadable, the operator’s manual or the original sales invoice gives the same data.
4. Lamp Position
Lamp position identifies the lamp within the multi-lamp lighting system. A modern tractor has 6 to 30 lamp positions; each may carry a different bulb code and connector. Common position descriptions are: front grille headlamp left, cab roof front corner work lamp left, A-pillar work lamp right, rear cluster combination right, beacon front, beacon rear, number plate light. Photograph the lamp position in situ before removal.
5. Original Specification
Original specification is the factory-fit lamp specification. It matters because the lamp on the tractor may not be the lamp the factory installed. A previous owner may have retro-fitted a different lamp. A dealer service may have substituted a non-OEM equivalent. The original specification appears in the operator’s manual, the parts catalogue, or on the dealer’s vehicle history. Where the original is unobtainable, identify the lamp currently fitted by photographing the rear face (which carries the manufacturer marking, the part number, and the bulb code).
Reading the Chassis Plate
A tractor chassis plate is a metal or plastic identification plate fixed to the tractor chassis that carries the brand, model, build year, serial number, and (often) the original lighting specification code. The plate is the single most important piece of fitment data on any tractor.
Where the Plate Is Located
A chassis plate location varies by brand. The 6 most common positions are:
- Right-hand front frame rail (John Deere, Massey Ferguson, Case IH, New Holland)
- Cab pillar inside the door (Fendt, Valtra, John Deere current models)
- Dashboard top edge (Kubota, Iseki, compact tractors)
- Bonnet underside (some heritage tractors)
- Engine bay firewall (some classic Massey Ferguson and Ford)
- Operator’s manual front cover (always present even when the plate is missing)
What the Plate Shows
A chassis plate shows the brand, the model designation, the chassis number, the build date or year, the engine power, the gross vehicle weight, and (on modern tractors) the type approval reference. The lighting specification code appears as part of the type approval data on tractors built since 2018.
When the Plate Is Missing
A missing or unreadable chassis plate sends the search to 3 fallback sources. The operator’s manual front cover carries the same data. The DVLA V5C registration document (for tractors registered for road use) carries the chassis number and date of first registration. The dealer’s service history (where available) confirms the original specification.
Identifying Bulb Codes and Connector Types
A tractor lamp bulb code identifies the bulb specification. A tractor lamp connector type identifies the electrical fitting. Both must match for a replacement to fit.
Common Bulb Codes for Tractor Lighting
| Code | Wattage | Common position |
|---|---|---|
| H1 | 55W | Auxiliary fog, driving lamp |
| H3 | 55W | Older work lamps, auxiliary lamps |
| H4 | 60/55W dual filament | Headlamp high/low beam (heritage and mid-era) |
| H7 | 55W | Modern headlamp single beam |
| H9 | 65W | Some modern work lamps |
| H11 | 55W | Modern fog and work lamps |
| HB3 / HB4 | 60W / 51W | Some North American specifications |
| P21W | 21W | Brake light, indicator |
| P21/5W | 21/5W dual filament | Tail and brake combined |
| PY21W | 21W amber | Indicator |
| W5W | 5W | Number plate, side marker |
| BA15s | 5 to 21W | Interior dome, festoon alternative |
Common Connector Types
| Connector | Used on | Identification |
|---|---|---|
| 2-pin standard | Heritage halogen work lamps | Round 2-pin plug |
| 3-pin H4 | Headlamp high/low beam | Triangular 3-pin H4 socket |
| AMP Superseal | Modern work lamps | Sealed 2 or 3-pin grey plug |
| Deutsch DT | Premium work lamps | Black sealed plug, 2 to 12 pins |
| Bayonet (BA15s, BA9s) | Interior, classic markers | Push and twist bulb mount |
| Festoon | Classic interior | Spring-loaded slide-in |
| OEM proprietary | Modern factory LED | Brand-specific multi-pin |
Reading the Bulb Code on the Lamp
A bulb code is moulded into the bulb glass envelope, printed on the bulb base, or stamped on the inside of the lamp housing. Withdraw the bulb carefully (without touching the glass on halogen bulbs, because skin oils shorten halogen life). Photograph all visible markings before ordering. Cross-reference against the bulb code table to confirm.
Reading the Connector Type
A connector type is identified by the plug shape, the number of pins, and any marking on the plug body. Photograph the unplugged connector face-on with a ruler in shot for scale. Aftermarket suppliers stocking universal LED replacements list compatibility by connector type alongside bulb code.
Reading Cross-Reference and OEM Part Numbers
A tractor lamp OEM part number is the manufacturer’s official identification for the original-equipment lamp. A cross-reference connects the OEM number to equivalent parts under different brand catalogues or aftermarket numbers.
Where the OEM Number Lives
An OEM part number appears in 3 places: the original parts catalogue (paper or online), the lamp body itself (etched, stamped, or printed), and the dealer parts system. The number on the lamp body is the most reliable because it confirms what is actually fitted regardless of the original specification.
Cross-Reference Within Manufacturer Groups
Cross-reference within manufacturer groups is the single biggest cost-saving tool in tractor lighting parts. The 4 main agricultural manufacturer groups in the UK market are:
- CNH Industrial: Case IH, New Holland, Steyr (shared parts on shared chassis)
- AGCO: Massey Ferguson, Fendt, Valtra, Challenger (shared parts where chassis match)
- John Deere: independent (no group cross-reference)
- CLAAS: independent (no group cross-reference, but Renault tractor heritage parts cross-reference)
Where a Case IH lamp shows out of stock, the New Holland equivalent is often available immediately at the same price. Where a Massey Ferguson lamp is expensive, the Valtra equivalent may save 20% to 40%. The dealer parts system shows the cross-reference; the aftermarket parts database confirms it.
Aftermarket Cross-Reference
A reputable aftermarket supplier publishes an OEM cross-reference table for every lamp in their range. The table lists the OEM part numbers the aftermarket lamp replaces. Confirm the cross-reference matches the OEM number on the lamp body before ordering.
Brand-by-Brand Identification Cheat Sheet
A brand-by-brand identification cheat sheet shortcuts the methodology for the 9 most common UK agricultural brands.
John Deere
Plate location: right-hand front frame rail or cab pillar. Model identifier: front bonnet decal. Build year: chassis plate or PIN code. Lighting specifics: H4 or H7 headlamp on heritage and mid-era; OEM LED on modern 6R, 7R, 8R, 9R. See John Deere tractor lights for the full breakdown.
New Holland
Plate location: right-hand front frame rail or cab pillar. Model identifier: cab side decal. Build year: chassis plate. Lighting specifics: H4 / H7 halogen or factory LED depending on trim. CNH cross-reference to Case IH. See New Holland tractor lights.
Massey Ferguson
Plate location: right-hand front frame rail or cab pillar. Model identifier: bonnet decal. Build year: chassis plate. Lighting specifics: sealed beam on classic 100 and 200 series; H4 / H7 on mid-era; factory LED on 5S to 8S. AGCO cross-reference to Valtra and Fendt. See Massey Ferguson tractor lights.
Case IH
Plate location: right-hand front frame rail or cab pillar. Model identifier: bonnet decal. Build year: chassis plate. Lighting specifics: H4 / H7 halogen or factory LED. CNH cross-reference to New Holland. See Case IH tractor lights.
Fendt
Plate location: cab pillar inside door. Model identifier: cab side decal. Build year: chassis plate or operator’s manual. Lighting specifics: full LED on most modern Fendts; halogen on heritage. AGCO cross-reference to Massey Ferguson and Valtra.
Valtra
Plate location: cab pillar inside door. Model identifier: cab side decal. Build year: chassis plate. Lighting specifics: halogen H4 / H7 or factory LED. AGCO cross-reference to Massey Ferguson.
JCB Loadall (Telehandler)
Plate location: cab door frame or right-hand chassis rail. Model identifier: cab side decal. Build year: chassis plate. Lighting specifics: heritage sealed beam, mid-era halogen, modern factory LED. No group cross-reference. See JCB telehandler lights.

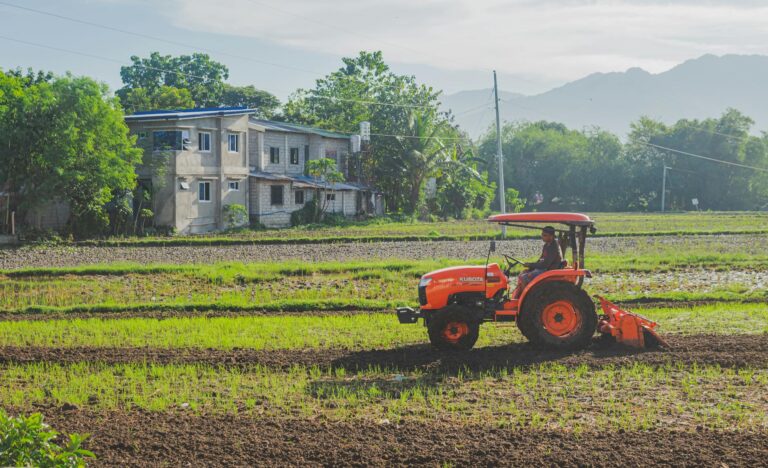

Kubota
Plate location: dashboard top or right-hand frame rail. Model identifier: bonnet decal. Build year: chassis plate. Lighting specifics: H4 halogen on most models; LED option on top trim. No group cross-reference.
Claas
Plate location: cab pillar inside door. Model identifier: cab side decal. Build year: chassis plate. Lighting specifics: factory LED on most modern Arion, Axion, and Xerion models. Renault tractor heritage parts apply to pre-2008 models.
When CAN-Bus Changes the Decision
A CAN-bus tractor lighting system monitors lamp current draw to detect bulb failures and reports them to the dashboard. CAN-bus integration changes the LED upgrade decision because LEDs draw less current than the halogens they replace.
Tractors Built Since Approximately 2010
Most agricultural tractors built since 2010 carry CAN-bus lighting integration on at least the headlamp, rear cluster, and indicator circuits. Some carry it on every lamp position. The 3 visible symptoms of a CAN-bus mismatch after an LED upgrade are: a “bulb failure” warning on the dashboard, indicator hyperflashing, and the lamp working on the LED replacement but the dashboard showing it as failed.
Three Fixes for the CAN-Bus Mismatch
- CAN-bus-compatible LED bulb (built-in current emulation): plug-and-play, slightly more expensive than basic LED bulbs.
- External load resistor in parallel with each LED: cheaper but requires wiring work and produces some heat.
- Electronic flasher relay (for indicator LEDs only): replaces the original flasher unit with one designed for LED loads.
The right fix depends on the tractor and the lamp position. CAN-bus-compatible LED bulbs are the simplest answer where they are available. Load resistors are the universal fallback. Electronic flasher relays solve indicator hyperflashing without addressing dashboard warnings.
OEM vs Aftermarket Fitment Match
An OEM lamp is the original-equipment manufacturer’s part. An aftermarket lamp is an equivalent part from an independent supplier. Both can give a correct fitment match if specified correctly.
When OEM Wins on Fitment
OEM wins on fitment in 3 cases: a tractor under factory warranty (where aftermarket may void cover), a tractor with deep CAN-bus integration where the OEM part has built-in compatibility data, and a heritage tractor where the original part is still in stock and the aftermarket equivalent is poor quality.
When Aftermarket Wins on Fitment
Aftermarket wins on fitment in 4 cases: a heritage tractor where the OEM part is no longer stocked, a price-sensitive replacement where the aftermarket equivalent is 50% to 80% cheaper, an LED upgrade where the OEM never offered a kit, and a like-for-like halogen replacement where the aftermarket part is built to the same specification.
How to Verify Aftermarket Fitment Before Ordering
- Confirm the OEM cross-reference matches the part number on the lamp body
- Check the bulb code matches the original specification
- Check the connector type matches the original
- Check the mounting pattern matches the original (number of bolts, bolt spacing, fixing centres)
- Check the voltage matches (12V or 24V)
- Check CAN-bus compatibility where applicable
- Check E-mark approval where the lamp is for road use
Avoiding Common Fitment Errors
A common fitment error wastes time and money on a part that fits the wrong tractor, the wrong specification, or the wrong position. Five errors account for most fitment failures.
Error 1: Buying by Model Power Alone
A tractor model number includes the power tier but the fitment depends on the chassis platform. A John Deere 6155R and a 6155M share a power tier but use different headlamp housings. Always specify the full model designation including any letter suffix.
Error 2: Skipping the Build Year
A model that ran for 8 years often had 2 or 3 lighting specification changes during the run. Always confirm the build year against the chassis plate before ordering.
Error 3: Assuming the Lamp Currently Fitted Is OEM
A previous owner may have retro-fitted a non-OEM lamp. The lamp on the tractor may match what is currently fitted but not what the factory installed. Check the original specification in the operator’s manual or via the dealer parts system.
Error 4: Ignoring CAN-Bus Compatibility
A modern tractor with CAN-bus integration shows a fault on the dashboard if a basic LED replaces a halogen. Always specify CAN-bus compatibility for tractors built since 2010.
Error 5: Mismatching Voltage
Most tractors run 12V; some heavy modern Magnums, Steigers, and Quadtracs run 24V. A 12V LED on a 24V circuit fails immediately. Always confirm voltage on the chassis plate or operator’s manual.
Tractor Light Fitment Buying Checklist
Use this checklist before buying any replacement or upgrade lamp for any tractor.
- [ ] Brand confirmed (including parent company changes for heritage tractors)
- [ ] Full model designation noted (including letter suffix)
- [ ] Build year confirmed via chassis plate
- [ ] Lamp position photographed in situ before removal
- [ ] Bulb code identified on the bulb body or in the operator’s manual
- [ ] Connector type photographed and identified
- [ ] Original specification confirmed via manual or dealer parts system
- [ ] OEM part number read from the lamp body
- [ ] Cross-reference to other group brands checked (CNH, AGCO)
- [ ] Aftermarket OEM cross-reference confirmed before ordering
- [ ] CAN-bus compatibility specified for tractors built since 2010
- [ ] Voltage matched (12V or 24V)
- [ ] E-mark required for any road-use lamp
- [ ] Mounting pattern verified against the lamp position
