LED-Worklight - Oval 100 Compact - 12/24V
5.0 Excellent, from 2 customer reviewsIn stock, 100 available
-
Dispatched within 1 working day
UK mainland delivery usually takes 2 to 3 working days - UK mainland delivery £11.00, free on orders over £75 inc VAT. Surcharge postcodes and international
In stock
- 30-day returns
- Secure card payment via Stripe
- Call 01522 440522, Mon to Fri, 9am to 5pm
- Voltage
- 12/24V
- Technology
- LED
- IP rating
- IP67, IP69K
About this LED work light
LED-Worklight - Oval 100 Compact - 12/24V is a Hella LED work light for 12/24V electrical systems. The light source is LED, the housing is sealed to IP67, IP69K. Mounting: bolted / mounting. It carries R10 approval for road use.
It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.
The Agri Lighting part number is PT/996761171, and it replaces or is equivalent to 1GA 996 761-171, B9409203.
The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing, which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1,850 lumens, the Oval 100 LED compact is ideal for replacing old halogen worklights (H3, H9) - with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.
- This spotlight comes with the innovative plastic housing, which offers complete corrosion resistance and many new mounting options.

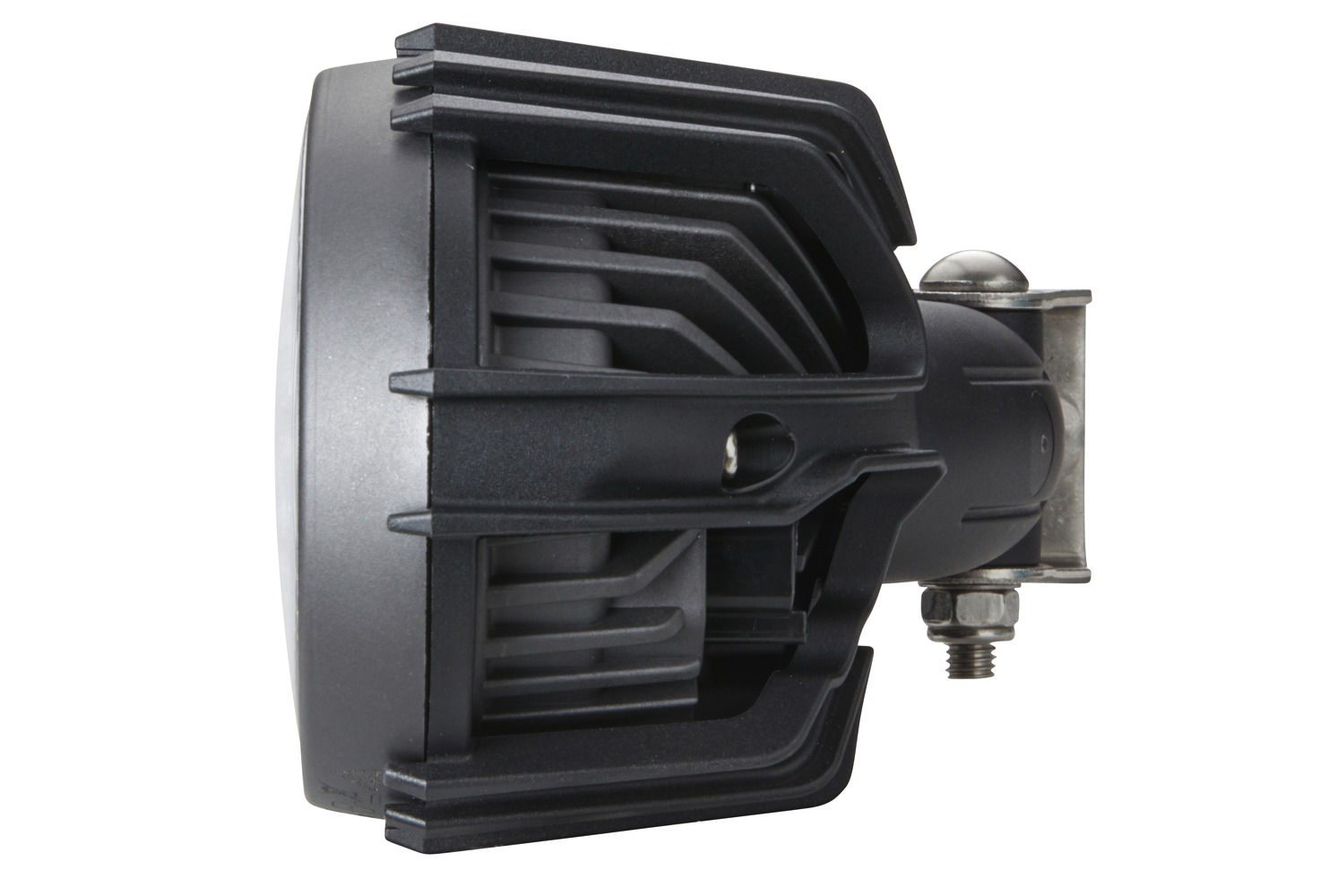

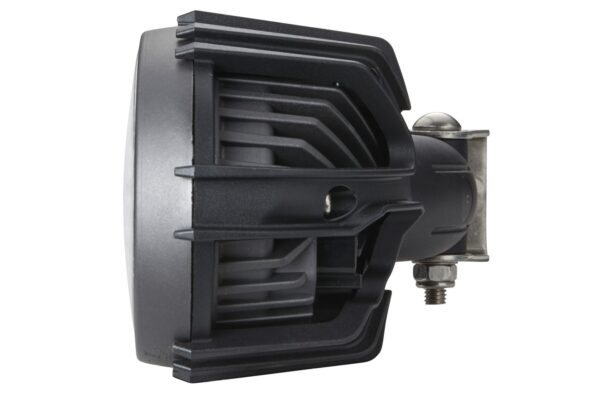

- The heat-conducting plastic housing is equipped with cooling fins on the rear side, which ensure the necessary heat dissipation of the 6 high-power LEDs.
- The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
- The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).
- The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
- Lamp Type: LED - Number of LEDs: 6 - Power consumption: 26W - Colour Temperature: 6500K
- Patterned diffusing lens
Specifications
| Voltage | 12/24V |
|---|---|
| Technology | LED |
| IP rating | IP67, IP69K |
| Mounting | Bolted / mounting |
| Fastening | for horizontal fastening |
| Bulb type | LED |
| Height | 107 mm |
| Width | 169 mm |
| Depth | 109 mm |
| Light distribution | Short distance lighting |
| ECE approval | R10 |

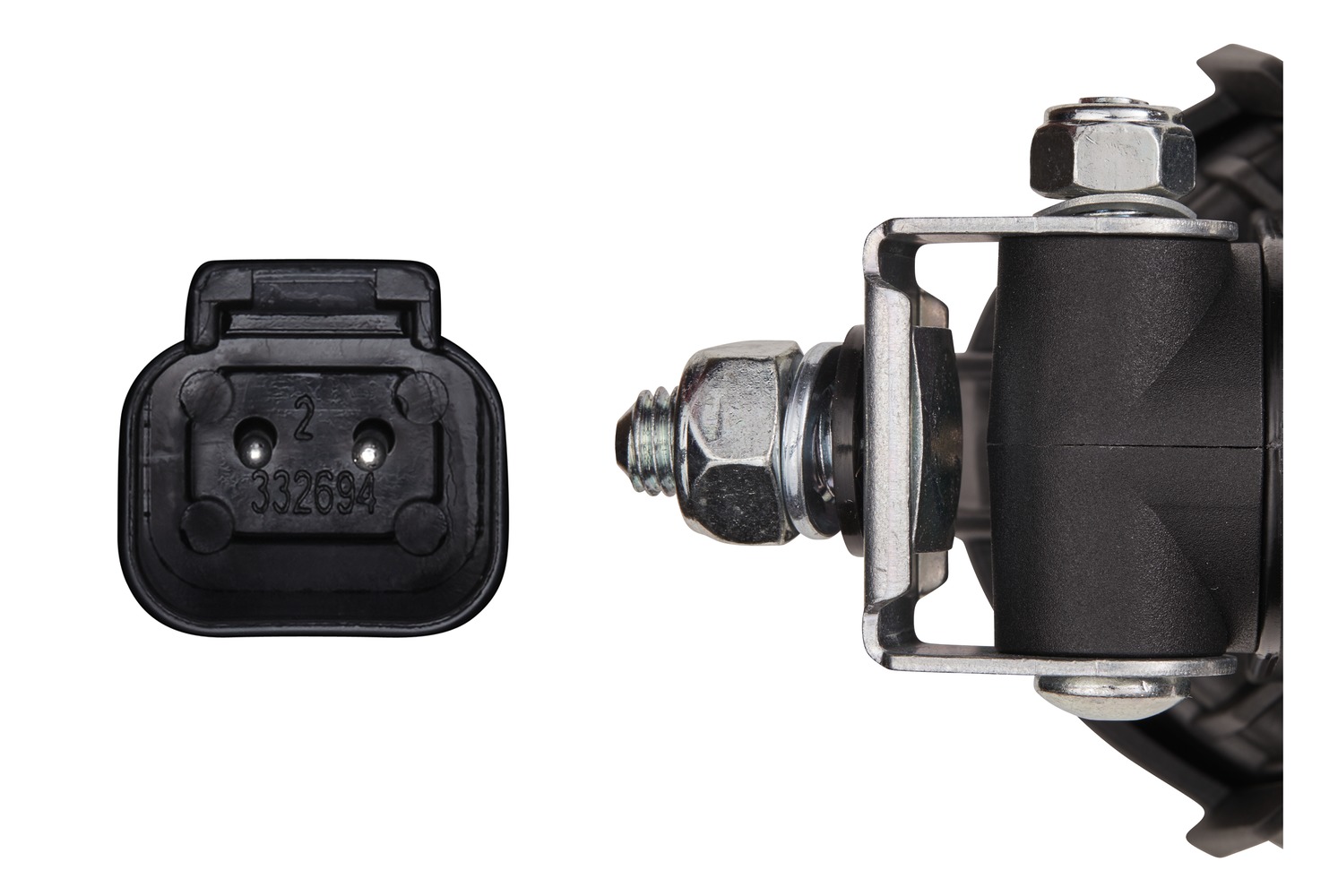

| Connector | DEUTSCH plug |
| Luminous flux | 1850 lm |
| Colour temperature | 6500 K |
| Number of LEDs | 6 |
| Power consumption | 26 W |
| Housing type | Synthetic Material Housing |
| Housing colour | black |
| Diffusing lens type | Patterned diffusing lens |
| Weight | 591 g |
| Part number | PT/996761171 |
| Brand | Hella |
Part numbers
This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.
- 1GA 996 761-171
- B9409203
