LED-Spotlight - Luminator X LED - 12/24V

Hella Part no. A25-002577 Previously PT/012206001

LED-Spotlight - Luminator X LED - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
£452.68 ex VAT
£543.22 inc VAT

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Free UK mainland delivery on this item. Surcharge postcodes and international
Voltage
12/24V
Technology
LED
Lens colour
Clear
Light functions
High beam

About this LED work light

LED-Spotlight - Luminator X LED - 12/24V is a Hella LED work light for 12/24V electrical systems. The light source is LED, the lens is clear. Light functions: high beam. Mounting: bolted. It carries R112 approval for road use.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-002577 (previously PT/012206001), and it replaces or is equivalent to 1F0 012 206-001, 5149081380, 51490813800000, ACV0753630, A5149081380, A51490813800000 and 1 more.

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

  • High-performance LED for long range
  • Illumination of the roadway by computer-calculated double reflector technology

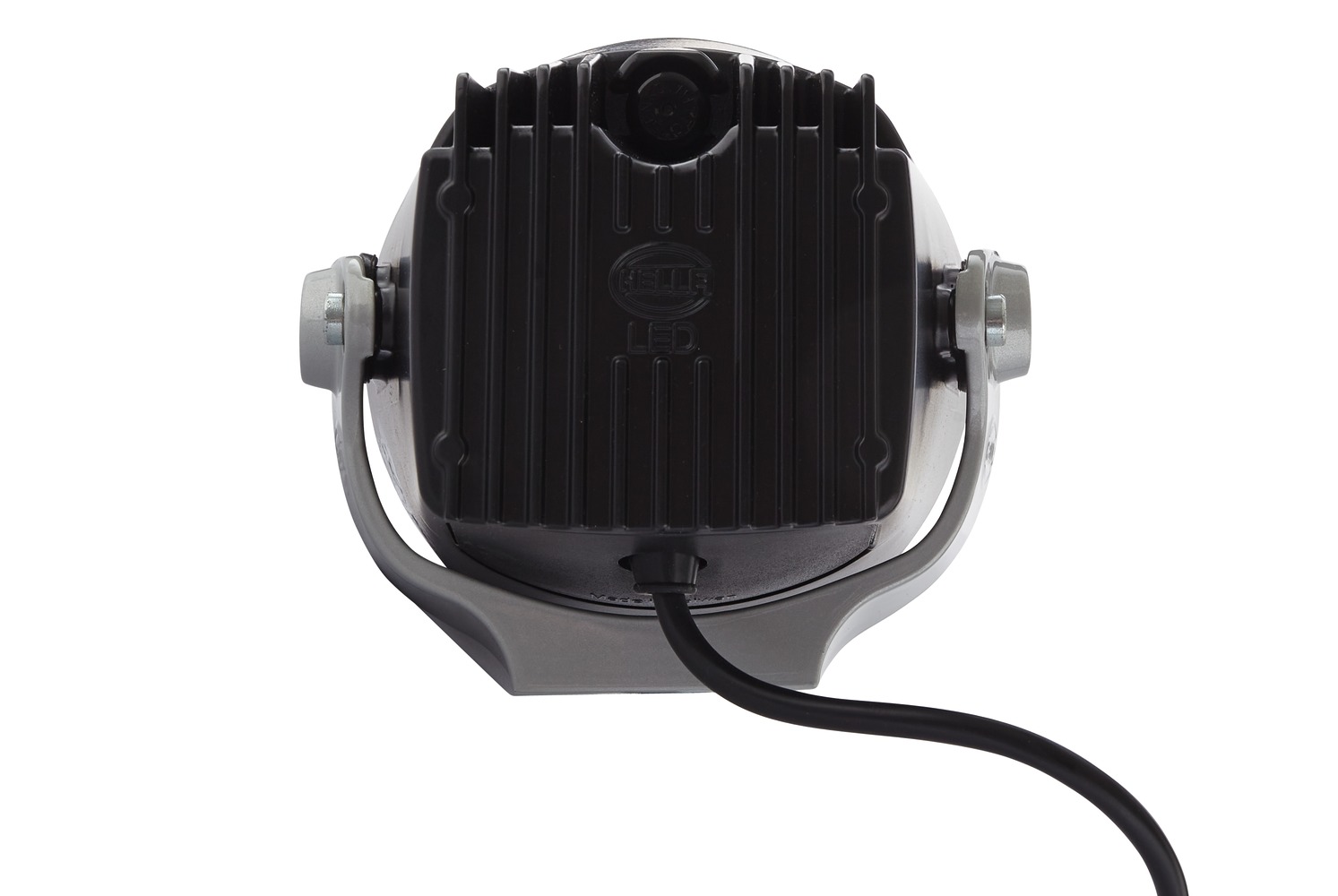

  • Integrated electronics and cooling fins for passive heat dissipation, no fan necessary
  • Immediate light without delay when light flashes
  • Bulb replacement no longer necessary
  • Width: 145mm - Height: 127mm - Depth: 116mm - Fitting Depth: 59mm - Overall Height: 133mm - Lamp Type: LED - with LED - without top
  • Light functions: 1 - with high beam (LED)

Specifications

Voltage12/24V
TechnologyLED
Lens colourClear
Light functionsHigh beam

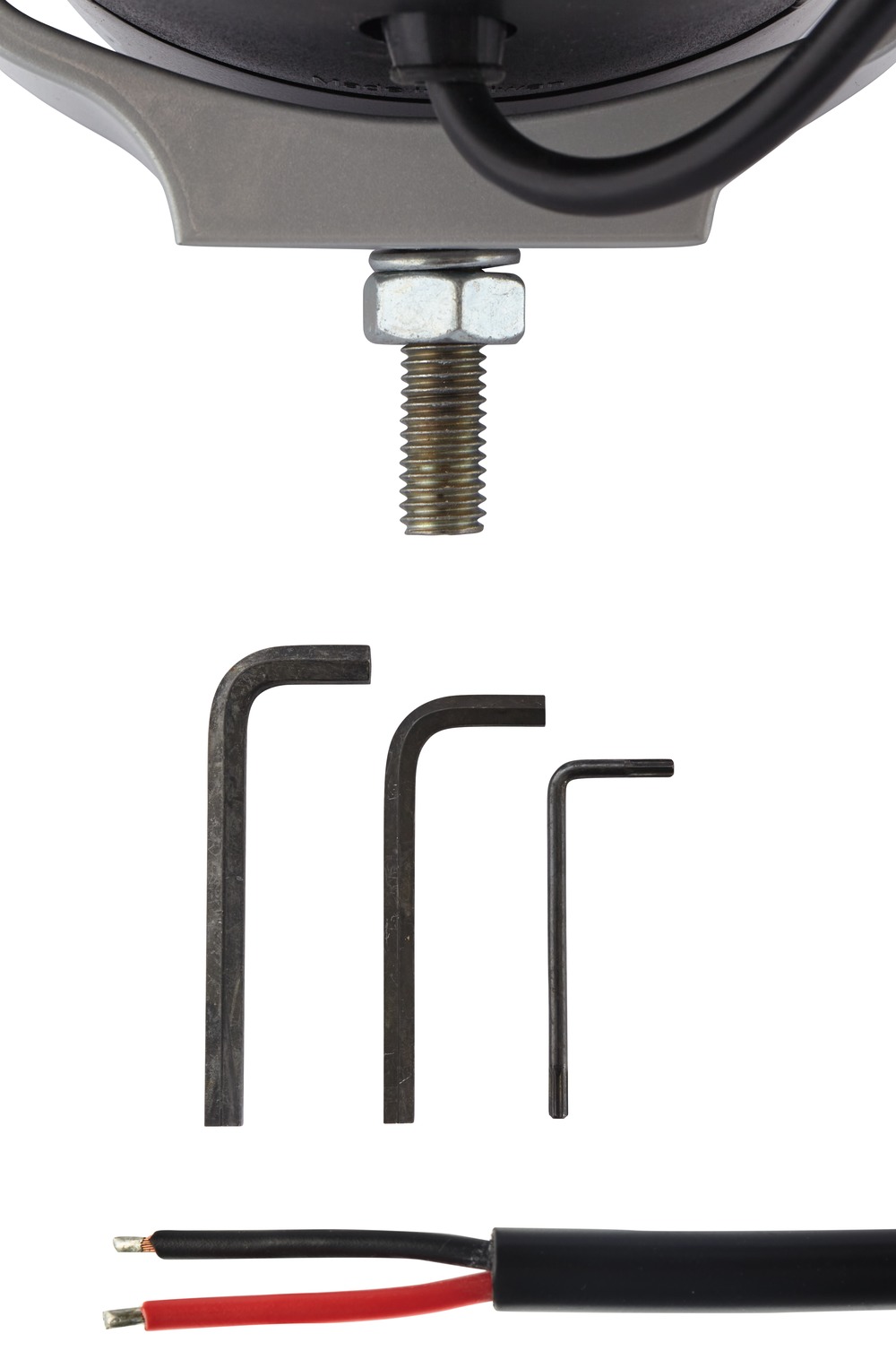

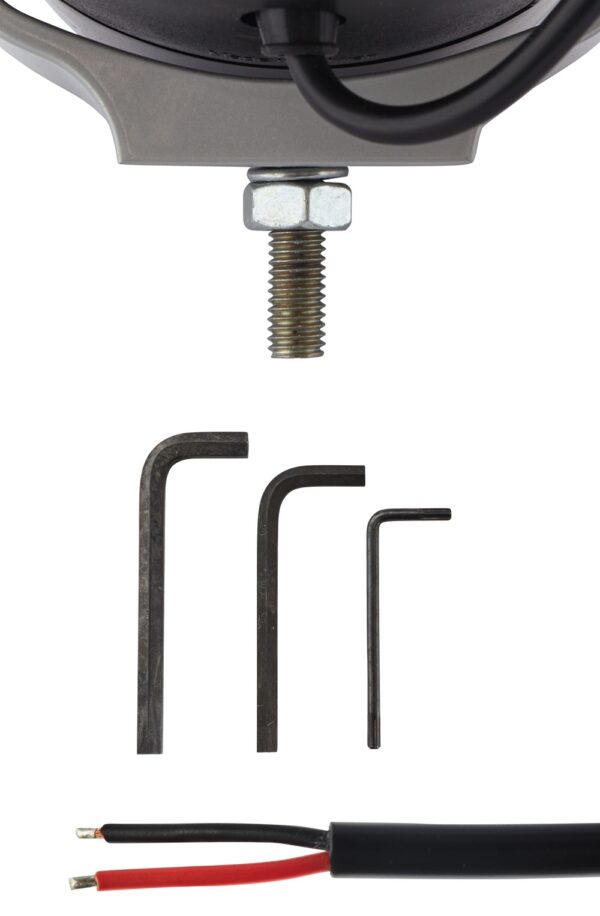

MountingBolted

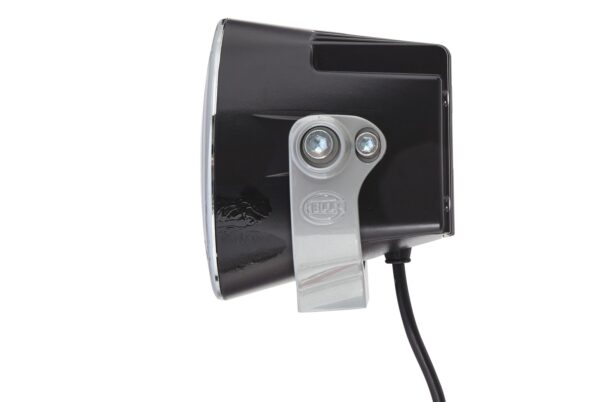

FasteningSuspended / Swivelling Mounting Bracket / Vertical
Bulb typeLED
Fitting positionleft / right
Height127 mm
Overall height133 mm
Width145 mm
Depth116 mm
Fitting depth59 mm
ECE approvalR112
Cable3000 mm
Housing colourblack
Frame colourchrome
Shaperound
Housing typeMetal Housing
Diffusing lens typeClear diffusing lens
Weight1.26 kg
Part numberA25-002577
BrandHella

Part numbers

Our part number for this item is A25-002577. It was previously listed as PT/012206001, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1F0 012 206-001
  • 5149081380
  • 51490813800000
  • ACV0753630
  • A5149081380
  • A51490813800000
  • 37.5
